Holley Mid-Rise Intake - GM LS1/LS2/LS6 w/ 105mm Top

Holley Mid-Rise Intake - GM LS1/LS2/LS6 w/ 105mm Top

Holley Mid-Rise Intake w/Black Ceramic Coating for GM LS1/LS2/LS6 platform engines

Overview

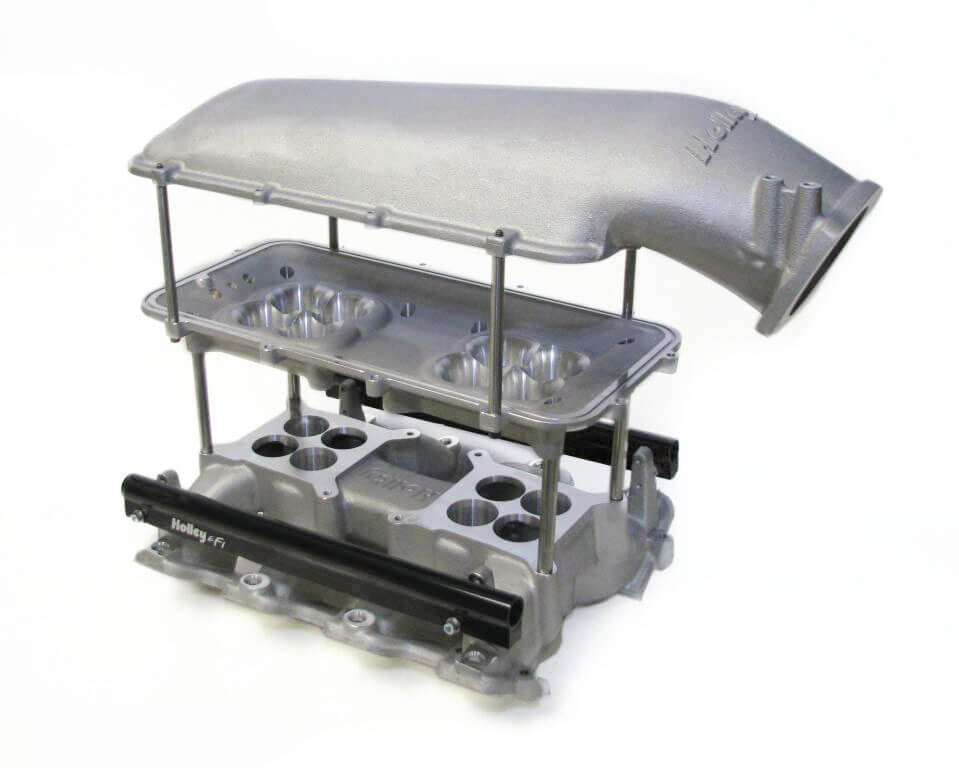

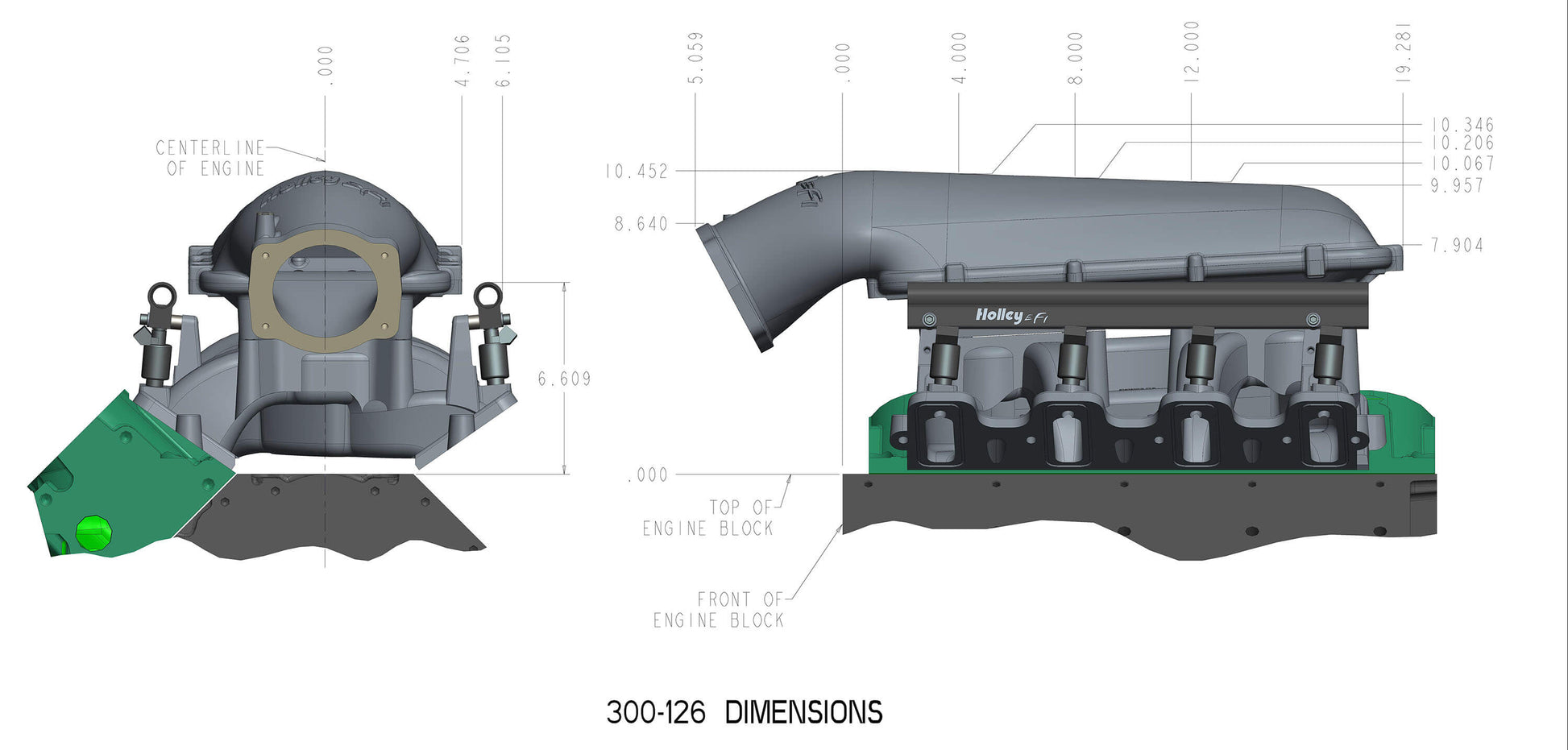

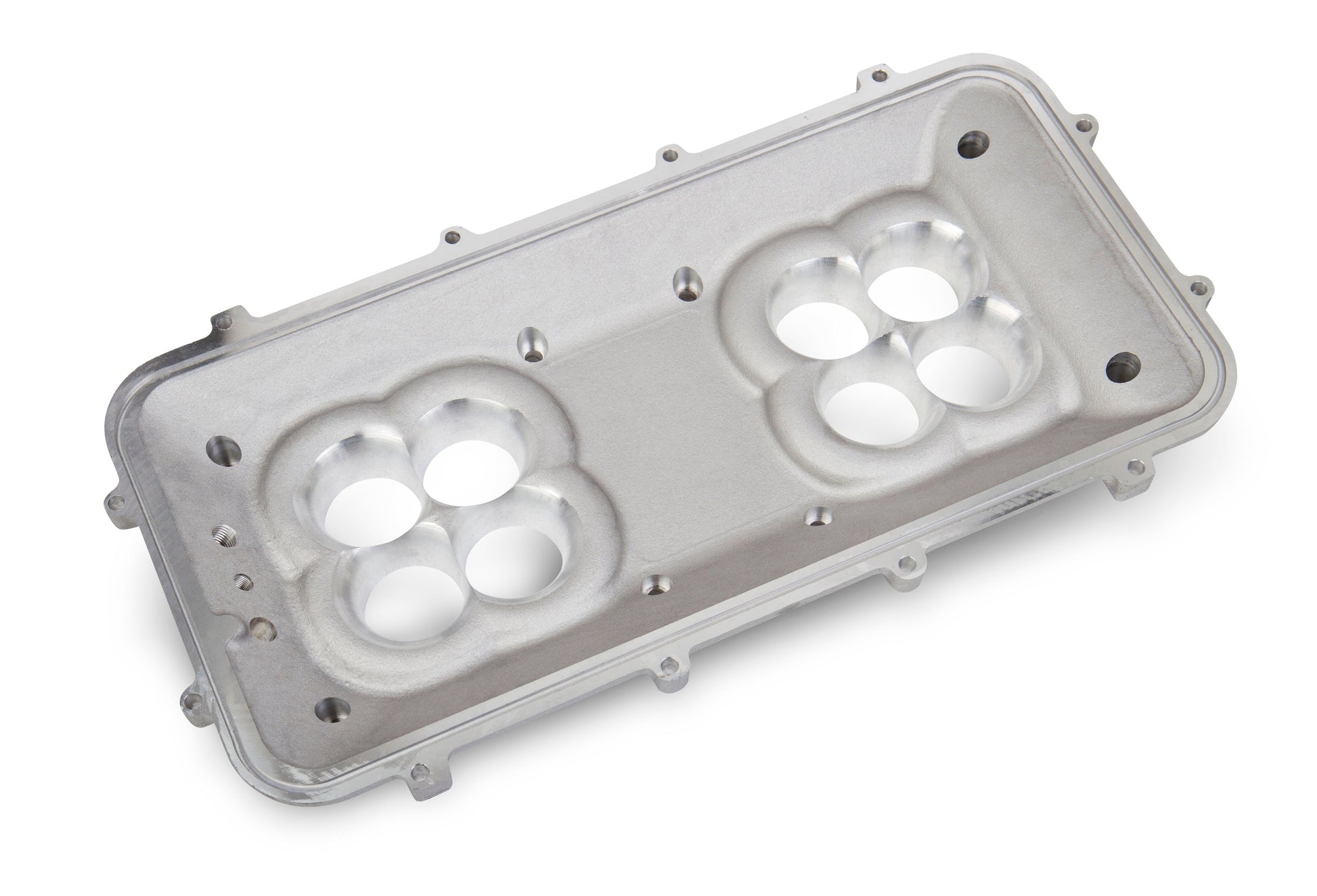

The Modular Mid-Rise intake utilizes the popular Holley LS1/LS2/LS6 cathedral port Mid-Rise 2 x 4 intake manifold along with a purpose built plenum base adapter and a Holley 95MM EFI plenum top which converts it into a Mid-Rise EFI intake manifold. With a max overall height of only 10.44", the Mid-Rise manifold is an excellent choice for street and performance street/strip applications with a power band from 1,500-6,500 RPM and limited hood clearance. It's perfect for turbocharged, or normally aspirated applications. This manifold is modular, and the plenum adapter (PN 300-267) will accept all of the popular Holley LS Hi-Ram plenum tops as a foundation for custom induction systems. *** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.

Recalibration of the ECU may be required when using this intake manifold design with OE ECU. Holley EFI LS main harnesses have a map sensor connecter designed for use with an LS1/2 style map sensor. The 558-416 is an adapter harness that can be used to adapt any LS harness that uses a LS1/2 MAP sensor connection to a LS3 MAP, which is recommended for this manifold. NOTE: these manifolds fuel rails are designed to accept Bosch Style EV-1 or Magneti Marelli Pico fuel injectors (OE LS fuel injectors may not fit properly in the intake manifold fuel rail assembly). *** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.

Features:

Provides great performance to 6500 rpm for street/strip performance applications while providing the look of a racing EFI intake manifold
Unique modular design allows the combination of a traditional dual-plane layout with an EFI manifold plenum to produce great mid-range torque without compromising top end power
Great for supercharged or turbocharged engines
Power band from 1500-6500 rpm
May require an aftermarket hood for some vehicle applications.
Cast aluminum construction
Intended for use on all GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads (recalibration of the ECU may be required when using this intake manifold design with OE ECU).
105MM EFI plenum top

Details:

Color: Silver
Construction: Cast
Engine: GM LS1/LS2/LS6
Finish: Silver
Flange Style: EFI
Front Height: 10.44 inch
Fuel System Type: EFI
Manifold Type: Mid Rise
Rear Height: 9.99 inch
Recommended Use: Forced Induction
RPM Power Band: 2500-7000 RPM
Warranty: Limited 90 Day

Links
Instruction Sheet
Instruction Sheet
Dimensions
