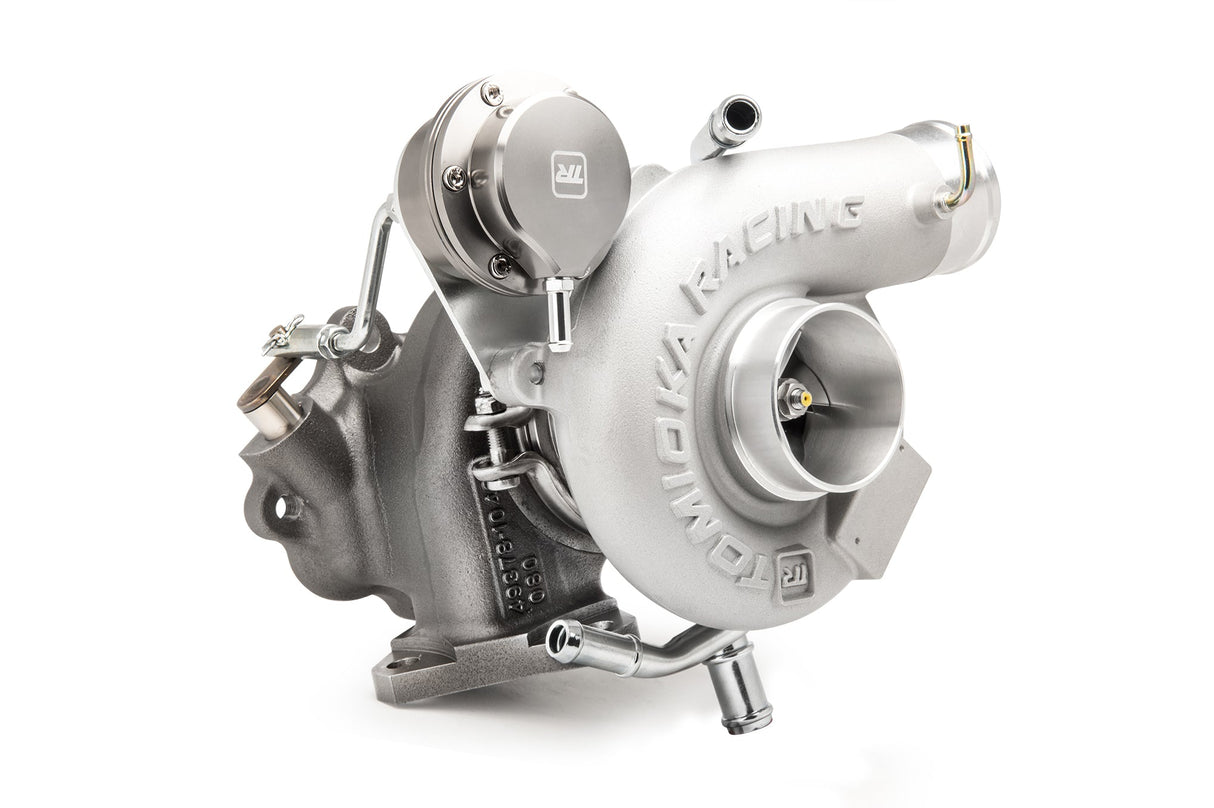

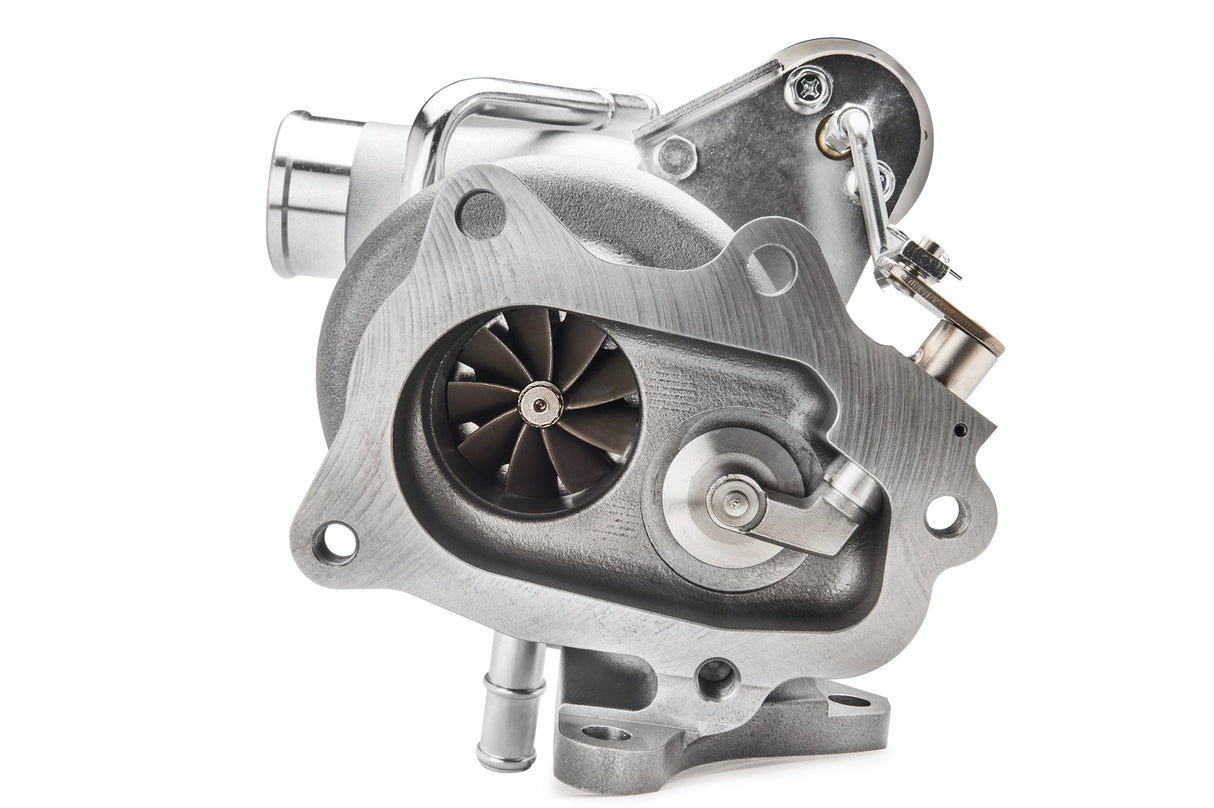

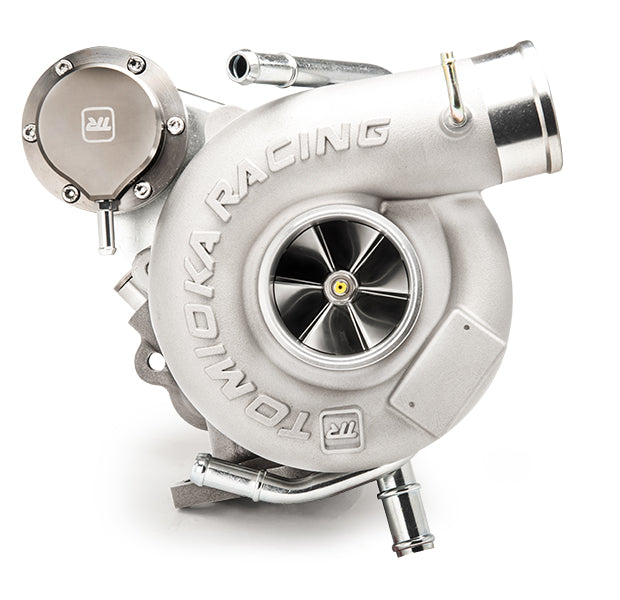

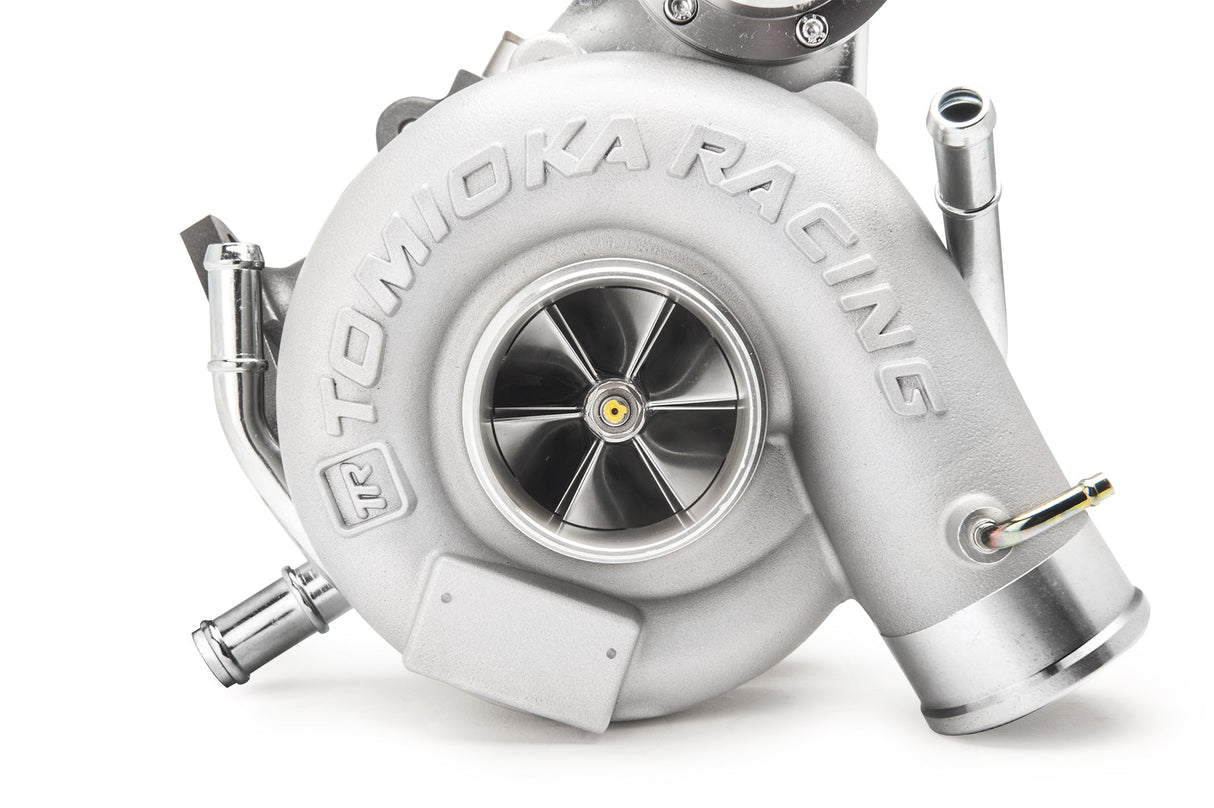

TR TD05-20G Ball Bearing Billet Wheel Bolt On Turbo Stock Replacement for Subaru WRX 02-07 & STi 04-21
TR TD05-20G Ball Bearing Billet Wheel Bolt On Turbo Stock Replacement for Subaru WRX 02-07 & STi 04-21 - 1.1 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Slow spool no more! Tomioka Racing’s TD05-20G for Subaru now comes in a ball bearing version. This latest offering breaks the myth of slow spooling TD05-20G. Armed with dual ceramic ball bearings and billet compressor wheel, this TD05-20G will spool close to a factory turbo with the right tune. The configuration provides balanced & improved air flow to the TD05 frame. The faster spooling TD05-20G will inject more driving excitement to your daily Subaru. You can expect the same seamless fitment from this new turbo as its TD05-20G predecessor.
Do you need more Motul 300v? Add some more HERE!
Turbo Characteristics:
|
Bearing Type: |
Ball Bearing |
|
|
Flange Type: |
Standard Subaru 5-Bolts |
|
|
Compressor Wheel |
In: |
52.5 mm |
|
Ex: |
68 mm |
|
|
Turbine Wheel |
In: |
56 mm |
|
Ex: |
49.2 mm |
|
|

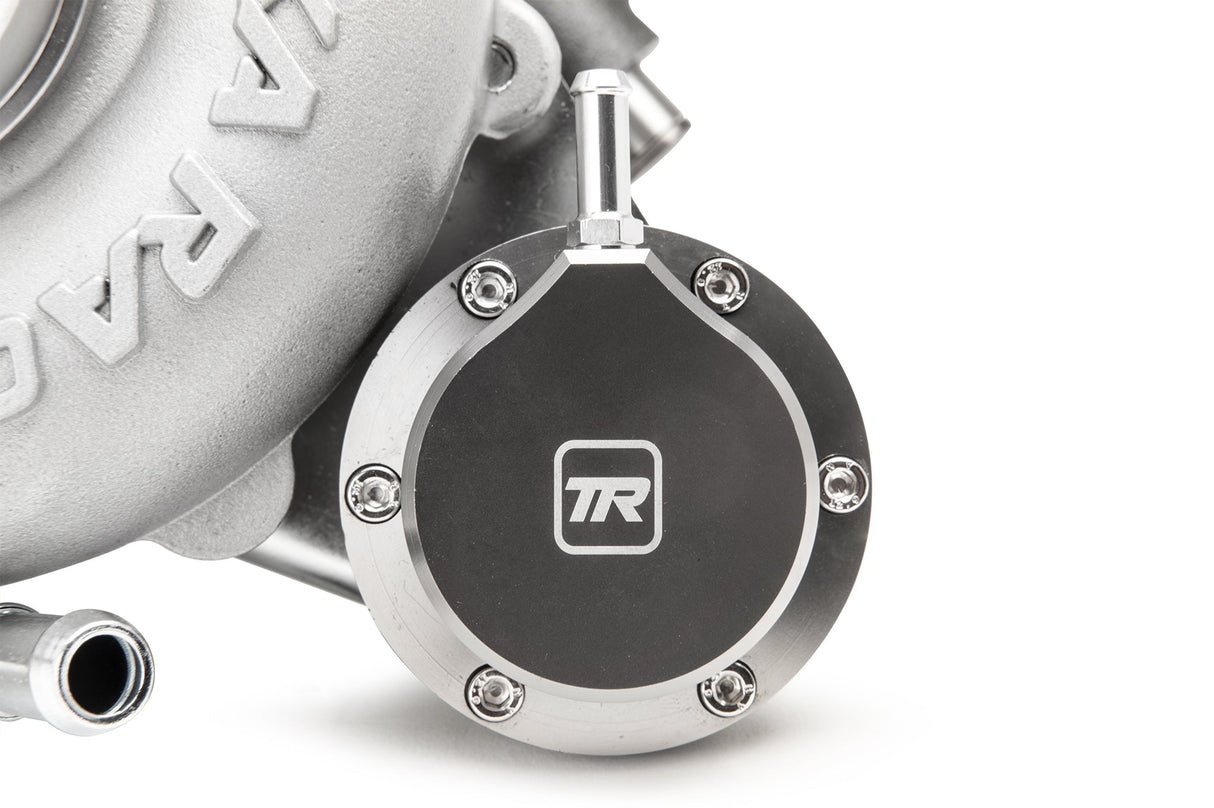

Actuator: |
1.1 bar / 16 psi (Optional 1.3 bar) |
|
|
Turbine Housing: |
8 cm2 |
|
|
Max. Power: |
480 HP |
|
Specifications:
- Dual Ceramic Ball Bearing

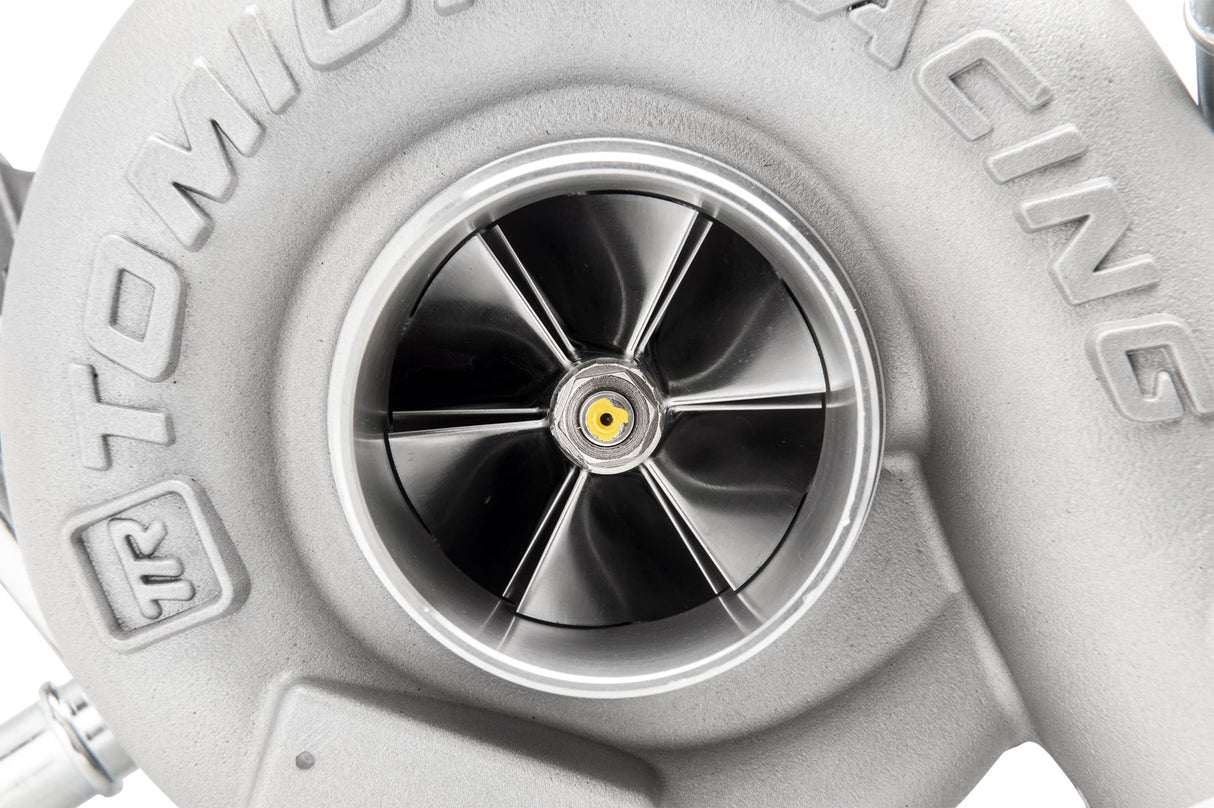

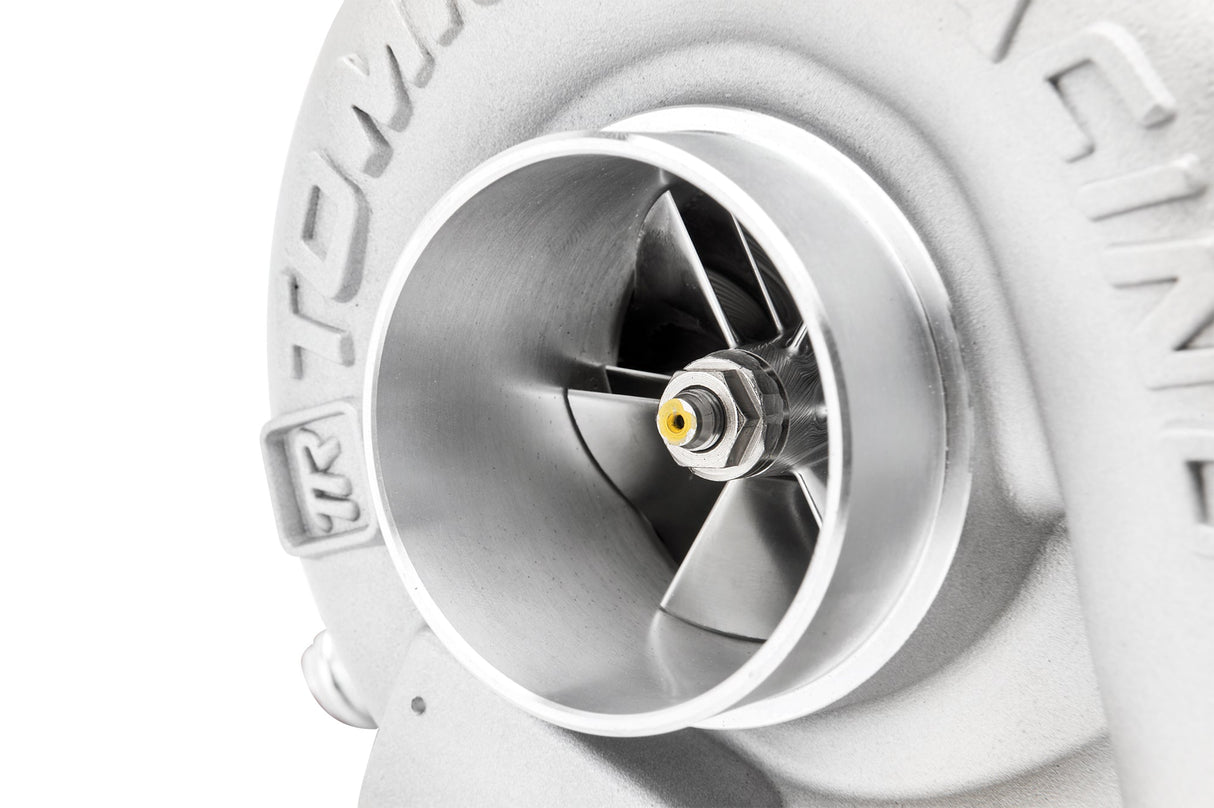

- Billet Compressor Wheel
- Fast Spool
- Bolt-On

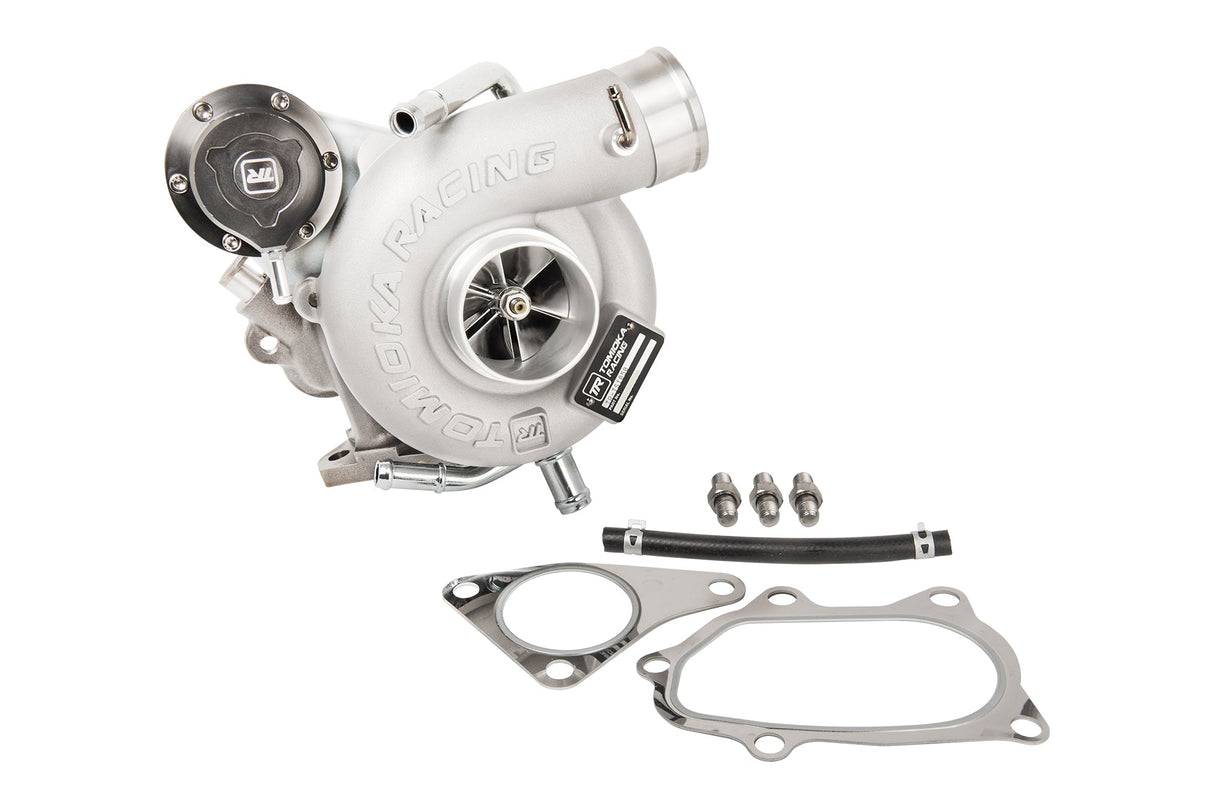

Kit Contents:
- Turbocharger
- Gasket
- Hardware Kit
- Motul 300V 2L
Applications:
- 2002 - 2007 Subaru WRX
- 2004 – 2018 Subaru STi
