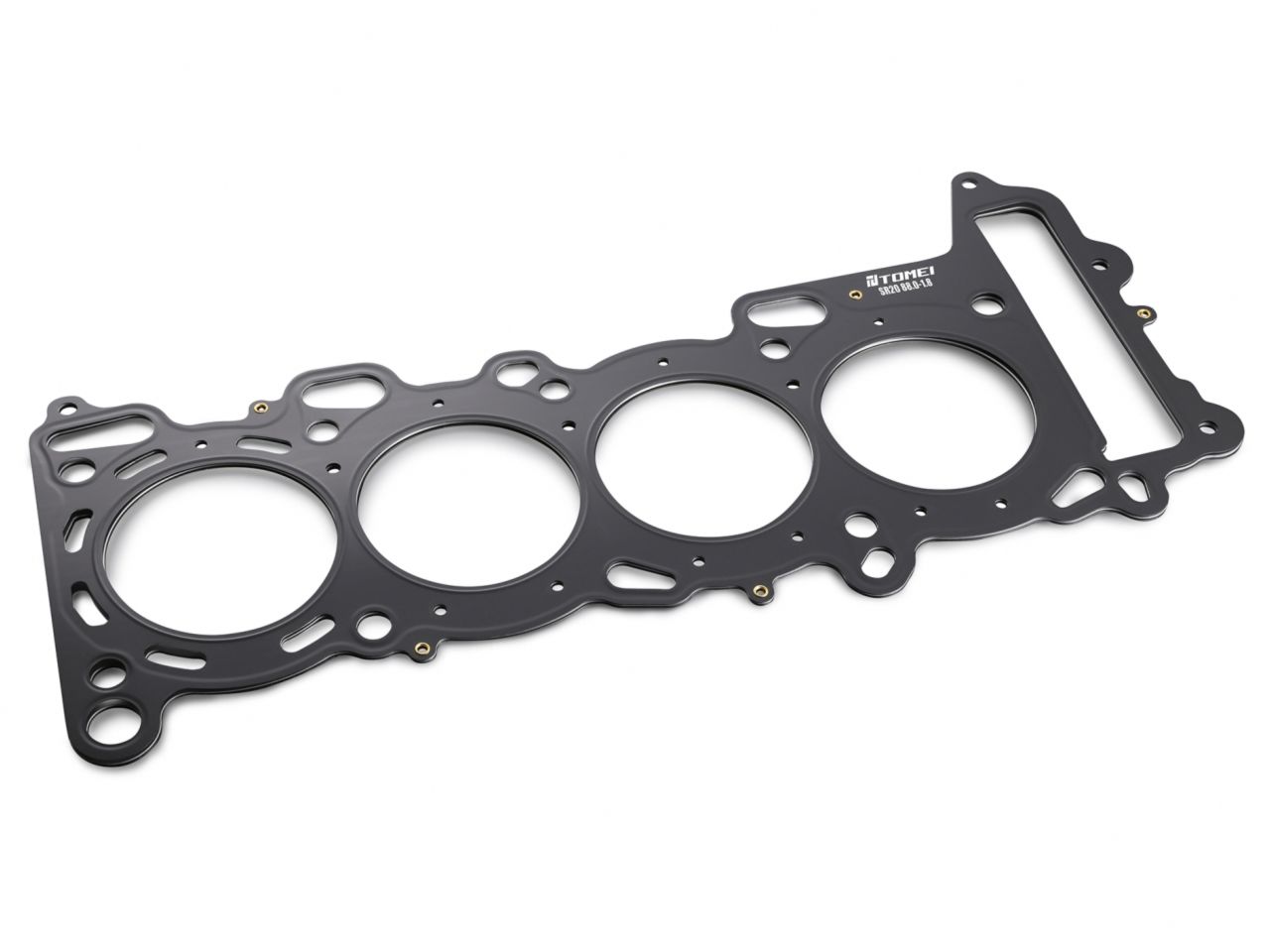

• Tomei SR20DE[T]-FR Head Gasket
  • Tomei SR20DE[T]-FR Head Gasket
  • Tomei SR20DE[T]-FR Head Gasket

Tomei SR20DE[T]-FR Head Gasket

Tomei SR20DE[T]-FR Head Gasket

Tomei

0VLCR

In stock
Bore
Thickness
$107.00
$107.00 $120.00
  • Secure checkout
  • Warranty Backed
  • Genuine Parts
Sale

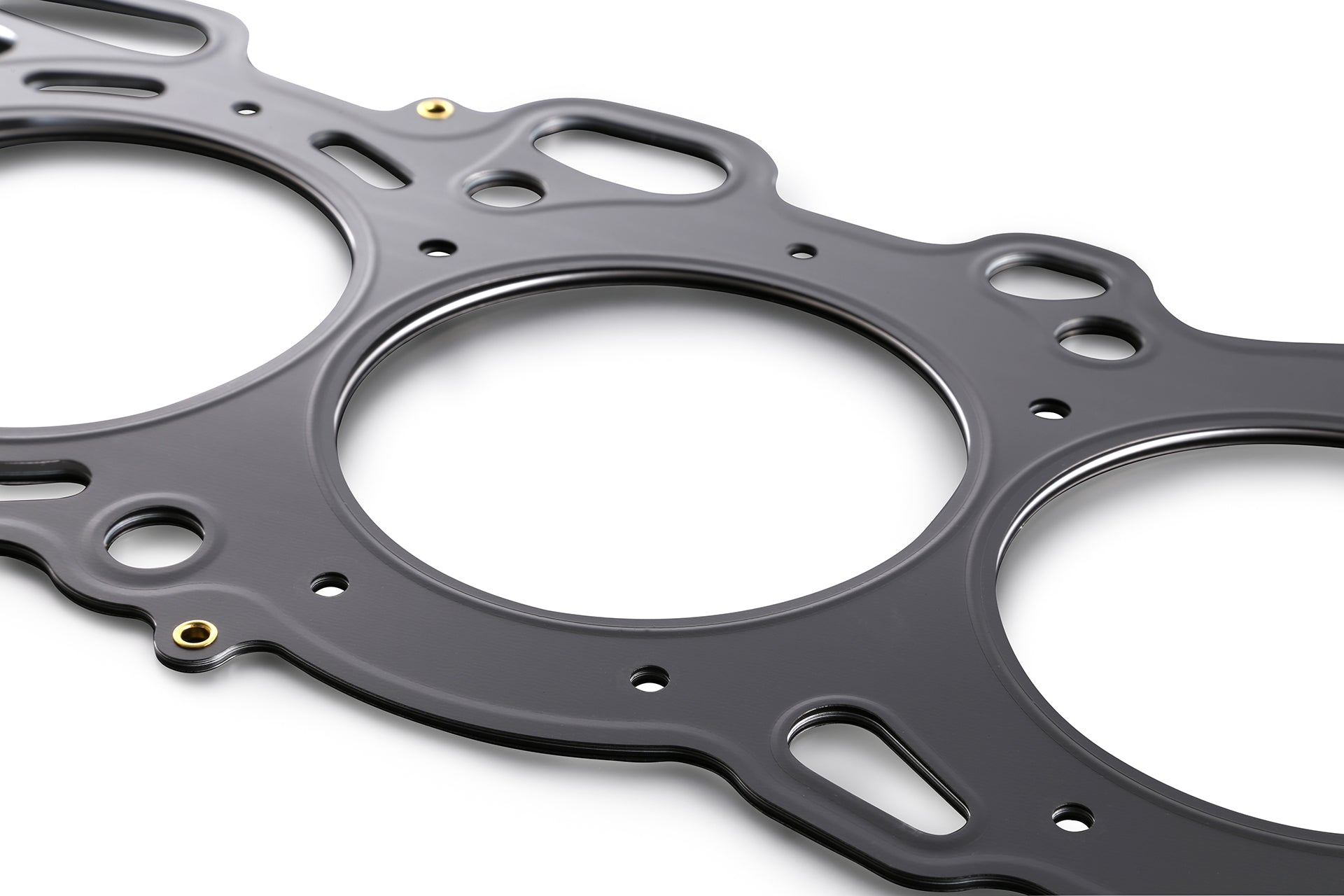

Tomei Gasket Ultra Durable, High Performance Head Gasket Highly Optimized, Engine Specific Construction Made Using Premium Grade Materials and Coatings Precision Water/Oil Route Seals Multiple Thicknesses For CR Adjustment Each gasket features an optimized combination of seals and beads derived from analyzing the engine's individual characteristics that include bore spacing/layout, head/block materials and sealing properties. This also helps limit the head/warp distortion that's often associated with other high performance gaskets.

STAINLESS STEEL

Stainless steel is used across all our high performance gaskets. Robust and resistant to high temperatures,stainless steel facilitates efficient transfer of heat from the combustion chamber to the cylinder block. In addition, it's flexible nature further strengthens the seal made by the spring-like beads which helps prevent issues such as blown gaskets and melted cylinder blocks.

UNIQUE RUBBER COATING

Both the top and bottom layers of the gaskets are coated in a specially developed unique rubber coating that reinforces the seal and contact with the head/block surfaces. Higher Compression, The perfect Seal, Prevent Problems With this Easy Upgrade !! The technological advancement of performance engines and even more so from tuned engines will increase the burden of stress on the head gasket. Under extreme conditions of high cylinder pressures and competition use, the head gasket is often the weakest point. The expansion and 3D pressure image shown, displays the effectiveness of the TOMEI multiple layered head gasket with the super grommet design (shown with the pressure image analysis system). The sealing performance is pursued with cross-section measurements and utilizing various functions within the design.

RB20DE(T) HEAD GASKET

Specifications:

Category: Gasket Head Gasket

Engine: RB20DE(T)

Weight (lbs): 2

Dimension (Inch): 12x22x1

Material: Metal

BORE THICKNESS PART NO.
¦87.0 1.0mm TA4070-NS08A
1.2mm TA4070-NS08B
1.5mm TA4070-NS08C
1.8mm TA4070-NS08D
¦88.0 1.2mm TA4070-NS08E
1.5mm TA4070-NS08F
1.8mm TA4070-NS08G



Vehicle Fitments:

Year Make Model Submodel
1991 - 1998 Nissan 240SX LE
1989 - 1998 Nissan 240SX SE, Base
1989 - 1990 Nissan 240SX XE

Fitment

Make
  • Nissan
Tomei SR20DE[T]-FR Head Gasket

$107.00

Tomei

Tomei Powered USA Inc., established in October 2006, is an automotive performance tuning parts manufacturer based in Lake Forest, California.  The company is 100% owned and operated by Axesta Inc., headquartered in Zama, Kanagawa Prefecture, in Japan.  At the Japanese headquarters, all product development and control of manufacturing for the TOMEI brand are carried out.

The Japanese headquarters Axesta Inc., was established by former Tomei Powered Japan executives and engineers, led by Akira Sasaki, who served as CEO of Tomei Powered Japan for many years up until 2014, to produce world-class tuning parts that go beyond Japan’s limitations. With the rich experience of new members and continuous research and development, Axesta Inc. has successfully developed many high-performance and durable products. Axesta Inc. owns two brands: TOMEI and R.S.E. In the Americas and Europe, it operates as TOMEI “The Engine Specialist,” while R.S.E. “Real Speed ​​Engineering” targets the Asian and Oceanian markets.

Before 2014, TOMEI was mainly developing products for Japanese market with vehicle inspection restrictions in Japan. Now, Axesta Inc. has raised the market standards to a higher technical level and is developing products that will meet high-end standards around the world.  The products developed by the Axesta Inc. aim to build products that far exceed the regulatory standards in Japan.

Since 2014, Tomei Powered USA Inc. has been offering a wide range of top-notch tuning products, including internal engine parts such as crankshafts, connecting rods, camshafts, various valvetrain components, and head gaskets.  High-performance exhaust parts include full titanium mufflers and stainless-steel exhaust manifolds, and peripheral parts such as ball bearing turbos to name a few.
