Tomei Turbine Outlet Pipe Kit Expreme Rb25det/rb20det

Tomei Turbine Outlet Pipe Kit Expreme Rb25det/rb20det

Tomei

1DUTV

Low stock


Regular price $350.00
Sale price $350.00 Regular price $390.00

  • Secure checkout
  • Warranty Backed
  • Genuine Parts
Sale

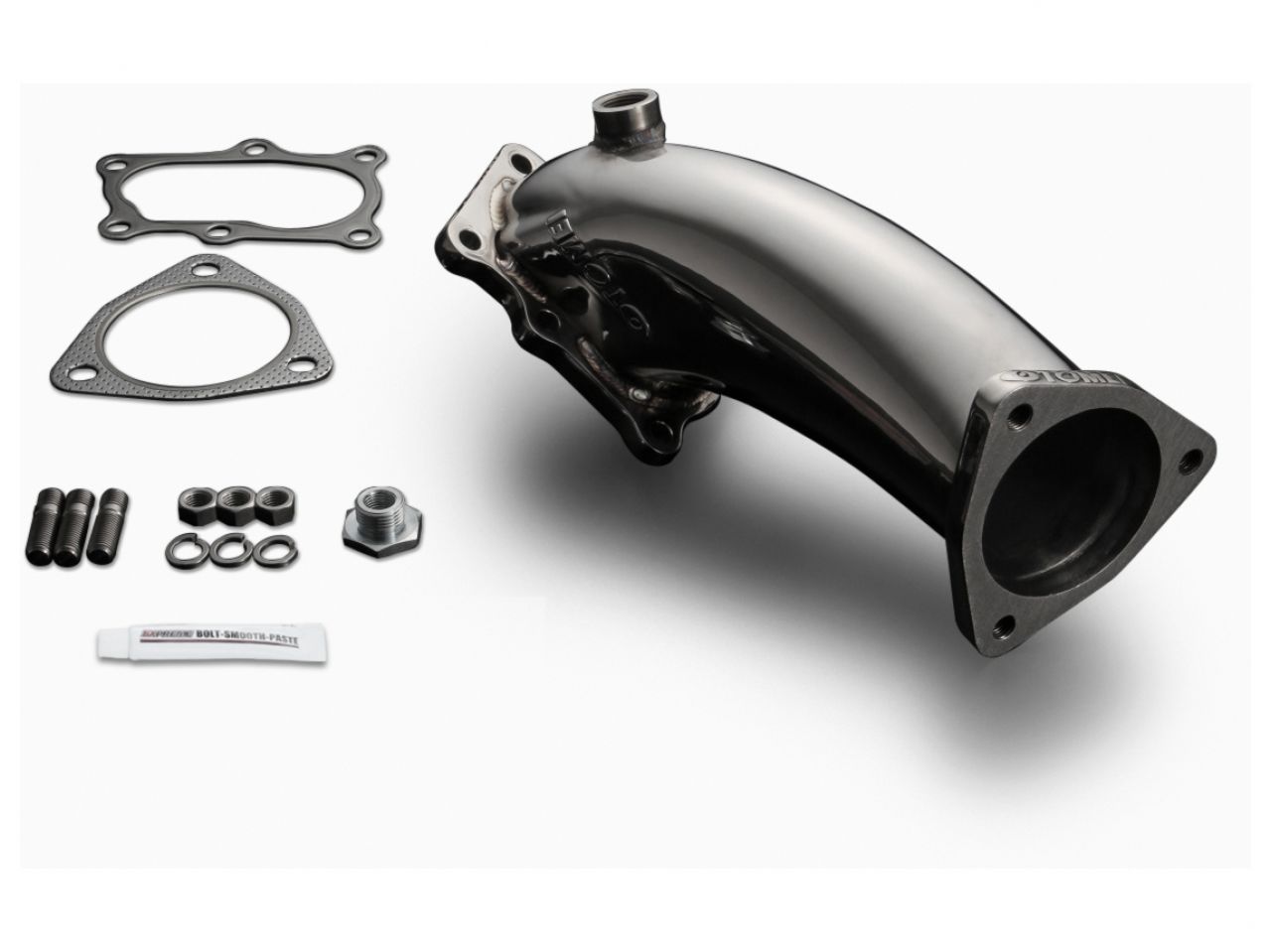

TURBINE OUTLET PIPE KIT EXPREME RB25DET/RB20DET (Previous Part Number 422001)

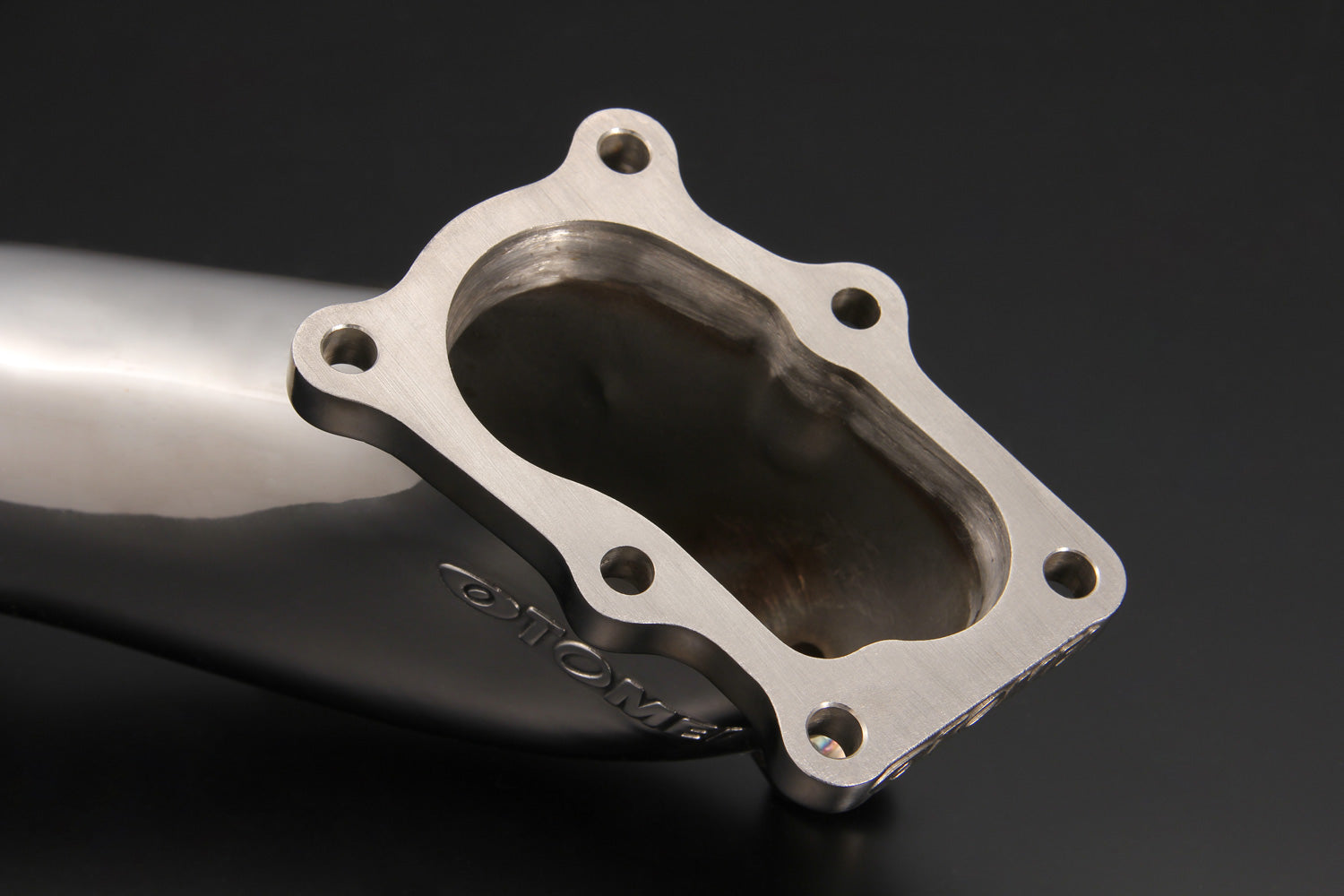

With a smooth inner walls, high flow capacity, easy to install flange design for an easy direct bolt on application. Compatible with the stock turbo and the Tomei ARMS Turbo will contribute with improving the power output. Designed to suit a ¦76.3mm front pipe.

  • Category: Exhaust Turbine Outlet Pipe
  • Engine: RB25,RB20
  • Weight (lb): 6
  • Dimension (inch):13x7x7

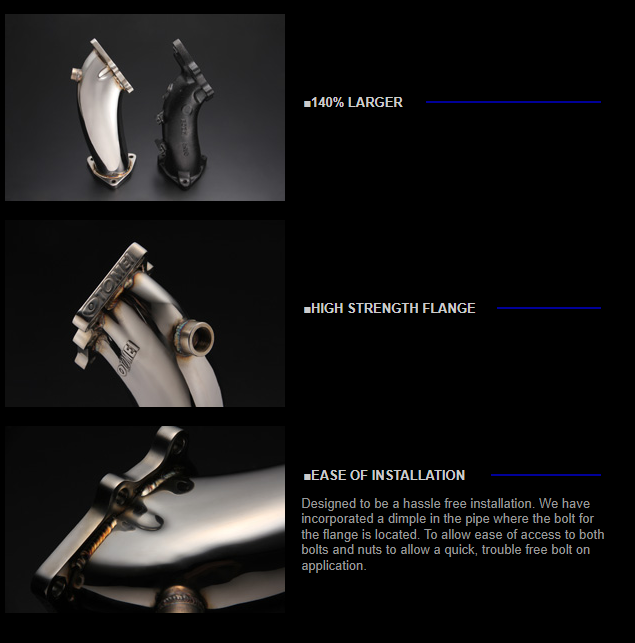

WIDE MOUTH, STEPLESS SMOOTH PORTING

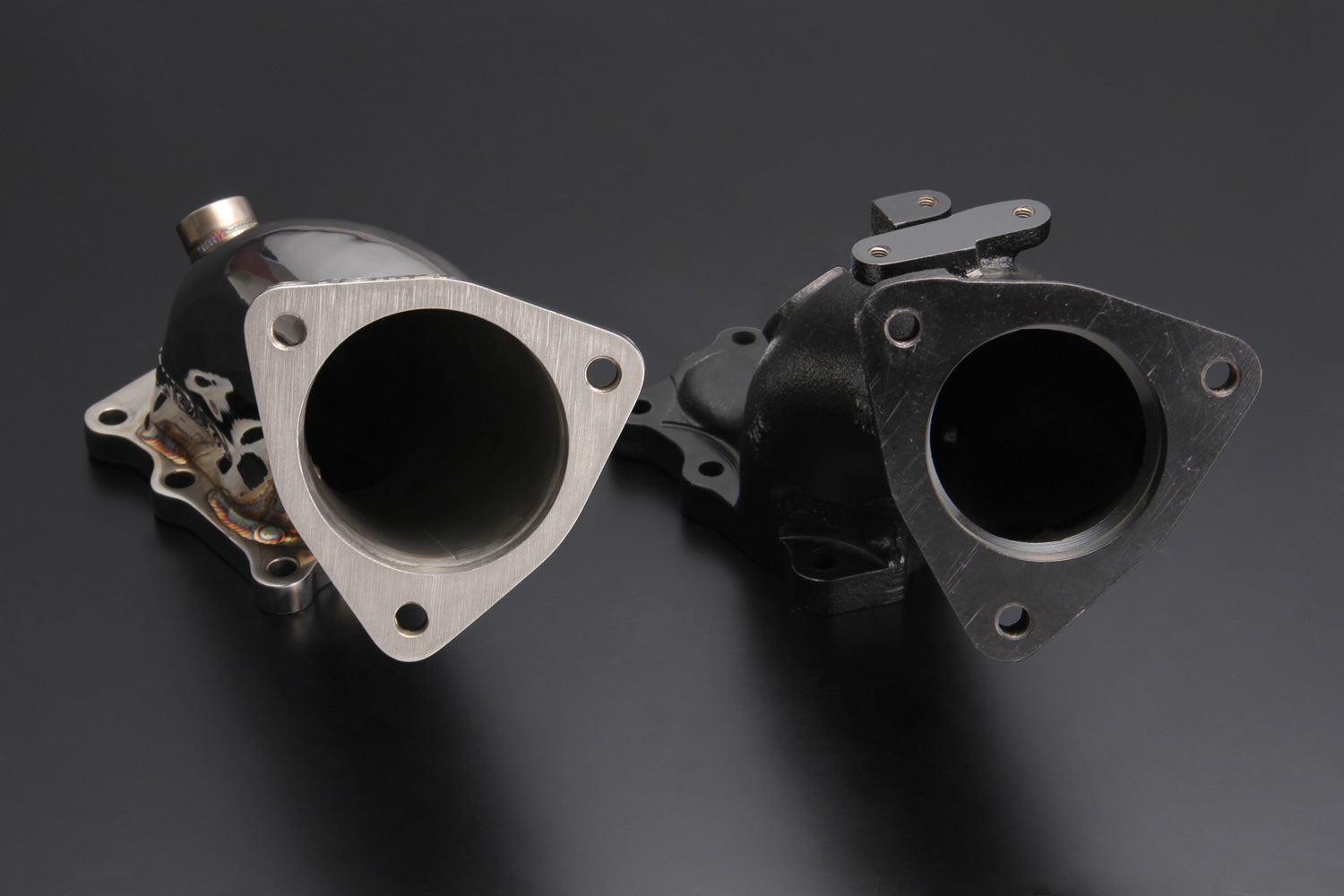

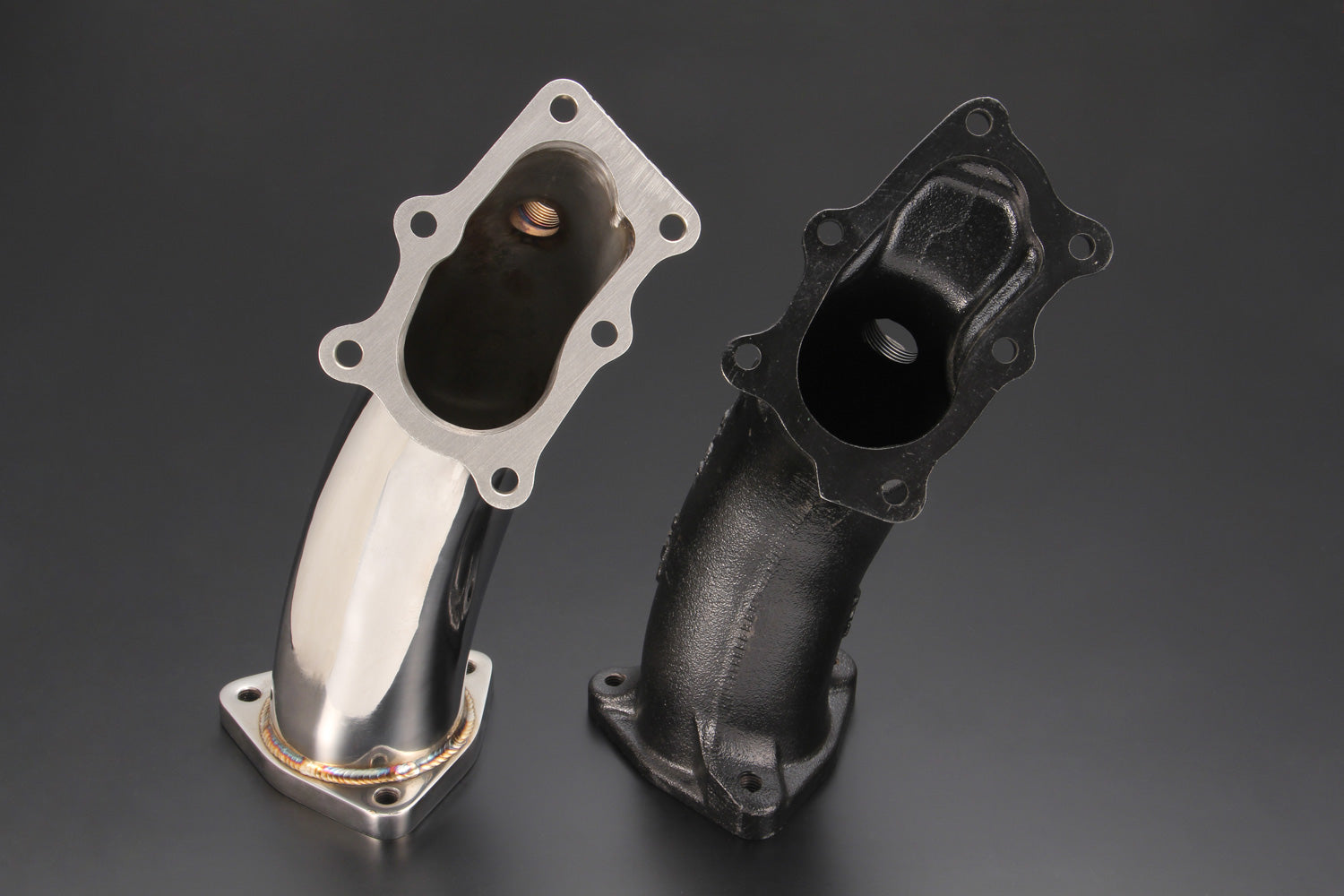

The stock outlet pipes mouth is partially blocked at the port bypass side. This design is for low engine speed response. We've enlarged this section to improve power gains. By optimizing the shape of the enlarged area, we were able to prevent the loss of both torque and power in the low engine speed range.

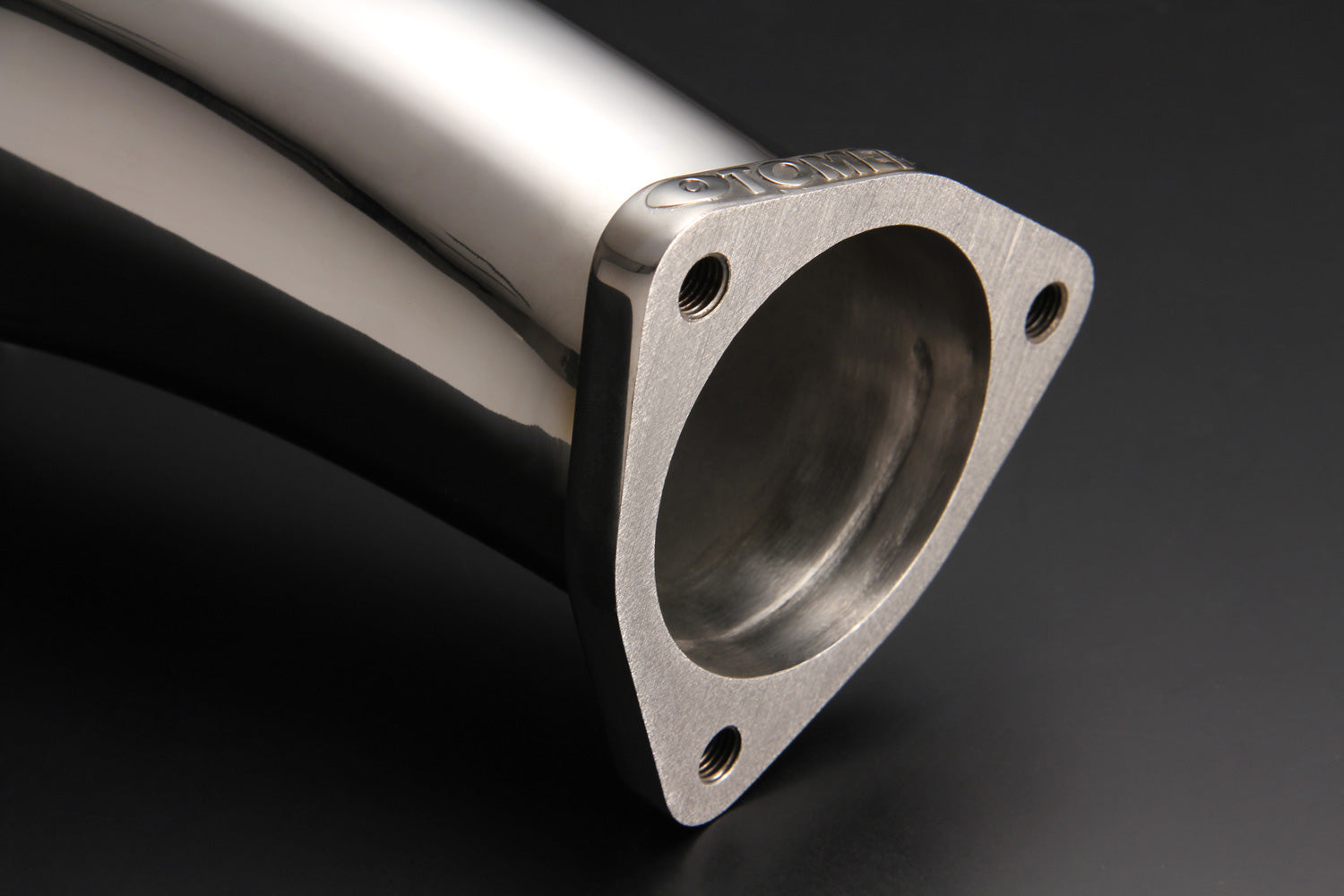

3 INCH (Æ76.3mm) COMPATIBLE

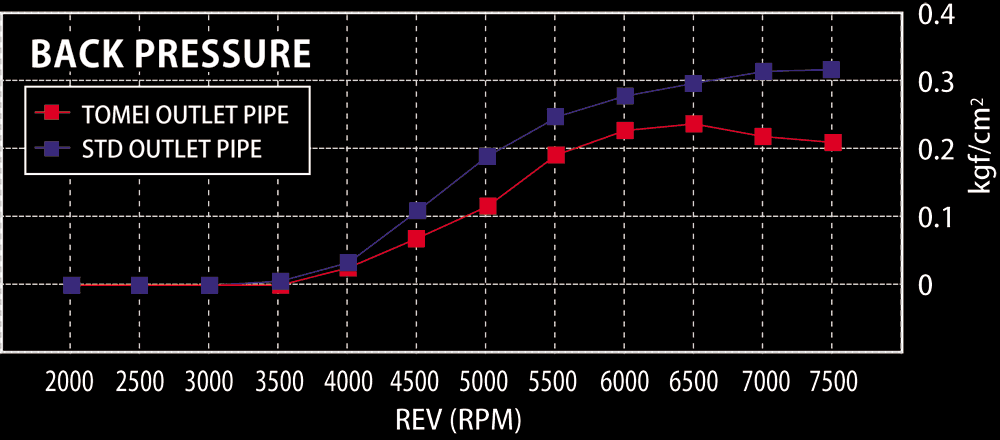

The internal diameter has been enlarged by 120%. This will significantly drop exhaust back pressure.

  MATERIAL EXIT DIAMETER ¦ VOLUME
(cc)
FLANGE THICKNESS(mm) WEIGHT (kg)
TOMEI SUS304 76.3 1050 12.0 1.55
STD STEEL 60.0 750 13.8 2.25

APPLICATION PART NUMBER
R31,R32, C32,C33, A31, Z31
RB20DET POWERED VEHICLES
TB6020-NS06A
R33,R34, C34,C35,WC34
RB25DET POWERED VEHICLES



Vehicle Fitments:

Year Make Model Submodel
1991 - 1998 Nissan 240SX LE
1989 - 1998 Nissan 240SX SE, Base
1989 - 1990 Nissan 240SX XE

Fitment

Make

  • Nissan

Tomei Turbine Outlet Pipe Kit Expreme Rb25det/rb20det

$350.00

Tomei

Tomei Powered USA Inc., established in October 2006, is an automotive performance tuning parts manufacturer based in Lake Forest, California.  The company is 100% owned and operated by Axesta Inc., headquartered in Zama, Kanagawa Prefecture, in Japan.  At the Japanese headquarters, all product development and control of manufacturing for the TOMEI brand are carried out.

The Japanese headquarters Axesta Inc., was established by former Tomei Powered Japan executives and engineers, led by Akira Sasaki, who served as CEO of Tomei Powered Japan for many years up until 2014, to produce world-class tuning parts that go beyond Japan’s limitations. With the rich experience of new members and continuous research and development, Axesta Inc. has successfully developed many high-performance and durable products. Axesta Inc. owns two brands: TOMEI and R.S.E. In the Americas and Europe, it operates as TOMEI “The Engine Specialist,” while R.S.E. “Real Speed ​​Engineering” targets the Asian and Oceanian markets.

Before 2014, TOMEI was mainly developing products for Japanese market with vehicle inspection restrictions in Japan. Now, Axesta Inc. has raised the market standards to a higher technical level and is developing products that will meet high-end standards around the world.  The products developed by the Axesta Inc. aim to build products that far exceed the regulatory standards in Japan.

Since 2014, Tomei Powered USA Inc. has been offering a wide range of top-notch tuning products, including internal engine parts such as crankshafts, connecting rods, camshafts, various valvetrain components, and head gaskets.  High-performance exhaust parts include full titanium mufflers and stainless-steel exhaust manifolds, and peripheral parts such as ball bearing turbos to name a few.
