TWIN SCROLL TOP MOUNT TMA16 TURBO KIT + FRONT INTERCOOLER VW 1.8 20V TRANSVERSAL WITHOUT TURBOCHARGER - BLUE HOSE
TWIN SCROLL TOP MOUNT TMA16 TURBO KIT + FRONT INTERCOOLER VW 1.8 20V TRANSVERSAL WITHOUT TURBOCHARGER - BLUE HOSE is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability



15 days required to produce
'===========================================

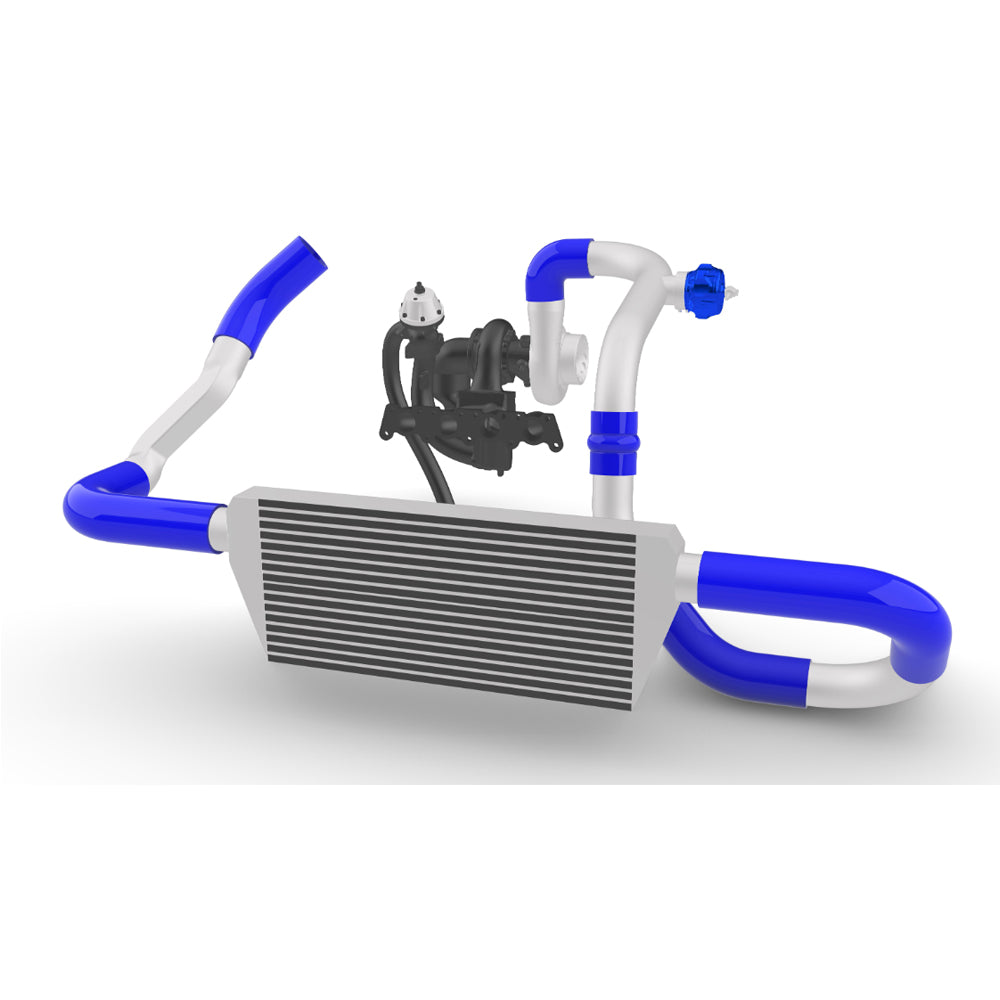

TWIN SCROLL TOP MOUNT TMA16 TURBO KIT + FRONT MOUNT INTERCOOLER VW 1.8 20V TRANSVERSAL, BLUE HOSES, TURBO NOT INCLUDED
===========================================

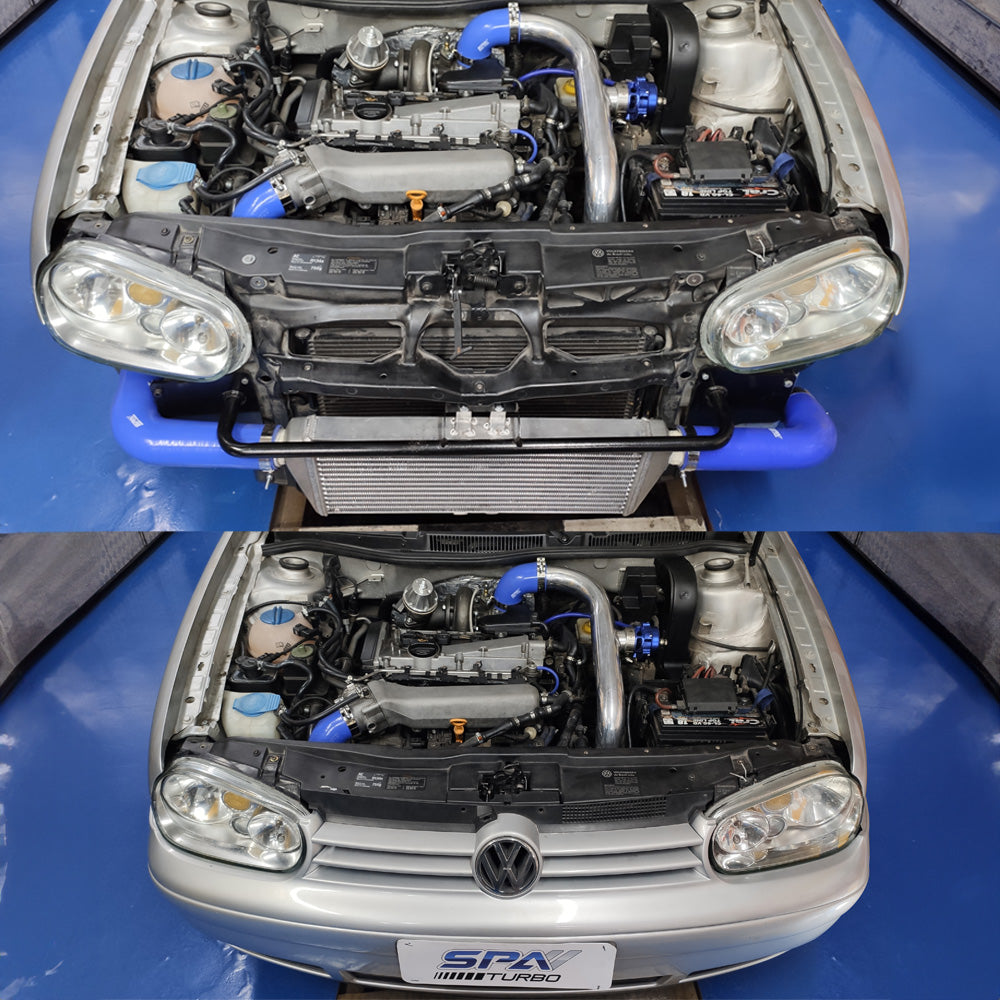

Application: Golf GTI Mk4 with 1.8L 20V engine.

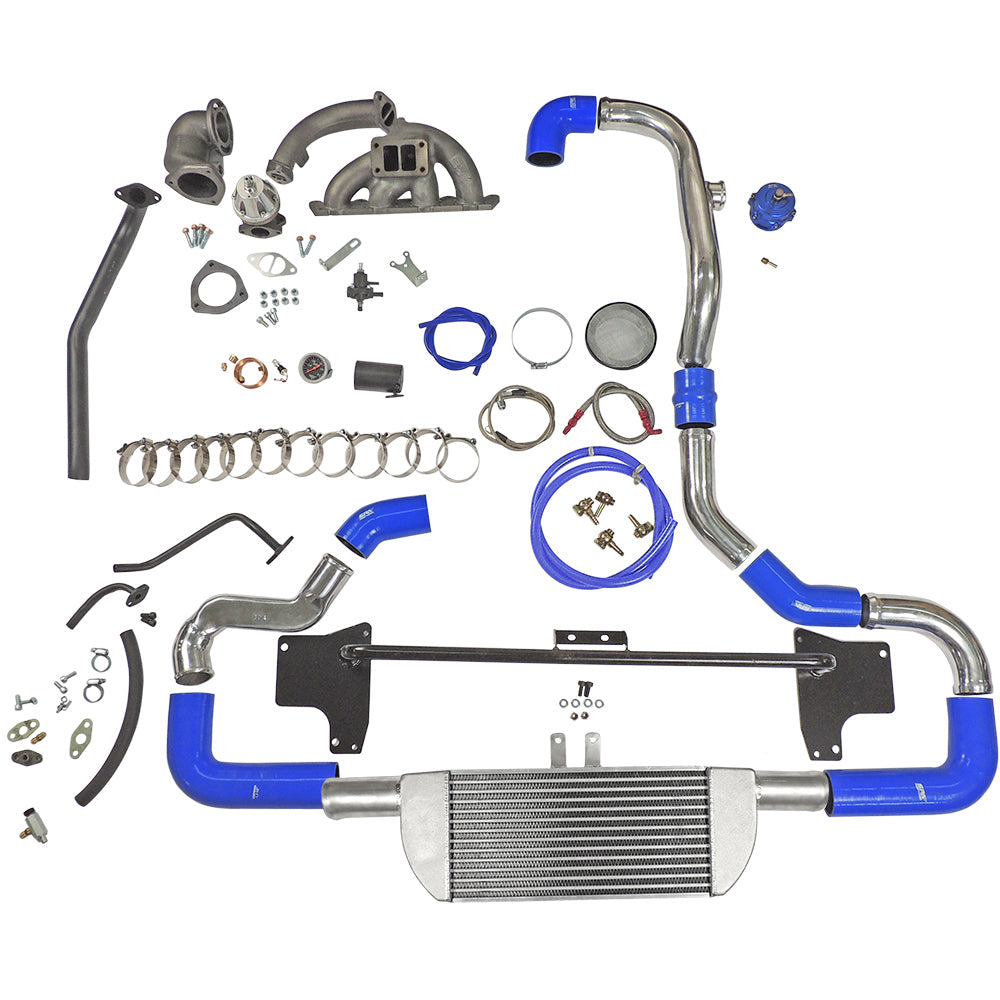

Includes:
- 2 1/2" polished aluminum tubes.
- Silicone hoses
- Stainless steel clamps
- Turbine cooling hoses/fittings
- Special bumper support for Golf MK4.

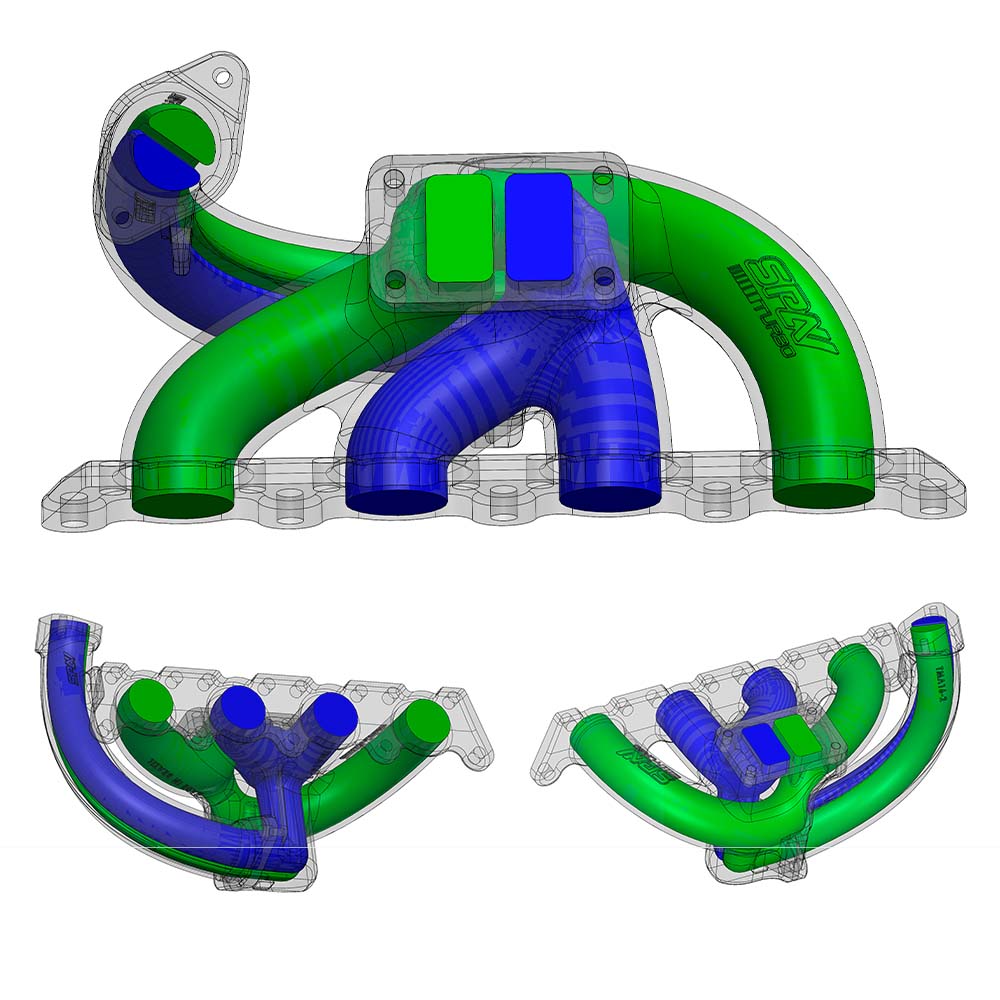

Discover details of the TMA16 turbo manifold:
The darling of the transverse 1.8 20V has just evolved! The best-selling turbo manifold on the market (TMA06) has evolved into TMA16 EVOLUTION! After much study of our engineering sector, together with specialist preparers in this mechanics, a new project full of improvements emerged.
- Better performance, with optimized flow thanks to redesigned ducts.
- Perfect position of the wastegate, allowing the application of large valves, facilitating pressure regulation and possible maintenance.
- Ideal turbine positioning for building a pressurization with smooth curves and accommodates large turbines such as .70, GT35 and similar.
- Includes free cast initial exhaust outlet and 3” flange for making the rest of the exhaust, facilitating application.
Application: 1.8 20V transverse engines (VW Golf / Audi A3 and other models)
- Turbine position: Up (compressor housing to the left side - driver)
- Flange for hot housing: Standard T3
- Wastegate outlet: "i' mounting pattern (2 holes)
- Internal diameter of the runners: 42mm
- Material: Cast iron
Discover the details of the NTSPD09 Intercooler:
- 100% aluminum.
- Recommended power range: 300 – 450 hp
- Core dimensions: 400mm x 190mm x 50mm.
- Overall dimensions: 725mm x 240mm x 67mm.
- Inlet/Outlet: 2 ½”
- Tube & fin type core
Discover the details of the Blow off X-Flow V2 50mm.
- Internal components with anti-friction heat treatment, which guarantees less wear and longer service life.
- Supplied with v-band clamp, o-ring and aluminum adapter flange.
- Comes with a spring for boost values over 1.2bar assembled and includes a lower load spring for boost values under 1.2bar.
- Piston sealing system.
Obs:
- Product images are for illustrative purposes only. Components may be changed according to stock availability.
=======================================================
OFFICIAL TURBO SPA
Specialist in high performance parts since 1990.
ATTENTION: It is highly recommended having the instalation made by a specialized professional. SPA Turbo is not responsible for incorrect installation or misuse of the product.
