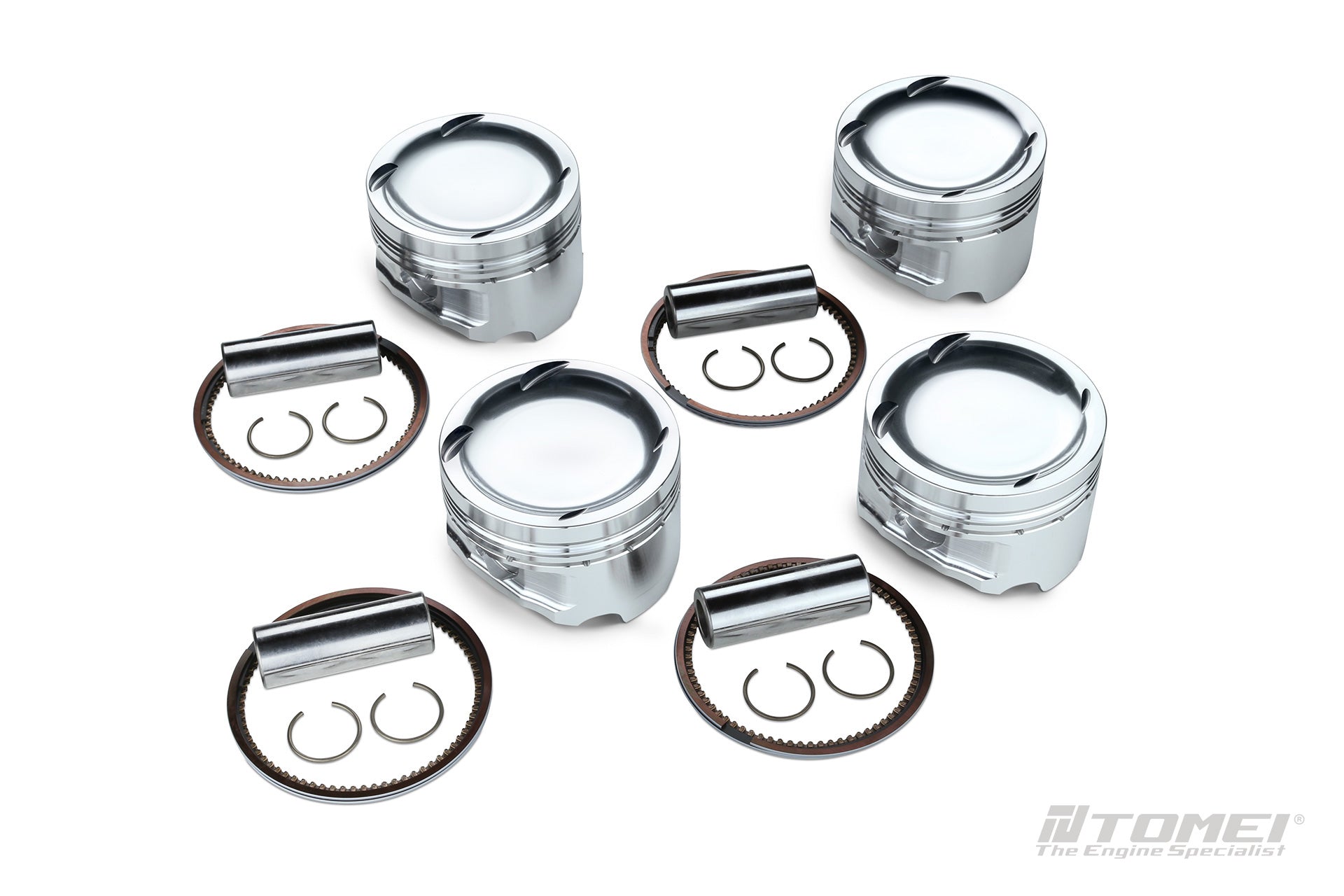

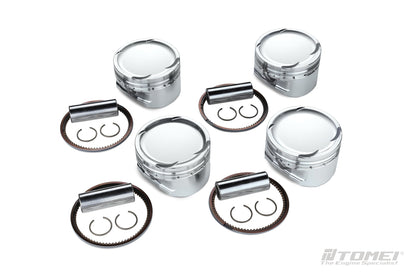

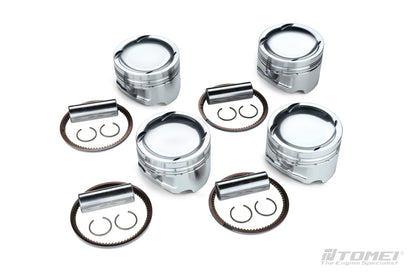

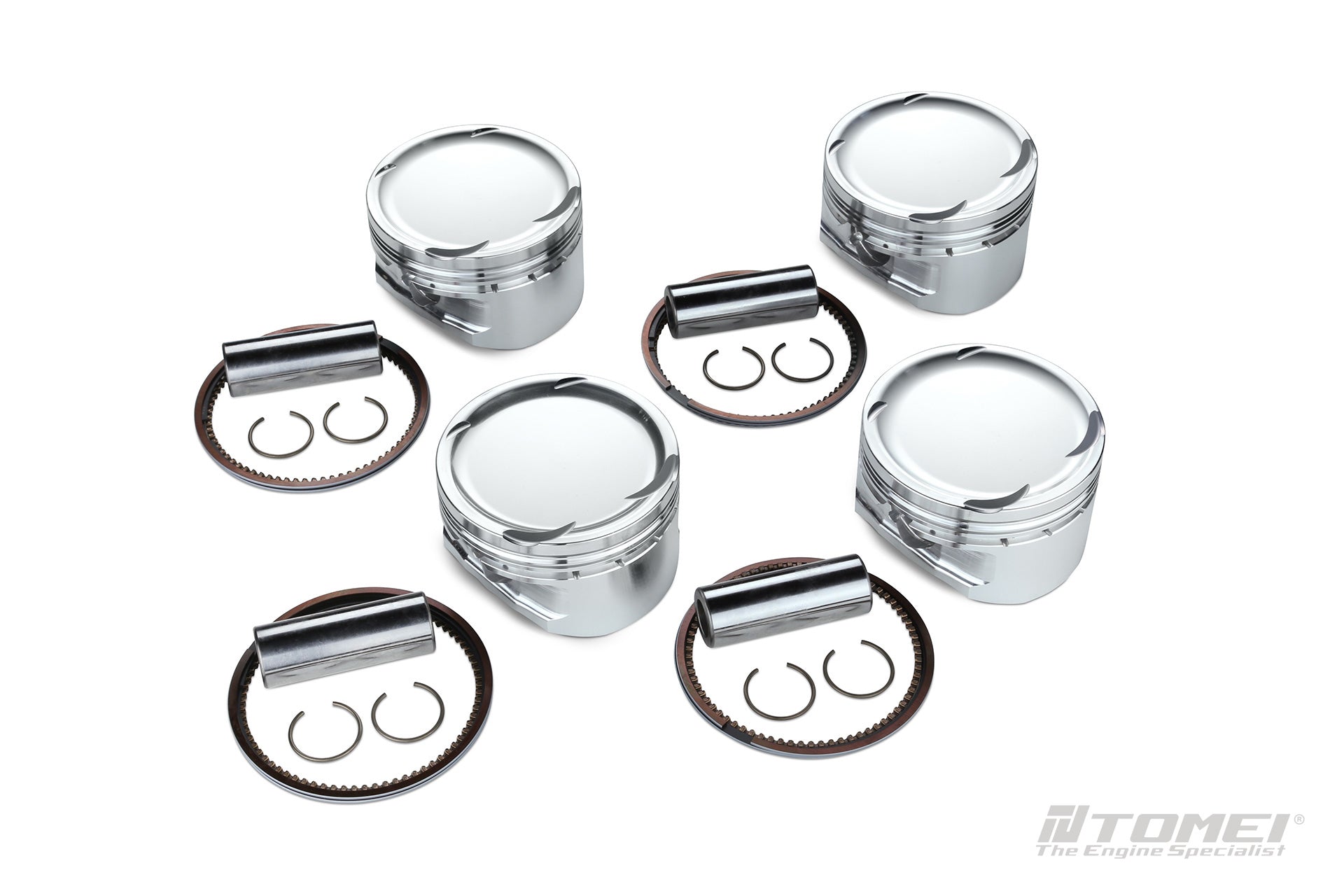

Tomei Forged Piston Kit

Tomei Forged Piston Kit

Tomei

1Q11N

Low stock

Option

Regular price $935.00
Sale price $935.00 Regular price

  • Secure checkout
  • Warranty Backed
  • Genuine Parts

Tomei Forged Piston Kit 4G63 & 4B11



Category  Engine Parts Number
86.00mm CH31.65 (2.2) 4G63

TA202A-MT01A

86.00mm CH31.65 (2.2) CP

4G63

TA202A-MT01AP
87.00mm CH27.40 (2.3) 4B11 TA202A-MT02A
87.00mm CH27.40 (2.3) CP 4B11 TA202A-MT02AP



Part Number TA202A-MT01A TA202A-MT01AP TA202A-MT02A TA202A-MT02AP
BORE (mm)  86.00 (OEM +1.0)
86.00 (OEM +1.0)
87.00 (OEM +1.0)
87.00 (OEM +1.0)
PIN DIA. (mm)  22 22 23 23
PIN LENGTH (mm)  60 60 62 57
CLIP INNNER DIA.  22 22 23 23
VALVE RECESS  WITH WITH WITHOUT WITHOUT
COMP.HEIGHT (mm)  31.65 (OEM -3.35)
31.65 (OEM -3.35)
27.38 (OEM -6.0)
27.38 (OEM -6.0)
PISTON DOME VOL. (cc)  -19.5 -19.6   -12.9
PISTON WEIGHT (g)  328.7 335.1   305.1
PIN WEIGHT (g)  121.5 125 133 117
TOTAL WEIGHT (g)  450.2 460.1   422.1
TOP RING (mm)  1.20 x 3.05 1.20 x 2.95 1.20 x 3.05 1.00 x 3.30
SECOND RING (mm)  1.20 x 3.70 1.20 x 2.95 1.20 x 3.9 1.20 x 3.60
OIL RING (mm)  2.50 x 2.85 2.00 x 2.60 2.50 x 2.95 3.60 x 3.25
MATERIAL A4032 A2618 A4032 A2618

Fitment


Tomei Forged Piston Kit

$935.00

Tomei

Tomei Powered USA Inc., established in October 2006, is an automotive performance tuning parts manufacturer based in Lake Forest, California.  The company is 100% owned and operated by Axesta Inc., headquartered in Zama, Kanagawa Prefecture, in Japan.  At the Japanese headquarters, all product development and control of manufacturing for the TOMEI brand are carried out.

The Japanese headquarters Axesta Inc., was established by former Tomei Powered Japan executives and engineers, led by Akira Sasaki, who served as CEO of Tomei Powered Japan for many years up until 2014, to produce world-class tuning parts that go beyond Japan’s limitations. With the rich experience of new members and continuous research and development, Axesta Inc. has successfully developed many high-performance and durable products. Axesta Inc. owns two brands: TOMEI and R.S.E. In the Americas and Europe, it operates as TOMEI “The Engine Specialist,” while R.S.E. “Real Speed ​​Engineering” targets the Asian and Oceanian markets.

Before 2014, TOMEI was mainly developing products for Japanese market with vehicle inspection restrictions in Japan. Now, Axesta Inc. has raised the market standards to a higher technical level and is developing products that will meet high-end standards around the world.  The products developed by the Axesta Inc. aim to build products that far exceed the regulatory standards in Japan.

Since 2014, Tomei Powered USA Inc. has been offering a wide range of top-notch tuning products, including internal engine parts such as crankshafts, connecting rods, camshafts, various valvetrain components, and head gaskets.  High-performance exhaust parts include full titanium mufflers and stainless-steel exhaust manifolds, and peripheral parts such as ball bearing turbos to name a few.
