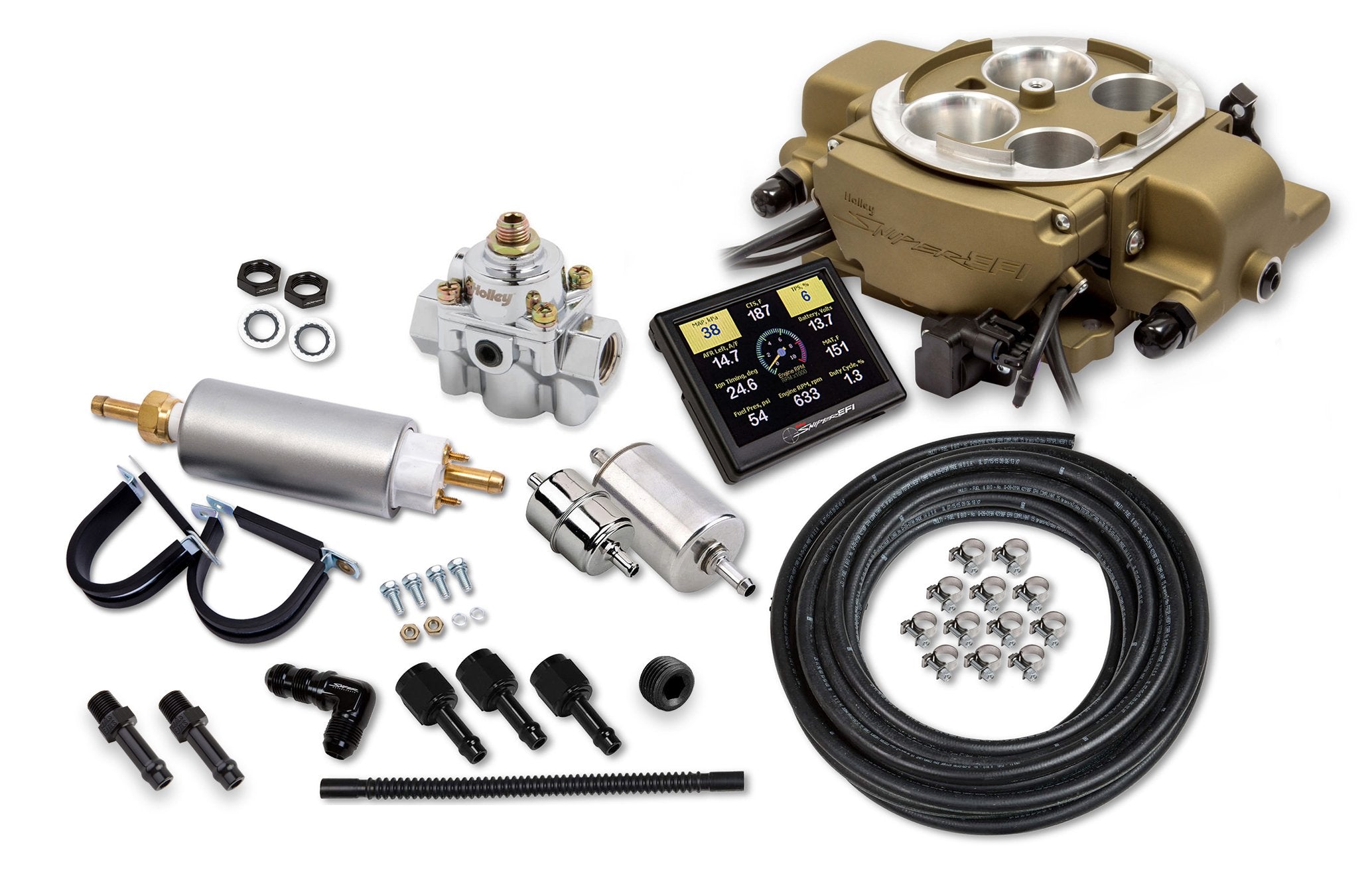

EFI Quadrajet Master Kit - Classic Gold - Return Fuel System

$1,949.95

$1,949.95 ~~$1,949.95~~

In stock

Sorry, it's out of stock.

But we can let you know when it's back in.

Shop safely with us

Secure Checkout
Warranty Backed
Genuine Parts

550-869K

90127059005

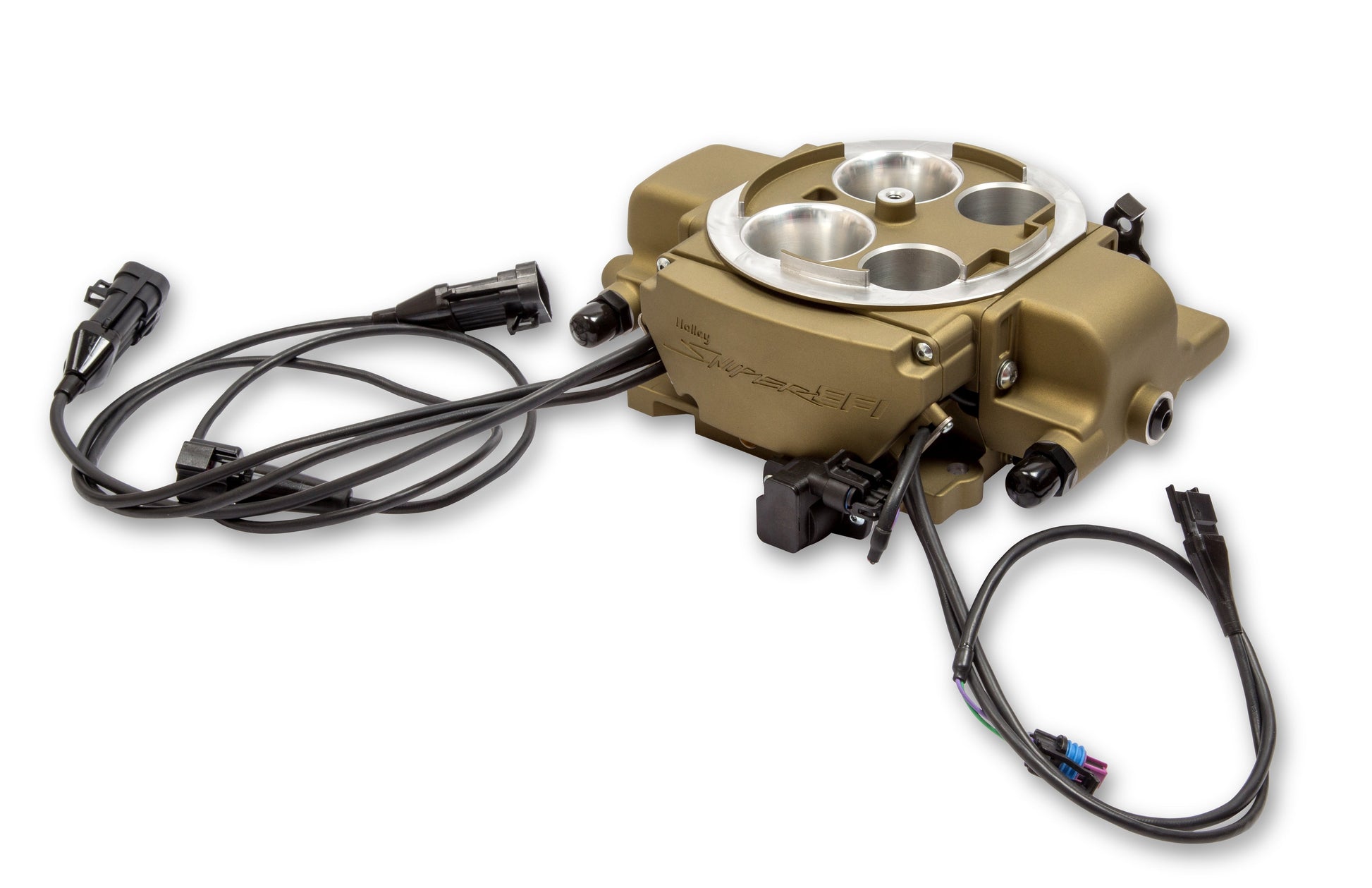

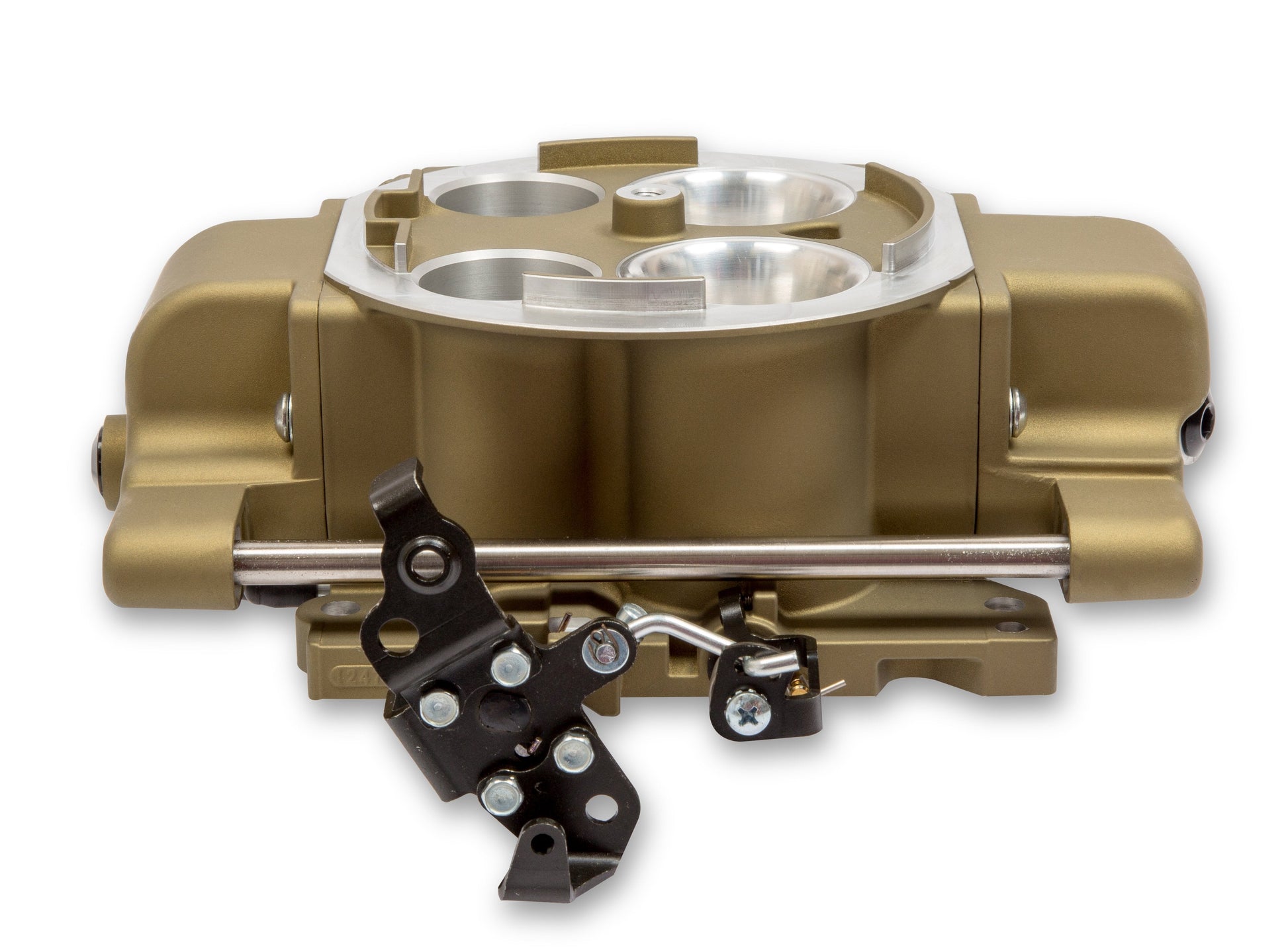

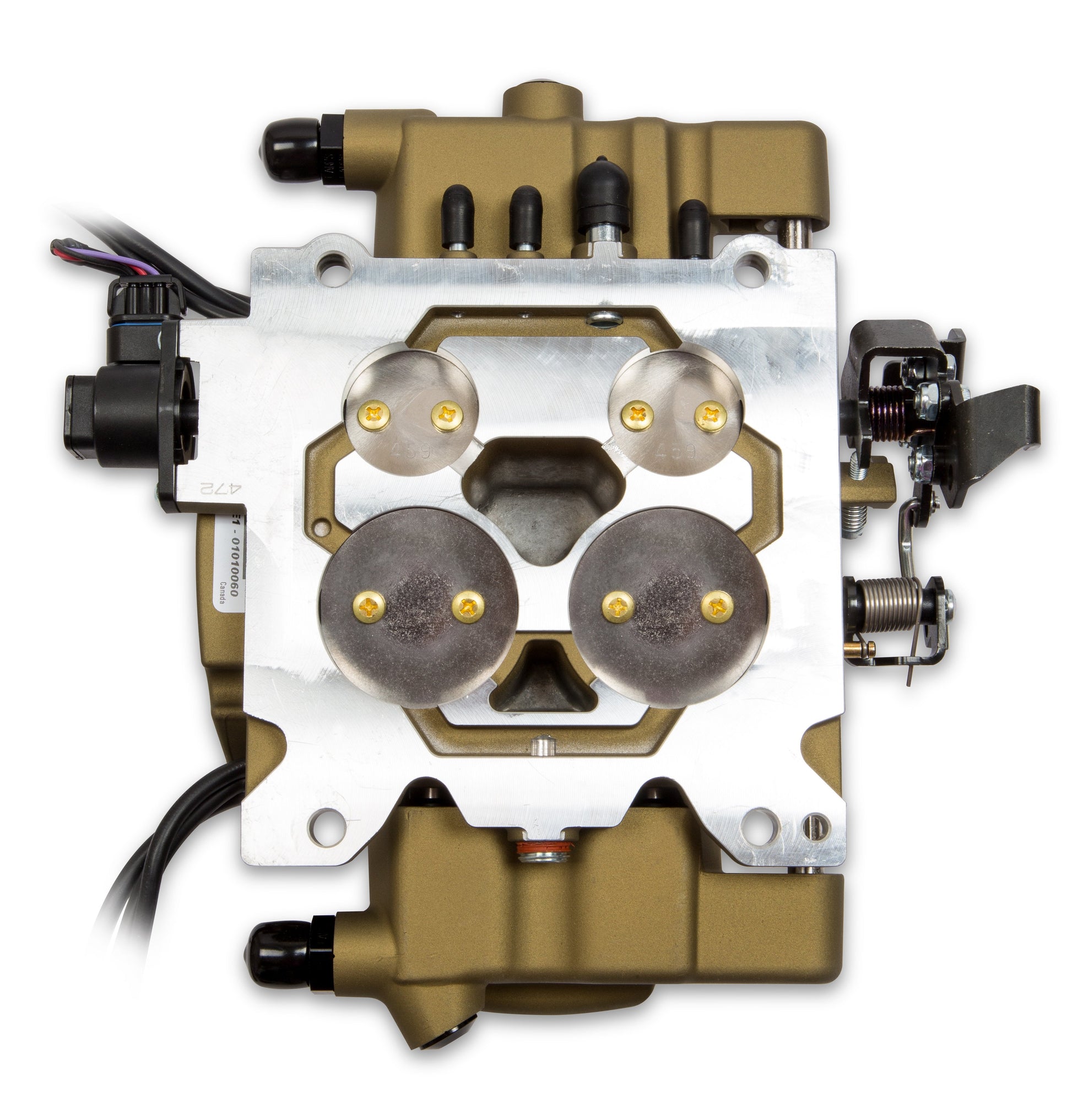

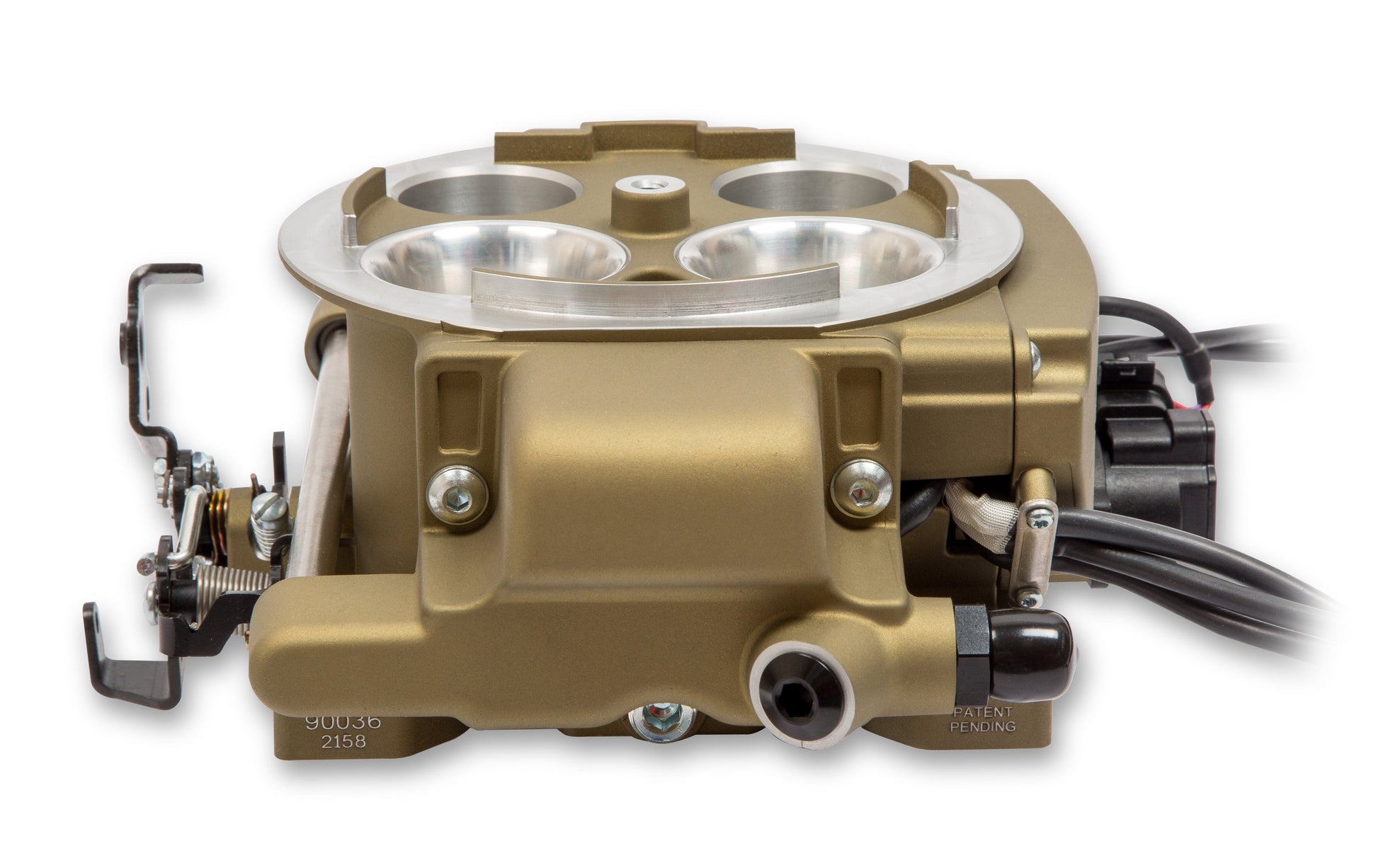

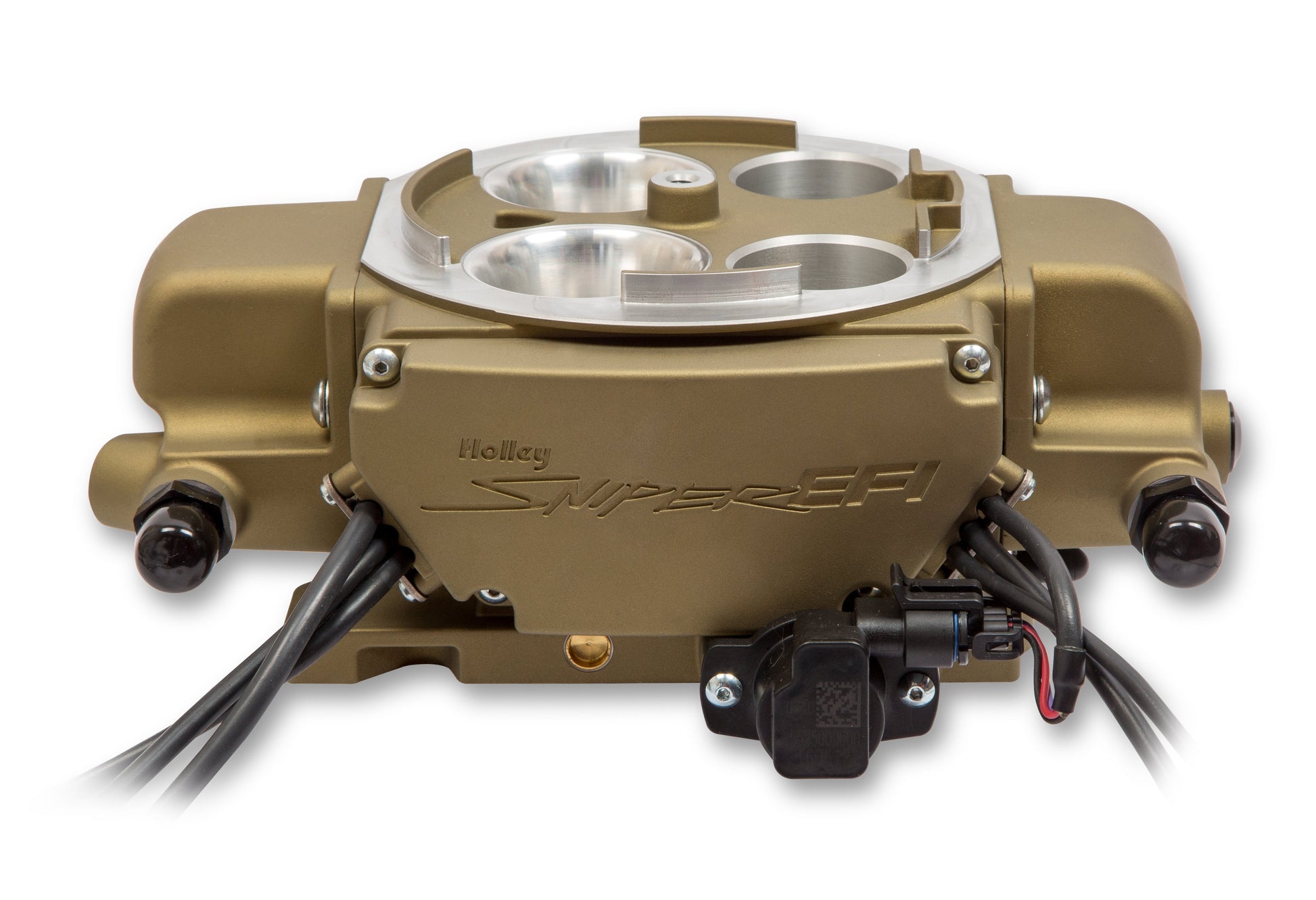

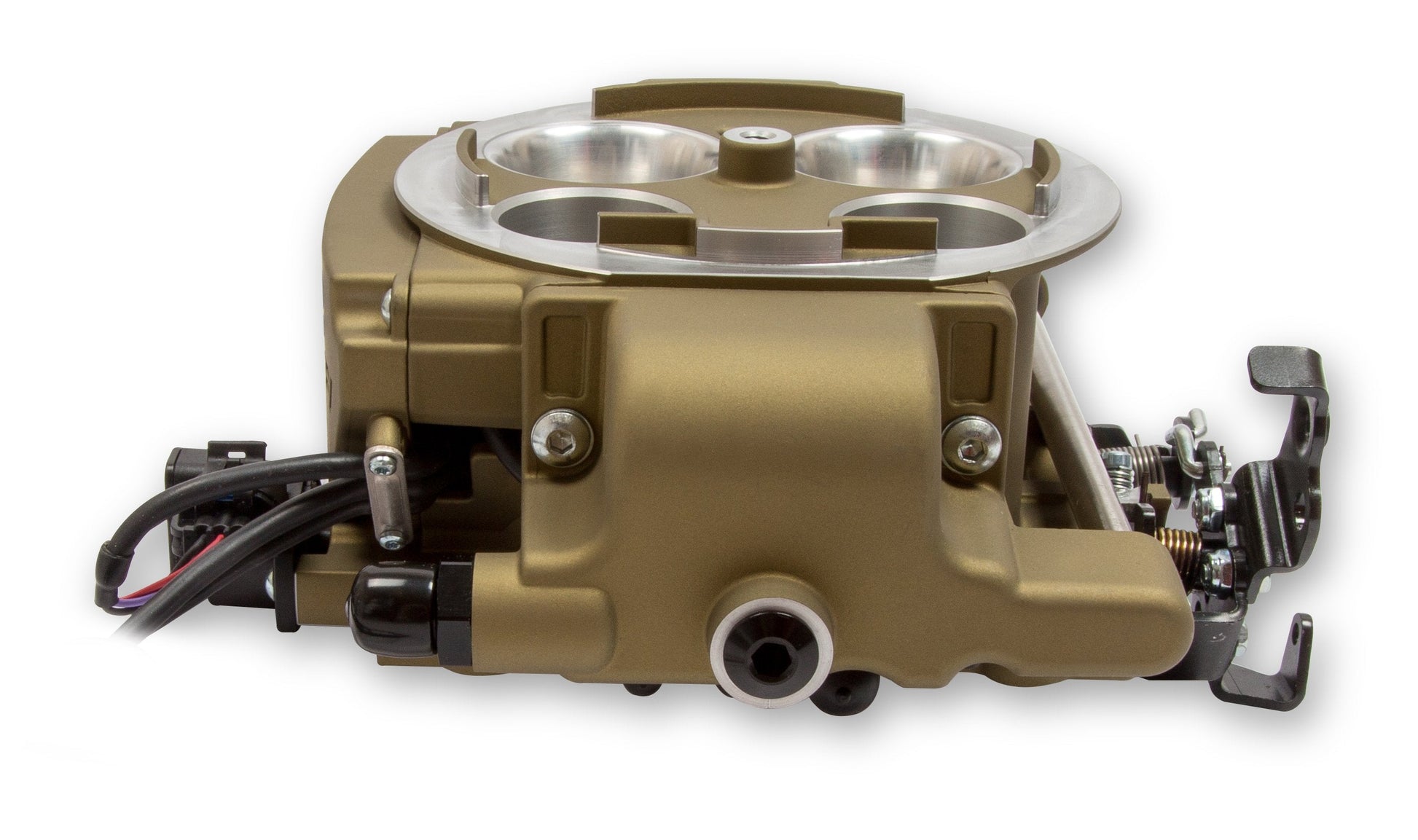

EFI Quadrajet Master Kit - Classic Gold - Return Fuel System

Holley Sniper EFI Quadrajet Master Kit - Classic Gold

Supports Up To 500HP - Returnless Fuel System - For Spreadbore Manifold

Overview
Are you tired of rebuilding the 50+ year old Rochester Quadrajet???? (Q-Jet) on your classic Chevrolet, GMC, Buick, Oldsmobile, or Pontiac? The Sniper EFI Quadrajet is here to help! The first bolt-on spreadbore electronic fuel injected throttle body system that does not require any additional adapters, sealing plates, or intake manifold swaps! The Sniper EFI Rochester Quadrajet (Q-Jet) system retains the same great features as the 4150 Sniper EFI version such as; four 100lb/hr Injectors, built-in timing control, a 3.5" full-color touchscreen, and much more! This throttle body will support up to 500 horsepower naturally aspirated. In addition to all of these great tried and true features, the Sniper EFI Rochester Quadrajet (Q-Jet) system will fit most stock air cleaners and offers multiple fuel inlet configurations that allow for a stock appearing installation! When it comes to converting to EFI, Sniper is the absolute best way to upgrade your car to fuel injection with just 4 simple connections required. Sniper is designed to be installed at home in your garage or driveway with limited tools and the support of Holley's comprehensive installation manual and videos. An afternoon in the garage and you will be enjoying improved engine performance, better MPG's and easier starting. After the simple installation it's time to let your Sniper begin the self-tuning process. Our user-friendly calibration wizard allows you to just answer a few questions about your engine and the system will begin self-tuning with no laptop required. You don't have to be a computer wiz or specialize in tuning to use a Sniper EFI system! Use the high resolution 3.5" full color touchscreen for tuning and gauge displays. The Sniper EFI Master Kit comes with an included fuel system that places a 340LPH fuel pump in the tank, which can easily be accomplished with basic hand tools. The returnless drop-in master kits make plumbing your Sniper EFI installation as hassle free as possible by locating the fuel pressure regulator in the fuel tank, thus eliminating the need to run a fuel return line from the engine bay, back to the fuel tank. Sniper EFI is part of a complete ecosystem! Your new Sniper kit pair's seamlessly together with Holley's Sniper Hyperspark Ignition, Fuel System's, Air Cleaners, Throttle Body Digital Dash to unlock the full potential of your build. Complete your fuel injection journey by checking out our full offer of ignition, fueling and accessories!

Features:

Fits most stock Rochester Quadrajet (Q-Jet) air cleaners
Self-tuning ECU means you don??????t have to be a computer/tuning wiz to have EFI!
Simple Calibration Wizard (Answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
Only 4 Wiring Connections Required! (Battery +, Battery - , Switched Ignition RPM)

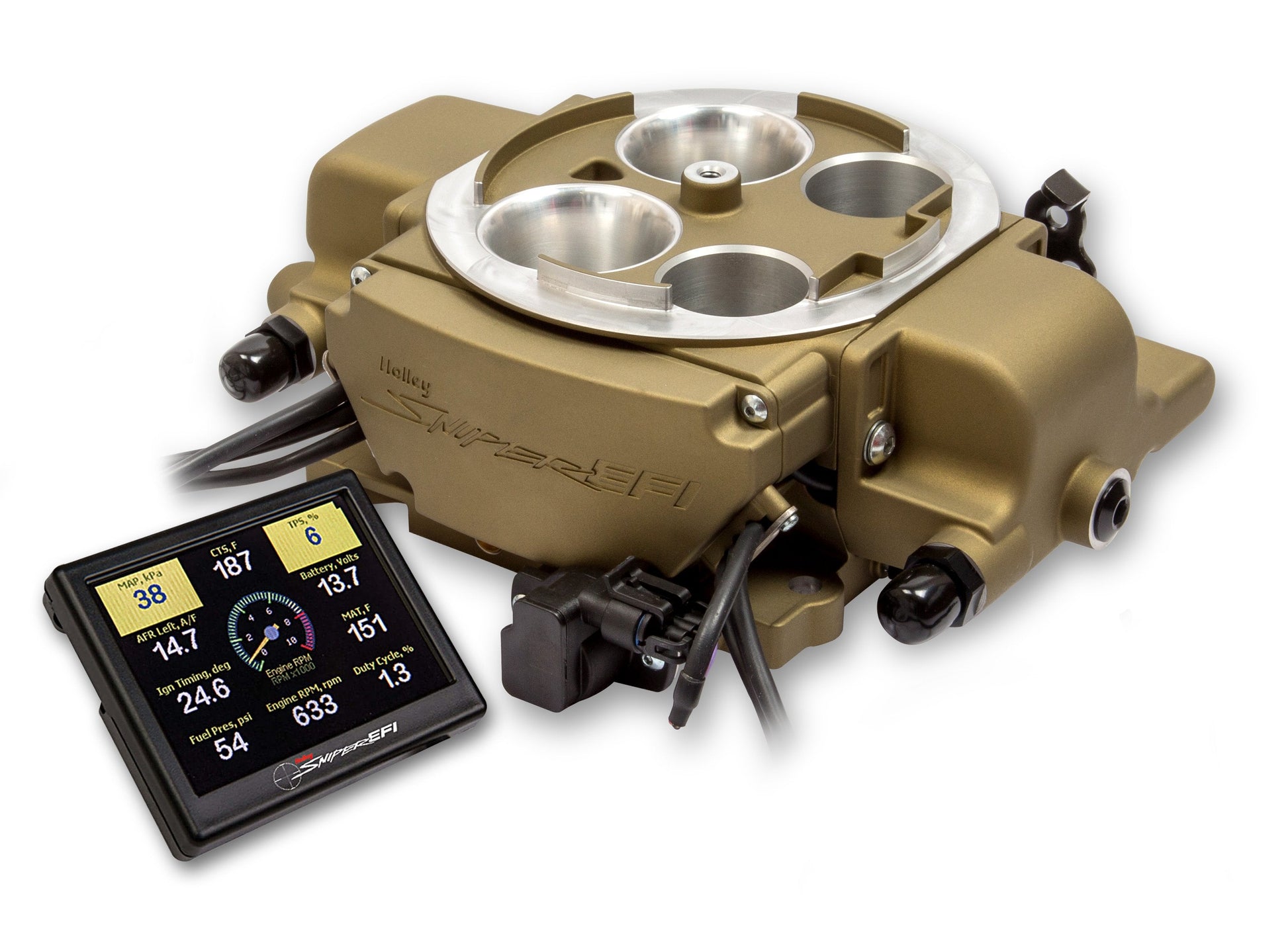

High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays.
Throttle body mounted ECU ???? no extra boxes to mount
Supports up to 500hp with Four 100 Lb/Hr Injectors!
Integrated ignition timing control
Transmission provisions on throttle lever for TH350/TH400 and 200R4/700R4
Designed to deliver the signature Rochester Roar at Wide Open Throttle!
Brake Booster adapter included, if required

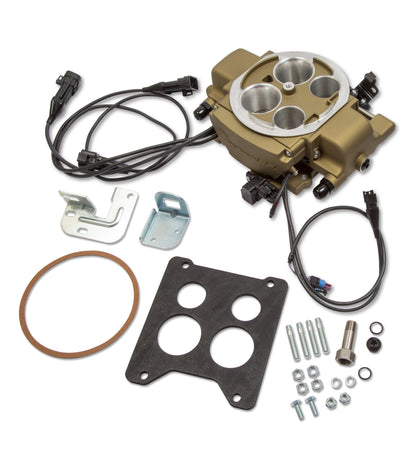

Universal Throttle and transmission kickdown bracket included
Complete fuel system includes ???? external fuel pressure regulator preset to 58.5psi, 20ft of 3/8??? Vapor Guard Fuel Hose, Fuel Pump, Filters, necessary hardware and bulkhead fitting to return fuel into the tank!
The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides realtime Fuel Map Learn!
OEM Style Throttle Position Senser (TPS)/ and Idle Air Control (IAC) for years of dependable service.
Included clamp-on oxygen sensor kit ensures a leak free oxygen sensor installation, with Stainless Steel T-Bolt clamps and a Stainless Steel (Weldable) oxygen sensor flange

Details:

CFM: 715
Coast Guard Approved: Yes
Finish: Classic Gold
Flange Style: Spreadbore
Fuel Pressure: 58.5 PSI
Injector Size: 100 lb/hr @ 58.5 PSI
Inlet / Outlet Size: 9/16-18 Female O-Ring (AN 6)
MAP Sensor: 2Bar
Max Horsepower Rating: 500 Naturally Aspirated
Throttle Bore: 1.375 Primary / 2.00 Secondary
Transmission: 700R4/200R4
