Swift Springs  |  SKU: H65-135-0008

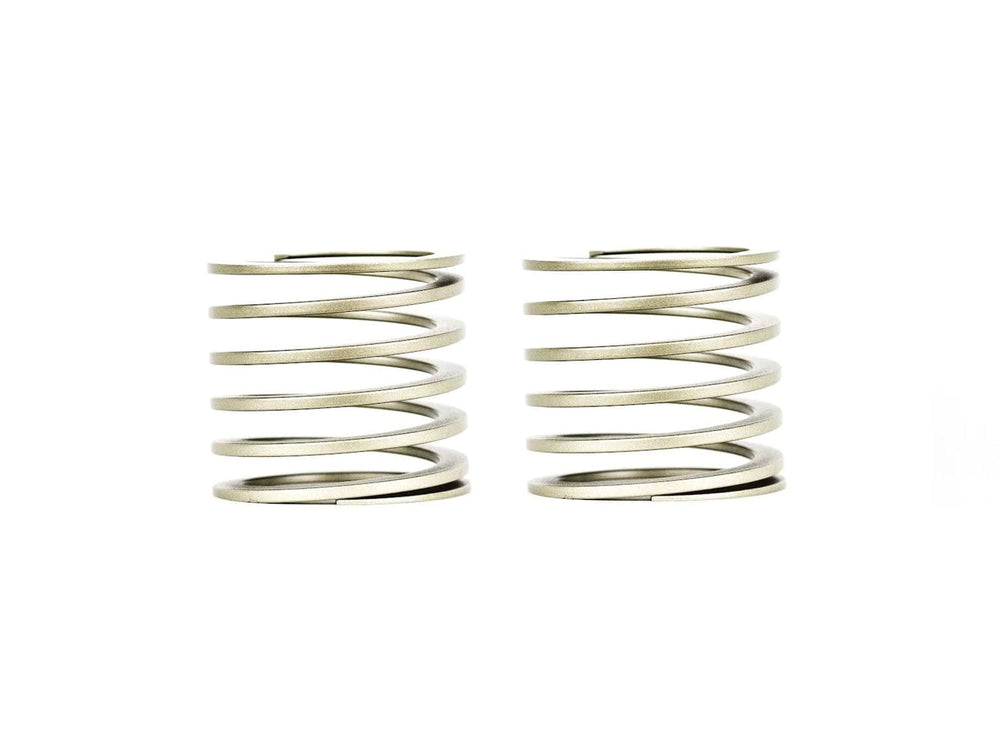

Swift Springs Coilover Helper Springs (Flat Wire) - ID: 65mm (2.56")

$316.20 $372.00
Spring Rate (kgf/mm)

Description

SWIFT SPRINGS HELPER SPRINGS PREVENT DISMOUNTING OF SPRINGS FROM PERCH ON COILOVER WITHOUT CHANGING SPRING RATE.

Unlike our assist springs, our helper springs are specifically designed to have a minimal effect on the spring rate of the main coilover spring. Helper springs allow the spring to stay on mounted on the coilover perch when the shock is under negative or zero load, also known as droop travel. It is ideal to run helper springs on setups where you cannot preload the main spring due to height issues or when experiencing springs coming loose from the coilover perch.

Note: Swift Helper Springs are sold in pairs of two (2).

Part # Spring Rate Free Length Stroke FCH CW
kgf/mm lbs/inch inch inch inch lbs
H65-135-0008 0.2 4 5.3 4.6 0.7 22
H65-070-008 0.8 45 2.8 1.8 0.9 95
H65-060-015 1.5 84 2.4 1.5 0.9 154
H65-060-030 3.0 168 2.4 1.4 0.9 265
