Swift Springs  |  SKU: 160-500-050

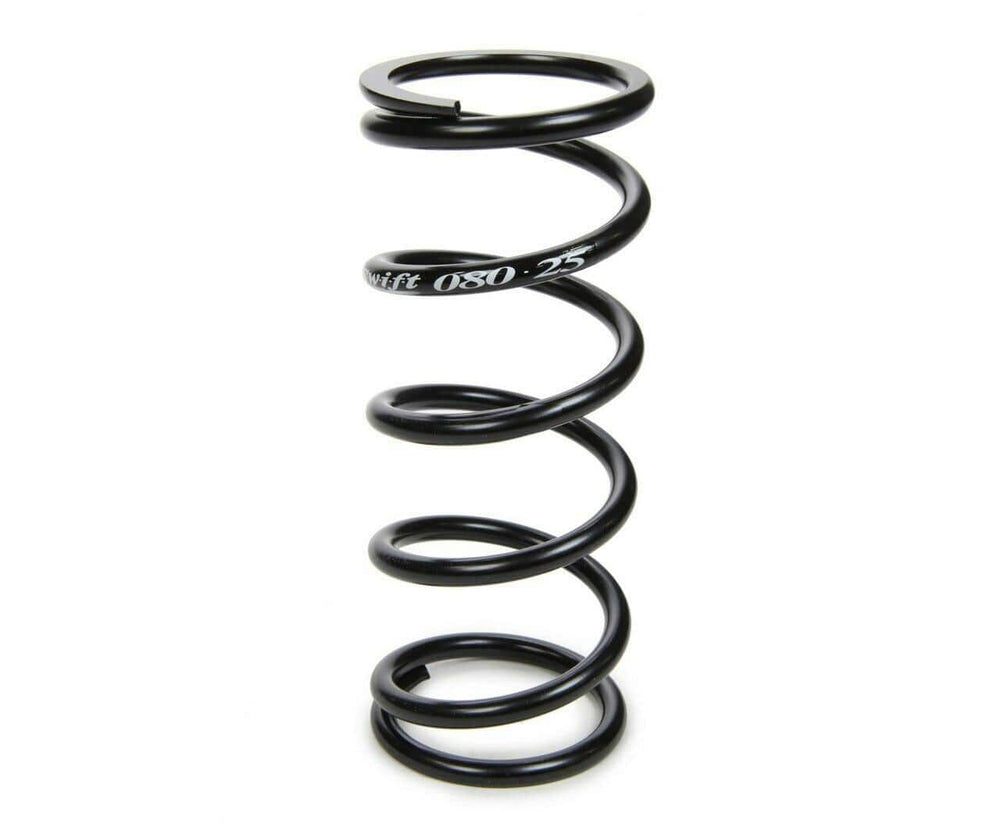

Swift Springs Standard Conventional Spring - OD: 5" / Length: 16"

$119.85 $141.00
Spring Rate (lbs/inch)

Description

Swift Springs Standard Conventional Springs were developed specifically for round track racing

Designed to have the optimal spring rate sweet spot where the spring is used on actual vehicle. As you might know, United States are the largest racer populated country in the world. Through our experiences from extensive testing in world class racing in Europe and Asia, we have great confidence that we can provide the same results in the US. Swift specifically designed a standard measurement race springs to accommodate American race industries including oval track racing, and drag racing, and offroad racing.

By knowing the main characteristics that American racer demands, we designed and engineered the standard measurement springs based on data that we had collected through racers that are at the top of their sport. A slight difference in design than our metric coilover springs. Many enthusiasts will swap springs from brand to brand with the only noticeable difference being a stiffer or softer ride. But what if a spring could offer a noticeable increase in traction, smoother weight transfer, better ride quality, lower tire temperatures, and a more predictable feel? The engineers at Swift have taken that "what if" and turned it into reality. All Swift Springs are manufactured using H5S.TW. which is far superior to typical silicone chrome steel and allows us to wind a much more responsive spring with less coils, resulting in reduced un-sprung weight and increased stroke.

Bulletproof Series Springs (Part numbers ending in BP)

Purpose-built for those of you putting more stress on a spring than how is conventionally used. Swift Springs sought after a new approach in development from their regular suspension spring. After years of research and development, Swift springs would like to proudly present the BP Spring for circle track racing. Specifically designed to meet and surpass the unique needs of Circle Track Racers. Although specially made, these springs are constructed with the same SWIFT SPRINGS philosophy and that is to be responsive and increase overall traction

Note: This product is sold individually (1).

PART # SPRING RATE USABLE STROKE MAX STROKE MAX LOAD
lbs/inch inch inch lbs
160-500-050 50 12.6 12.6 628
160-500-080 80 12.2 12.2 977
160-500-100 100 12.1 12.1 1,219
160-500-112 112 12.0 12.0 1,349
160-500-125 BP 125 12.0 12.3 1,541
160-500-150 BP 150 11.7 12.0 1,808
160-500-175 BP 175 10.7 12.0 2,100
160-500-200 200 10.5 11.7 2,350
160-500-225 225 10.4 11.4 2,575
