Eibach | SKU: E86-82-067-02-22

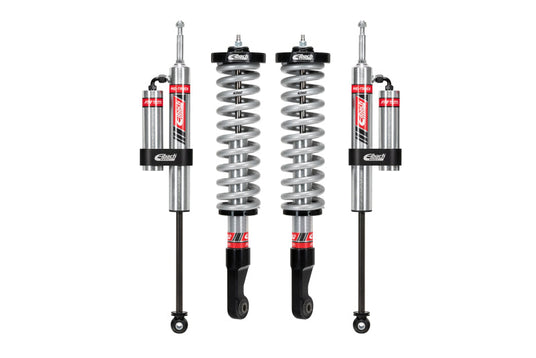

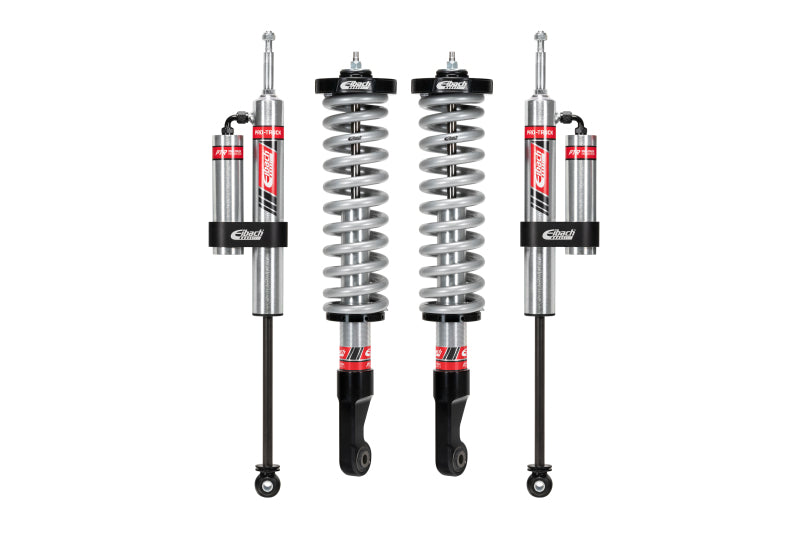

Eibach PRO-TRUCK Coilovers (Front and Rear) for 2016-2021 Toyota Tundra 4WD

$1,413⁰⁰ $1,570⁰⁰

Fast Shipping

Secure Payment

Genuine Parts

Eibach's PRO-TRUCK Coilovers 2.0 for the 2016-2021 Toyota Tundra 4WD features threaded bodies for fine-tuning ride height and improved damping performance delivering maximum off-road capability. Developed utilizing our extended-travel monotube design and variable force valving, Eibach PRO-TRUCK COILOVER 2.0 delivers control during on-road transit and compliance for maximum traction on the trails.

Weight Compensation

The adjustable threaded spring perch allows the acco mmodation of additional weight and maximizes clearance. This is important when trucks are equipped with heavy gear such as metal front bumpers, winches, lights, skid plates, and more.

Variable Force Valving

Designed to provide a controlled comfortable ride on road, and as force and piston speeds increase off-road our proprietary valve stack activates to control the vehicle over large bumps and g-outs.

Standard Features

Lift heights ranging from 2-4" depending on application.
Threaded spring perch for fine height adjustment
Developed to provide balanced ride quality and control, both on and off-road
Increased travel and ground clearance
Monotube damper design
Pre-Assembled, Factory Direct Replacement Front and Rear Coilovers - No Additional Parts Required. Sold in Pairs.
Adjustable Threaded Spring Perch to Acco mmodate Increased Loads and
Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
Anodized 6061-T6 Billet Aluminum Mounts, 46 mm Piston, Monotube Design with
Nitrogen Filled Variable Force Valving.
Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
Engineered, Tested and Manufactured by Eibach in the U.S.A.
Limited Lifetime Warranty

Downloads

Specifications

Part Number	E86-82-067-02-22
Part Name	PRO-TRUCK Coilovers
UPC	803050511874
Vehicle	2016-2021 Toyota Tundra 4WD
Ride-Height Adjustable - Front	+0-2.75 in.
Ride-Height Adjustable - Rear	+0-1.5 in.
Damping Adjustable	Yes
Adjustment Type	1-Way
Quantity	Set of 4 Coilovers
Country of Origin	Germany, USA, China

Vehicle Fitment

2016 Toyota Tundra 4WD
2017 Toyota Tundra 4WD
2018 Toyota Tundra 4WD
2019 Toyota Tundra 4WD
2020 Toyota Tundra 4WD
2021 Toyota Tundra 4WD
