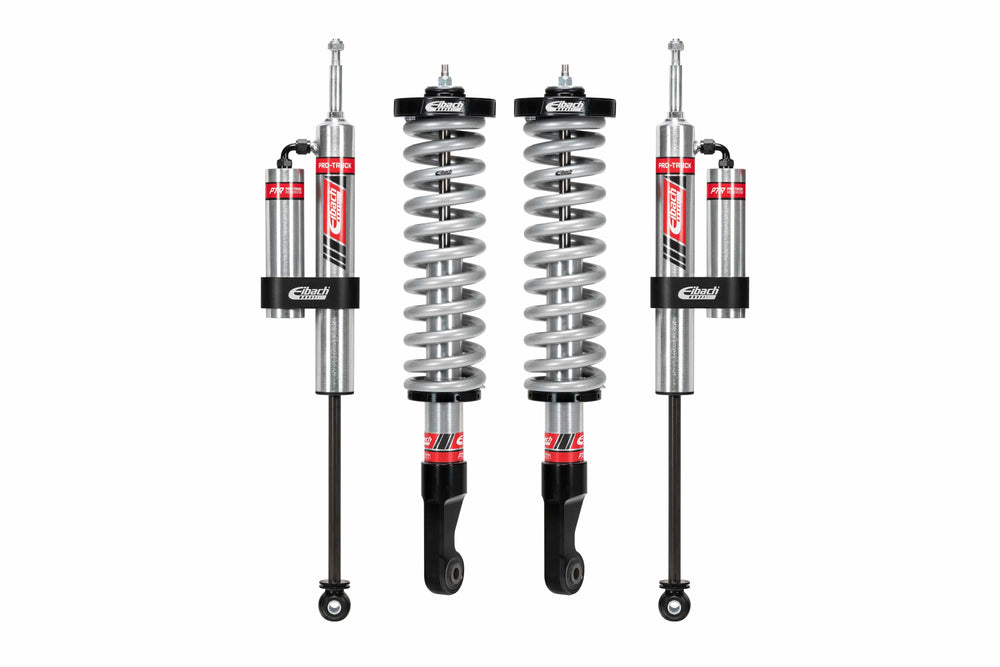

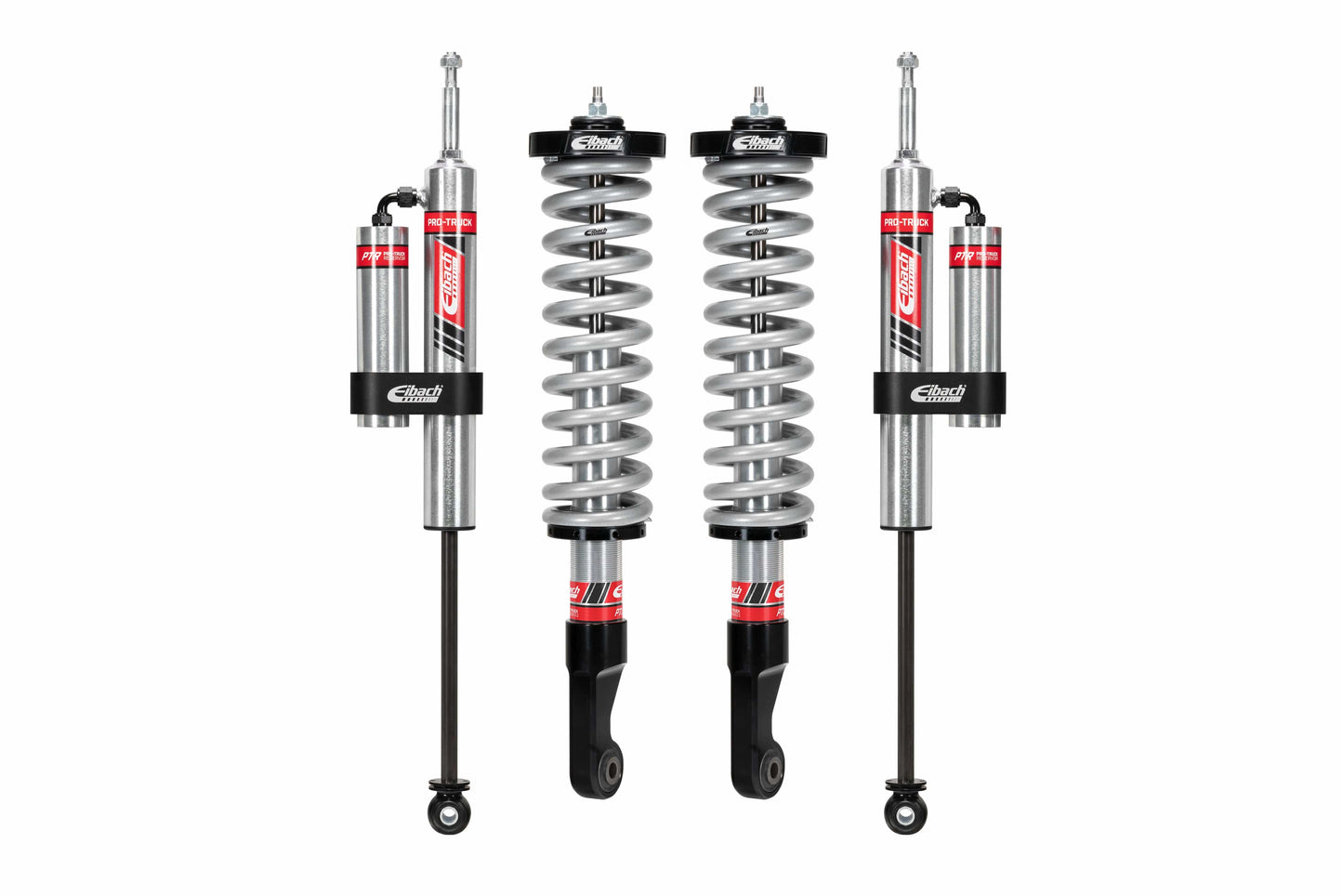

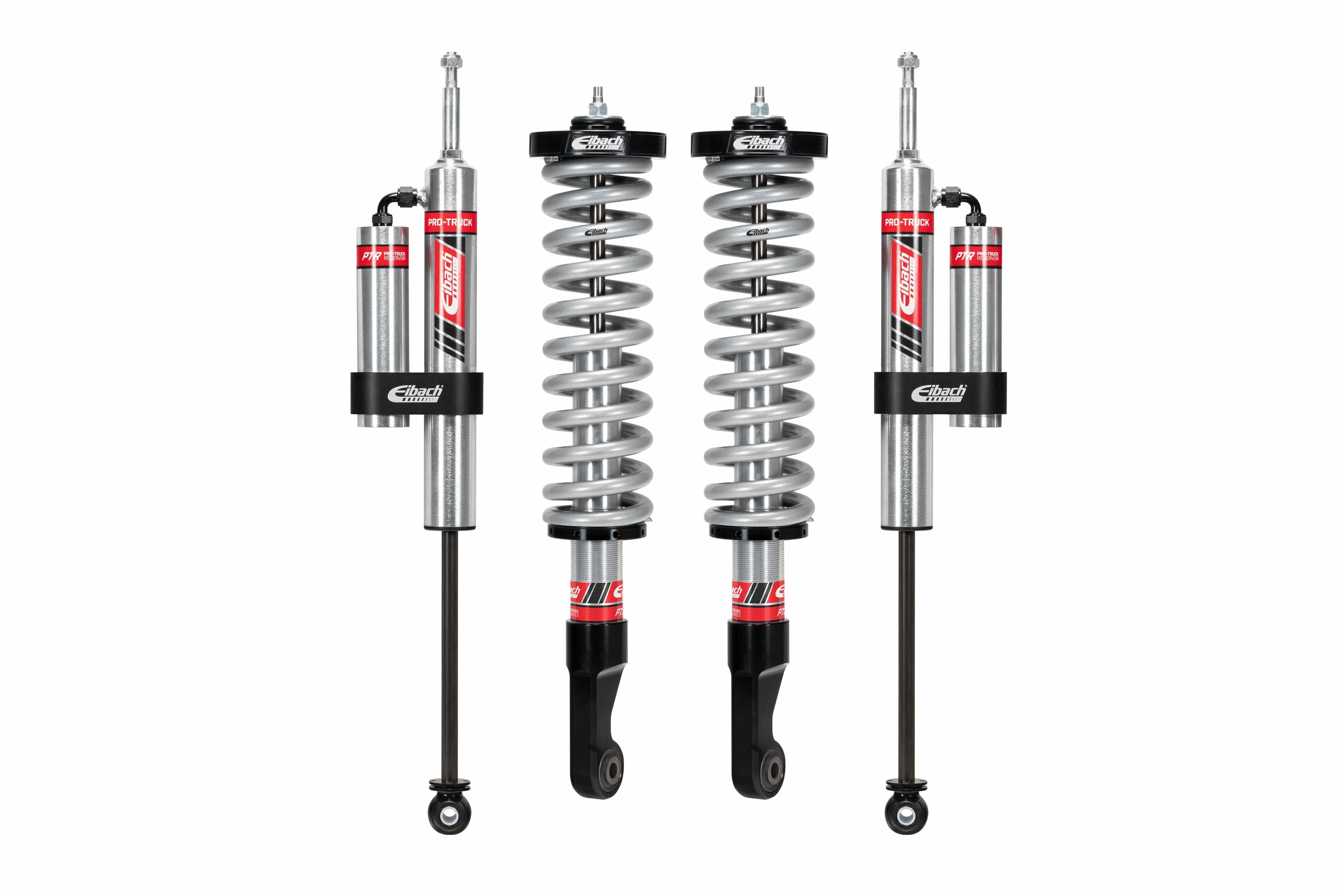

Eibach's PRO-TRUCK Coilovers 2.0 for the 2016-2021 Toyota Tundra RWD features threaded bodies for fine-tuning ride height and improved damping performance delivering maximum off-road capability. Developed utilizing our extended-travel monotube design and variable force valving, Eibach PRO-TRUCK COILOVER 2.0 delivers control during on-road transit and compliance for maximum traction on the trails.
Weight Compensation
The adjustable threaded spring perch allows the acco mmodation of additional weight and maximizes clearance. This is important when trucks are equipped with heavy gear such as metal front bumpers, winches, lights, skid plates, and more.
Variable Force Valving
Designed to provide a controlled comfortable ride on road, and as force and piston speeds increase off-road our proprietary valve stack activates to control the vehicle over large bumps and g-outs.
Standard Features
- Lift heights ranging from 2-4" depending on application.
- Threaded spring perch for fine height adjustment
- Developed to provide balanced ride quality and control, both on and off-road
Increased travel and ground clearance
- Monotube damper design
- Pre-Assembled, Factory Direct Replacement Front and Rear Coilovers - No Additional Parts Required. Sold in Pairs.
- Adjustable Threaded Spring Perch to Acco mmodate Increased Loads and
- Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
- Anodized 6061-T6 Billet Aluminum Mounts, 46 mm Piston, Monotube Design with
- Nitrogen Filled Variable Force Valving.
- Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
- Engineered, Tested and Manufactured by Eibach in the U.S.A.
- Limited Lifetime Warranty
Downloads
Specifications
| Part Number |
E86-82-067-02-22 |
| Part Name |
PRO-TRUCK Coilovers |
| UPC |
803050511874 |
| Vehicle |
2016-2021 Toyota Tundra RWD |
| Ride-Height Adjustable - Front |
+0-2.75 in. |
| Ride-Height Adjustable - Rear |
+0-1.5 in. |
| Damping Adjustable |
Yes |
| Adjustment Type |
1-Way |
| Quantity |
Set of 4 Coilovers |
| Country of Origin |
Germany, USA, China |
Vehicle Fitment
- 2016 Toyota Tundra RWD
- 2017 Toyota Tundra RWD
- 2018 Toyota Tundra RWD
- 2019 Toyota Tundra RWD
- 2020 Toyota Tundra RWD
- 2021 Toyota Tundra RWD
