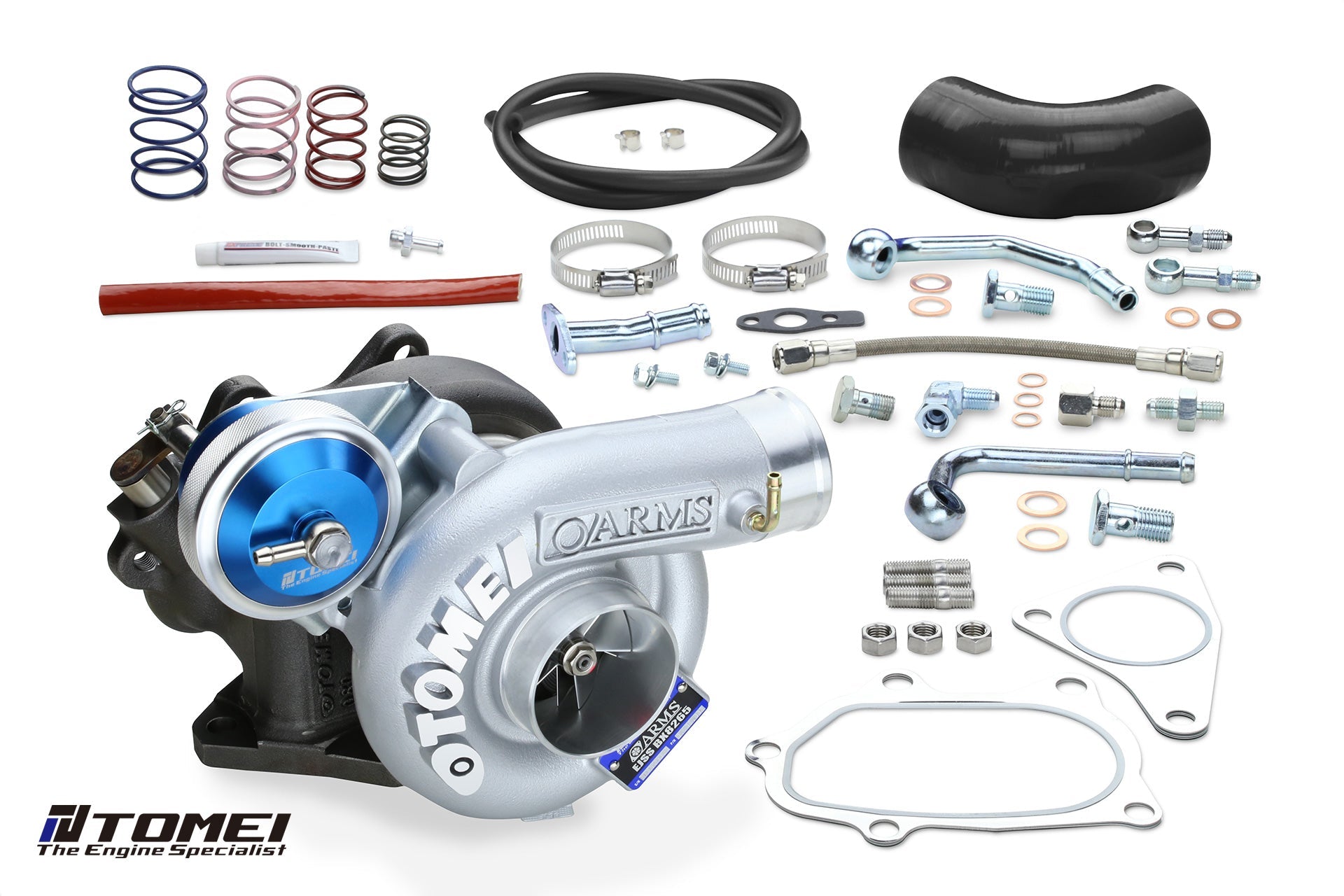

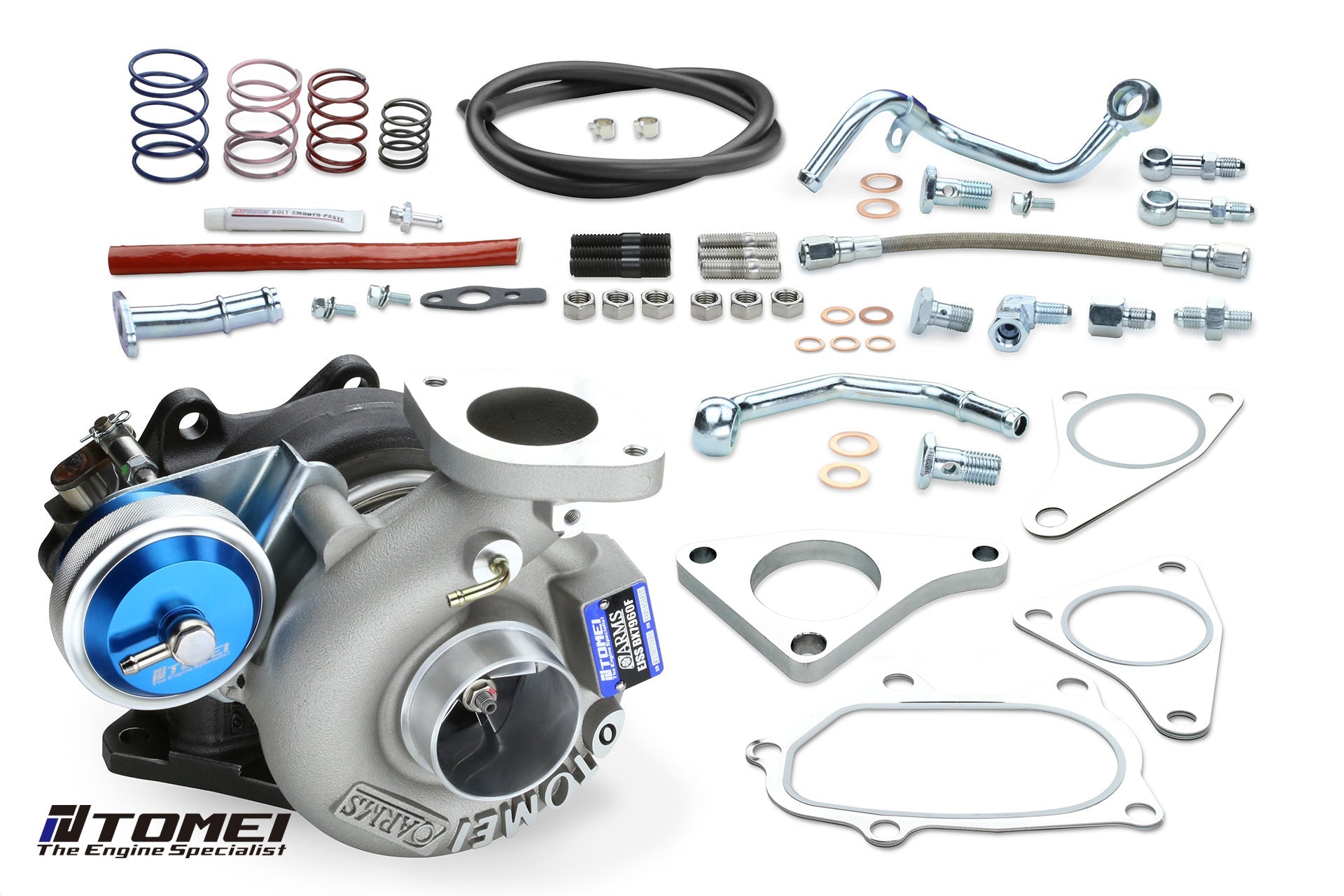

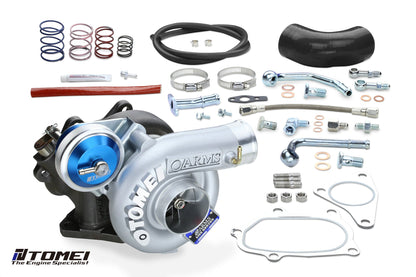

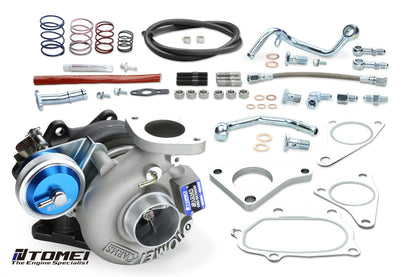

Tomei B/B Turbocharger Kit Arms Engine EJ20, EJ25

Tomei B/B Turbocharger Kit Arms Engine EJ20, EJ25

Tomei

1WDU7

Low stock

Option

Regular price $1,602.00
Sale price $1,602.00 Regular price $1,780.00

  • Secure checkout
  • Warranty Backed
  • Genuine Parts
Sale

Tomei B/B Turbocharger Kit Arms

Category  Engine  Parts Number
EJ SINGLE SCROLL BX7760 EJ20,EJ25 TB403A-SB01A
EJ SINGLE SCROLL BX7960 EJ20,EJ25 TB403A-SB01B
EJ SINGLE SCROLL BX7960F  EJ20,EJ25 TB403A-SB01D
EJ SINGLE SCROLL BX8265 EJ20,EJ25 TB403A-SB01C



PART NUMBER TB403A-SB01A TB403A-SB01B TB403A-SB01C TB403A-SB01D
TARGET HP (HP) 380 400 450 400
BEARING TYPE Ball Bearing Ball Bearing Ball Bearing Ball Bearing
INITIAL BOOST SETTING (kgf/cm2) 1 1 1 1
COMPRESSOR WHEEL
ⒶIND(mm) 52.6 52.6 54.8 52.6
ⒷEXD(mm) 68 68 76.2 68
Trim 60 60 52 60
Blades 6/6. 6/6. 6/6. 6/6.
Material  A2618 A2618 A2618 A2618
Production CNC BILLET CNC BILLET CNC BILLET CNC BILLET
TURBINE WHEEL
ⒶIND(mm) 56 61 67 61
ⒷEXD(mm) 49.1 54 58.8 54
Trim 77 79 77 79
Blades 9 9 9 9
Material  K418 K418 K418 K418
Production CAST CAST CAST CAST
COMPRESSOR HOUSING
IND(mm) 53.6 53.6 55.8 53.46
EXD(mm) 41.63 41.63 41.5 44.2
A/R 0.78 0.78 0.78 0.78
TURBINE HOUSING
IND(mm) 45 45 45 45
EXD(mm) EJ EJ EJ EJ
A/R 0.57 0.57 0.57 0.57

Fitment


Tomei B/B Turbocharger Kit Arms Engine EJ20, EJ25

$1,602.00

Tomei

Tomei Powered USA Inc., established in October 2006, is an automotive performance tuning parts manufacturer based in Lake Forest, California.  The company is 100% owned and operated by Axesta Inc., headquartered in Zama, Kanagawa Prefecture, in Japan.  At the Japanese headquarters, all product development and control of manufacturing for the TOMEI brand are carried out.

The Japanese headquarters Axesta Inc., was established by former Tomei Powered Japan executives and engineers, led by Akira Sasaki, who served as CEO of Tomei Powered Japan for many years up until 2014, to produce world-class tuning parts that go beyond Japan’s limitations. With the rich experience of new members and continuous research and development, Axesta Inc. has successfully developed many high-performance and durable products. Axesta Inc. owns two brands: TOMEI and R.S.E. In the Americas and Europe, it operates as TOMEI “The Engine Specialist,” while R.S.E. “Real Speed ​​Engineering” targets the Asian and Oceanian markets.

Before 2014, TOMEI was mainly developing products for Japanese market with vehicle inspection restrictions in Japan. Now, Axesta Inc. has raised the market standards to a higher technical level and is developing products that will meet high-end standards around the world.  The products developed by the Axesta Inc. aim to build products that far exceed the regulatory standards in Japan.

Since 2014, Tomei Powered USA Inc. has been offering a wide range of top-notch tuning products, including internal engine parts such as crankshafts, connecting rods, camshafts, various valvetrain components, and head gaskets.  High-performance exhaust parts include full titanium mufflers and stainless-steel exhaust manifolds, and peripheral parts such as ball bearing turbos to name a few.
