Tomei J/B Turbocharger Kit Arms 4G63 EVO4-9

Tomei J/B Turbocharger Kit Arms 4G63 EVO4-9

Tomei

1DQ09

Low stock

Engine
Category

Regular price $1,335.73
Sale price $1,335.73 Regular price $1,580.00

  • Secure checkout
  • Warranty Backed
  • Genuine Parts
Sale

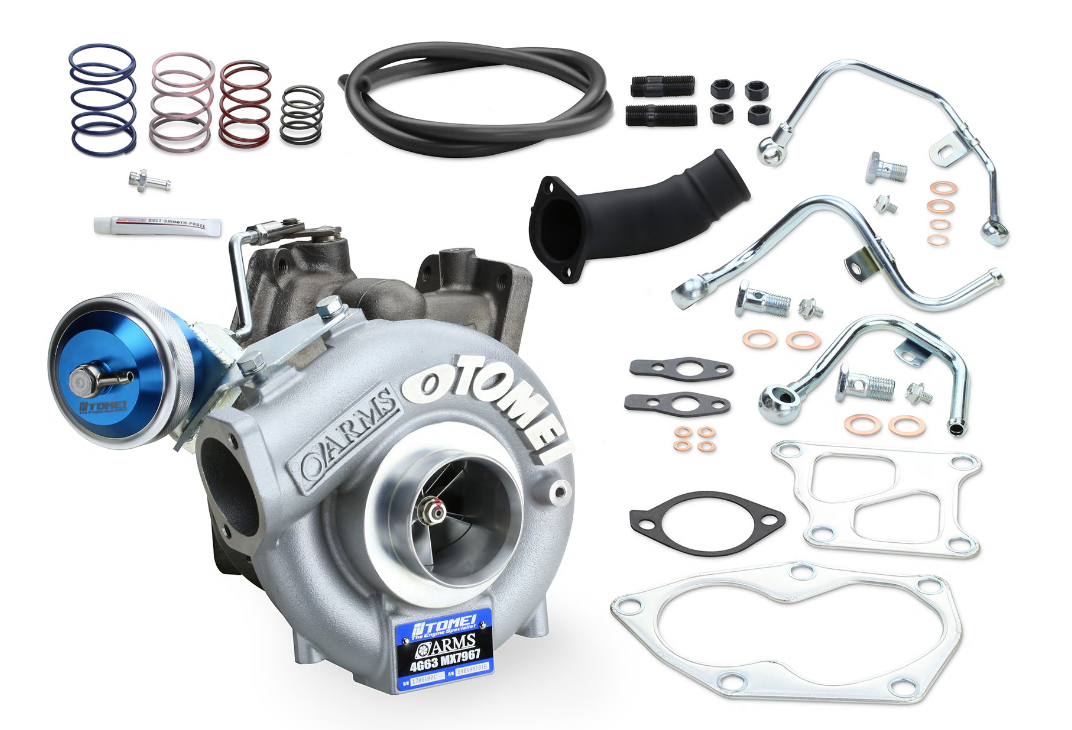

J/B Turbocharger Kit Arms

Category  Engine  Parts Number
MX7960 4G63 EVO4-9 4G63 TB401A-MT01A
MX7967 4G63 EVO4-9 4G63 TB401A-MT01B



Descriptions:

1. TB401A-MT01A

The new Tomei ARMS Mx-Series Turbocharger improves upons Tomei's original M-Series turbocharger design with the inroduction of a new lightweight billet wheel, multi rate billet actuator, and the very same ARMS technology Tomei is known for!

The Tomei ARMS Mx7960 Turbocharger kit for the 4G63 is a 400HP capable kit produced soley for the 4G63 powertrain, providing the best bolt-on upgrade solution for any RB equipped chassis.

CNC Billet Compressor Wheel

The newly designed Billet Compressor Wheel offers significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with a larger surface care for significantly improved airflow and turbo spool.

Multi Range Billet Actuator

A large capacity multi rate billet actuator is utilized, with a reinforced forged billet construction. Includes a total of 6 springs for fine boost adjustments. Up to 3 springs can be combined to find the perfect setup. Swivel type nipple allows for greater freedom when routing hoses.

Compressor Wheel

  • (A) IND (mm) : 52.6
  • (B) ExD (mm) : 68.0
  • Trim : 60
  • Blades : 6
  • Material : A2618
  • Production : CNC Billet
Turbine Wheel
  • (C) ExD (mm) : 54
  • (D) IND (mm) : 61.0
  • Trim : 79
  • Blades : 11
  • Material : K418
  • Production : Cast
Compressor Housing
  • IND (mm) : 61.85
  • ExD (mm) : 50.0
Turbine Housing
  • IND : 4G63
  • ExD : 4G63
  • A/R : 0.77
Initial Boost Setting
  • 1.0kgf/cm2
Fitment
  • Mitsubishi Lancer Evolution IV-Ix 97-07

2. TB401A-MT01B

The new Tomei ARMS Mx-Series Turbocharger improves upons Tomei's original M-Series turbocharger design with the inroduction of a new lightweight billet wheel, multi rate billet actuator, and the very same ARMS technology Tomei is known for!

The Tomei ARMS Mx7967 Turbocharger kit for the 4G63 is a 430HP capable kit produced soley for the 4G63 powertrain, providing the best bolt-on upgrade solution for any RB equipped chassis.

CNC Billet Compressor Wheel

The newly designed Billet Compressor Wheel offers significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with a larger surface care for significantly improved airflow and turbo spool.

Multi Range Billet Actuator

A large capacity multi rate billet actuator is utilized, with a reinforced forged billet construction. Includes a total of 6 springs for fine boost adjustments. Up to 3 springs can be combined to find the perfect setup. Swivel type nipple allows for greater freedom when routing hoses.

Compressor Wheel

  • (A) IND (mm) : 61.4
  • (B) ExD (mm) : 82.0
  • Trim : 56
  • Blades : 6
  • Material : A2618
  • Production : CNC Billet
Turbine Wheel
  • (C) ExD (mm) : 54
  • (D) IND (mm) : 61.0
  • Trim : 79
  • Blades : 11
  • Material : K418
  • Production : Cast
Compressor Housing
  • IND (mm) : 60.63
  • ExD (mm) : 50.0
Turbine Housing
  • IND : 4G63
  • ExD : 4G63
  • A/R : 0.77
Initial Boost Setting
  • 1.0kgf/cm2
Fitment
  • Mitsubishi Lancer Evolution IV-Ix 97-07
*** Proposition 65

/!\ warningWARNING: Cancer and Reproductive Harm


Fitment

Make

  • Mitsubishi

Tomei J/B Turbocharger Kit Arms 4G63 EVO4-9

$1,335.73

Tomei

Tomei Powered USA Inc., established in October 2006, is an automotive performance tuning parts manufacturer based in Lake Forest, California.  The company is 100% owned and operated by Axesta Inc., headquartered in Zama, Kanagawa Prefecture, in Japan.  At the Japanese headquarters, all product development and control of manufacturing for the TOMEI brand are carried out.

The Japanese headquarters Axesta Inc., was established by former Tomei Powered Japan executives and engineers, led by Akira Sasaki, who served as CEO of Tomei Powered Japan for many years up until 2014, to produce world-class tuning parts that go beyond Japan’s limitations. With the rich experience of new members and continuous research and development, Axesta Inc. has successfully developed many high-performance and durable products. Axesta Inc. owns two brands: TOMEI and R.S.E. In the Americas and Europe, it operates as TOMEI “The Engine Specialist,” while R.S.E. “Real Speed ​​Engineering” targets the Asian and Oceanian markets.

Before 2014, TOMEI was mainly developing products for Japanese market with vehicle inspection restrictions in Japan. Now, Axesta Inc. has raised the market standards to a higher technical level and is developing products that will meet high-end standards around the world.  The products developed by the Axesta Inc. aim to build products that far exceed the regulatory standards in Japan.

Since 2014, Tomei Powered USA Inc. has been offering a wide range of top-notch tuning products, including internal engine parts such as crankshafts, connecting rods, camshafts, various valvetrain components, and head gaskets.  High-performance exhaust parts include full titanium mufflers and stainless-steel exhaust manifolds, and peripheral parts such as ball bearing turbos to name a few.
