TR TD06-20G JDM Twin Scroll Turbo Kit for Subaru WRX 2002-2007 & STi 2004-2020
TR TD06-20G JDM Twin Scroll Turbo Kit for Subaru WRX 2002-2007 & STi 2004-2020 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
** Attention: All of our turbocharger now comes with billet wastegate actuator. The brass wastegate actuator will be phased out. Picture(s) of turbo or turbo kit(s) with the brass wastegate actuator will be replaced as soon as the new picture(s) become available. If you have any questions, please contact us **
Tomioka Racing Twin Scroll Turbo line is catered to the die-hard Subaru fans! The twin scroll turbo is an efficient and economical way to replace or upgrade your current twin scroll setup on your Subaru. Twin Scroll Turbos are increasingly hard to find these days, with the Tomioka Turbo they are a direct bolt-on, featuring equal length twin-scroll downpipe and also boast more boost power than the standard VF series turbo. With TD06 housing and twin-scroll set-up, Tomioka Turbo improves spool time compared to the standard TD06 turbo!
Check out the available video and dyno graph on this turbo.

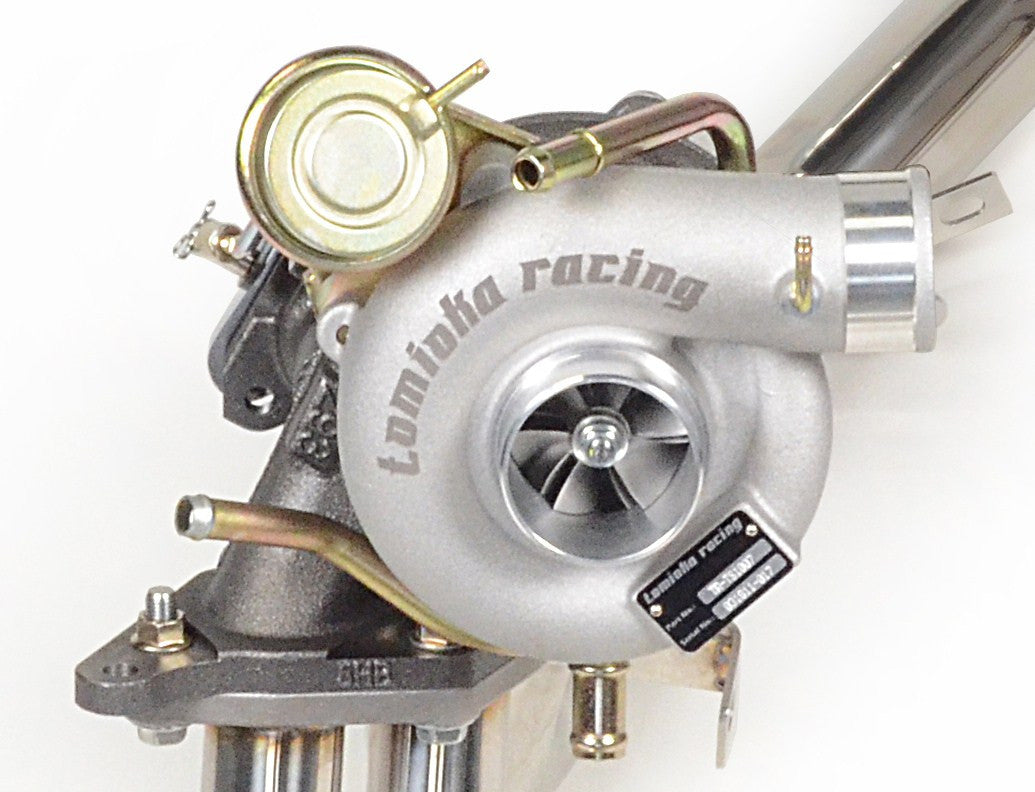

Turbo Characteristics
| Bearing Type: | Journal | |
| Flange Type: | Subaru JDM Twin Scroll 5-Bolts | |
| Compressor Wheel | In: | 51 mm |
| Ex: | 58 mm | |
|
Turbine Wheel |
In: | 68 mm |
| Ex: | 56 mm | |
| Actuator: | 1.1 Bar / 16 psi | |
| Turbine Housing: | 8 cm2 | |
| Max. Power: | 500 HP | |
Applications: (This JDM kit would apply to the following models.)
- 2002-2007 WRX
- 2004-2020 STi

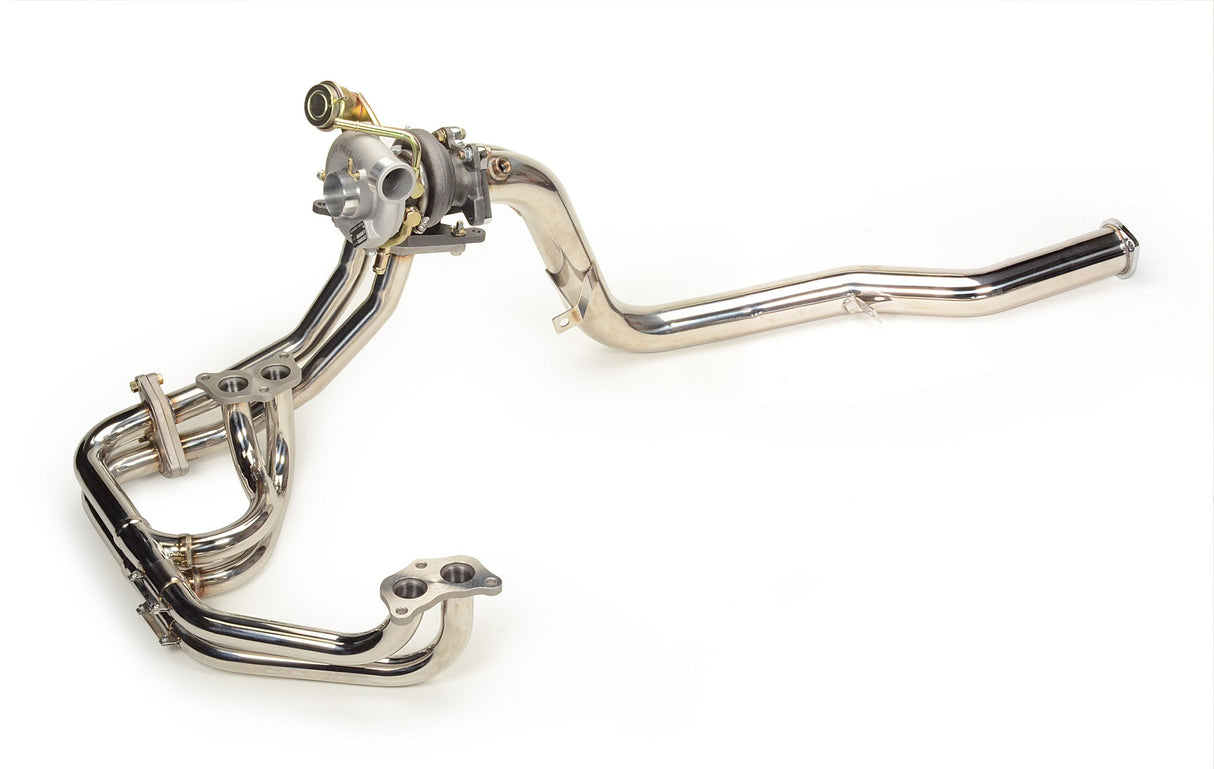

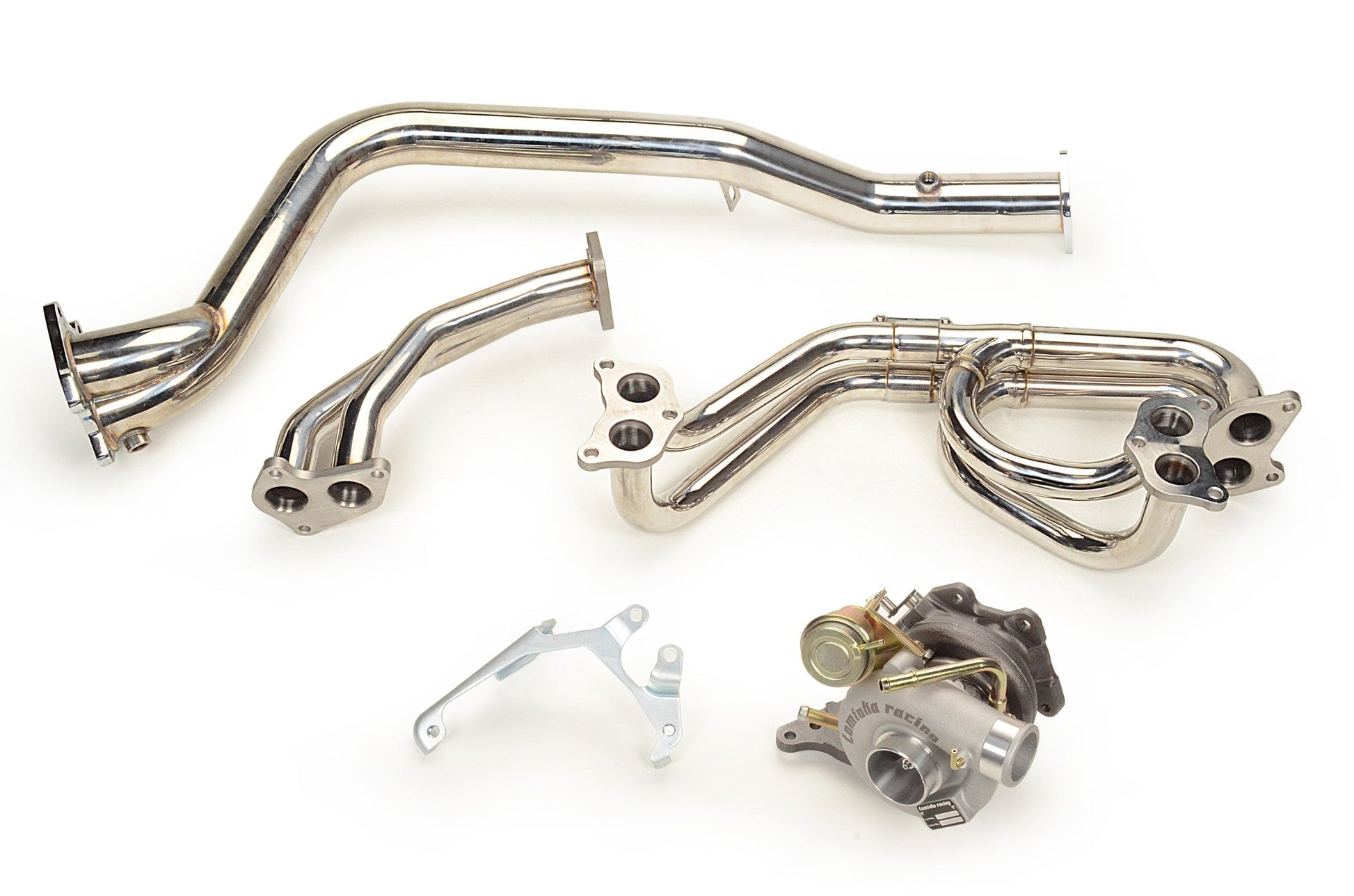

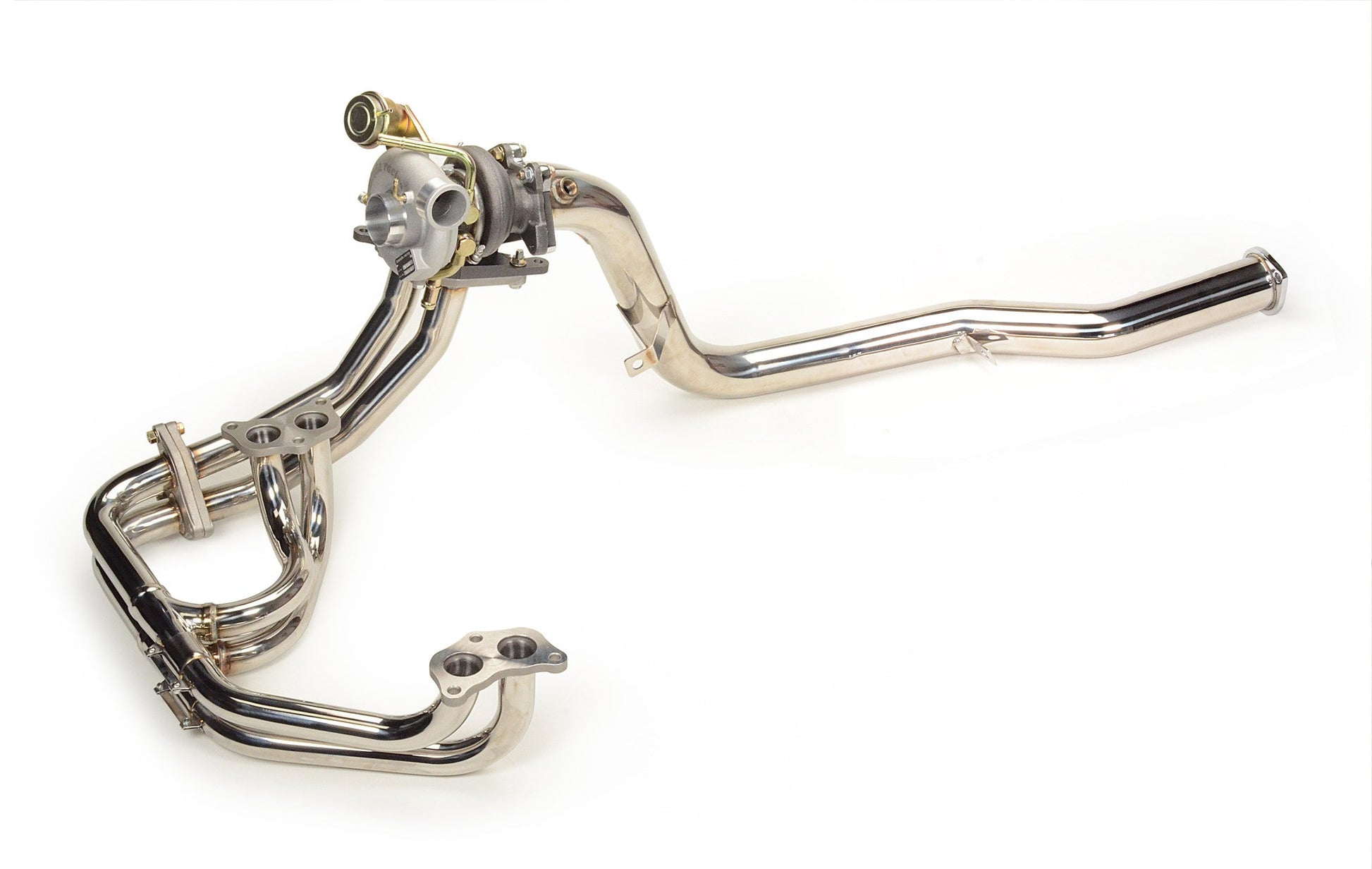

Kit Contents
• TR-TS1015 Twin Scroll Turbo
• TR-ES1002 Twin Scroll Exhaust Manifold with 3-Bolt Uppipe
• TR-ES1005 Twin Scroll Downpipe
• Turbo Mounting Bracket
• Hardware kits
