BC Racing  |  SKU: D-94E-BR

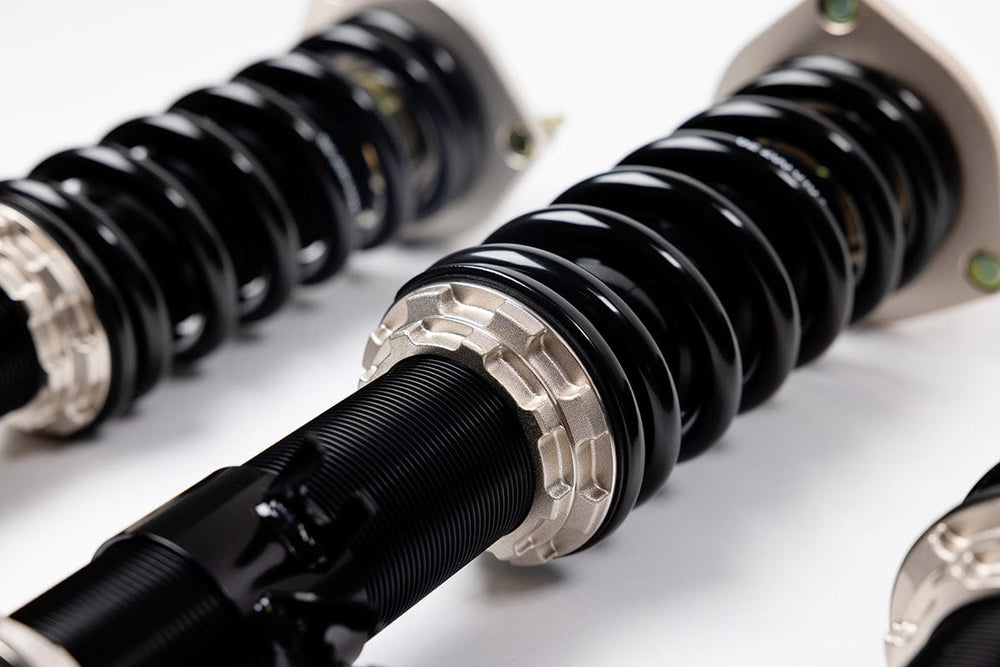

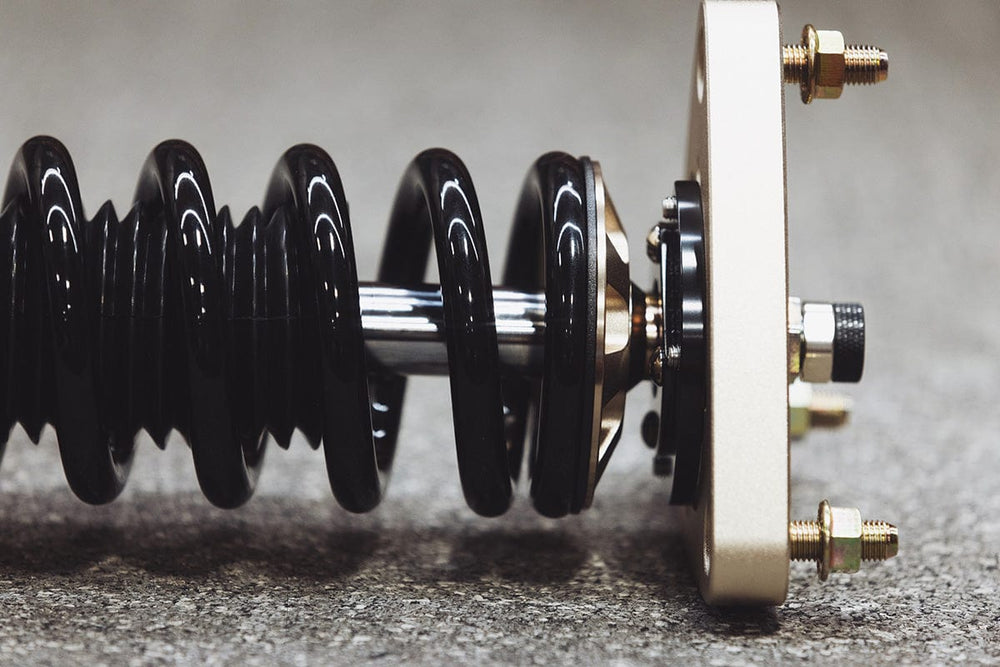

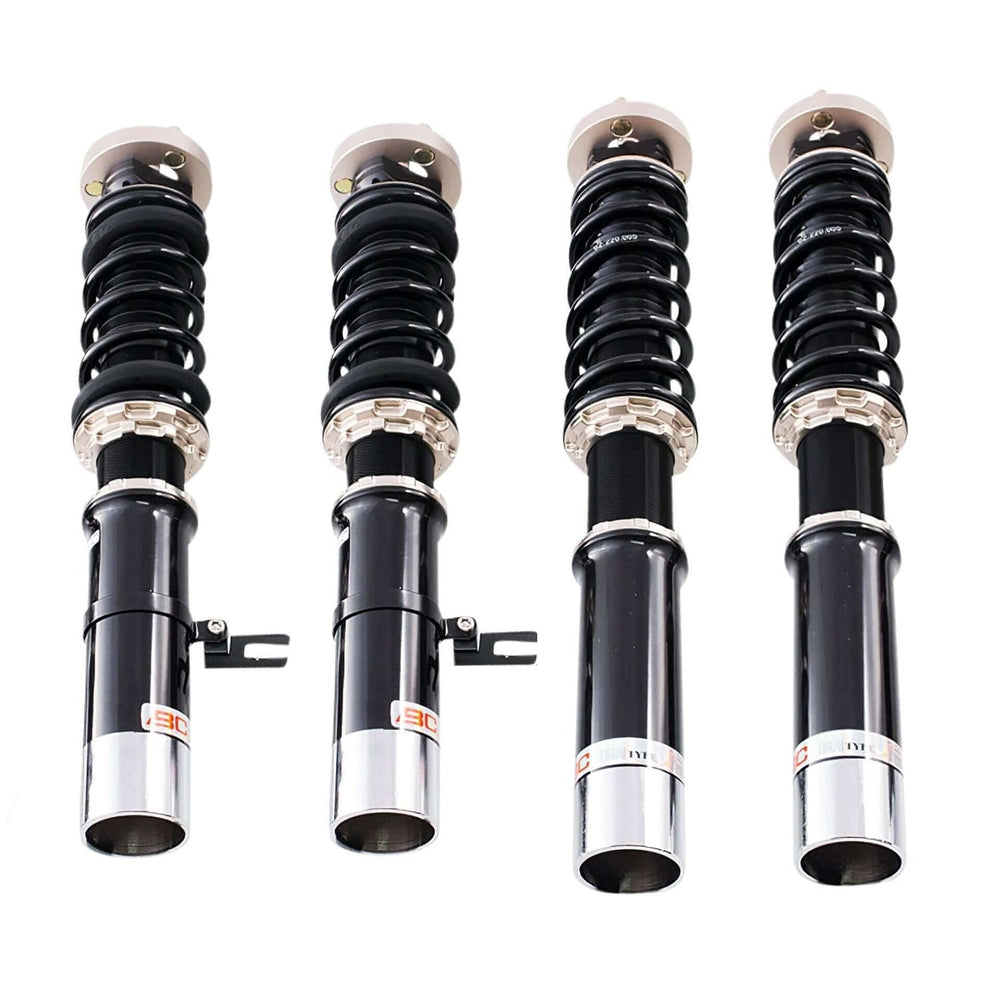

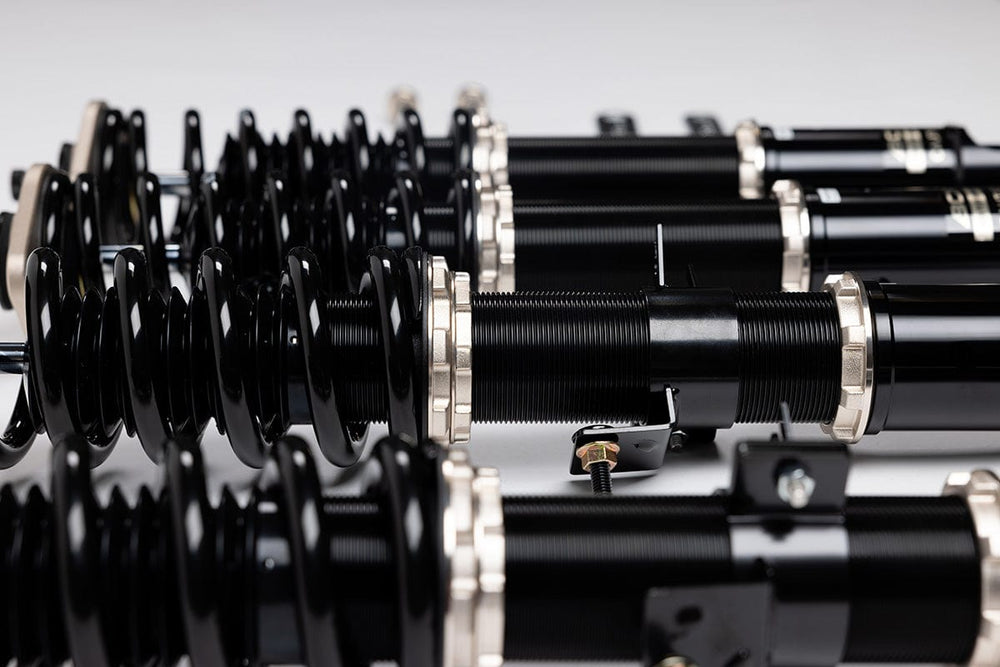

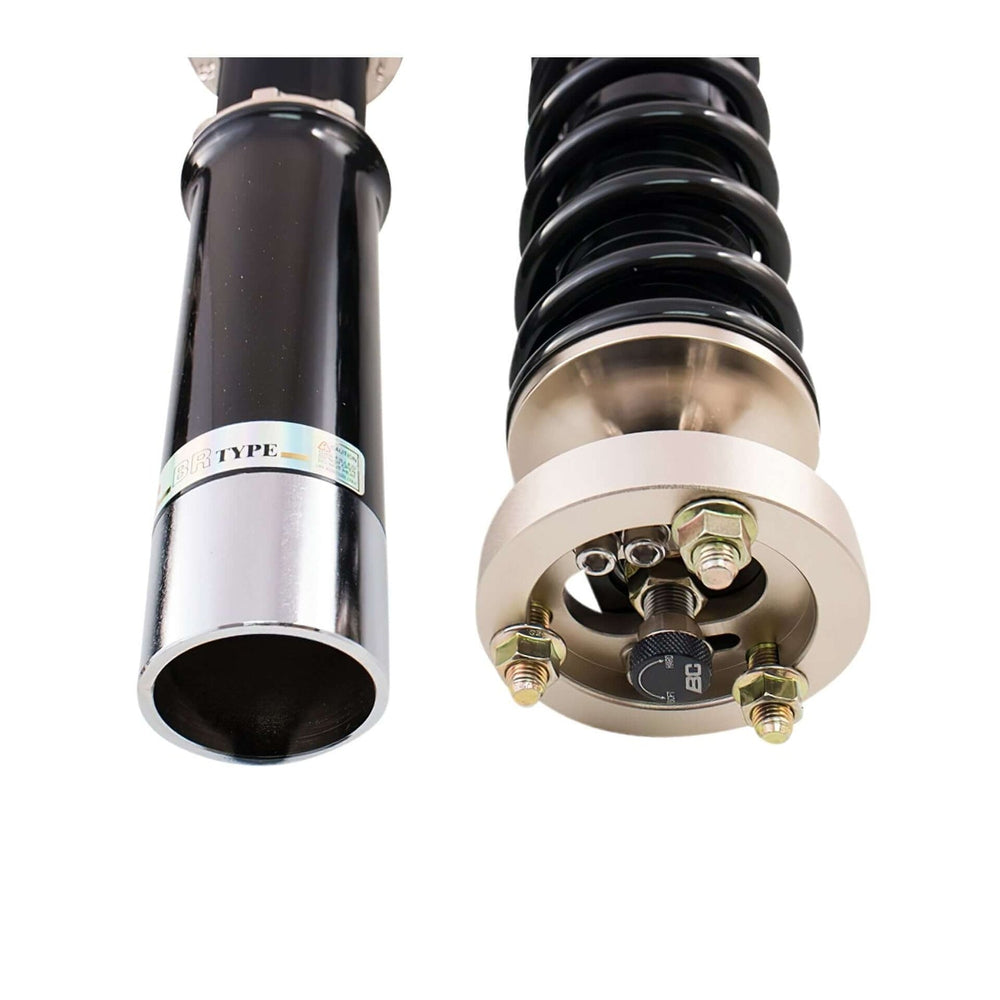

BC Racing BR Series Coilovers (Extreme Low) for 1974 Nissan 260Z (S30)

$1,390.00 $1,485.00
Front Top Mounts
Rear Top Mounts

BC Racing BR Series Coilovers for the 1974 Nissan 260Z (S30) offer the most affordable entry into coilover suspension without sacrificing performance, comfort, build quality, vehicle height, or handling. This is done by extensively testing each vehicle, then refining the coilover characteristics as many times as needed to ensure the most well-balanced and affordable aftermarket suspension conceivable.

BC Racing takes great pride in choosing spring rates for our off-the-shelf kits that strike the perfect balance between comfort and performance so you're never stuck with an oversprung suspension like many other brands sell. BC Racing offers one of the widest ranges of damping adjustment with 30-clicks of compression/rebound adjusted simultaneously on the BR Series.

With meticulously chosen spring rates, damper valving, and one of the widest adjustment ranges in the industry, you can't go wrong with the BC Racing BR Series Coilover System. BC Racing BR Series is the most popular coilover option from BC Racing.

Features

  • Highly customizable
  • Mono-tube shock design
  • Linear piston and damping curve

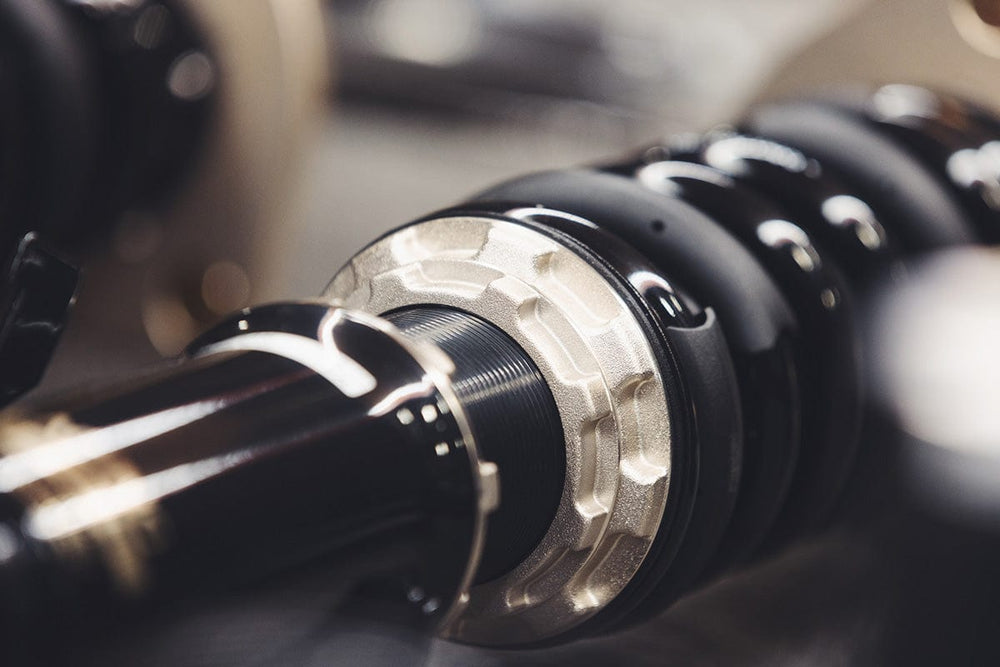

  • Height adjustment independent of spring compression

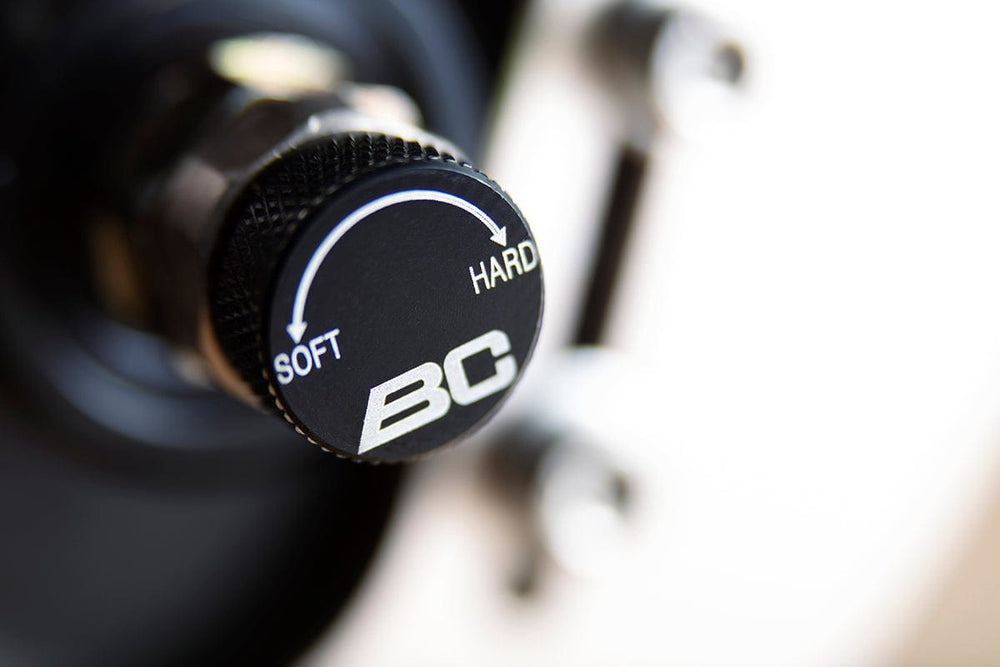

  • 30-clicks of simultaneous compression/rebound adjustment
  • Front camber plates standard on applicable kits
  • Rear camber plates available for applicable kits
  • Custom spring rates and Swift Springs available
  • Custom valving or valving paired for custom spring rates
  • 2 year warranty against manufacturing defects
  • Fully rebuildable with replacement parts

Not all vehicles can use camber plates in the front and/or rear. Most vehicles will have non-adjustable top mounts included, and some will reuse OEM upper mounts. Refer to the Specifications section for more information.

Specifications
Part Number D-94E-BR
Part Name BR Series Coilovers
Vehicle 1974 Nissan 260Z
Chassis Code S30
Extreme Low - Front Springs (kg/mm) 62-150-5kg
Extreme Low - Rear Springs (kg/mm) 62-220-5kg
Extreme Low - Front Swift Springs (kg/mm) 62-152-X
Extreme Low - Rear Swift Springs (kg/mm) 62-203-X
Front Camber Plates Included
Rear Camber Plates Included
Note 1 4-bolt camber plates are available - these allow for 1 degree more of camber adjustment.
Note 2 The 4-bolt camber plates require 2 new holes to be drilled in the upper strut tower mount.
Note 3 Welding is required for installation
Note 4 1974 model year only
Note 4 This kit is Extreme Low. For Standard Drop, use D-94-BR.
Vehicle Fitment
  • 1974 Nissan 260Z (S30)
