Ohlins Road & Track Coilovers for 2012-2017 BMW 4 Series (F32)

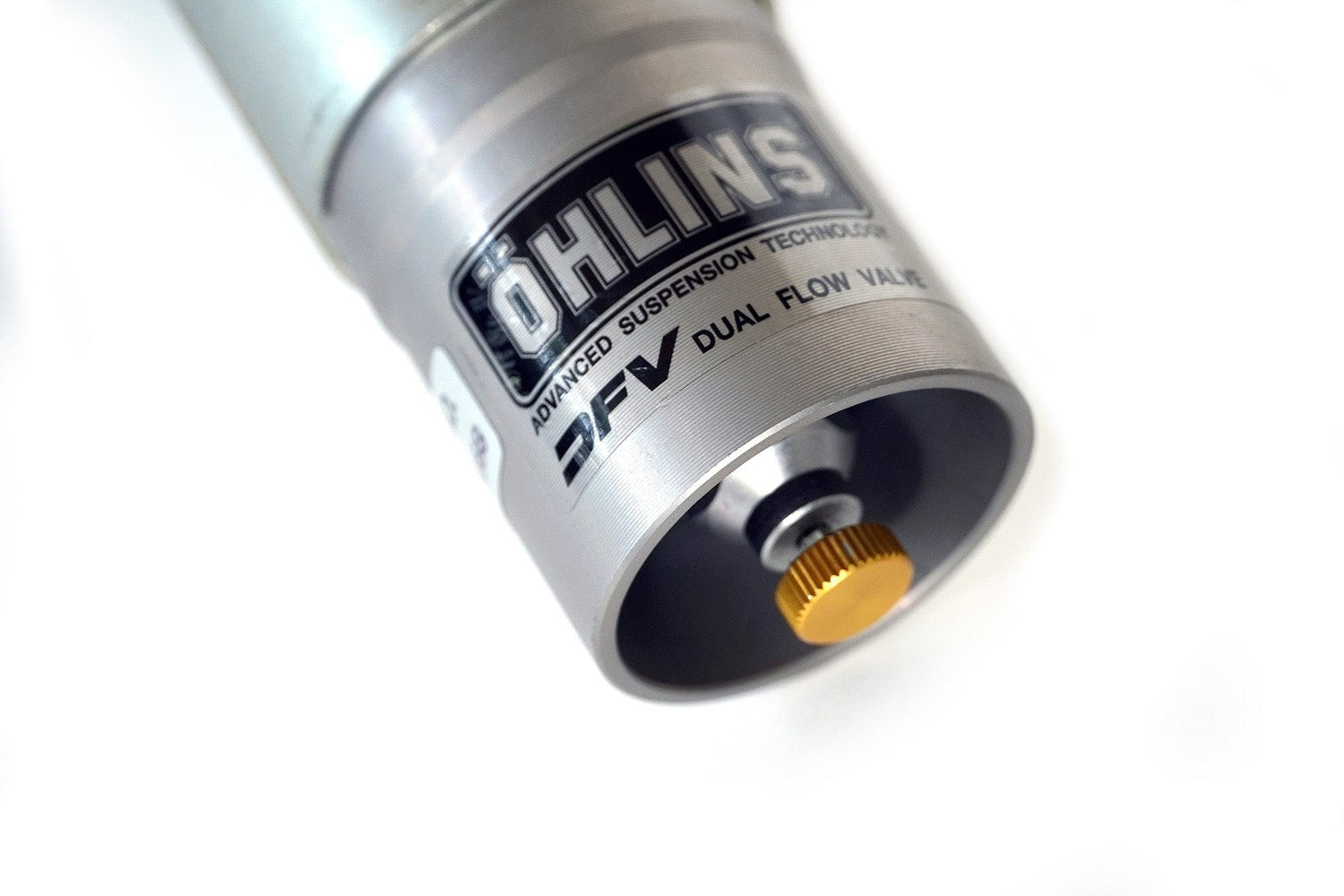

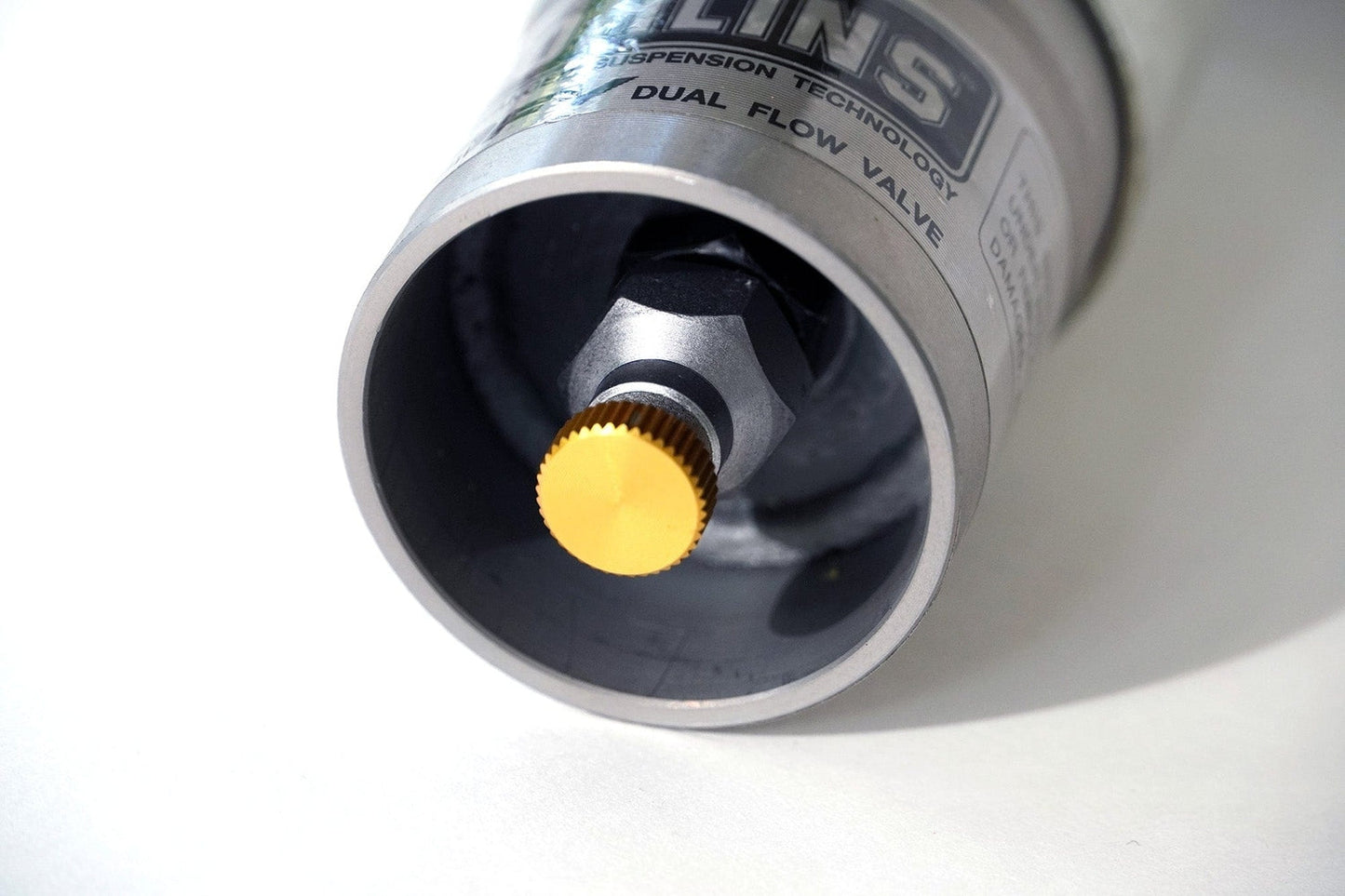

The Ohlins Road & Track Coilovers give your 2012-2017 BMW 4 Series (F32) a true racing experience without losing comfort when commuting to work. Our unique Dual Flow Valve (DFV) technology allows you to quickly change the stiffness of the shock absorber. When arriving to the racetrack, just turn the golden knob clockwise on the damper to set it in race mode this action changes all four areas in the damper; low and high speed compression and rebound damping.

With Ohlins Road & Track coilovers you will experience a car with blistering response times, improved bump absorption and a massive amount of grip to increase the safety when driving your car on the limit. The car will be easier to balance on the edge of what the tires can handle before losing grip. You will be much quicker on track. The DFV suspension prevents you from losing the racing line when hitting bumps or curbs. The DFV components within react quickly and keeps you in control of the car and in contact with the track. When driving to and from the track, just set the dampers in road mode for a more relaxed and comfortable drive, still with more grip and quicker response time than ever before.

Features

• Ride-height adjustable
• Matched compression and rebound hydrodynamics
• Consistent high-tolerance reliability
• Fully rebuildable
• Includes all hardware and instructions for installation
• DFV technology (Dual Flow Valve)
• Corrosion salt spray tested (ISO 9227)
• 2 year limited warranty
• Set includes springs

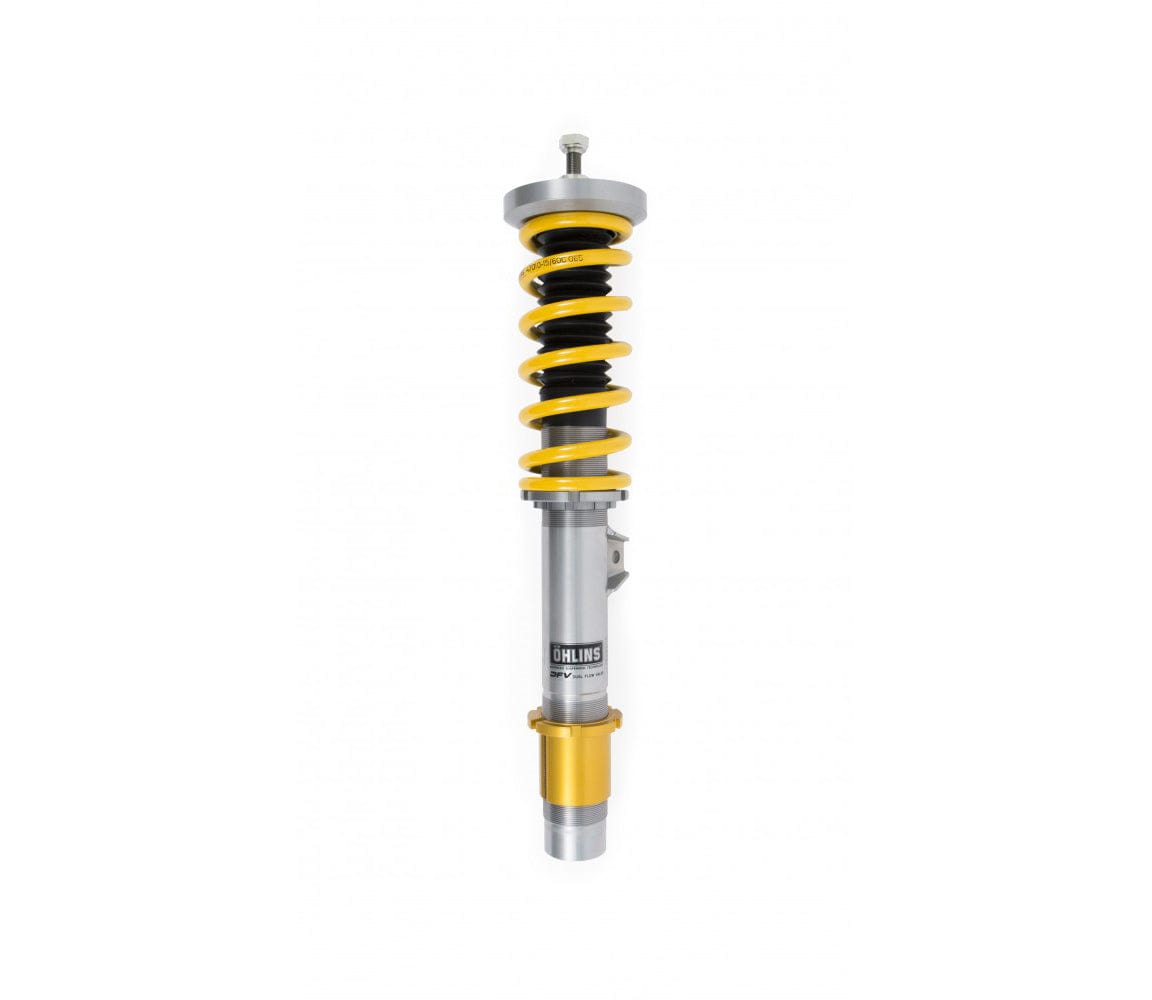

Features Front

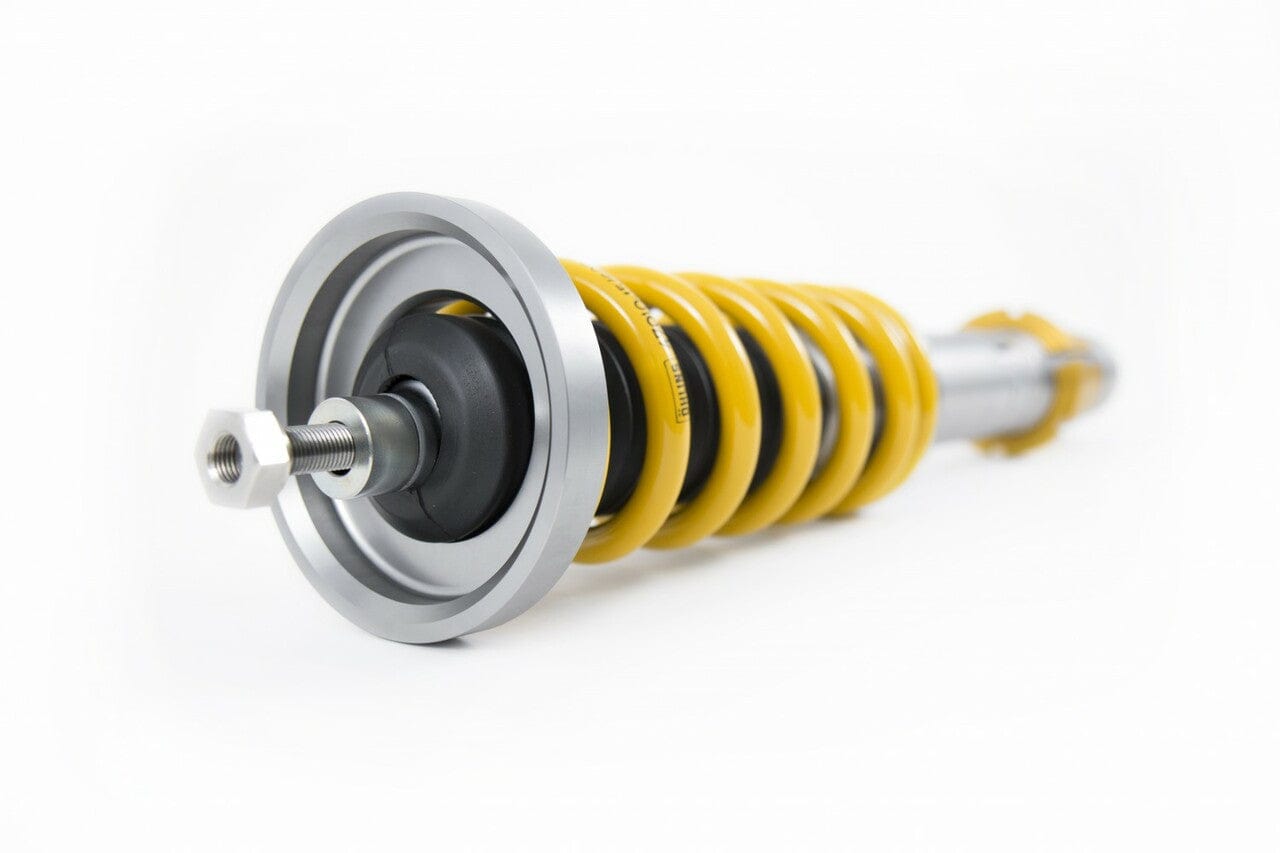

• McPherson strut, upside down
• Compression and rebound damping with one adjuster

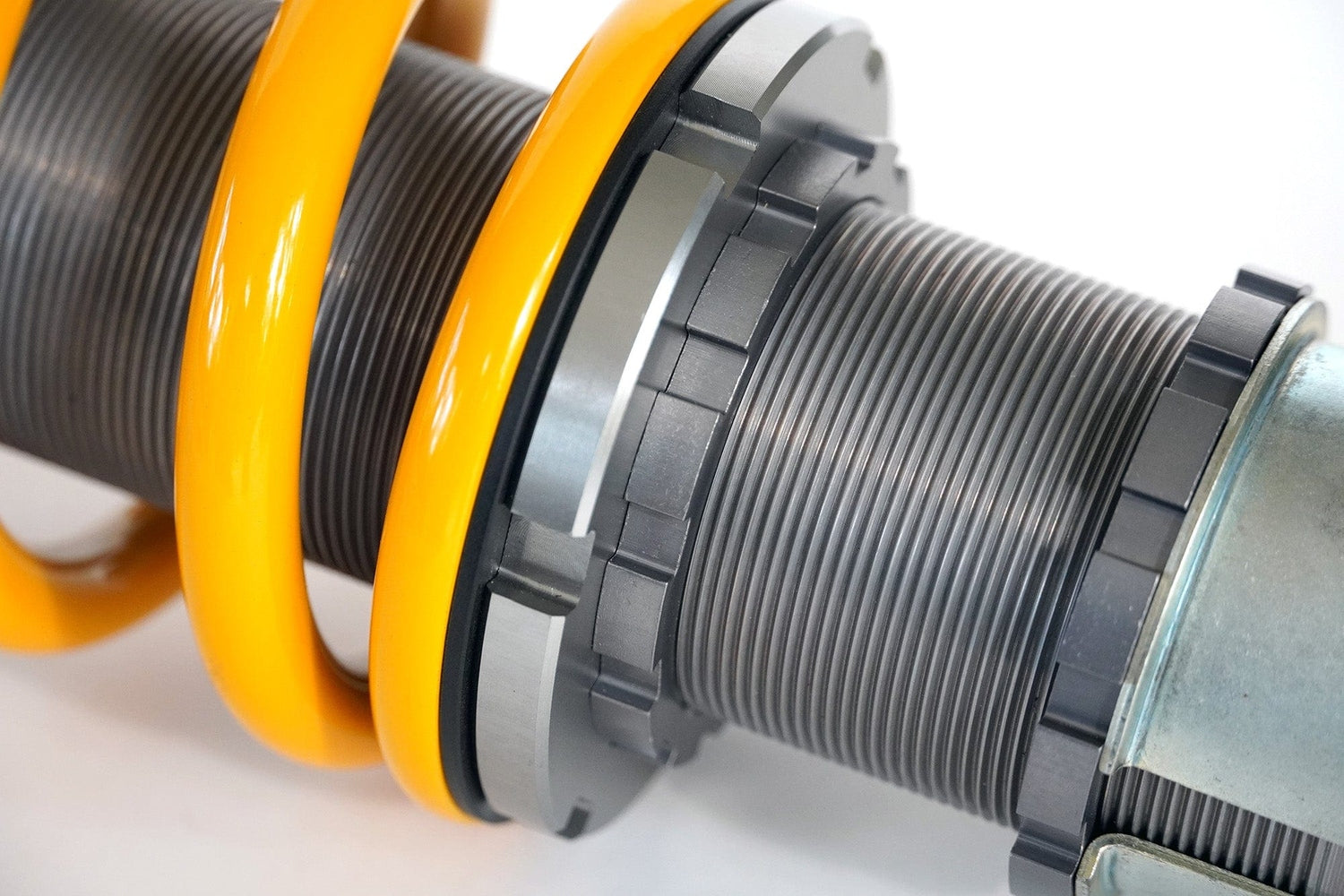

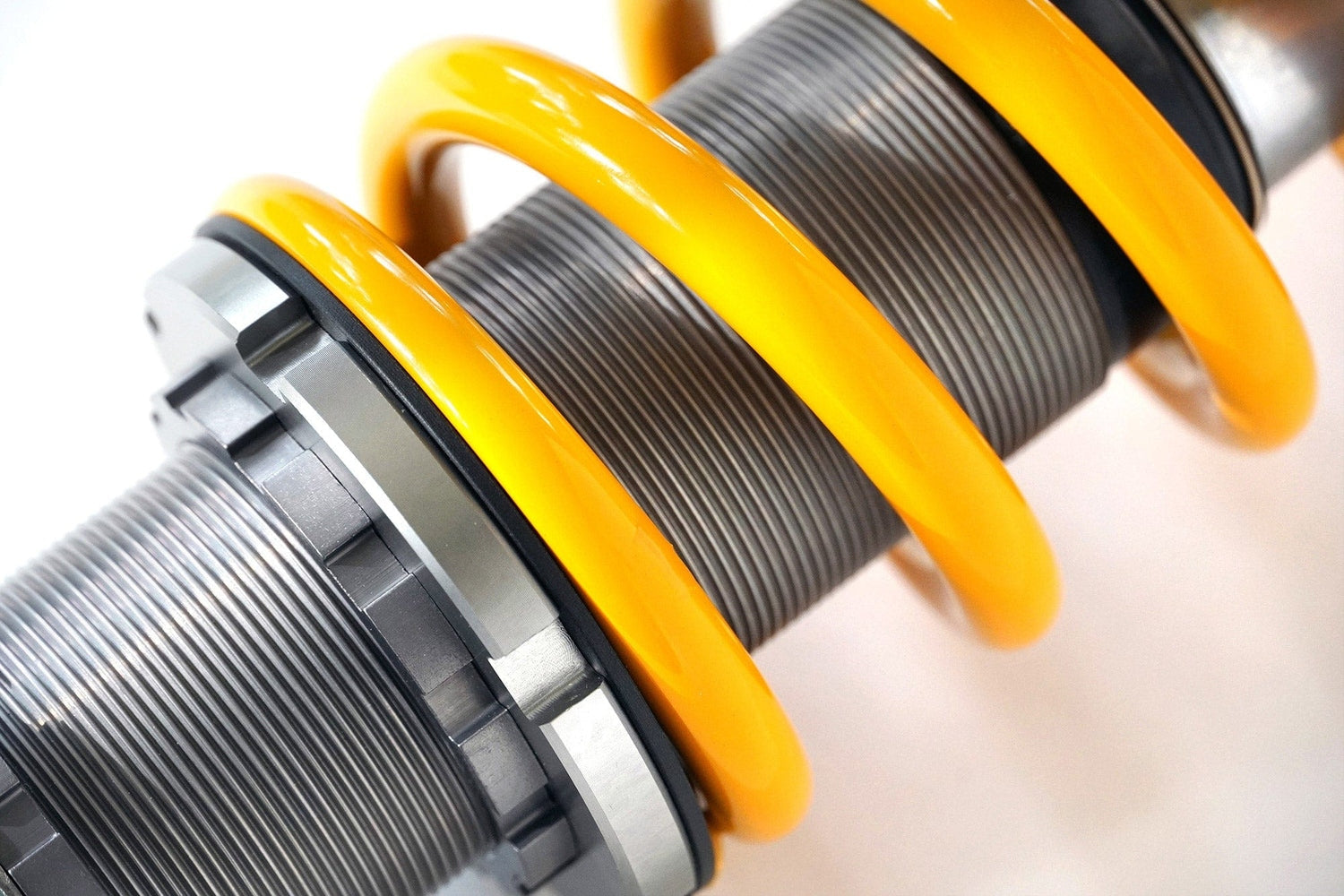

• Spring preload adjuster
• Approx. 5 - 25 mm lower than standard with recommended setup
• Spring rate 60 N/mm
• Dust covers
• Use with original top mounts

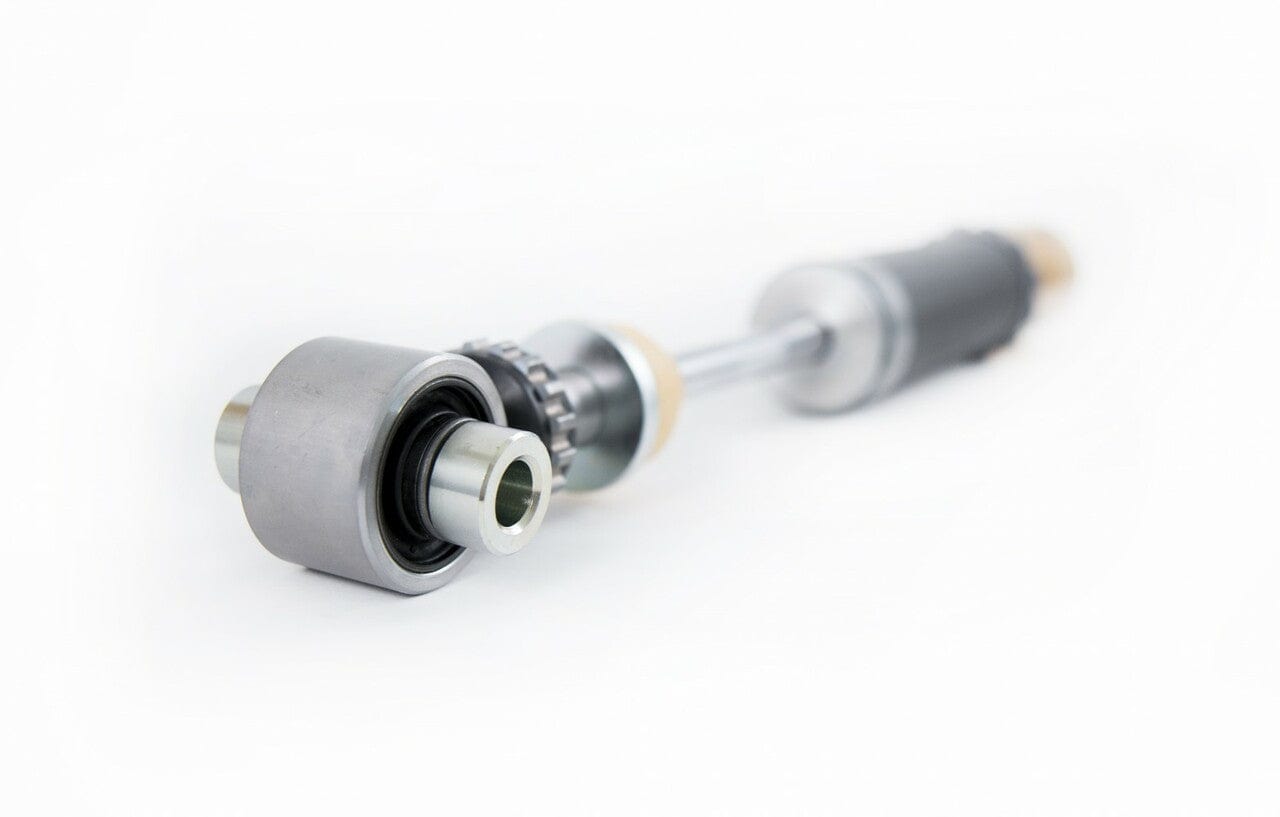

Features Rear

• Conventional Shock Absorber
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Approx. 0 - 30 mm lower than standard with recommended setup
• Spring rate 160 N/mm
• Dust covers
• Use with original top mounts

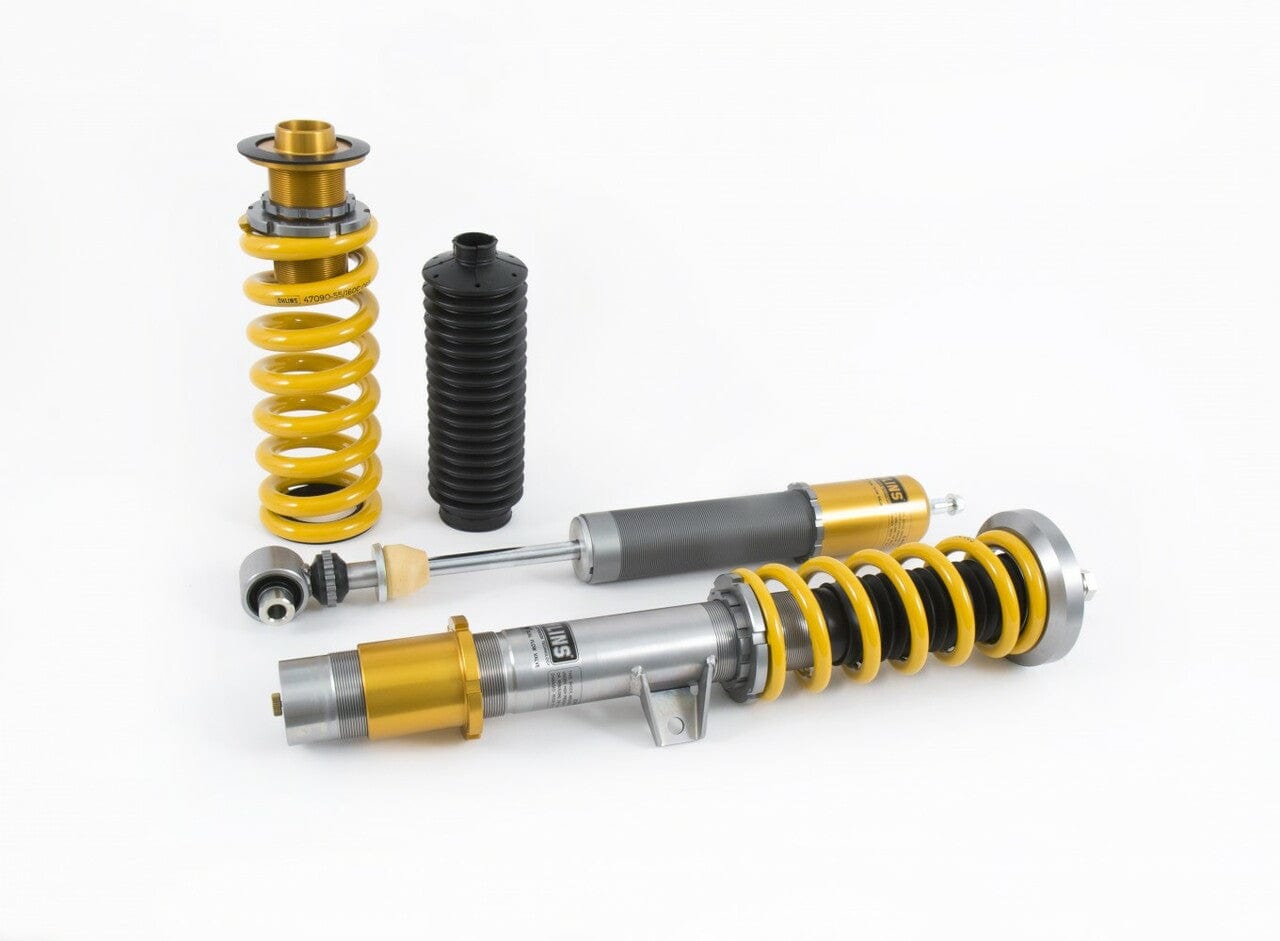

Kit Includes

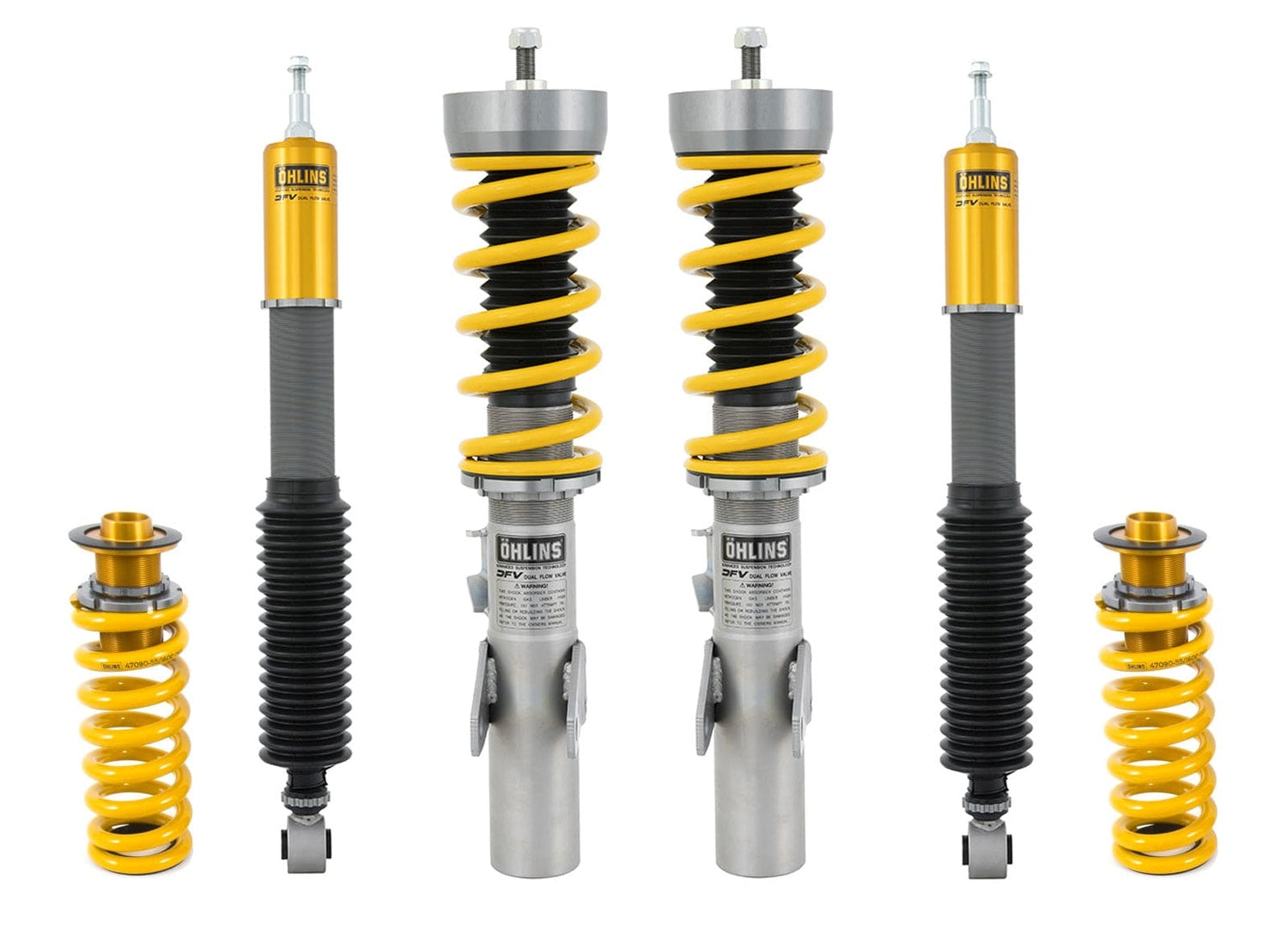

• Coilover kit including springs
• C-Spanner (for spring preload adjustment)
• Owners manual and mounting instruction
• Sticker set

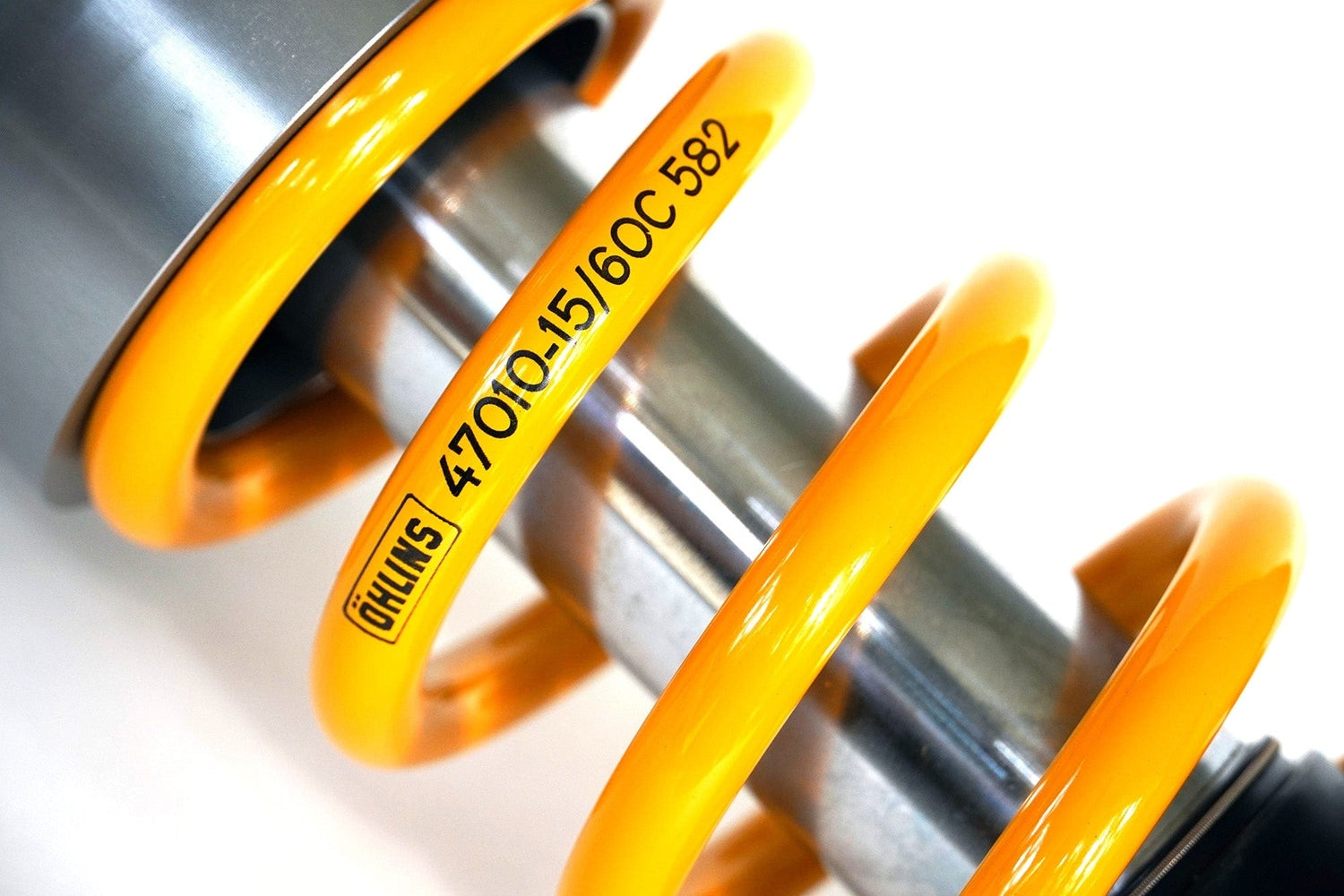

Spring Rates

• Front: 60 N/mm // 343 lbs/in. // 6 Kg/mm
• Rear: 160 N/mm // 915 lbs/in. // 16 Kg/mm

Vehicle Fitment

• 2012 BMW 4 Series (F32)
• 2013 BMW 4 Series (F32)
• 2014 BMW 4 Series (F32)
• 2015 BMW 4 Series (F32)
• 2016 BMW 4 Series (F32)
• 2017 BMW 4 Series (F32)


Additional Fitment Information

• Note 1: Fits RWD & xDrive
