Ohlins | SKU: SUS Mi10S1

Ohlins Road & Track Coilovers for 2015-2020 Subaru WRX STI (VA)

$2,907⁸⁹ $3,093⁵⁰

Fast Shipping

Secure Payment

Genuine Parts

Warranty Backed

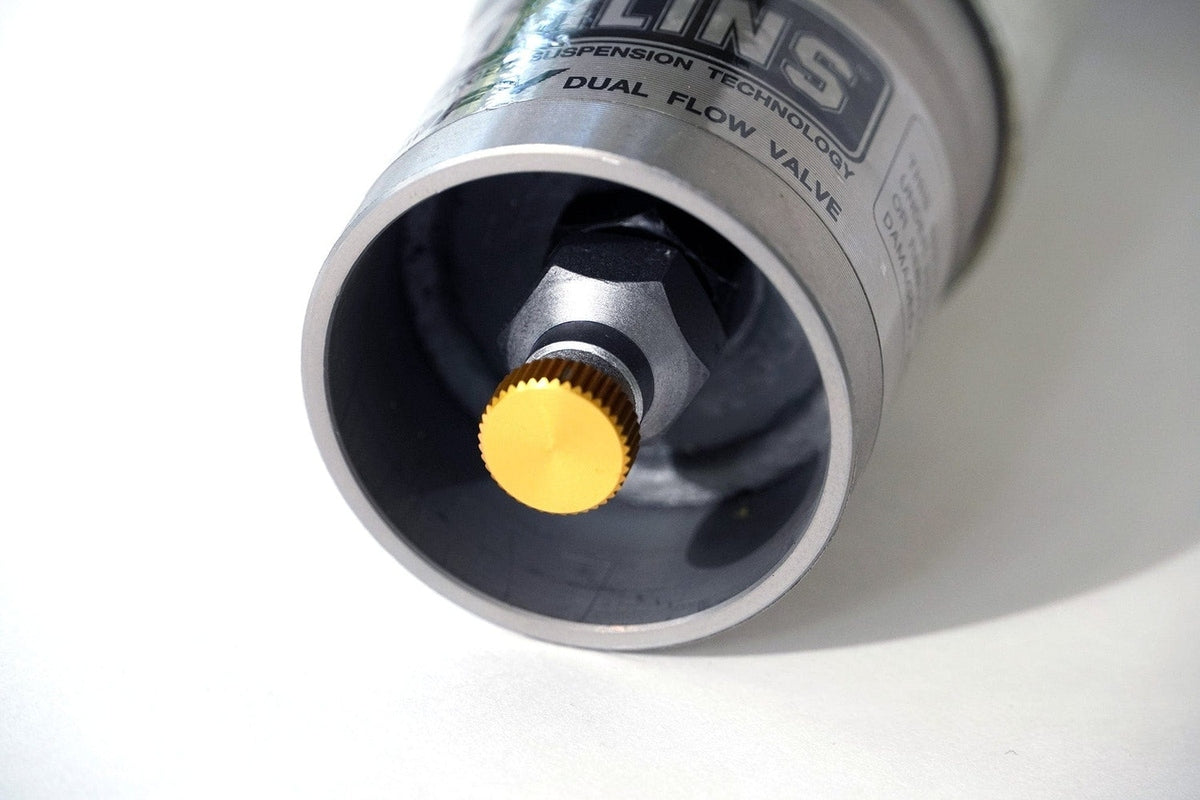

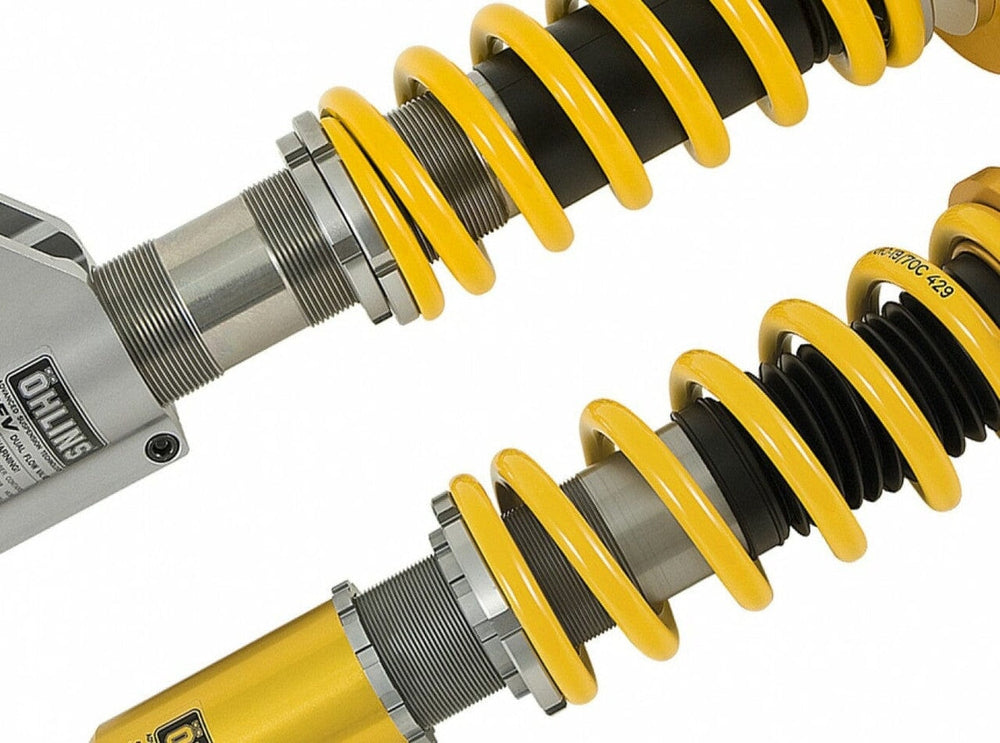

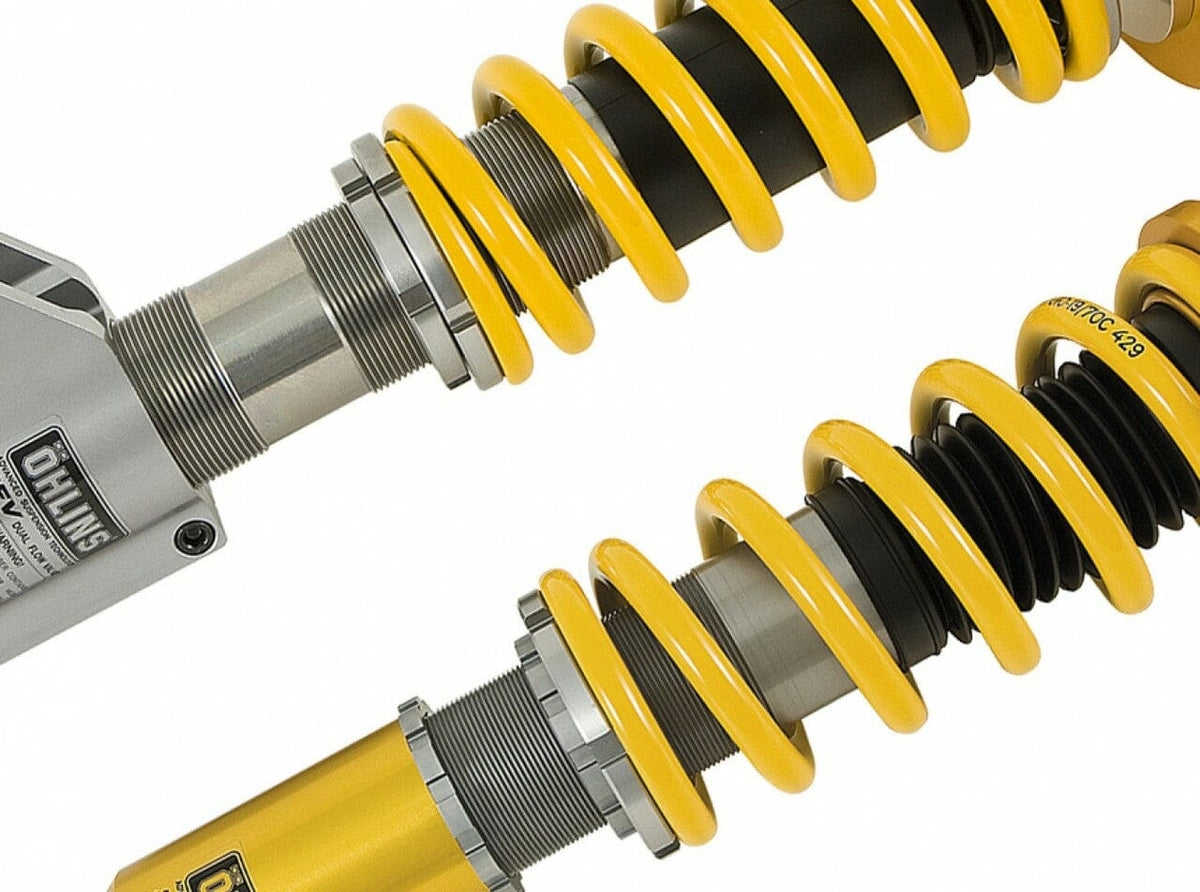

These Ohlins 2015+ Subaru WRX STI coilovers give your vehicle a true racing experience without losing comfort when commuting to work. Our unique Dual Flow Valve (DFV) technology allows you to quickly change the stiffness of the shock absorber. When arriving to the racetrack, just turn the golden knob clockwise on the damper to set it in race mode this action changes all four areas in the damper; low and high speed compression and rebound damping.

With Ohlins 2015+ Subaru WRX STI coilovers you will experience a car with blistering response times, improved bump absorption and a massive amount of grip to increase the safety when driving your car on the limit. The car will be easier to balance on the edge of what the tires can handle before losing grip. You will be much quicker on track. The DFV suspension prevents you from losing the racing line when hitting bumps or curbs. The DFV components within react quickly and keeps you in control of the car and in contact with the track. When driving to and from the track, just set the dampers in road mode for a more relaxed and comfortable drive, still with more grip and quicker response time than ever before.

Features

Ride-height adjustable
Matched compression and rebound hydrodynamics
Consistent high-tolerance reliability
Corrosion salt spray tested (ISO 9227)
Fully rebuildable
Includes all hardware and instructions for installation
2 year limited warranty
DFV technology (Dual Flow Valve)
Set incl. springs

Features Front

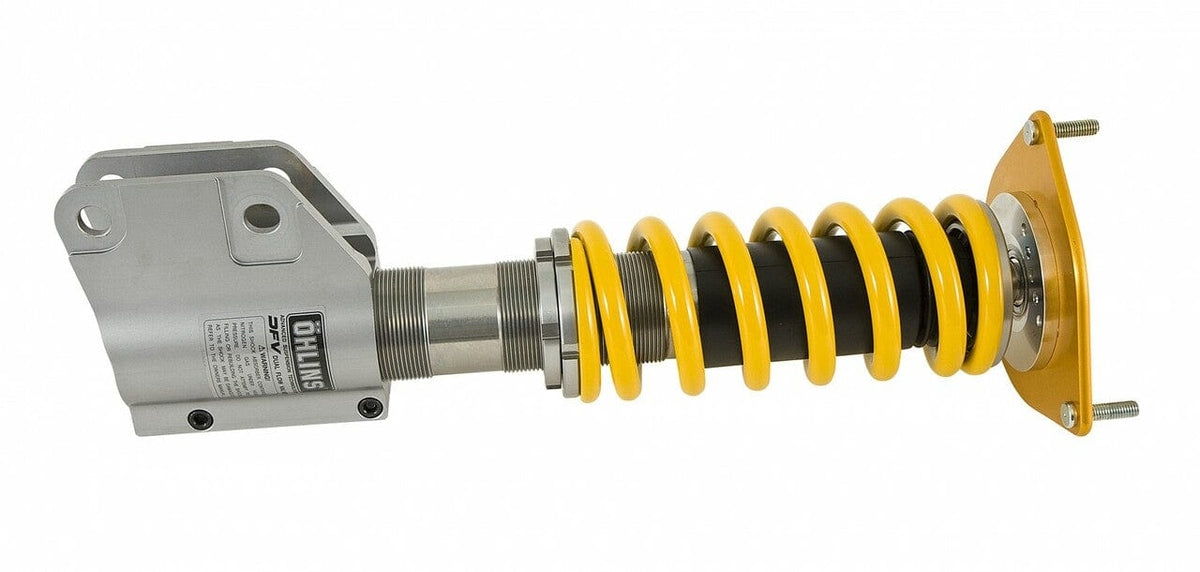

McPherson strut, upside down
Compression and rebound damping with one adjuster

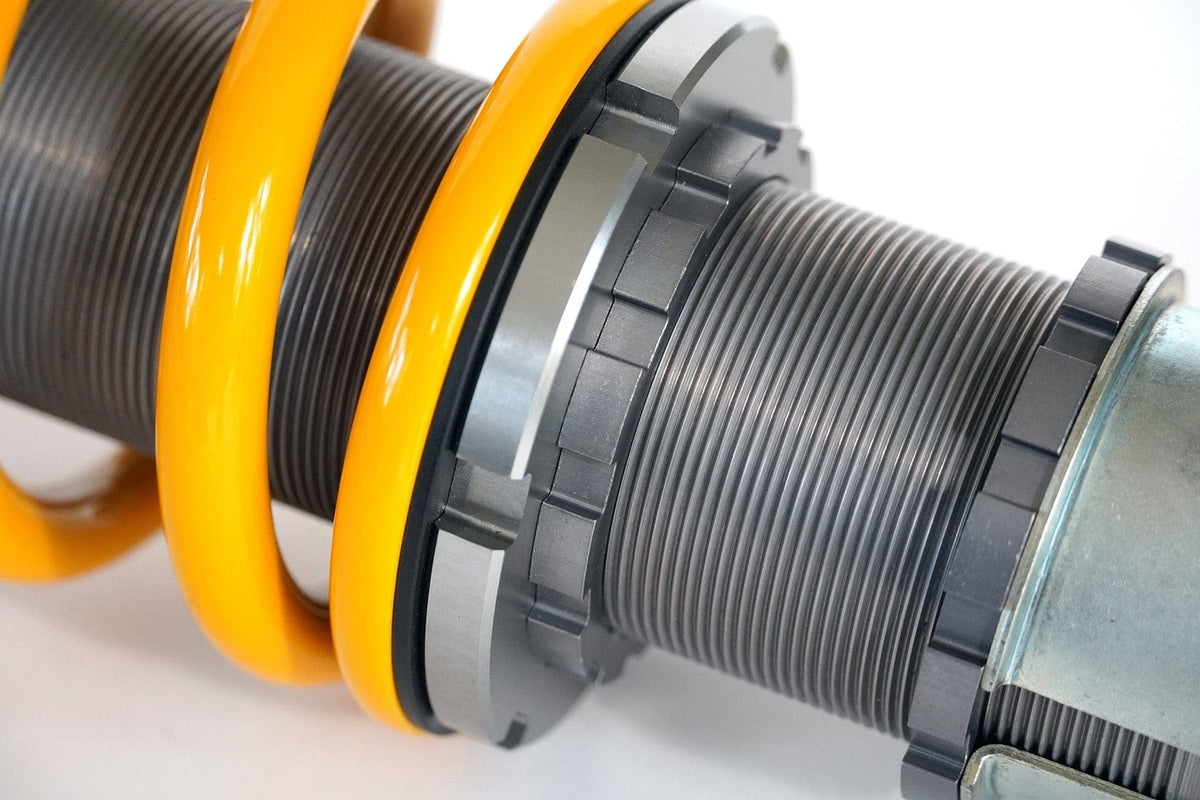

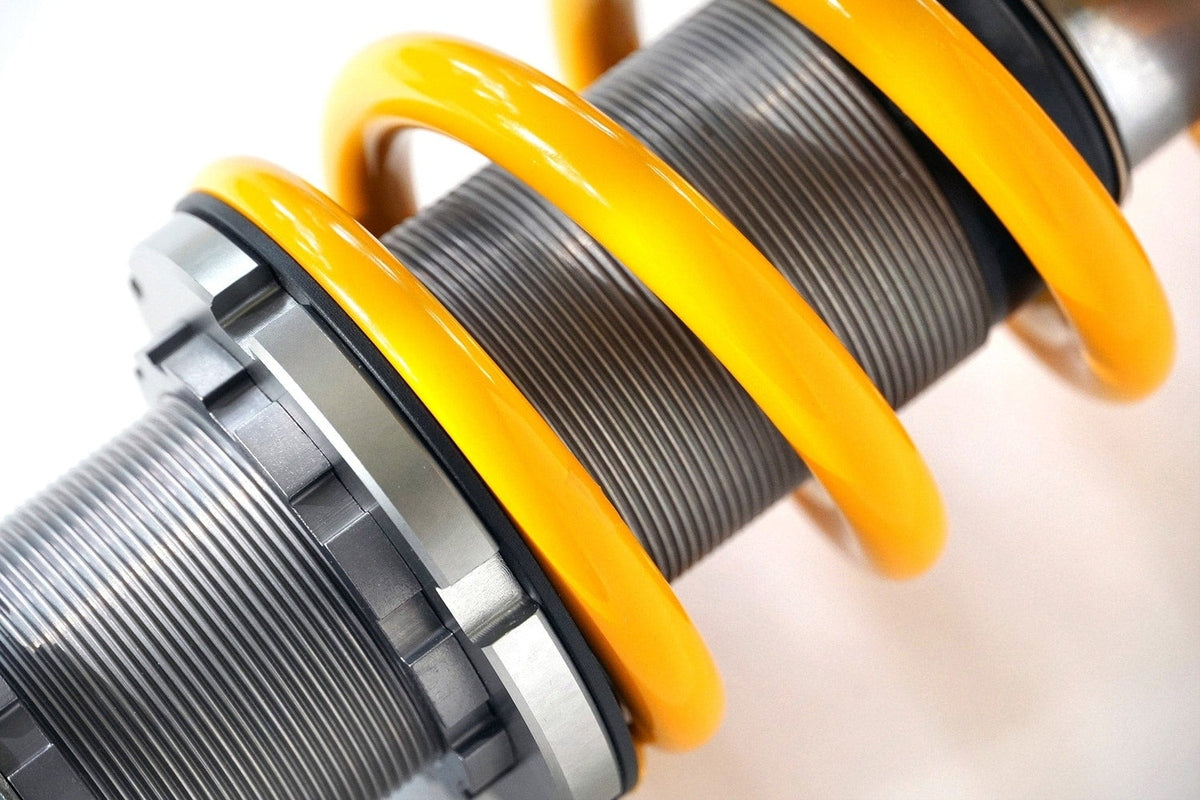

Spring preload adjuster
Approx. 20 mm lower than standard with recommended setup models GRB/GRF
Approx. 25 mm lower than standard with recommended setup model VAF
Height adjustment range -10/+15 mm

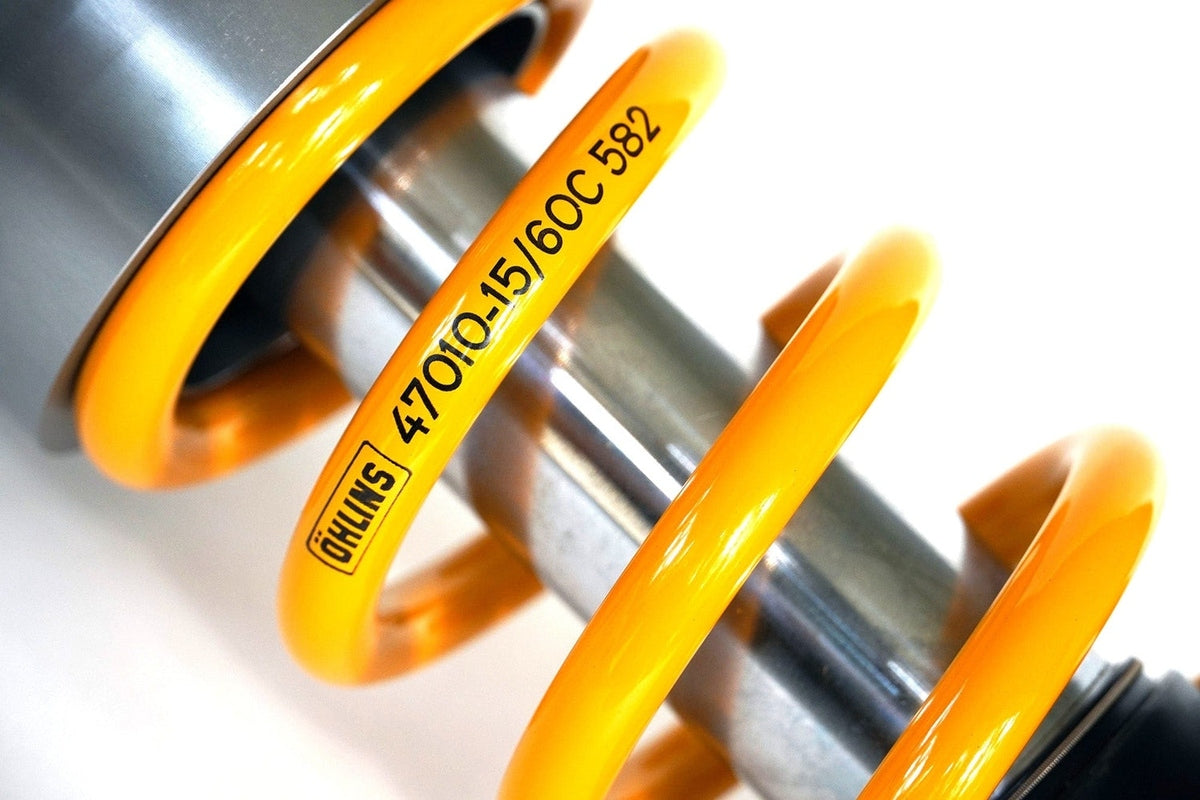

Spring rate 90 N/mm
Dust covers

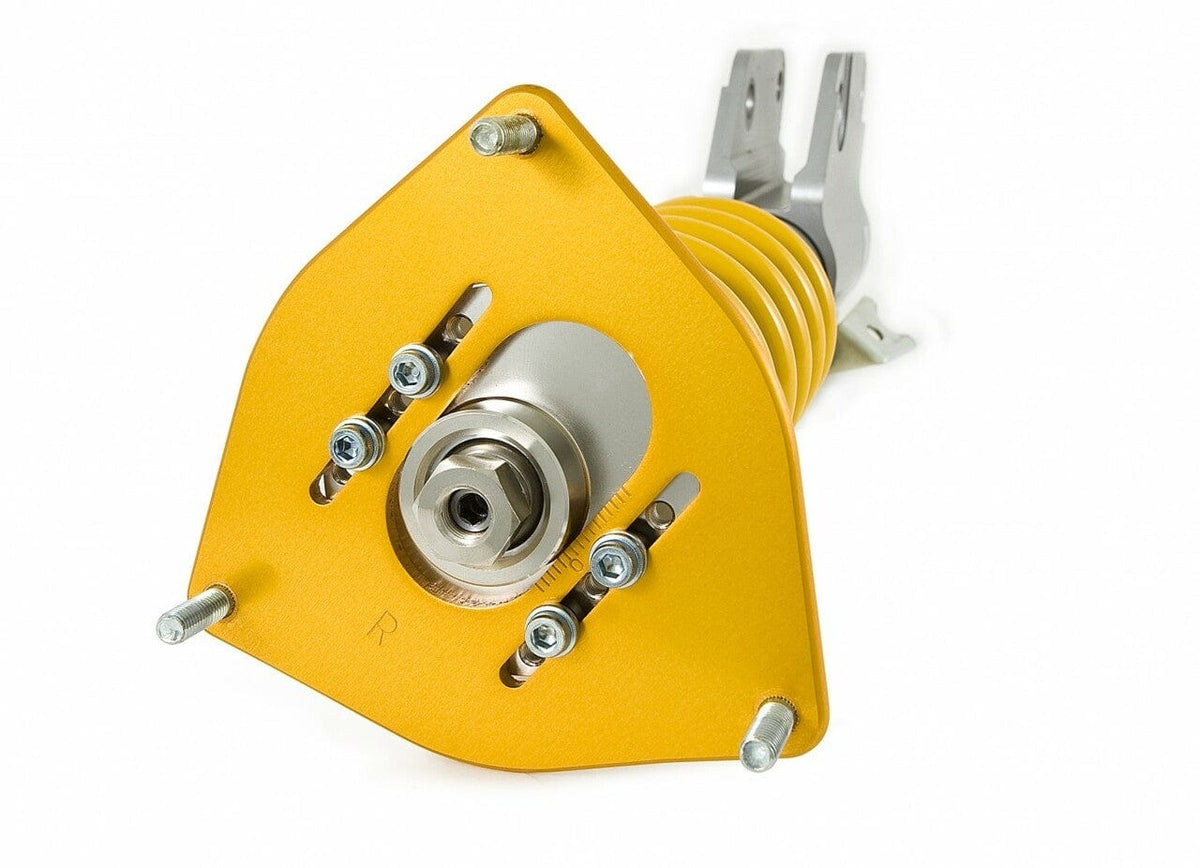

Aluminum top mounts with adjustable camber

Features Rear

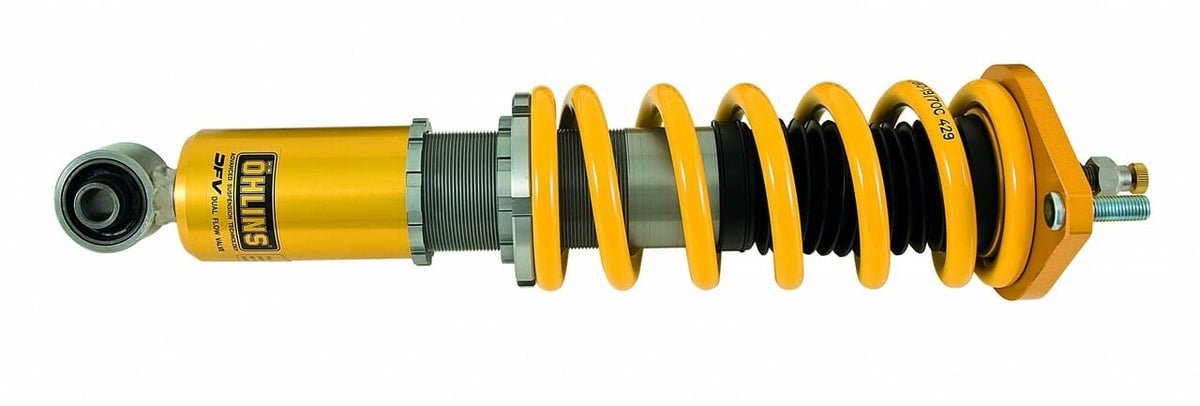

Conventional Shock Absorber
Compression and rebound damping with one adjuster
Spring preload adjuster
Approx. 20 mm lower than standard with recommended setup models GRB/GRF
Approx. 15 mm lower than standard with recommended setup model VAF
Height adjustment range -15/+15 mm
Spring rate 70 N/mm
Dust covers

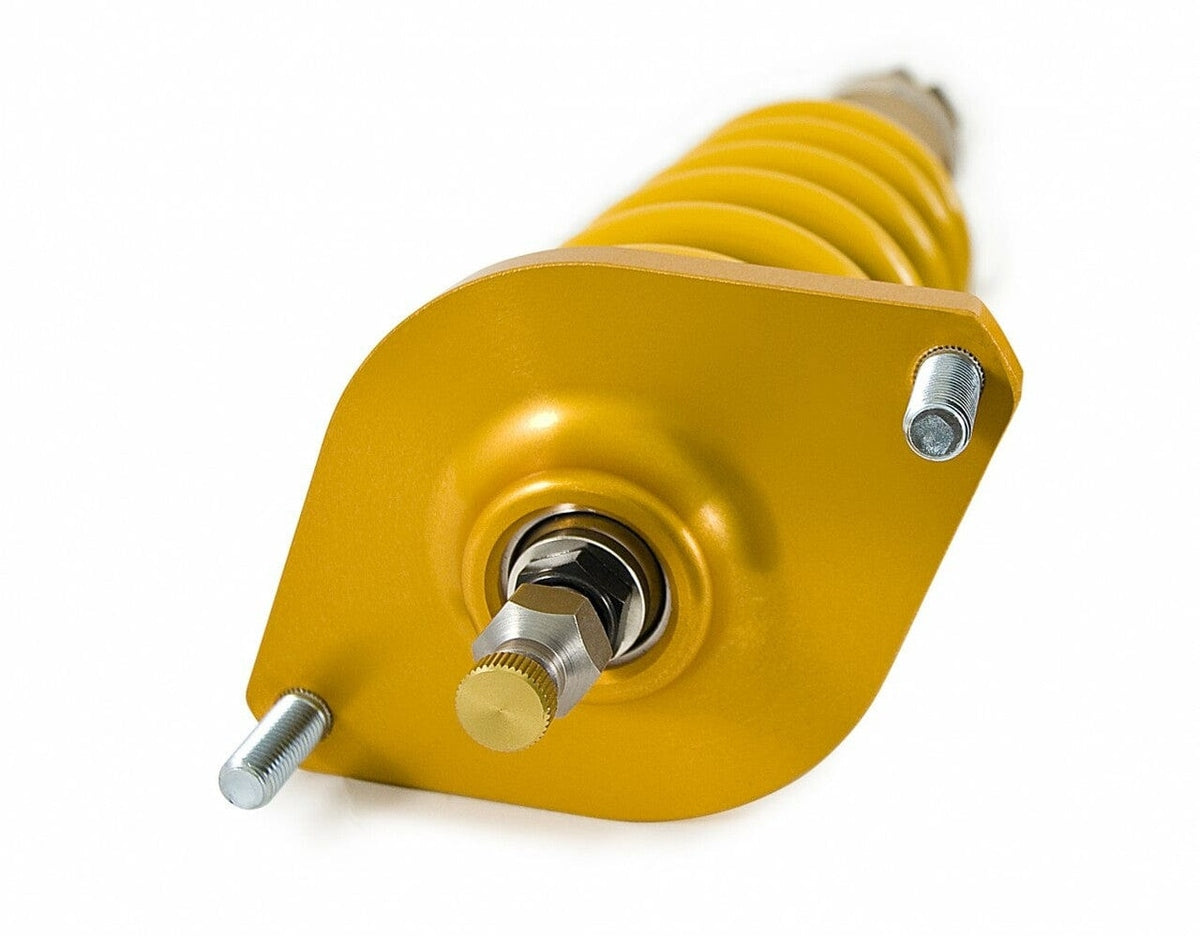

Aluminum top mounts

Spring Rates

Front: 90 N/mm // 515 lbs/in. // 9 Kg/mm
Rear: 70 N/mm // 400 lbs/in. // 7 Kg/mm

What's Included

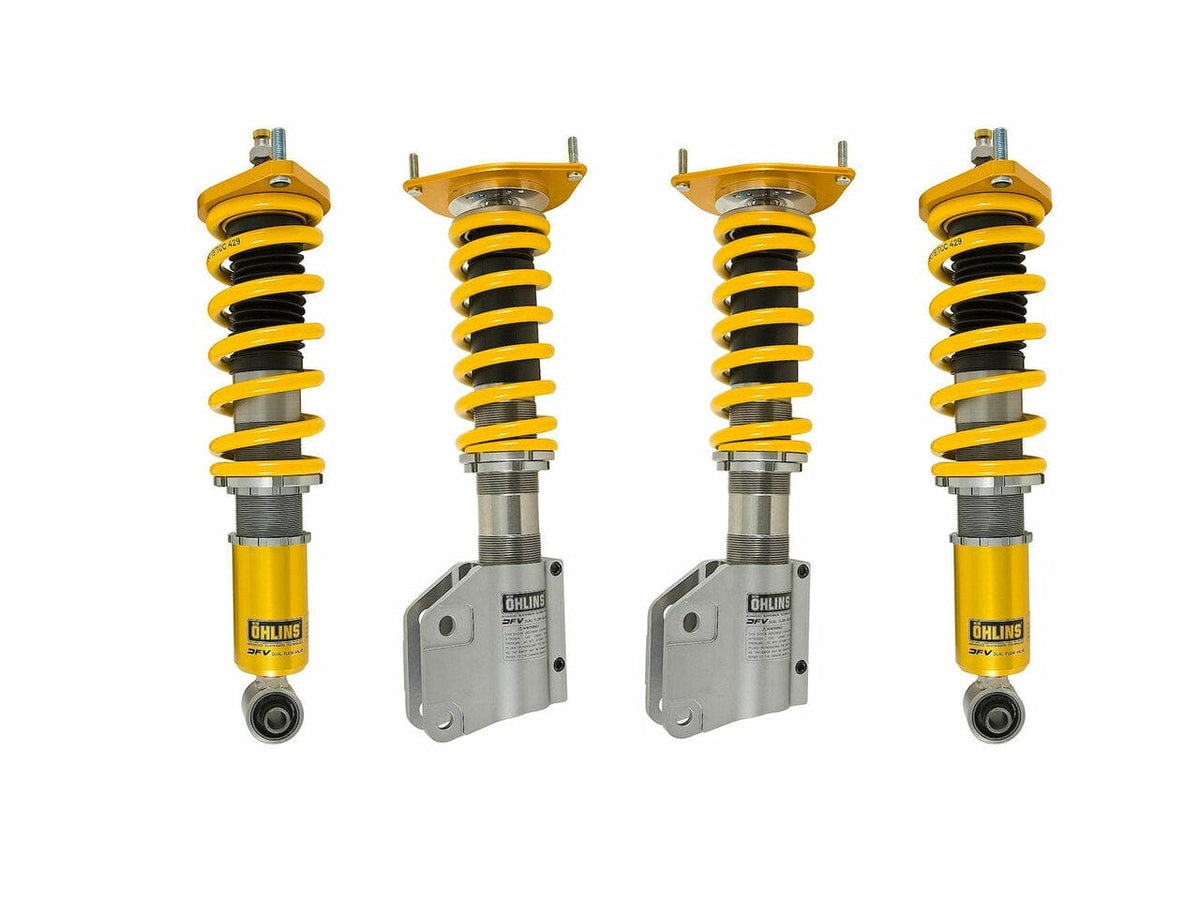

Coilover kit with springs and mounting parts
C-Spanner (for spring preload adjustment)
Owners manual and mounting instruction
Sticker set

Optional Add-Ons

Top Mount - Front Left: 25633-13
Top Mount - Front Right: 25633-14

Documentation

Installation Instructions (Download PDF)
Owners Manual (Download PDF)

Vehicle Fitment

2015 Subaru WRX STI (VA)
2016 Subaru WRX STI (VA)
2017 Subaru WRX STI (VA)
2018 Subaru WRX STI (VA)
2019 Subaru WRX STI (VA)
2020 Subaru WRX STI (VA)
