ReFlex+ Advanced I/O Integration - Universal (Inline-6)

$809.00

Engine Inline-6

Awaiting stock, shipping soon

Sorry, it's out of stock.

But we can let you know when it's back in.

Shop safely with us

Secure Checkout
Warranty Backed
Genuine Parts

910.1002

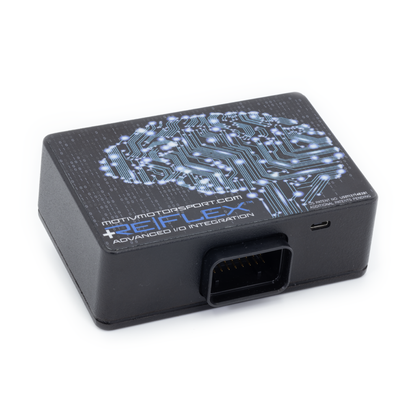

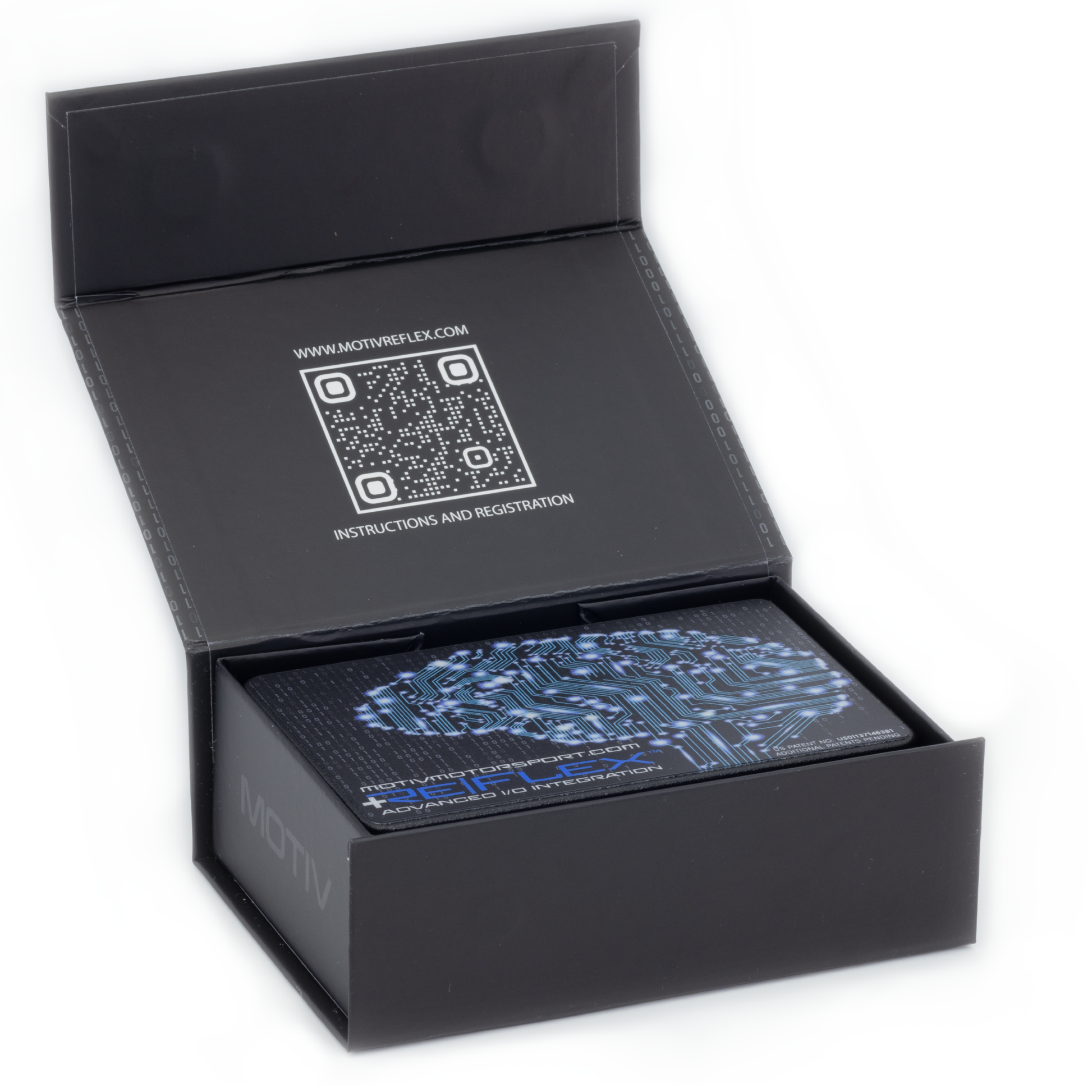

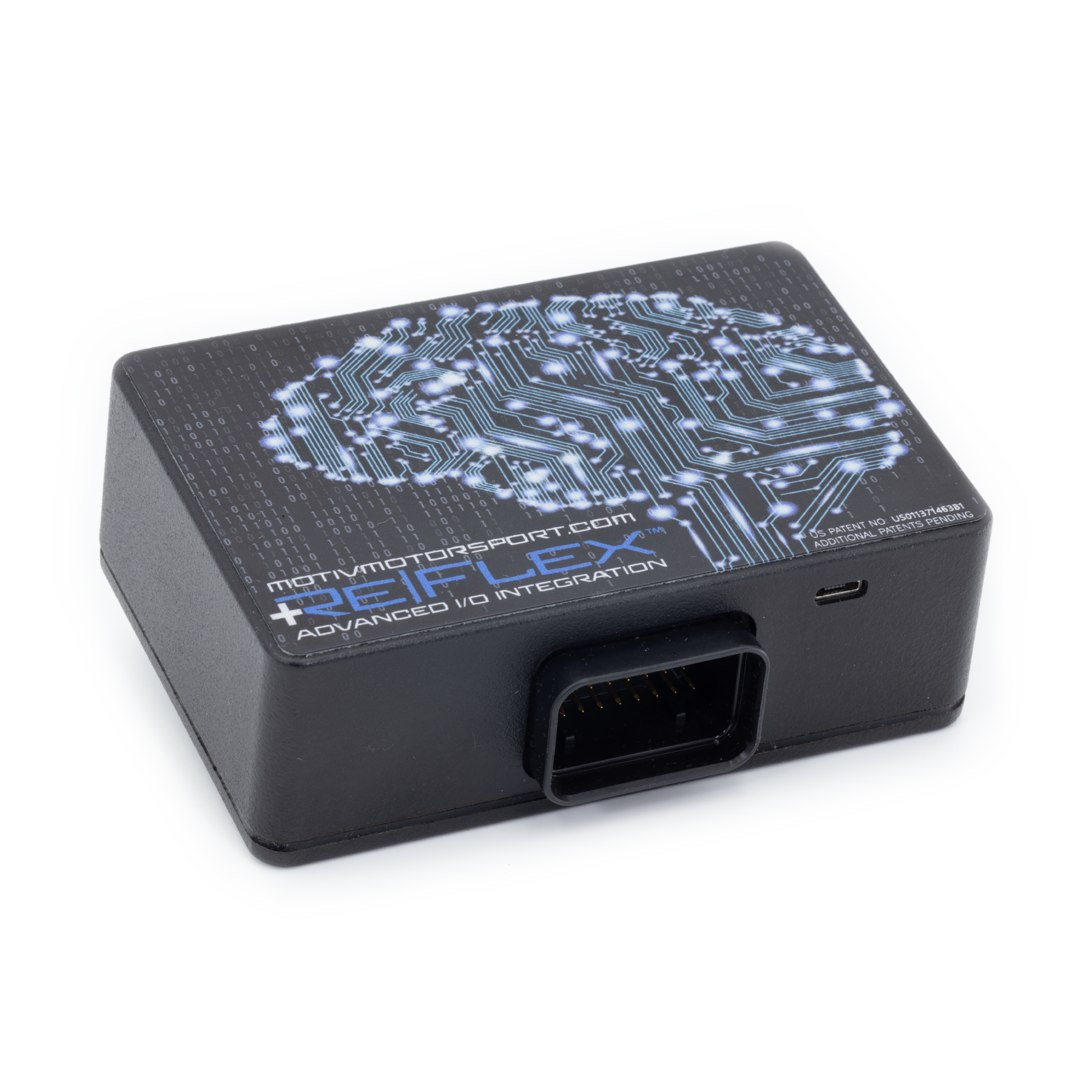

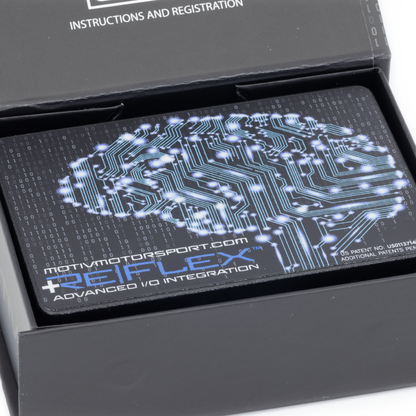

ReFlex+ Advanced I/O Integration - Universal (Inline-6)

The ReFlex+ is an advanced integration module for performance vehicle tuning and auxiliary component control. With multiple patented technologies, the ReFlex+ is more than just an auxiliary injector controller. It offers advanced features typically found in high-end ECUs—at a fraction of the price. The ReFlex+ is designed to run in multiple control configurations from standalone tuning to full CAN Bus integration and offers unparalleled precision, flexibility, and performance.

Advanced Control Strategies

Standalone Mode – No CAN Bus communication required
Integrated CAN Bus – Compatible with MHD, EcuTek, MG Flasher, BM3 and any other tuning platform with the ability to receive and/or send CAN Bus messages.
Advanced CAN Bus – Full integration with EcuTek and MHD+

Precision Sequential Port Injection & More

Originally developed to modernize port fuel injection, the ReFlex+ goes beyond traditional batch-fire controllers by delivering true sequential fuel injection. This ensures fuel is injected at the optimal moment for maximum efficiency, power, and reliability. But it doesn’t stop there—the ReFlex+ is a complete IO control hub designed for performance-driven applications.

Versatile Inputs & Outputs

The ReFlex+ is equipped with a range of inputs and outputs to support flex fuel tuning, boost control, sensor monitoring, and more.

Inputs:

Sequential Port Injection – Supports up to 8 injectors with fault-sensing feedback
4x Analog Inputs – Compatible with 0-5V and 4-20mA sensors
2x Frequency Inputs – Accepts signals up to 20kHz
Dedicated Flex Fuel Input – Reads ethanol content for real-time flex fuel tuning
MAP, Cam, and Crank Sensor Inputs – Essential for engine timing and load calculations

Outputs:

4x Low-Side Auxiliary Outputs – PWM or digital ground triggers for methanol injection, nitrous, boost control, fuel pumps, and more
12V Switched Outputs – Power additional components with multiple ignition-switched voltage outputs

OEM-Level Integration & Flash Tuning Compatibility

The ReFlex+ seamlessly integrates with leading flash tuning platforms, including MHD, EcuTek, and MG Flasher allowing the factory ECU to directly control ReFlex+ functions. In addition, built-in safety measures are in place to help protect your investment.

Fully configurable through TunerPro RT, the ReFlex+ supports universal and vehicle-specific configurations. Free starter maps and setup guides are available on our website, with additional support available through support@motivmotorsport.com.

Unlock the Full Potential of Your Build

Whether you're looking for precise auxiliary fuel control, advanced sensor monitoring, or the ability to control performance aftermarket components, the ReFlex+ delivers unmatched performance and versatility.

Take your tuning to the next level with the MOTIV ReFlex+ Advanced IO Integration—engineered for power, precision, and reliability.

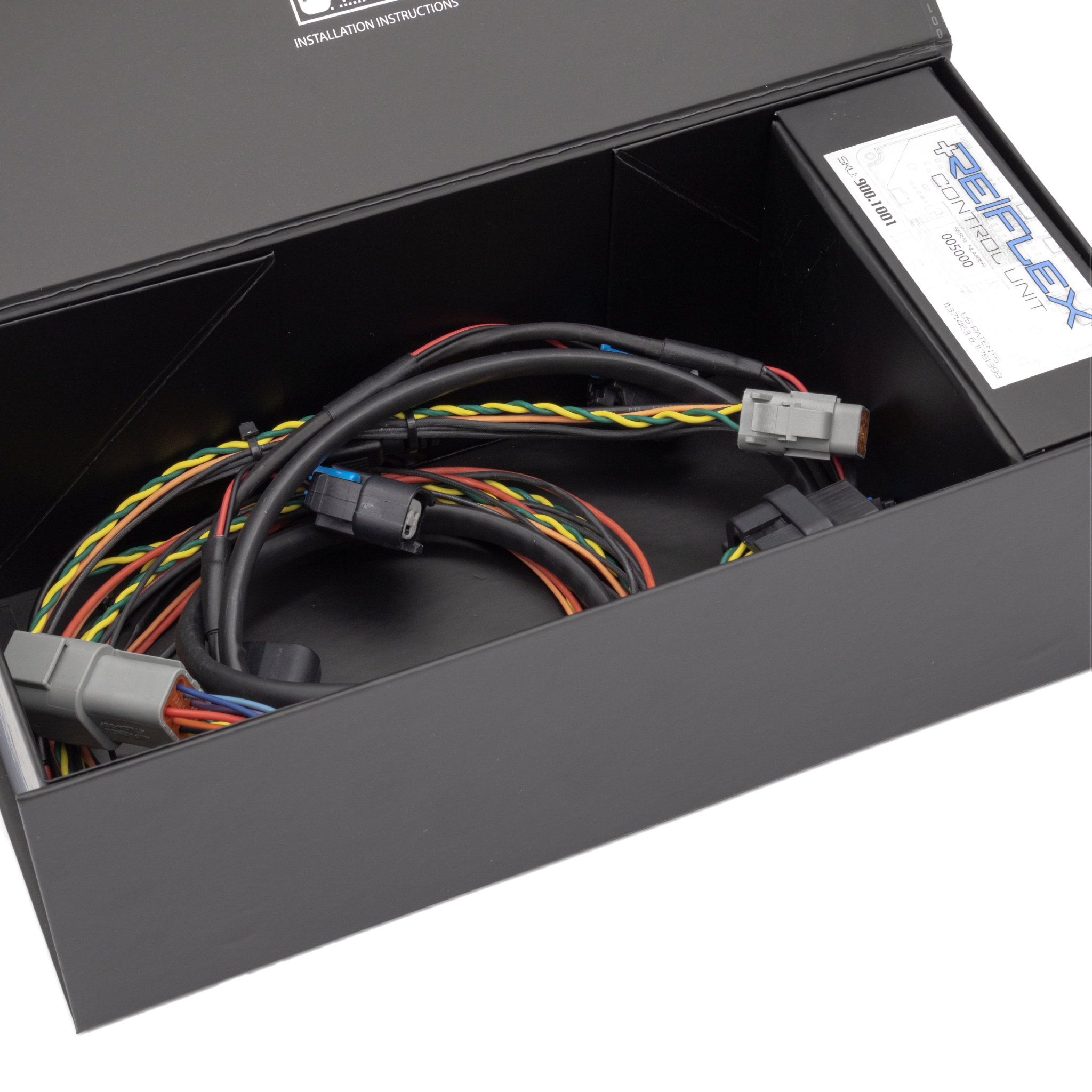

INCLUDED IN THIS KIT:

We recommend the following accessories when purchasing a ReFlex+ to integrate on your vehicle:
