Ohlins Road & Track Coilovers for 2008-2014 Subaru WRX STI (GR)

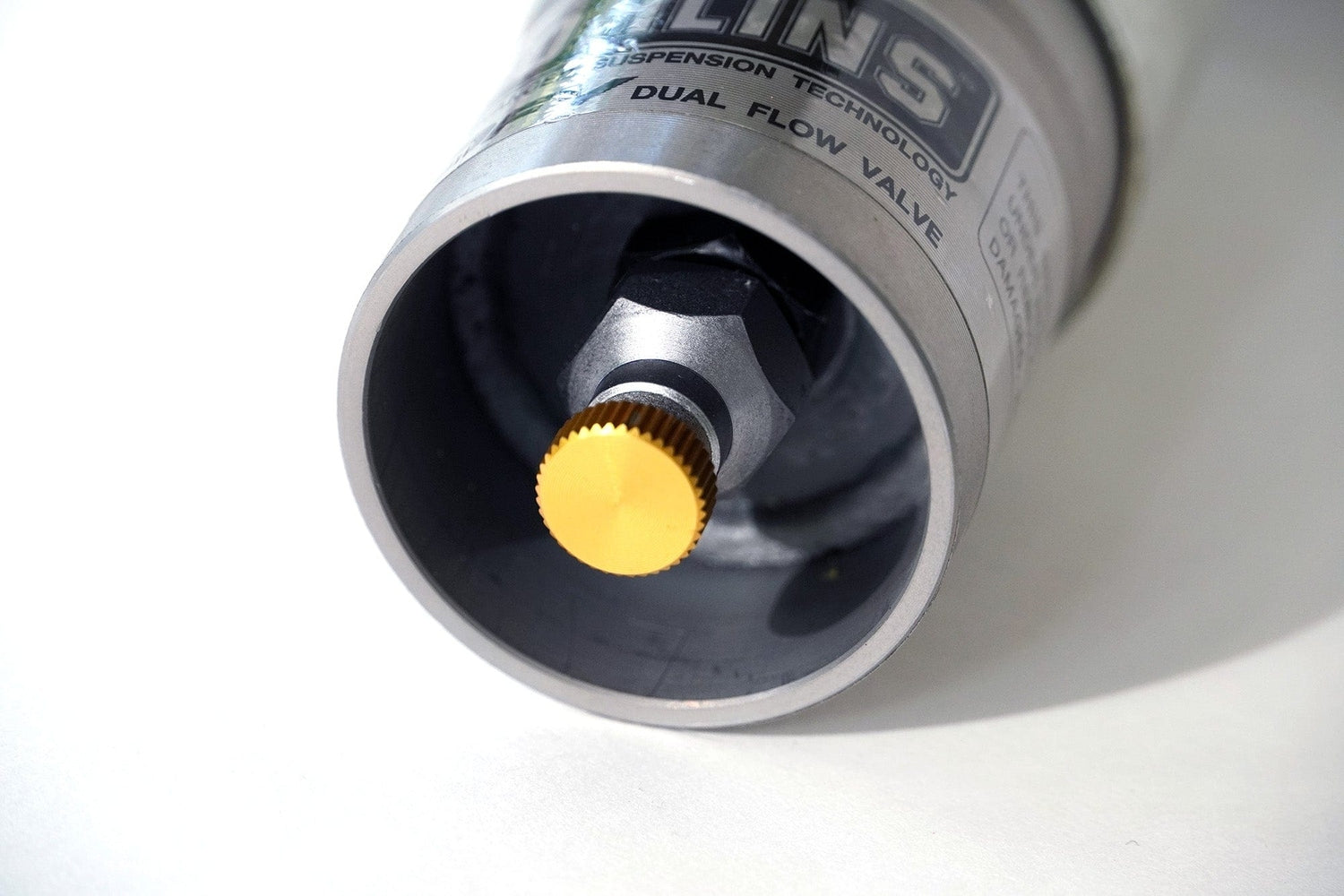

The Ohlins Road & Track 2008-2014 Subaru WRX STI coilovers give your vehicle a true racing experience without losing comfort when commuting to work. The Ohlins unique Dual Flow Valve (DFV) technology allows you to quickly change the stiffness of the shock absorber. When arriving to the racetrack, just turn the golden knob clockwise on the damper to set it in race mode this action changes all four areas in the damper; low and high speed compression and rebound damping.

With Ohlins Road & Track 2008-2014 Subaru WRX STI coilovers you will experience blistering response times, improved bump absorption and a massive amount of grip to increase the safety when driving your car on the limit. The car will be easier to balance on the edge of what the tires can handle before losing grip. You will be much quicker on track. The DFV suspension prevents you from losing the racing line when hitting bumps or curbs. The DFV components within react quickly and keeps you in control of the car and in contact with the track. When driving to and from the track, just set the dampers in road mode for a more relaxed and comfortable drive, still with more grip and quicker response time than ever before.

Features

• Ride-height adjustable
• Matched compression and rebound hydrodynamics
• Consistent high-tolerance reliability
• Corrosion salt spray tested (ISO 9227)
• Fully rebuildable
• Includes all hardware and instructions for installation
• 2 year limited warranty
• DFV technology (Dual Flow Valve)
• Set includes springs

Features Front

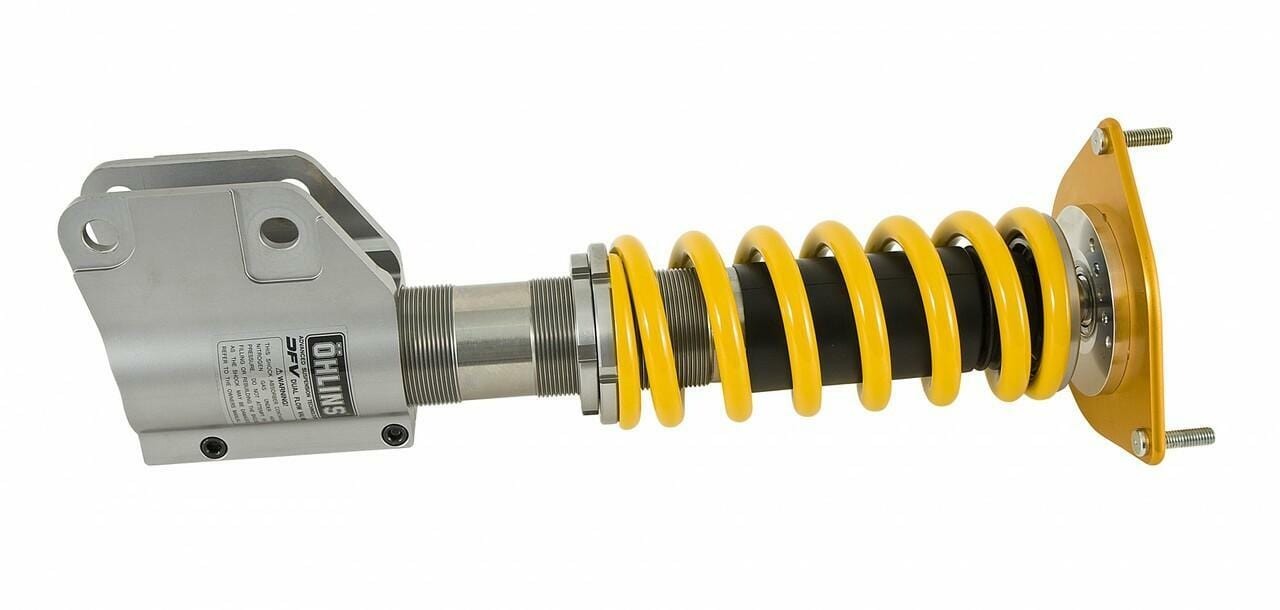

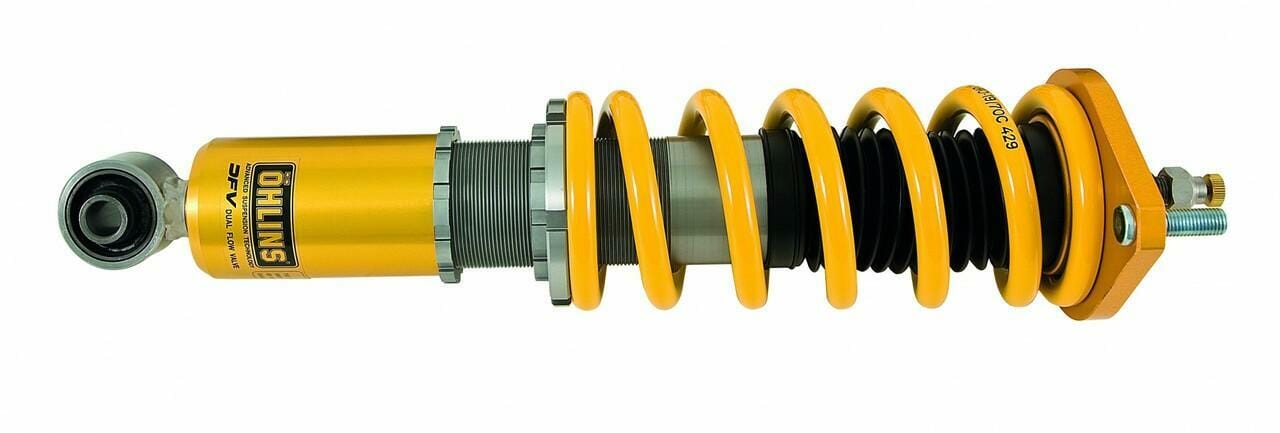

• McPherson strut, upside down
• Compression and rebound damping with one adjuster

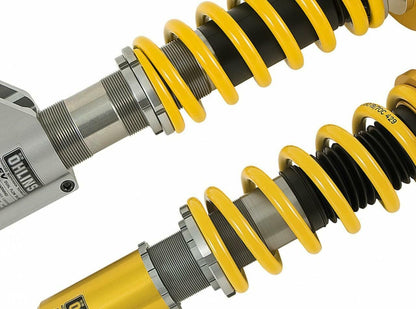

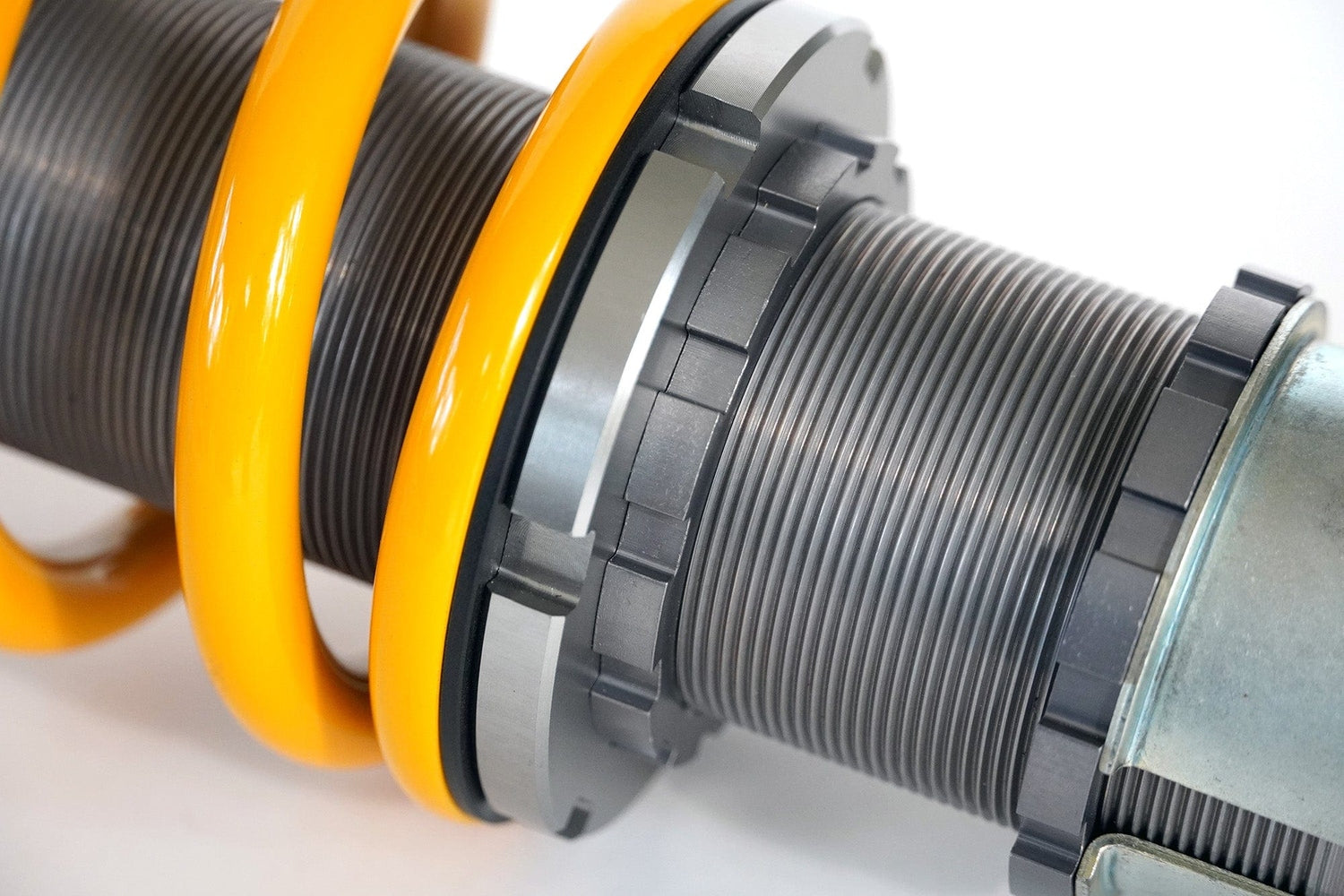

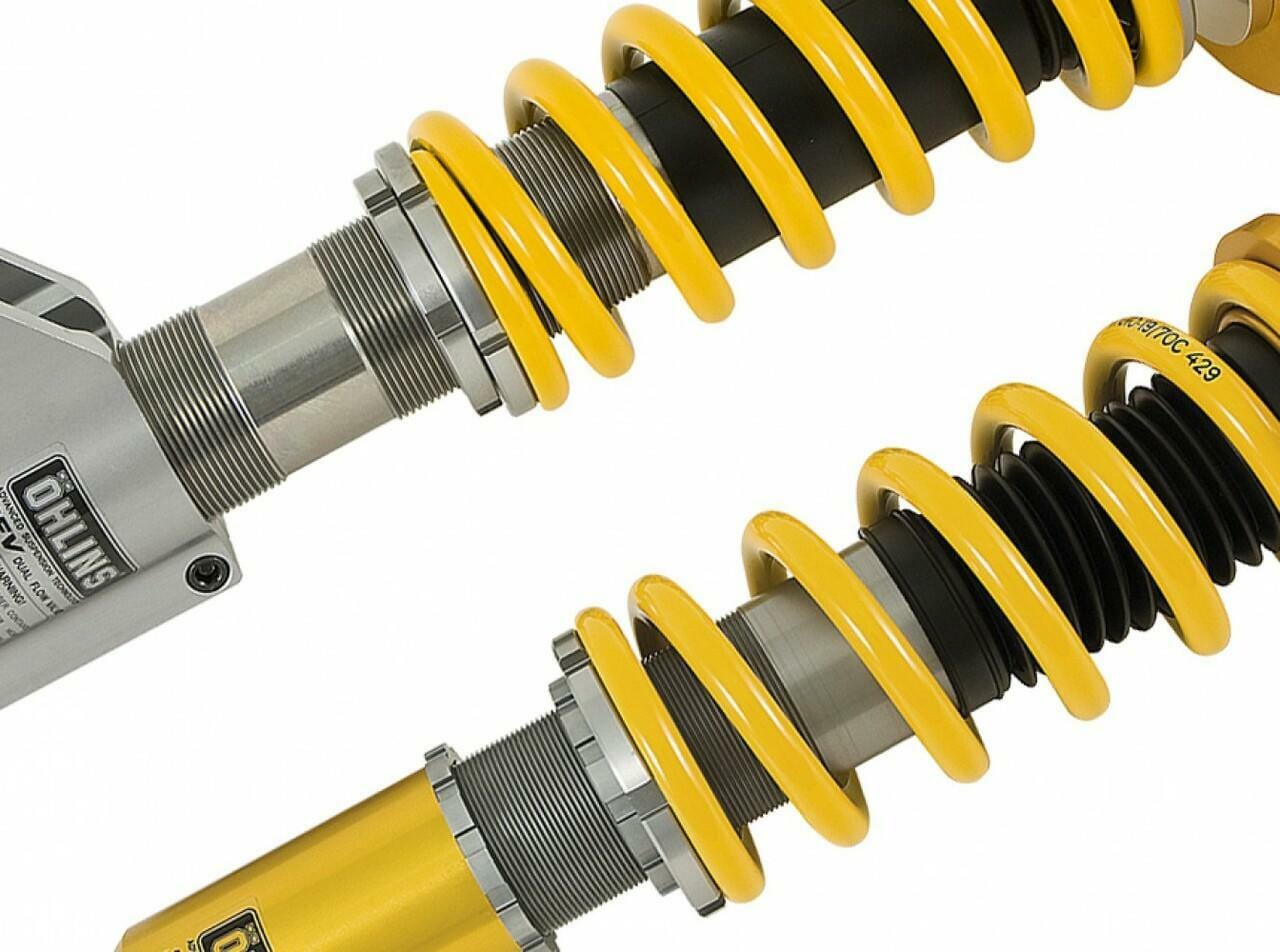

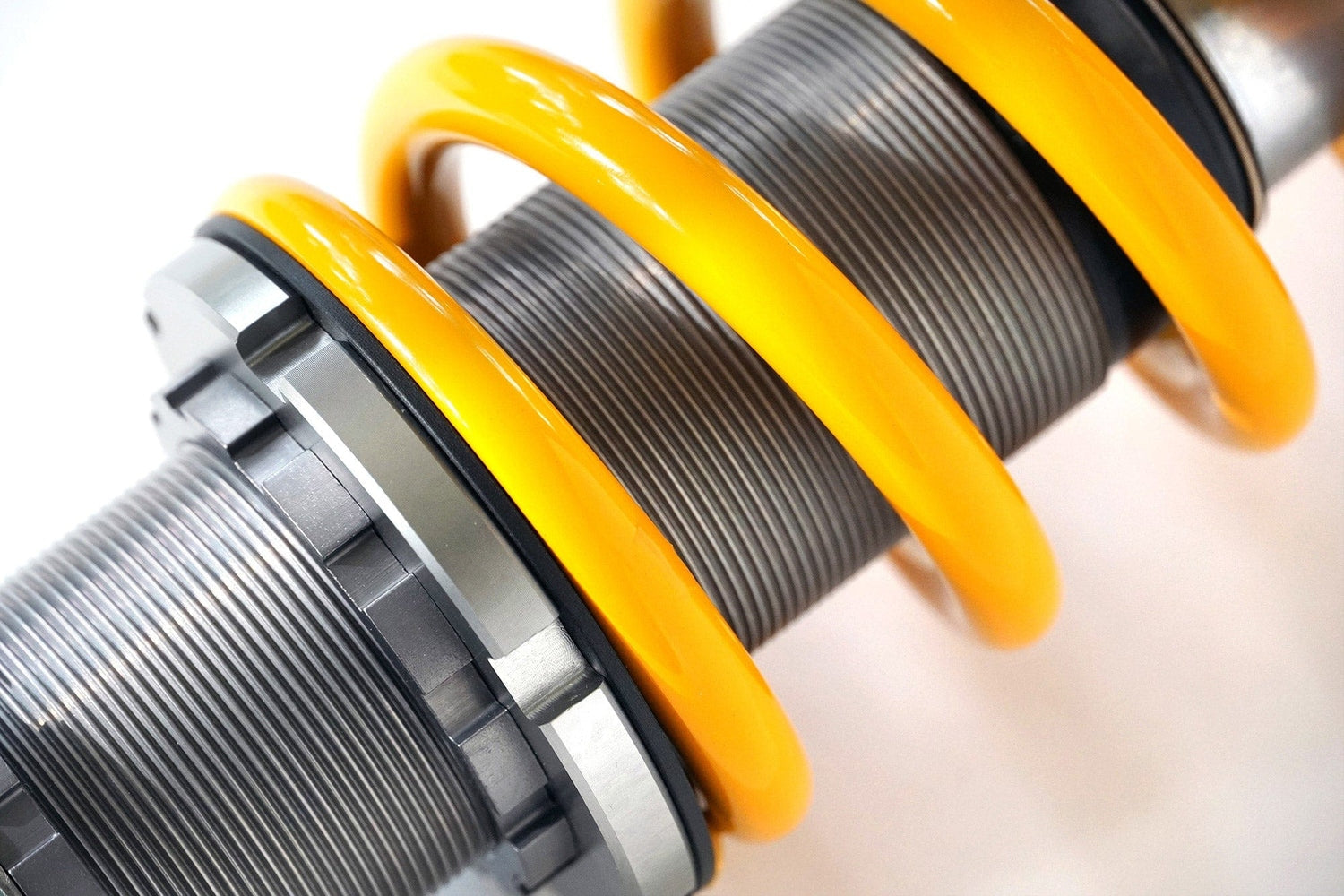

• Spring preload adjuster
• Approx. 20 mm lower than standard with recommended setup models GRB/GRF
• Approx. 25 mm lower than standard with recommended setup model VAF
• Height adjustment range -10/+15 mm
• Spring rate 90 N/mm
• Dust covers

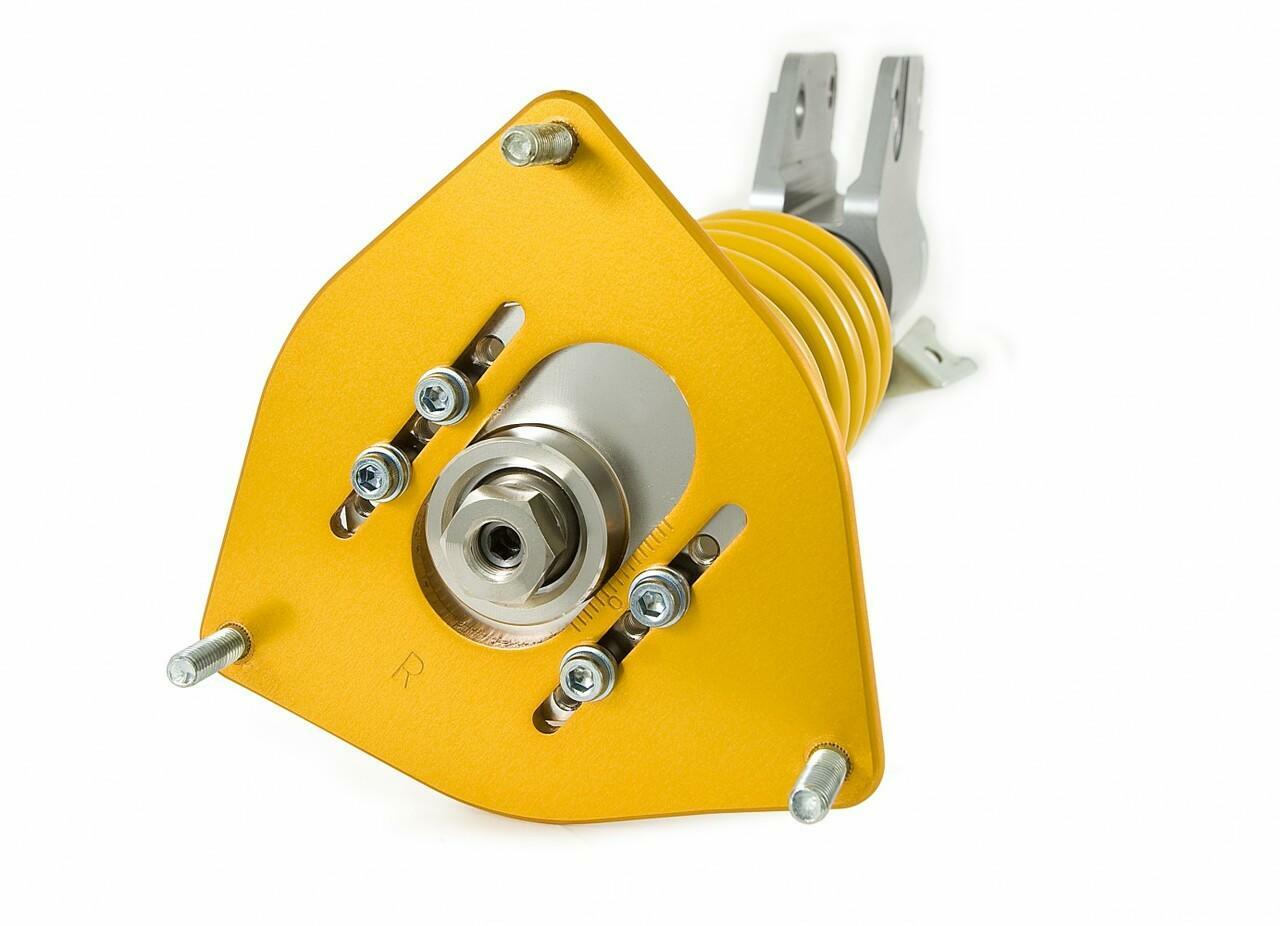

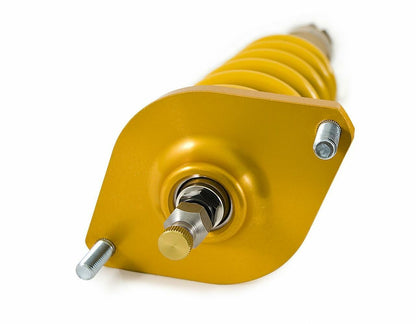

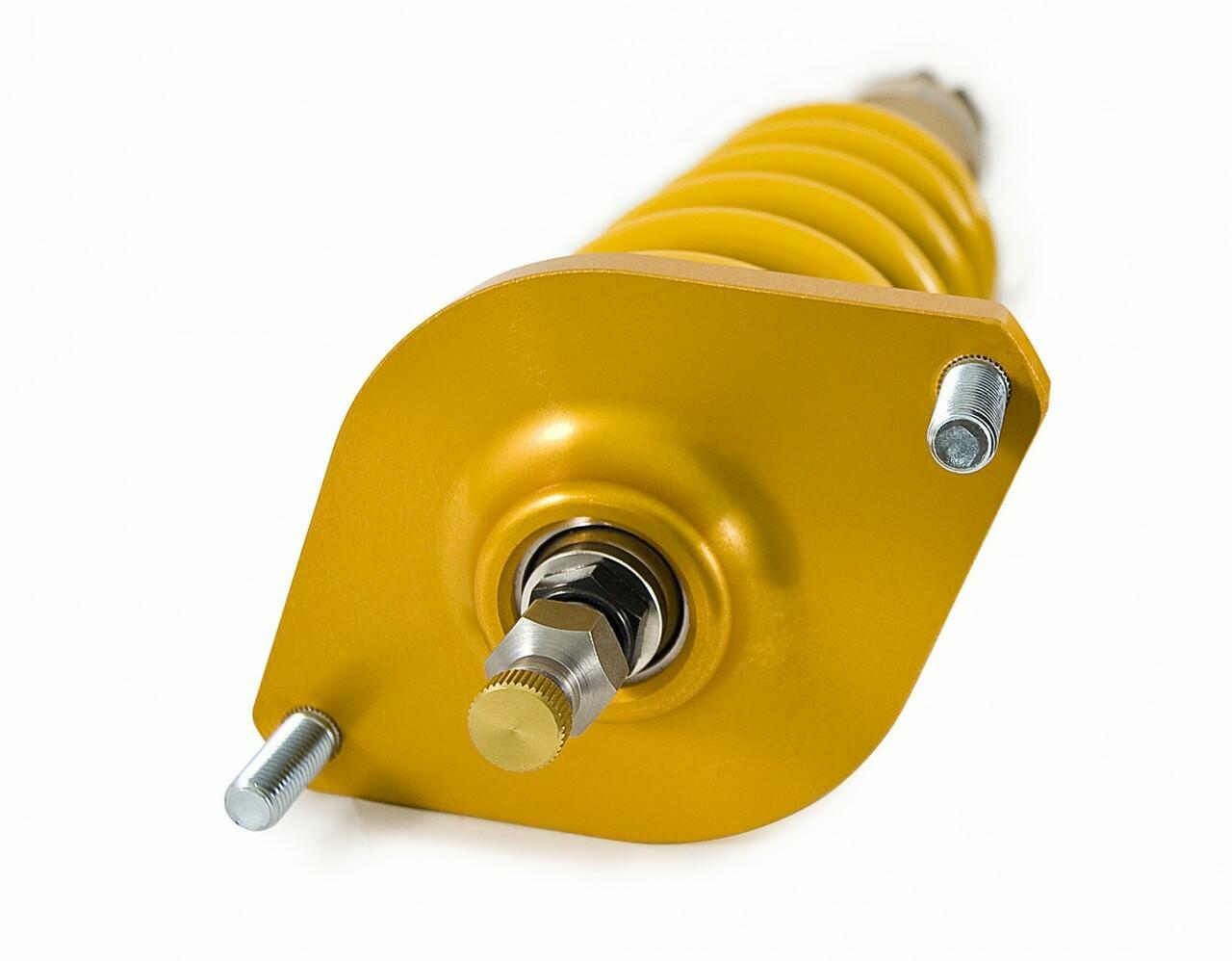

• Aluminum top mounts with adjustable camber

Features Rear

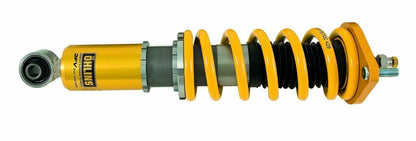

• Conventional Shock Absorber
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Approx. 20 mm lower than standard with recommended setup models GRB/GRF
• Approx. 15 mm lower than standard with recommended setup model VAF
• Height adjustment range -15/+15 mm
• Spring rate 70 N/mm
• Dust covers
• Aluminum top mounts

Coilover Kit Includes

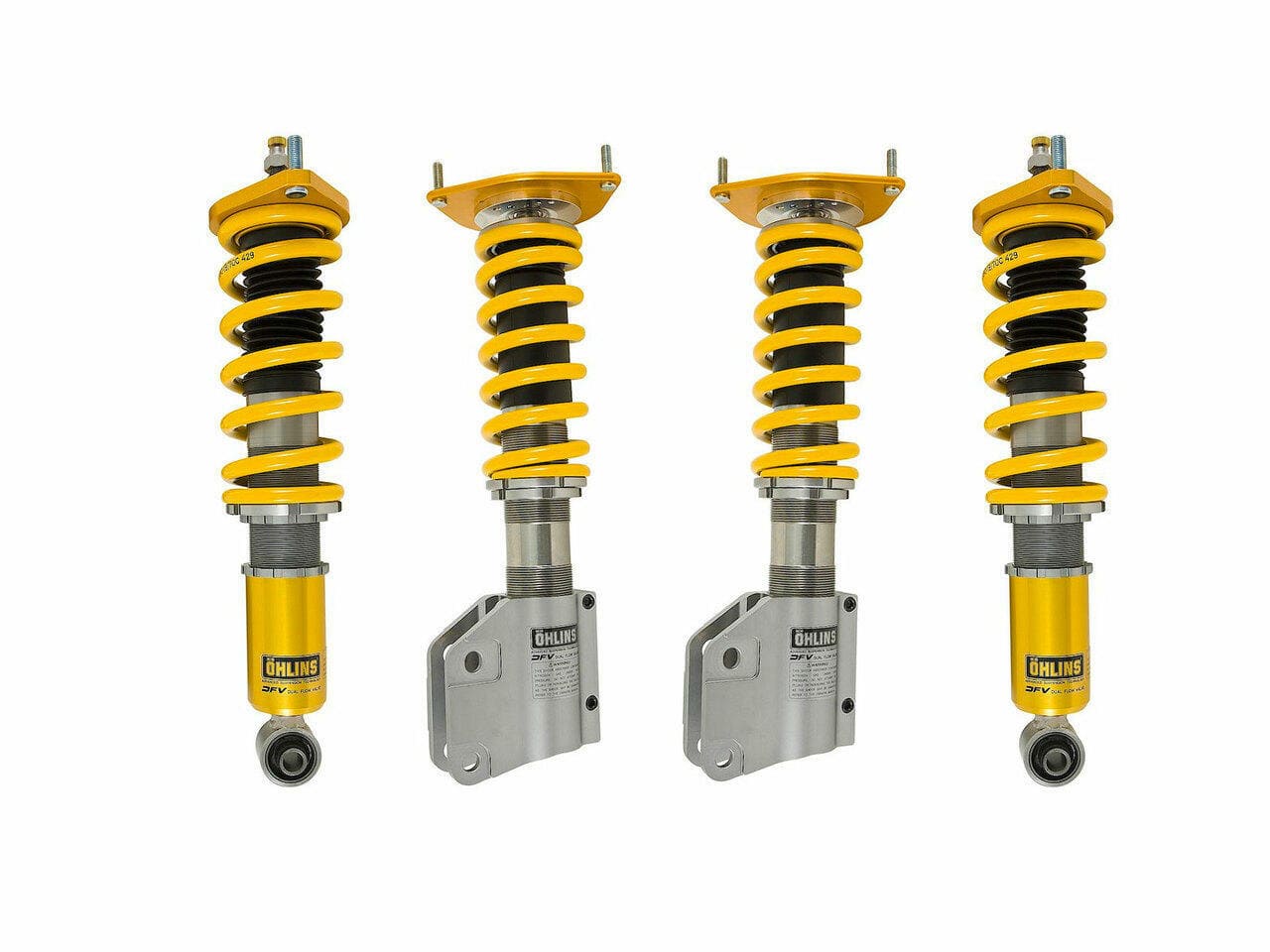

• Coil over kit incl. springs and mounting parts
• C-Spanner (for spring preload adjustment)
• Owners manual and mounting instruction
• Sticker set

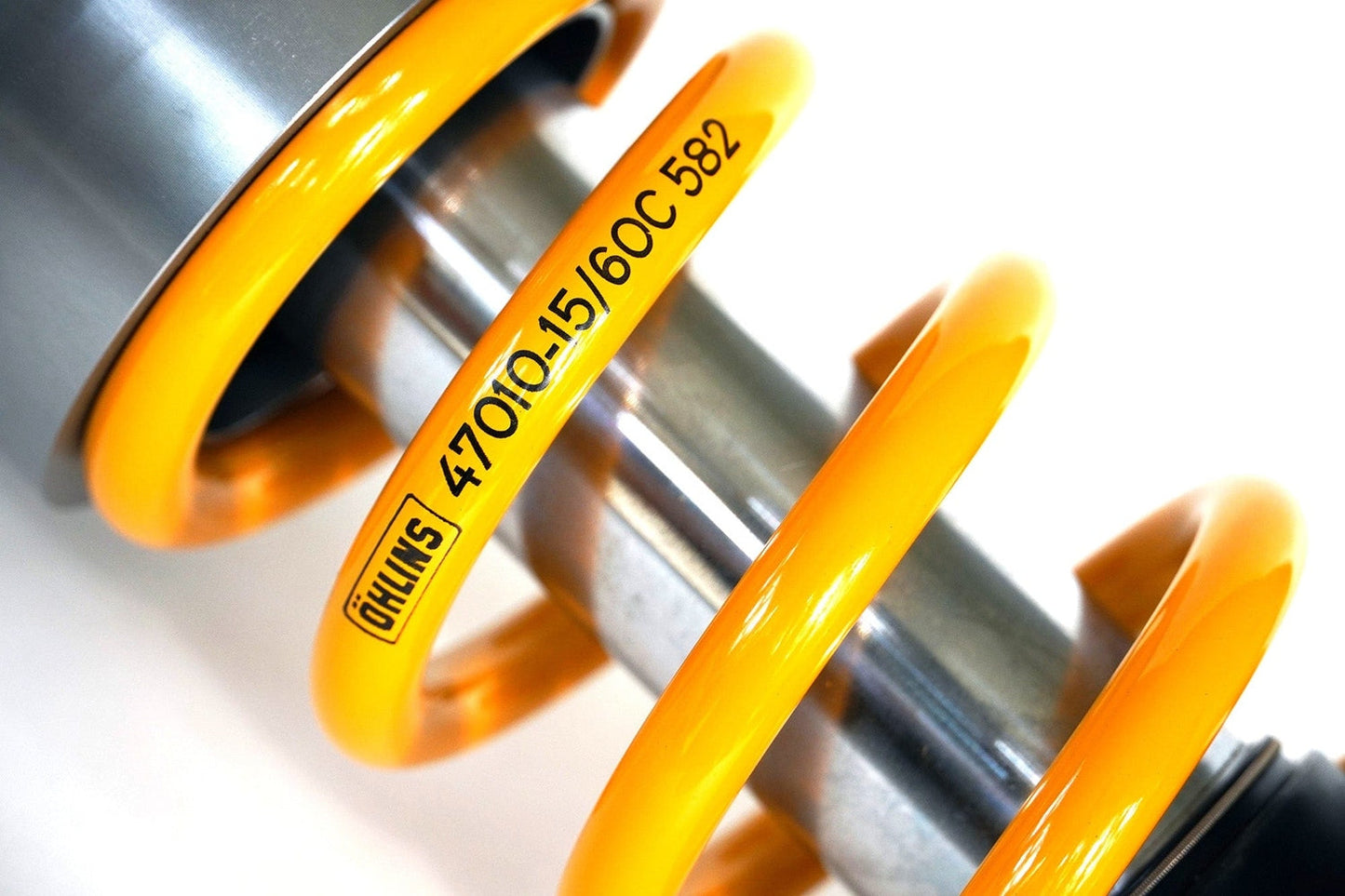

Spring Rates

• Front: 90 N/mm // 515 lbs/in. // 9 k/mm
• Rear: 70 N/mm // 400 lbs/in. // 7 k/mm

Vehicle Fitment

• 2008 Subaru WRX STI (GR)
• 2009 Subaru WRX STI (GR)
• 2010 Subaru WRX STI (GR)
• 2011 Subaru WRX STI (GR)
• 2012 Subaru WRX STI (GR)
• 2013 Subaru WRX STI (GR)
• 2014 Subaru WRX STI (GR)

Additional Fitment Information

• Part Number: SUS Mi10S1

• This item is shipped directly from our manufacturer and/or distributor, and may take 3-5 business days for dispatch. Tracking information will be provided once shipped.
