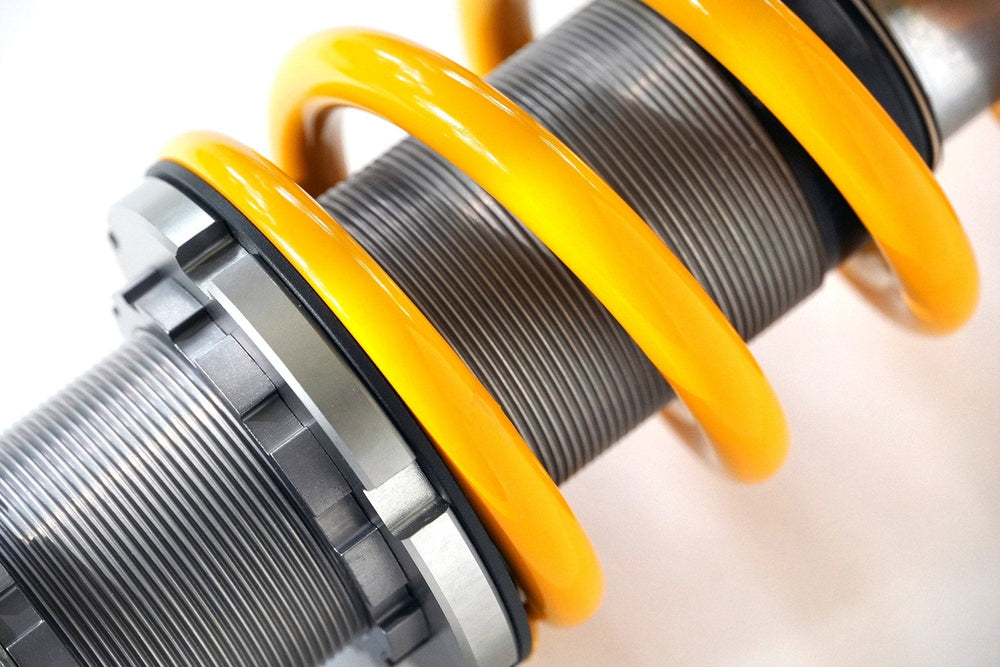

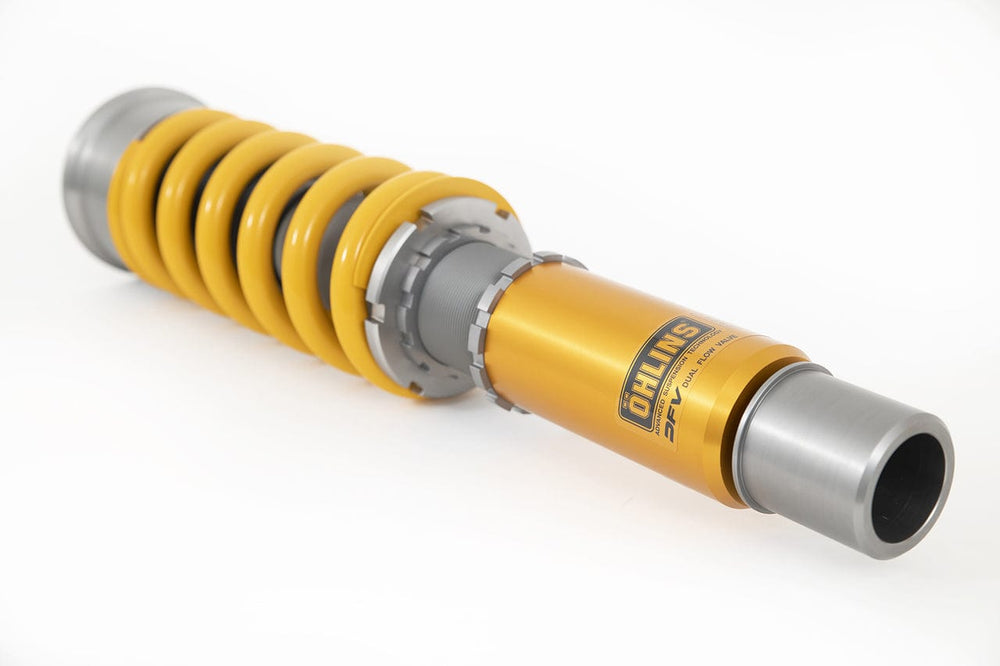

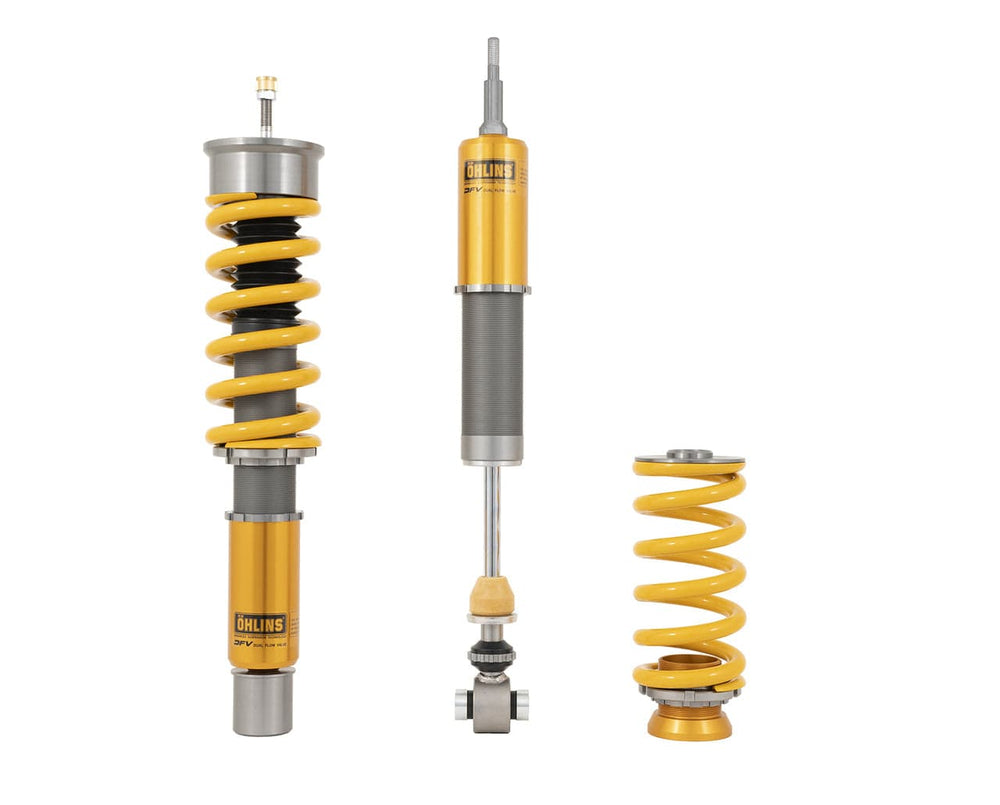

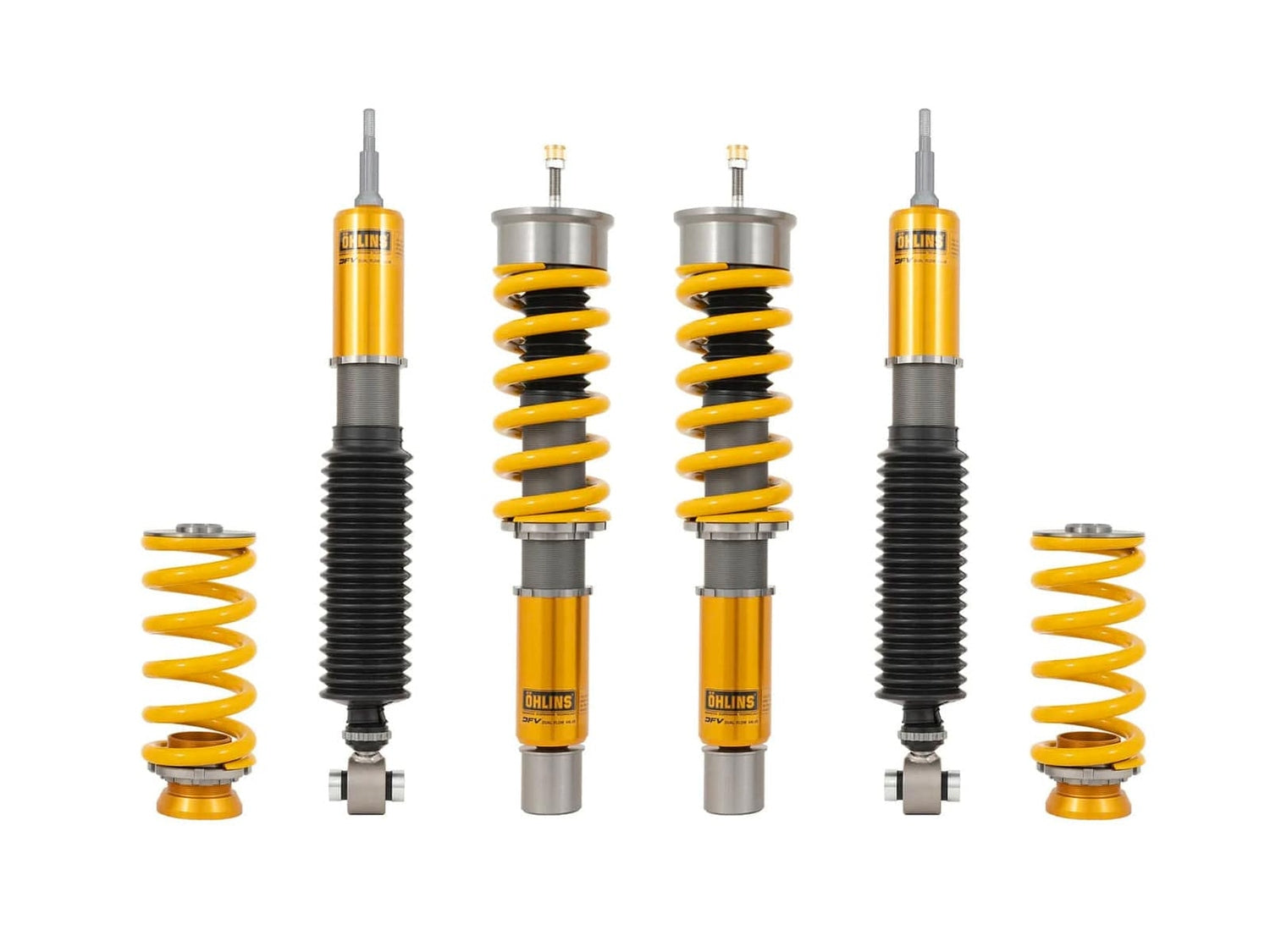

Ohlins Road & Track Coilovers for 2017-2023 Audi A4 (B9) FWD/AWD Quattro

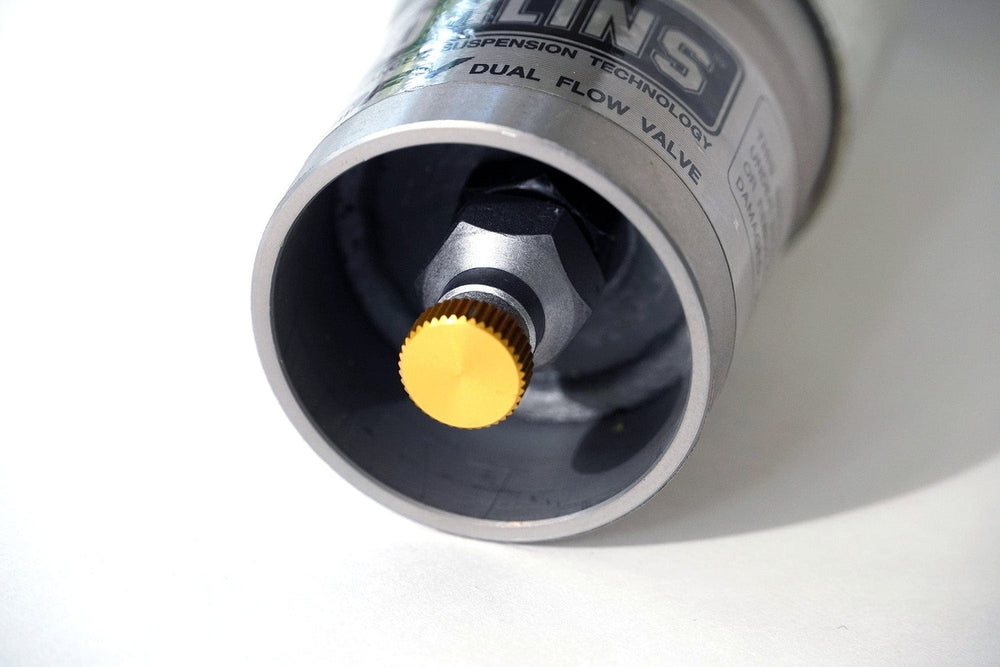

The Ohlins Road & Track Coilovers give your 2017-2023 Audi A4 (B9) FWD/AWD Quattro a true racing experience without losing comfort when commuting to work. Our unique Dual Flow Valve (DFV) technology allows you to quickly change the stiffness of the shock absorber. When arriving to the racetrack, just turn the golden knob clockwise on the damper to set it in race mode this action changes all four areas in the damper; low and high speed compression and rebound damping.

With Ohlins Road & Track coilovers you will experience a car with blistering response times, improved bump absorption and a massive amount of grip to increase the safety when driving your car on the limit. The car will be easier to balance on the edge of what the tires can handle before losing grip. You will be much quicker on track. The DFV suspension prevents you from losing the racing line when hitting bumps or curbs. The DFV components within react quickly and keeps you in control of the car and in contact with the track. When driving to and from the track, just set the dampers in road mode for a more relaxed and comfortable drive, still with more grip and quicker response time than ever before.

Features

• DFV (Dual Flow Valve)
• Rebuildable
• Corrosion salt spray tested (ISO 9227)
• 2 year limited warranty
• Springs ordered separately

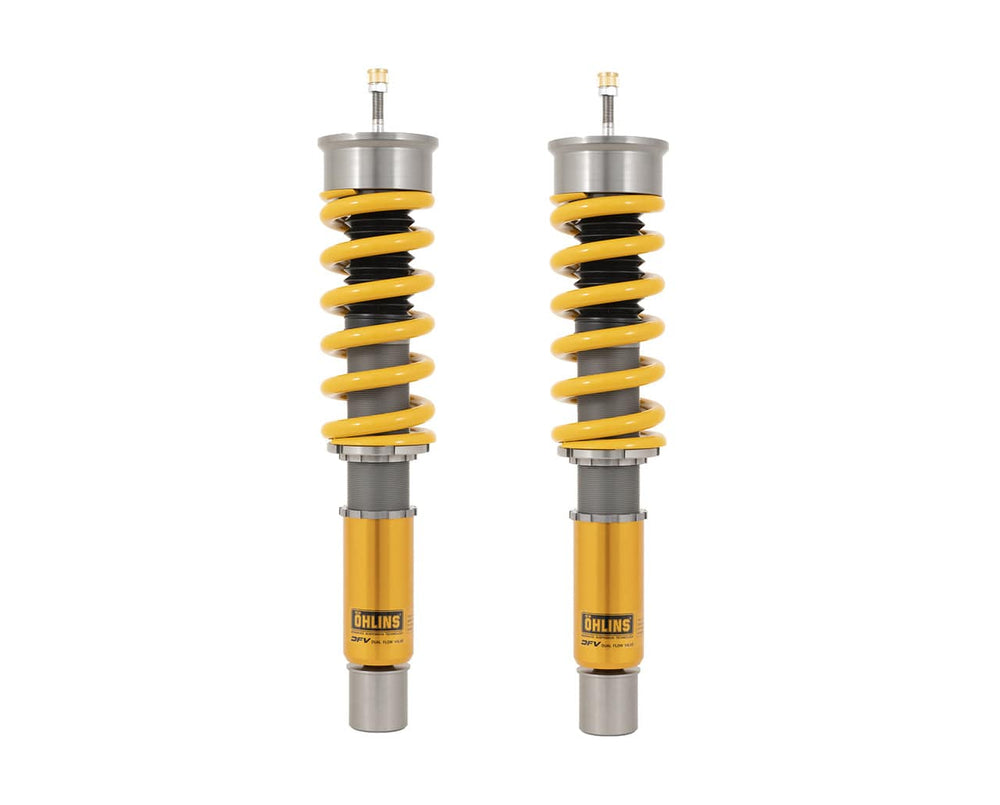

Features Front

• Conventional shock absorber
• Single bleed adjuster
• Length adjuster

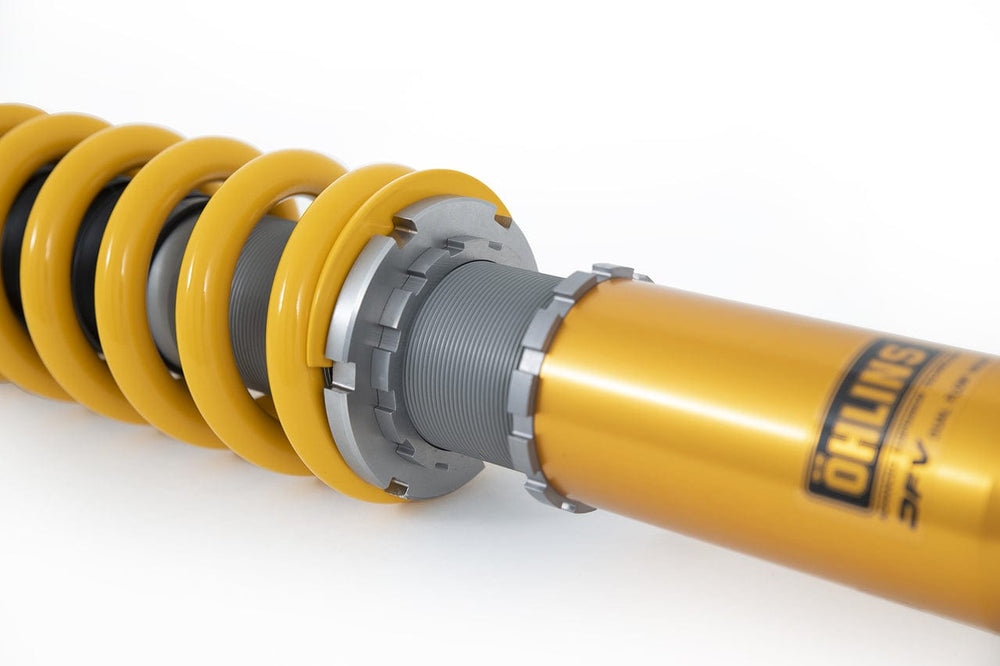

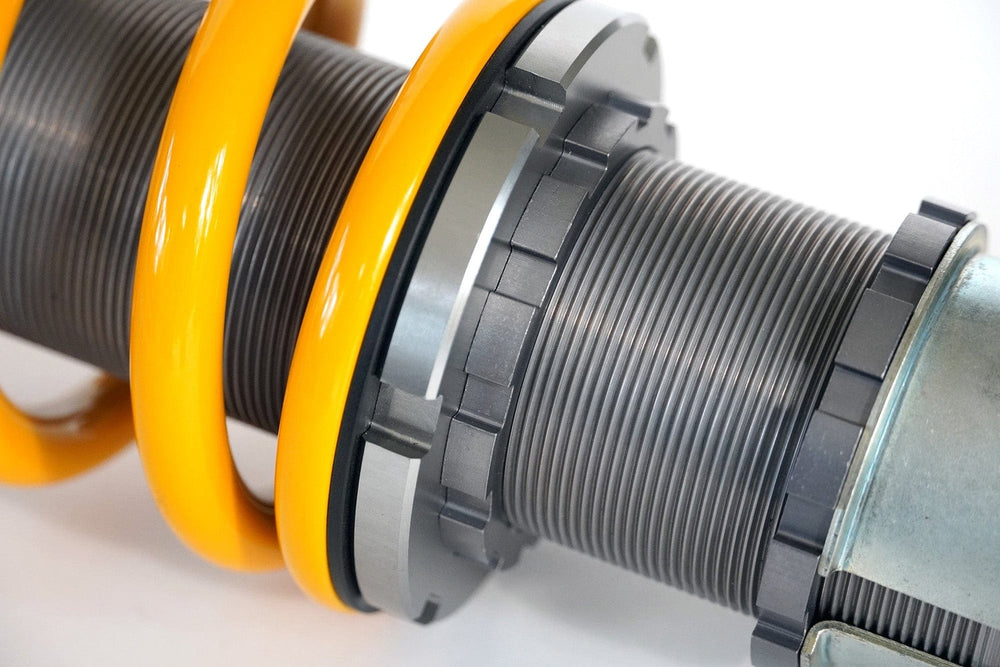

• Spring preload adjuster
• Height adjustable (approx. 20-35 mm lower than standard)
• Coil springs (120 N/mm)

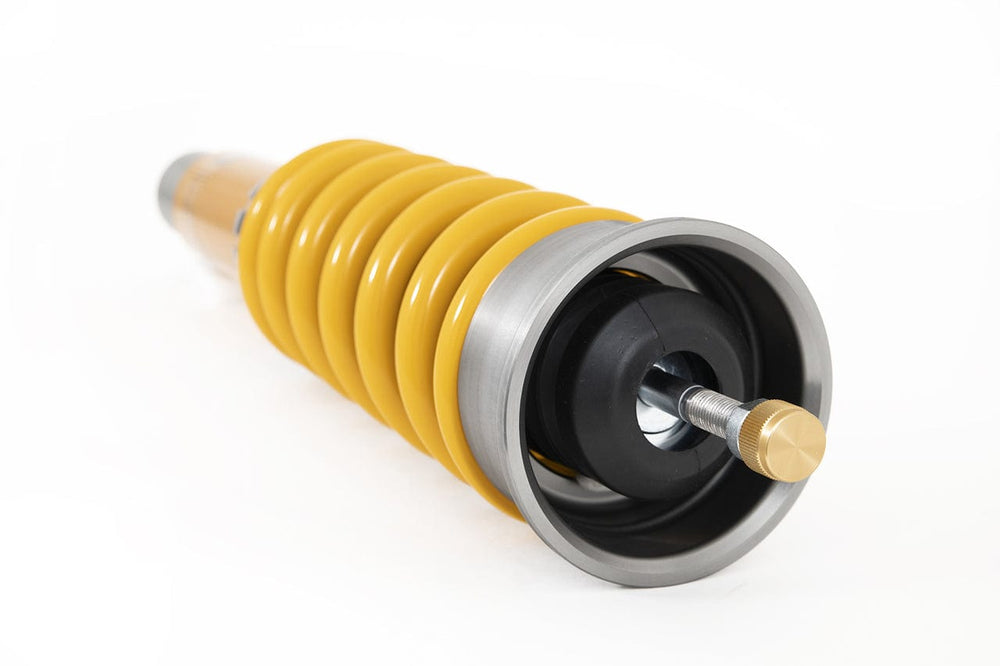

• Use with original top mounts
• Fits all models with 48.5mm and 53mm front upright clamp.

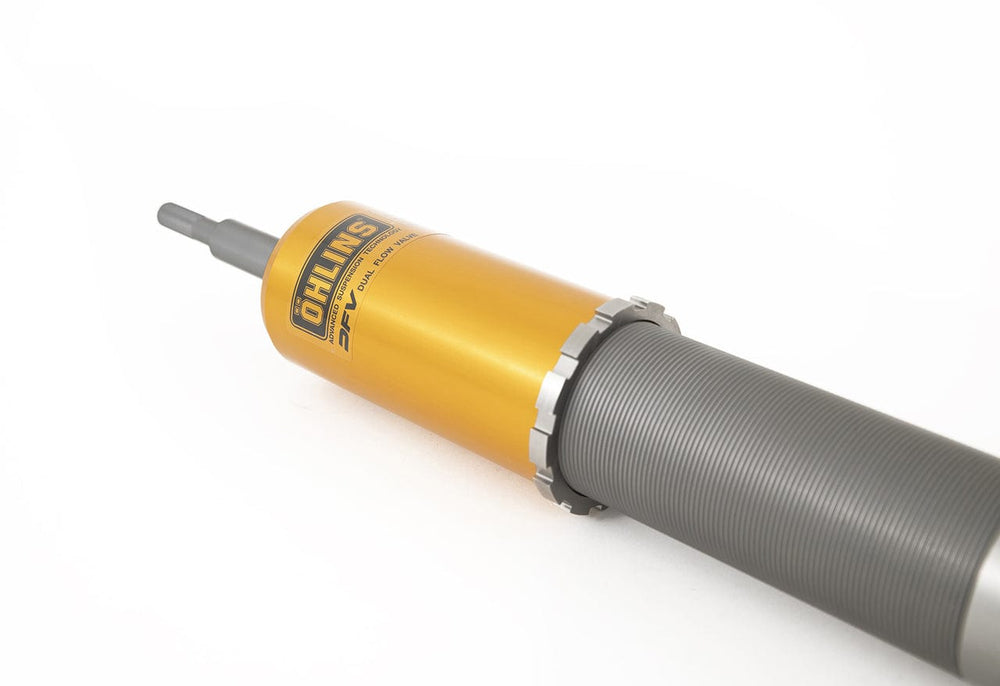

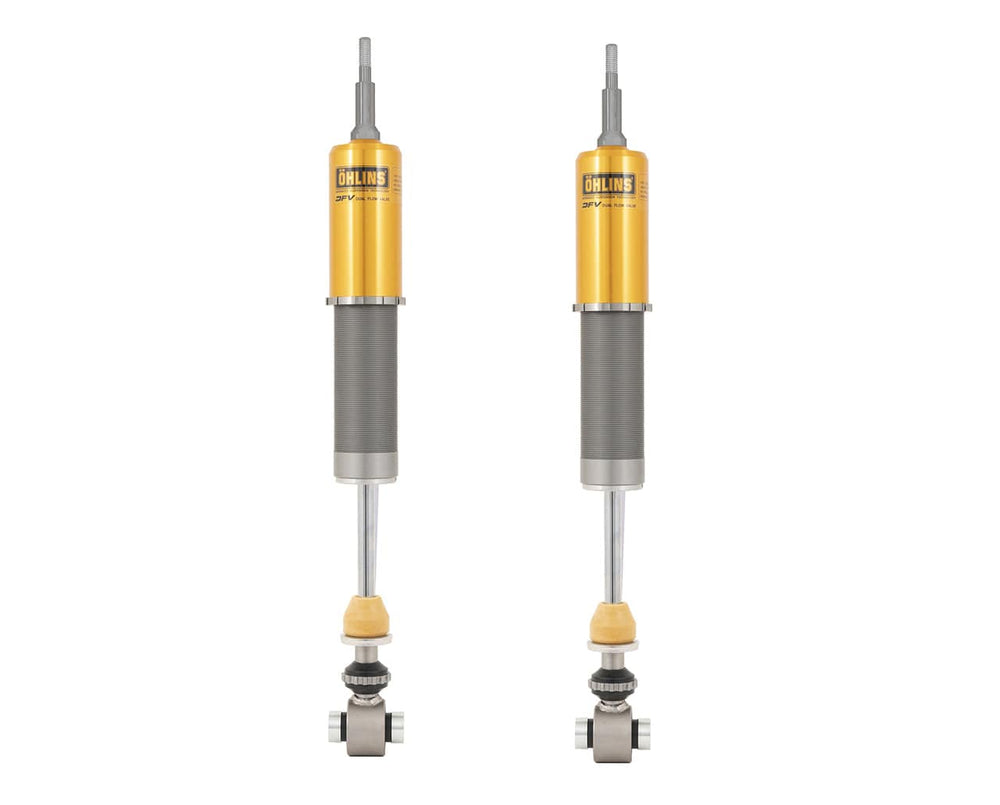

Features Rear

• Conventional shock absorber
• Single bleed adjuster
• Length adjuster
• Spring preload adjuster
• Height adjustable (approx. 20-35 mm lower than standard)
• Coil springs (140 N/mm)
• Use with original top mounts

Kit Includes

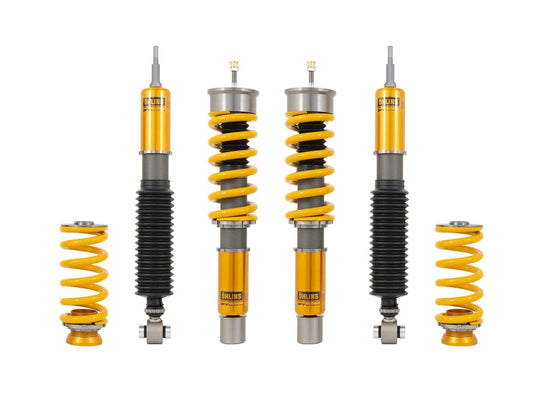

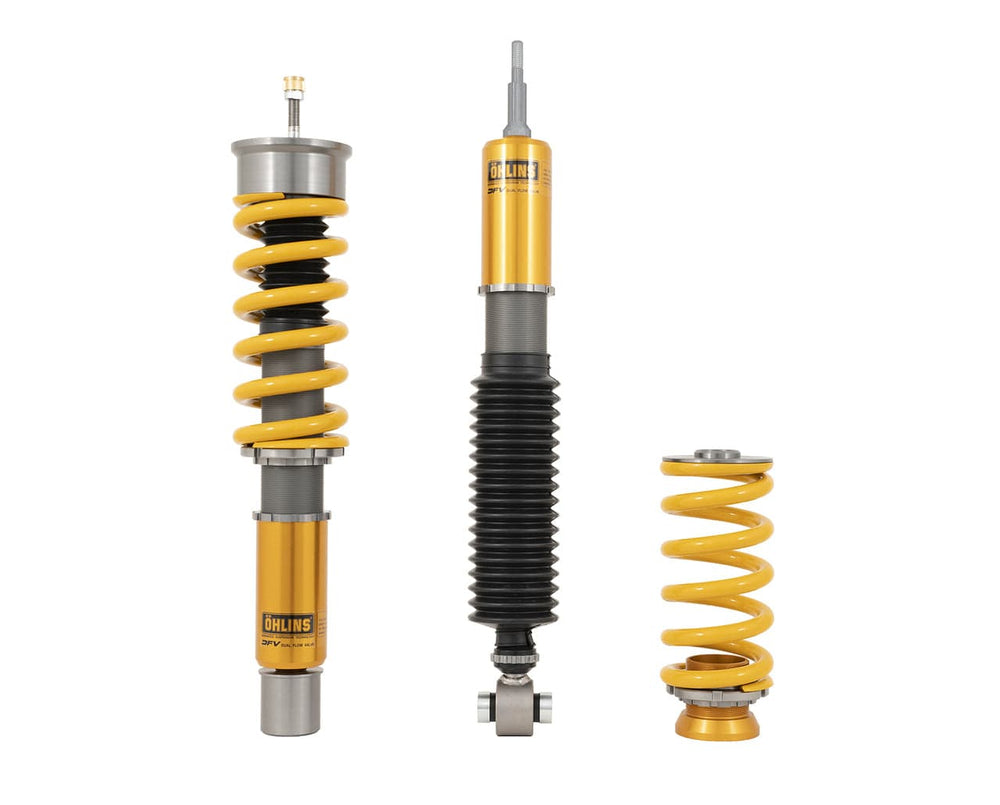

• Coil over kit
• C-Spanner (for spring preload adjustment)
• Owners manual and mounting instruction
• Sticker set

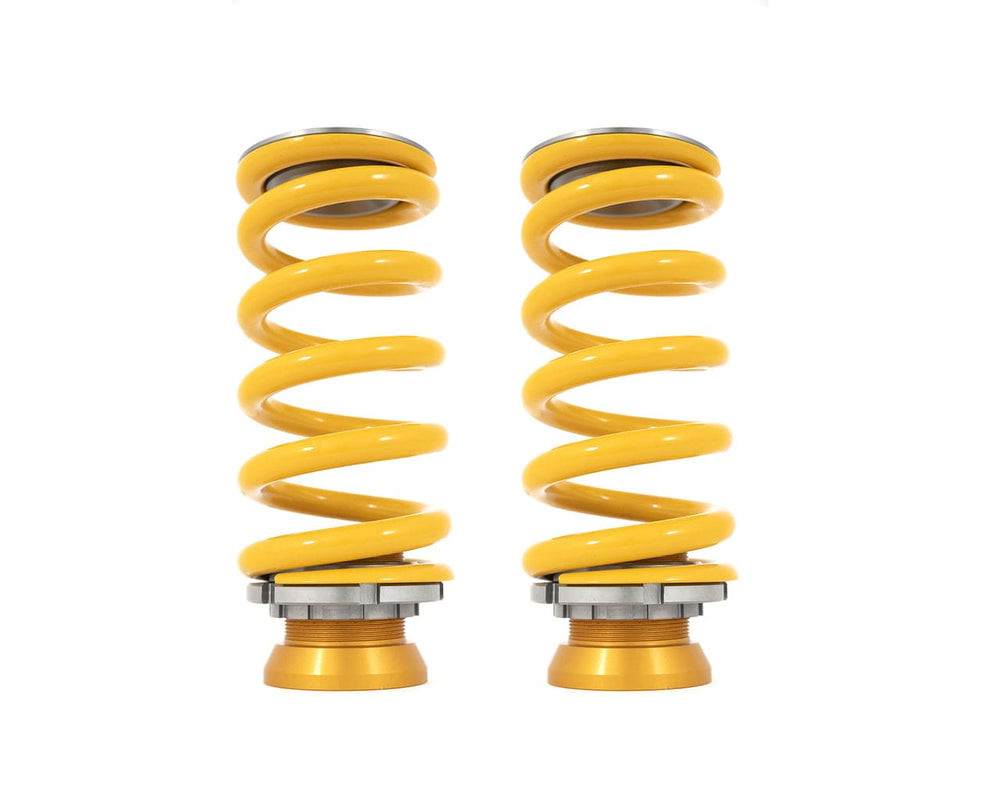

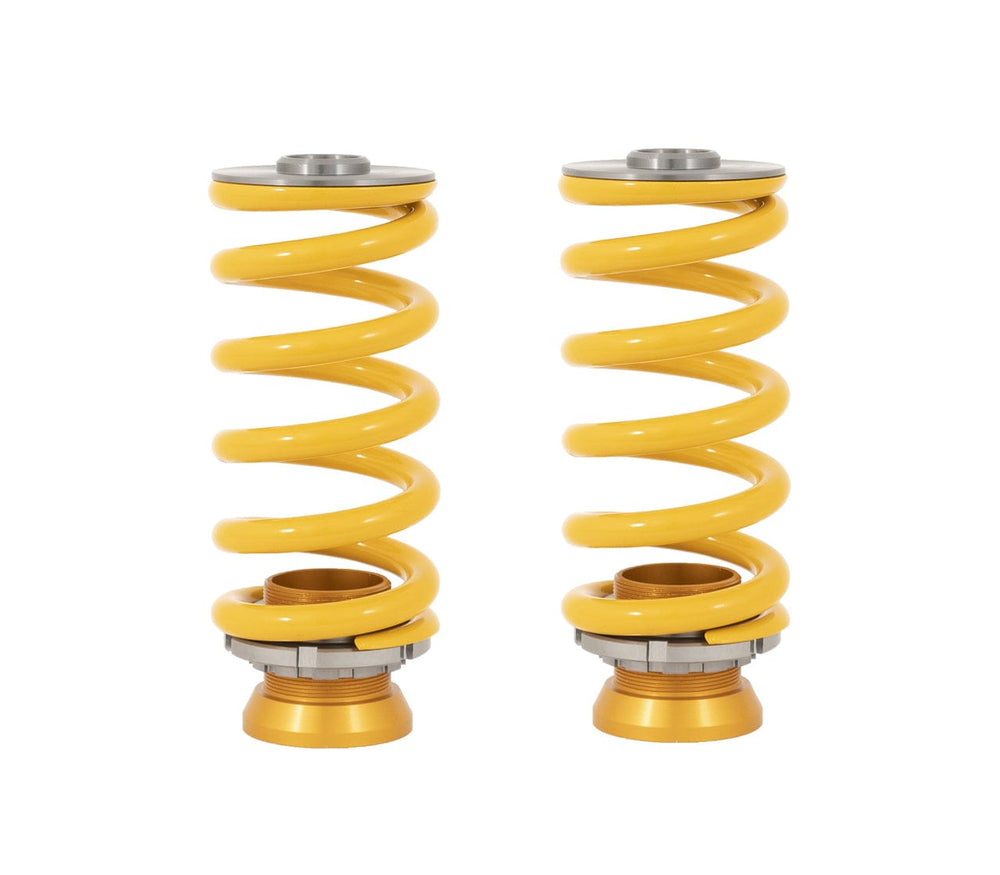

Spring Rates

• Front: 120 N/mm // 686 lbs/in. // 12 kg/mm
• Rear 140 N/mm // 800 lbs/in. // 14 kg/mm

Vehicle Fitment

• 2017 Audi A4 (B9) FWD/AWD Quattro
• 2018 Audi A4 (B9) FWD/AWD Quattro
• 2019 Audi A4 (B9) FWD/AWD Quattro
• 2020 Audi A4 (B9) FWD/AWD Quattro
• 2021 Audi A4 (B9) FWD/AWD Quattro
• 2022 Audi A4 (B9) FWD/AWD Quattro
• 2023 Audi A4 (B9) FWD/AWD Quattro
