Pedders | SKU: PED-161002

Pedders eXtreme XA Coilover Kit for 2017+ Tesla Model 3 AWD

$1,259⁹⁶ $1,399⁹⁵

Fast Shipping

Secure Payment

Genuine Parts

A Pedders eXtreme XA Adjustable Coilover kit fitted to your 2017+ Tesla Model 3 AWD provides exceptional ride and handling characteristics. With the ability to be able to raise or lower the car to suit your driving needs, the eXtreme XA kit is a valuable component for the street tuner or weekend track day racer.

The award winning Pedders eXtreme XA Adjustable Coilover offers exceptional ride and handling characteristics. With the ability to be able to raise or lower the car to suit your driving needs without changing the coil pre-load or lower spring seat position. 30 position adjustable bump and rebound damping is included with the simple click of the adjuster knob located on the top of the shock. This enables the driver to tune the ride to the driving conditions.

Click. Tune. Play with extreme XA from Pedders!

Features

32 Position Adjustable Damping
Adjustable Ride Height
Nitrogen Gas Charged
Alloy Steel Motorsport Coils
Fully Threaded Mono-Tube Body

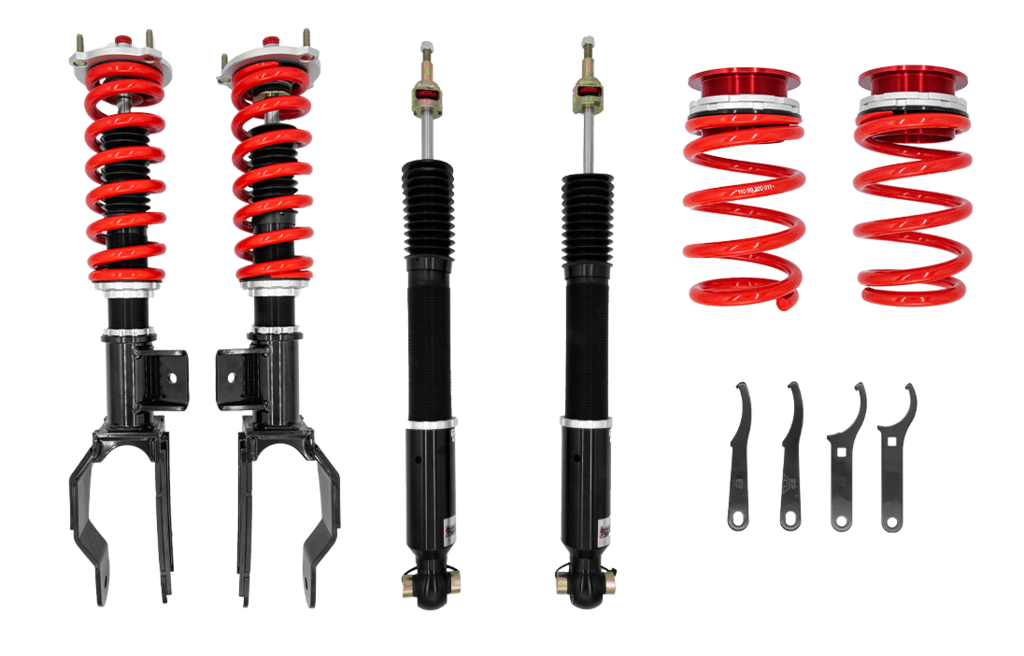

Kit Includes

2 x Front eXtreme XA Adjustable Coilovers
2 x Rear eXtreme XA Adjustable Coilovers
2 x Rear Coil Springs
Adjustment C Spanner Tools
Instruction Manual
Pedders eXtreme XA Car Badge

Specifications

	Front	Rear
Damping Adjustment:	Yes	Yes
Ride Height Adjustable:	Yes	Yes
Camber Adjustable Upper Mounts:	No	No
Spring Rates:	12 kg/mm (614.68 lbs./in)	11 kg/mm (670.56 lbs./in)

Vehicle Fitment

2017 Tesla Model 3 AWD
2018 Tesla Model 3 AWD
2019 Tesla Model 3 AWD
2020 Tesla Model 3 AWD
2021 Tesla Model 3 AWD
2022 Tesla Model 3 AWD

Additional Fitment Information

Part Number: PED-161002
