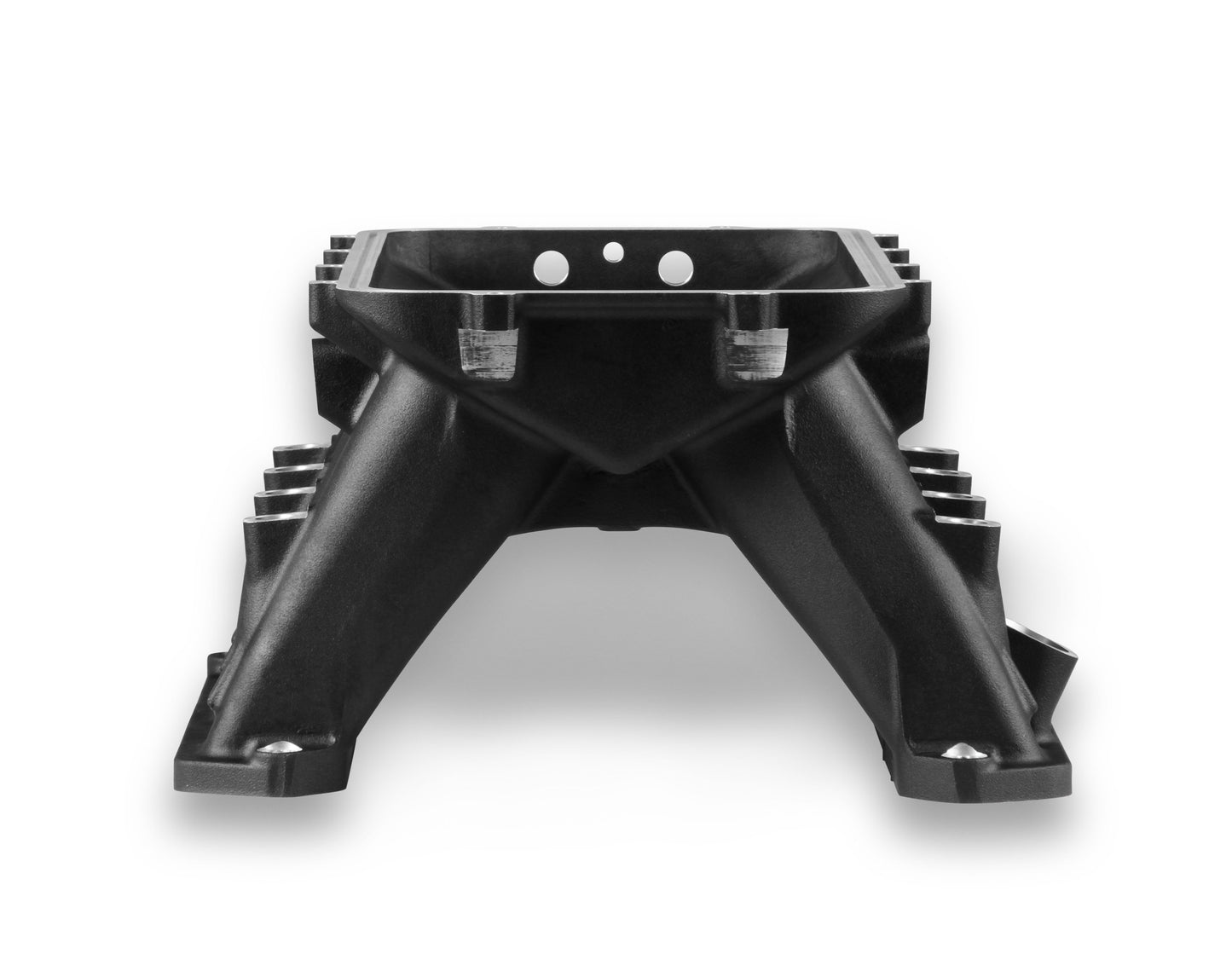

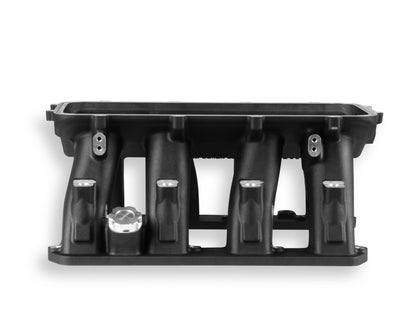

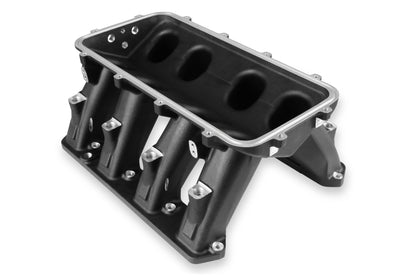

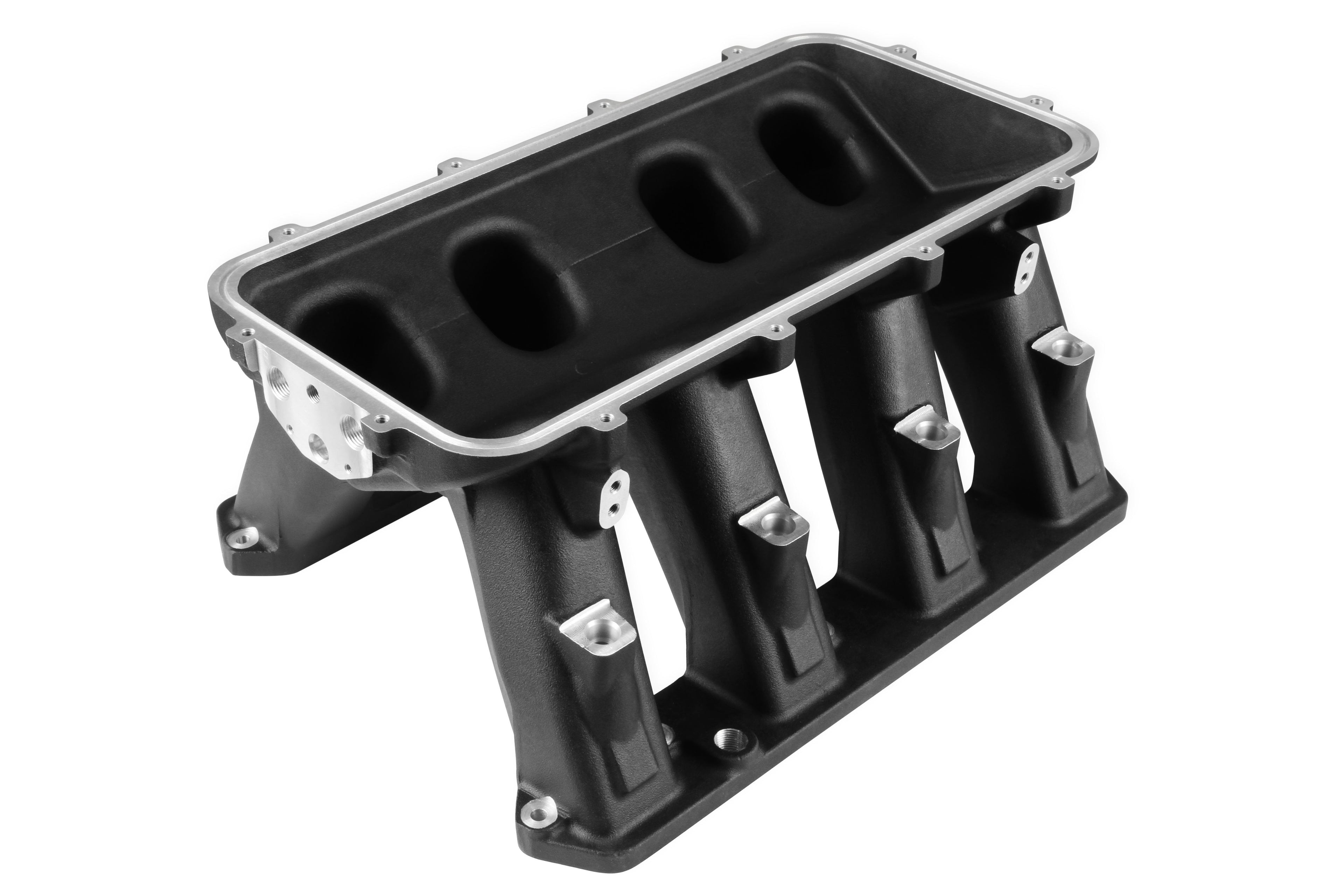

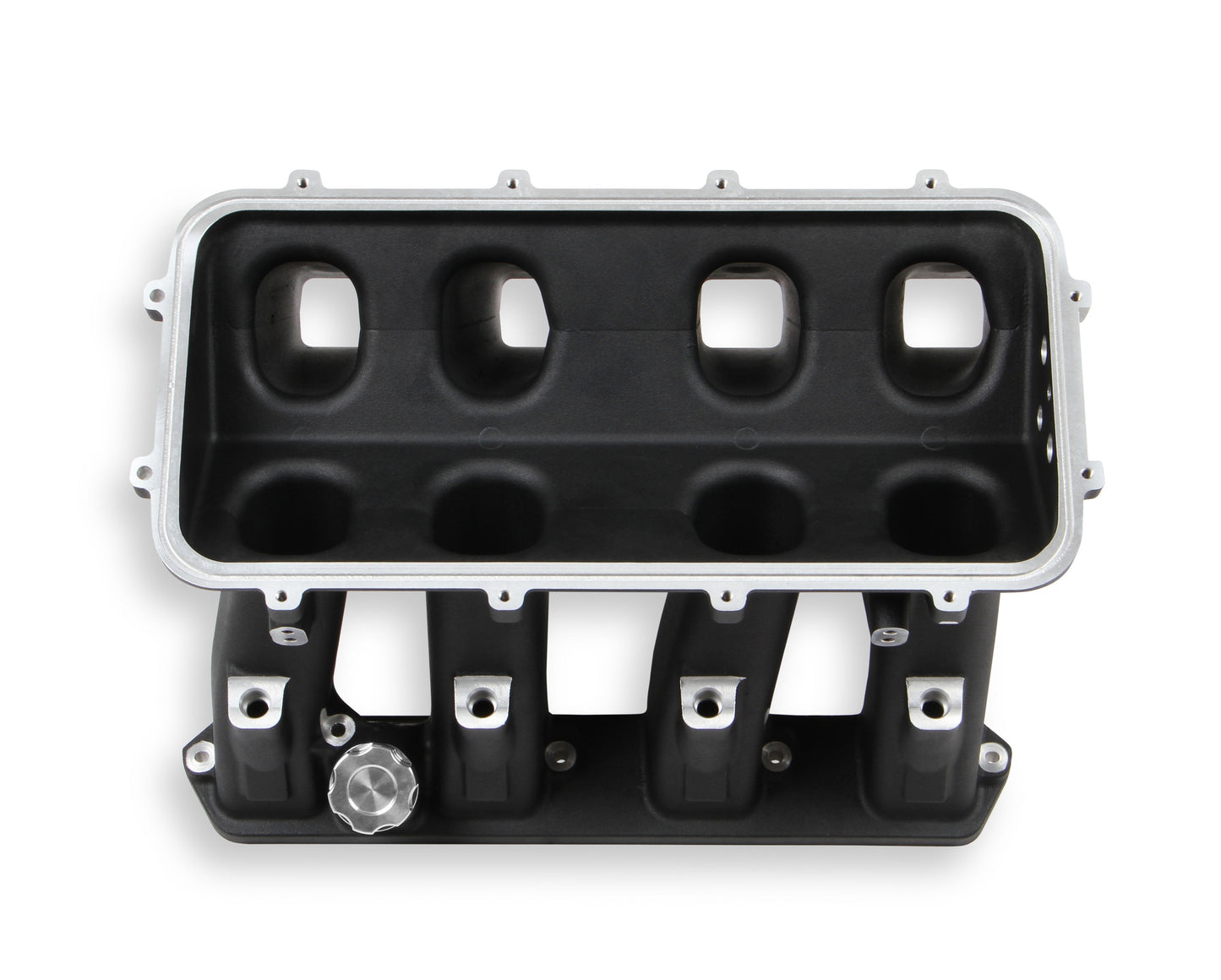

Gen III Hemi Hi-Ram EFI Manifold Base - Gen III Hemi EFI Manifold Base - Black Finish - Fits 2009-up 5.7L, 2005-2010 6.1L, and 2011-up 6.4L

$999.95

$999.95 ~~$999.95~~

In stock

Sorry, it's out of stock.

But we can let you know when it's back in.

Shop safely with us

Secure Checkout
Warranty Backed
Genuine Parts

300-653BK

90127105078

Gen III Hemi Hi-Ram EFI Manifold Base - Gen III Hemi EFI Manifold Base - Black Finish - Fits 2009-up 5.7L, 2005-2010 6.1L, and 2011-up 6.4L

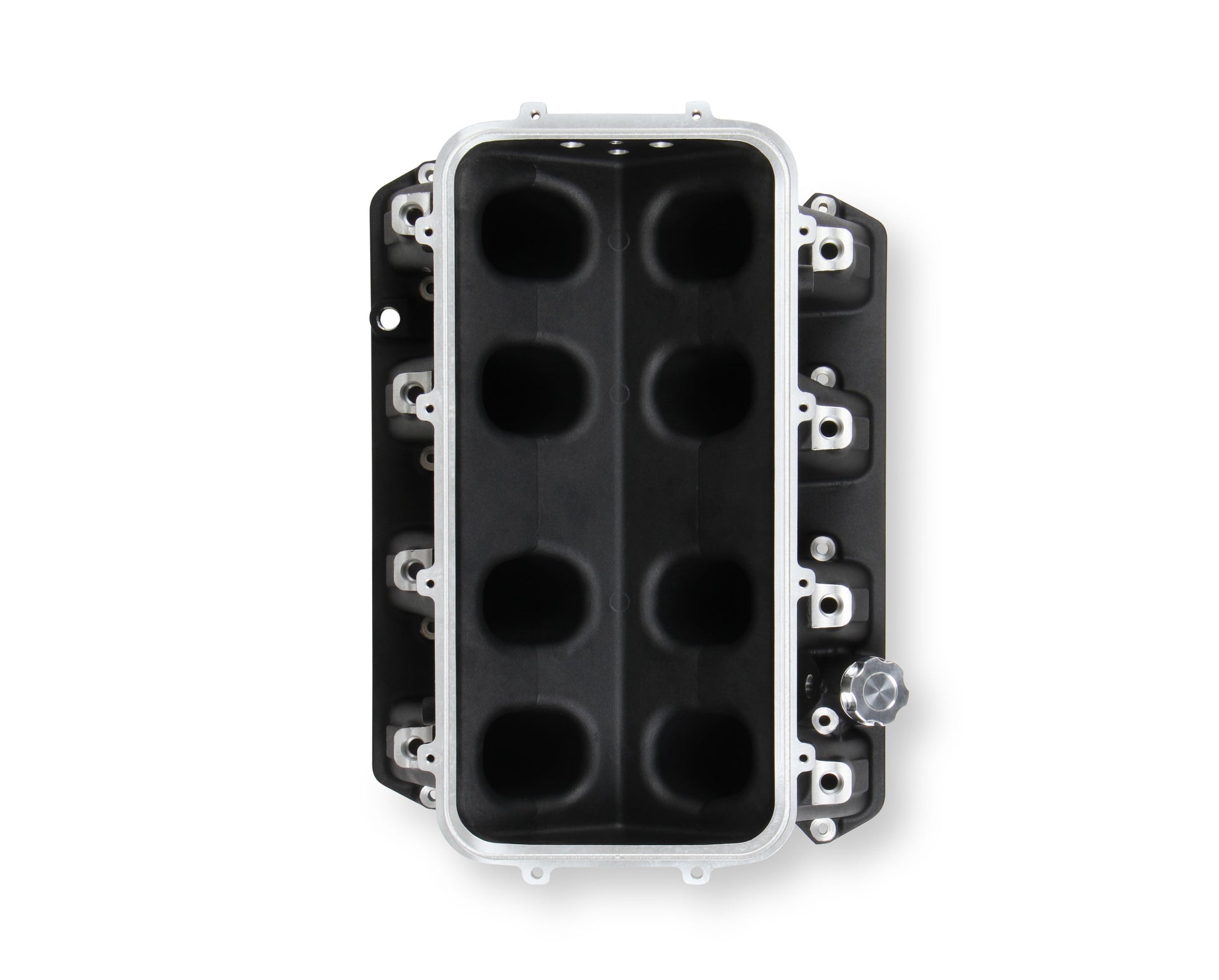

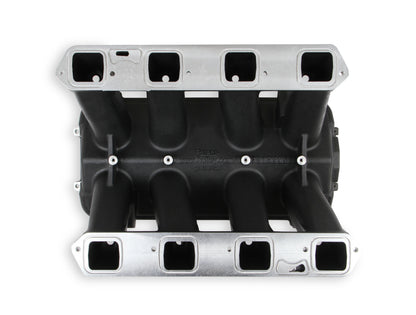

Holley Gen III Hemi Hi-Ram EFI Manifold Base

Gen III Hemi EFI Manifold Base - As Cast Finish - Fits 2009-up 5.7L, 2005-2010 6.1L, and 2011-up 6.4L

Overview
Add even more power to your Gen III Hemi engine with a Holley Hi-Ram intake manifold. This cast intake manifold has large intake ports - fits 2009-up 5.7L, 2005-2010 6.1L 2011-up 6.4L engines. The Holley Hi-Ram intake manifold is for high-performance applications where induction system height is not limited. Using this Hi-Ram intake with high flowing Gen III Hemi cylinder heads has outstanding potential for naturally aspirated forced induction applications. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! The base is designed to be modular in configuration to accept a wide range of EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems. Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations. The EFI fuel rails are machined for -8AN O-ring fittings with passages large enough to accommodate high fuel flow and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. Intended for use on naturally aspirated, forced induction, or nitrous engines in the 5.7 to 7.2+ liter range, max power at 7500-8500 RPM.

Early 2003-2008 5.7L Engines Can Use 300-652 adapters to Match the Smaller Intake Ports on these Engines. The lid on this intake manifold is machined to fit an LS style throttle body since this allows the use a cable operated throttle body (at a reasonable cost). The 80mm Gen III Hemi Throttle Body (drive by wire) Can Be Used on This Intake - Use w/ 300-660 Adapter Plate. The 92mm Hellcat Gen III Hemi Throttle Body (drive by wire) Can Be Used on This Intake - Use w/ 300-661 Adapter Plate.

Features:

Add Even More Power to the Gen III Hemi Engine with a Holley Hi-Ram Intake Manifold
Fits Gen III Hemi Engines w/ Large Intake Ports (1.70??? Height x 1.88??? Wide) ???? fits 2009-up 5.7L, 2005-2010 6.1L, 2011-up 6.4L)
Cast Aluminum Construction w/ Natural Satin or Black Finish
Runner Length and the Tapered Cross Section Designed to Perform Well for a Wide Range of Engine Configurations

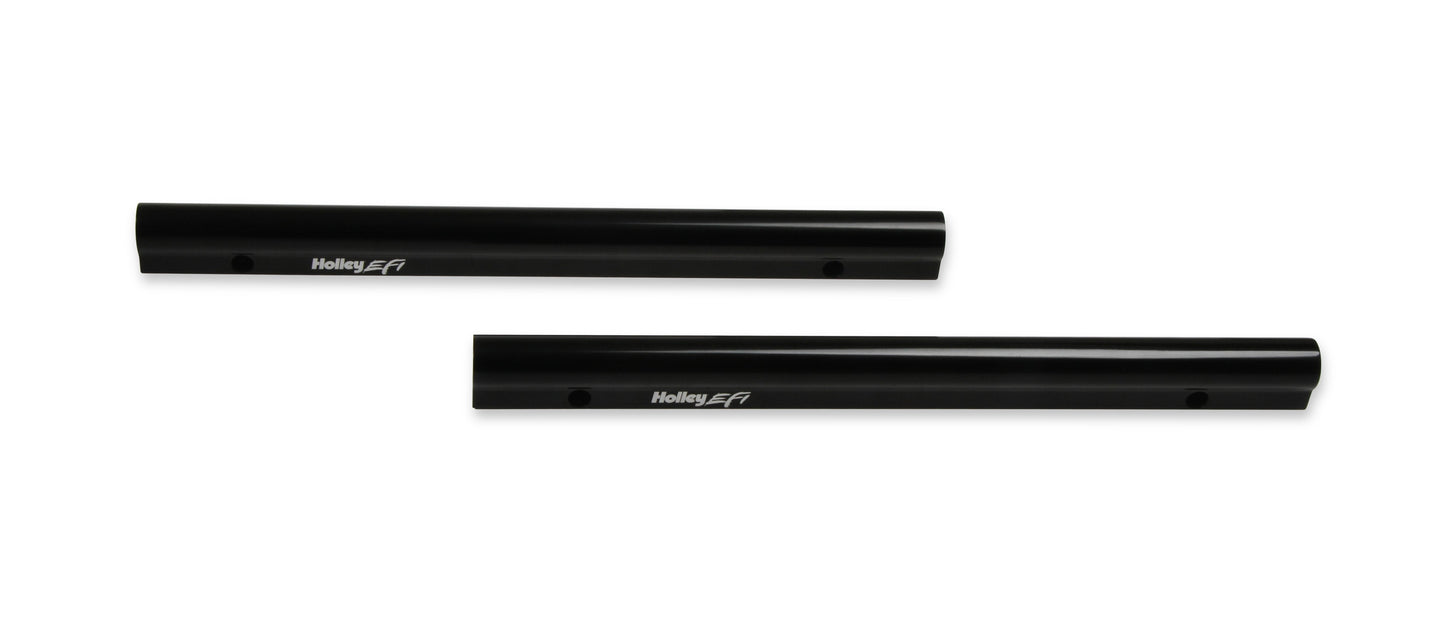

Includes EFI Fuel Rails w/ -8 AN O-Ring Fittings Large Passages to Accommodate High Fuel Flow and Dampen Pressure Pulsations in the Fuel System
Works with Gen III Hemi Injectors Bosch EV-1 Style Injectors

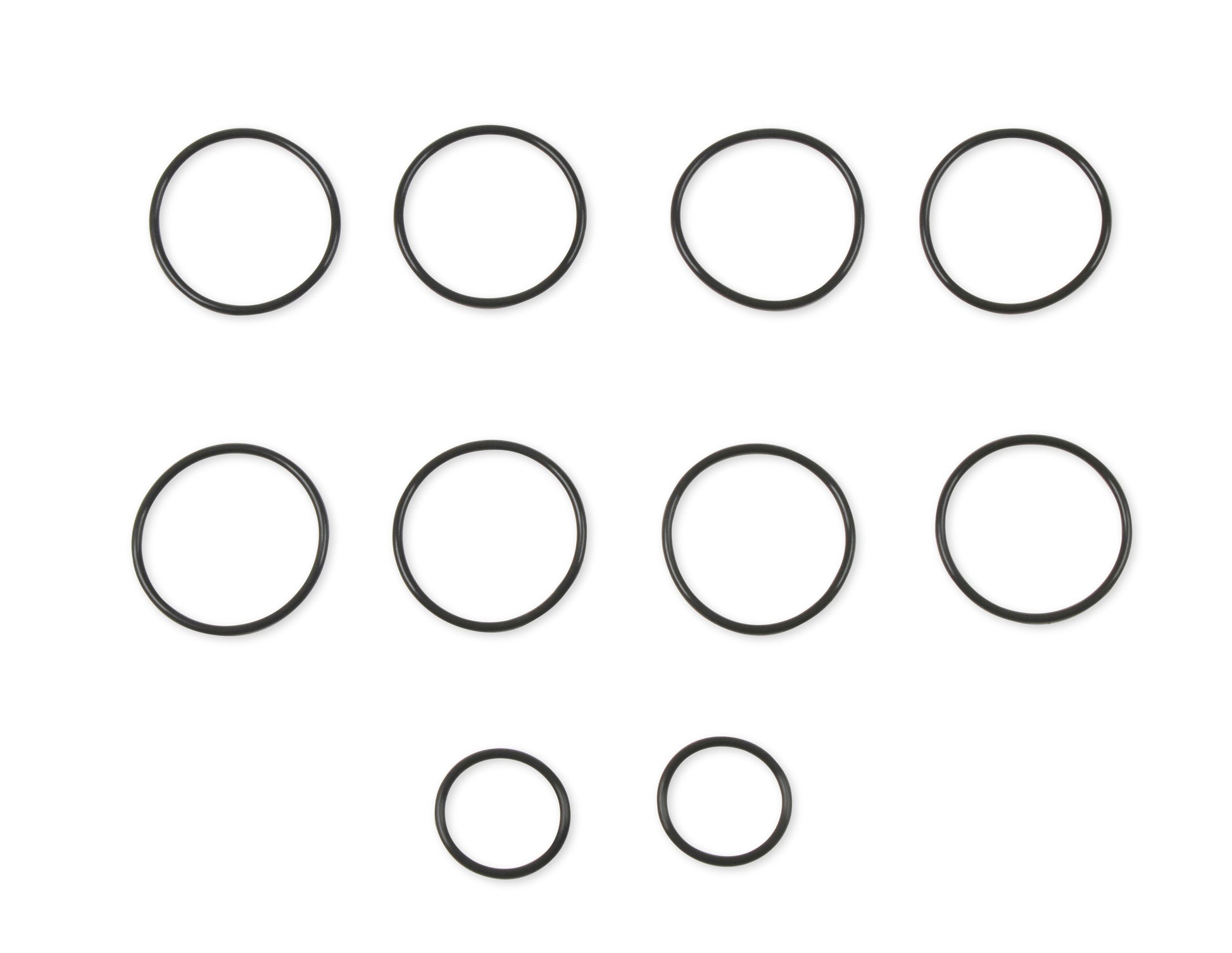

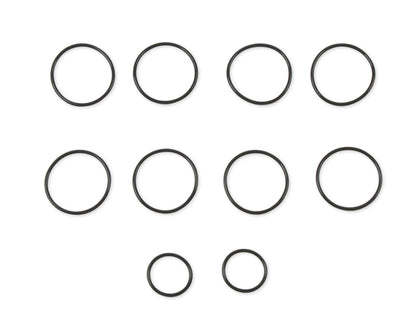

O-Ring Seal to Head ???? Large Retained O-rings Offer Superior Original Equipment (OE) Style Sealing Are Easy to Replace
Billet Oil Fill Cap ???? Attractive Low Profile Design
Positive Crankcase Ventilation (PVC) Ports w/ Adapter Fittings

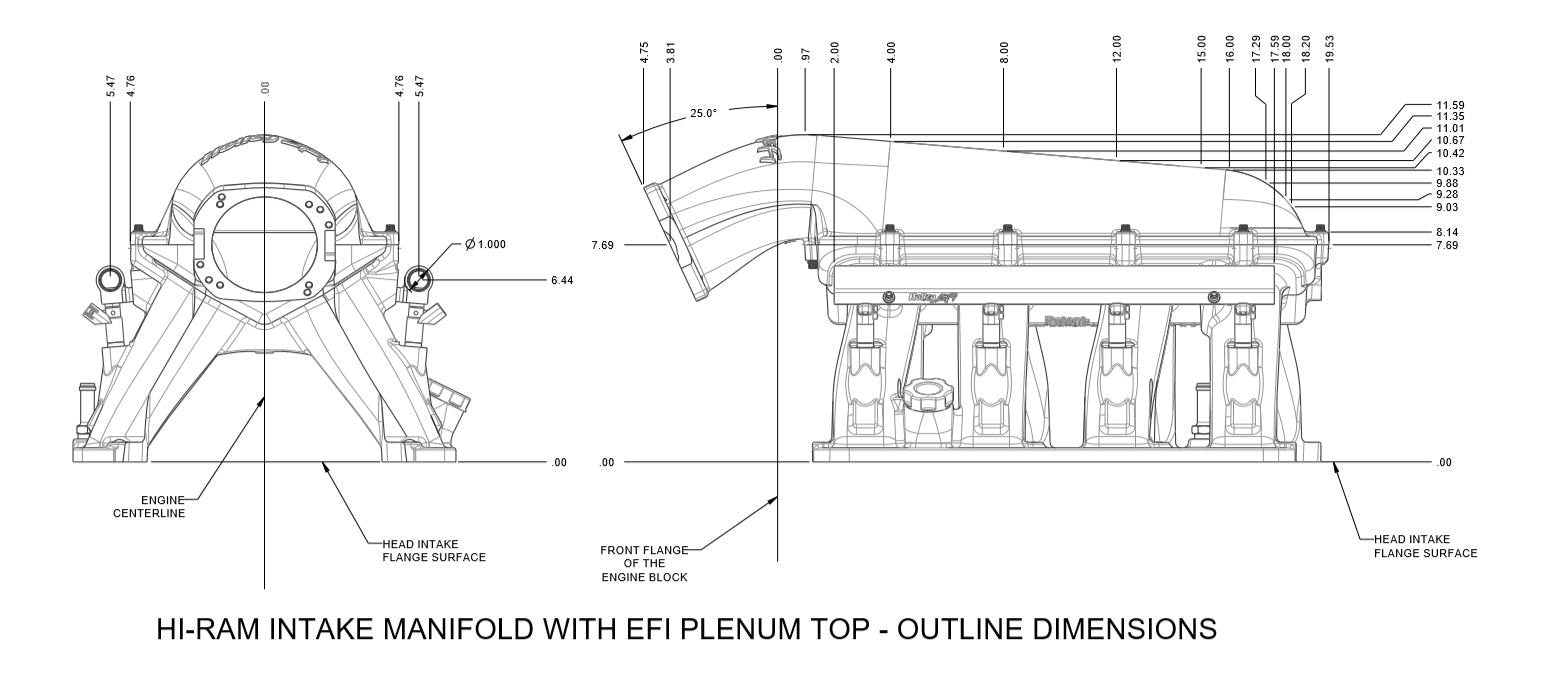

Overall Height: 11.59???
Port for OE Style Manifold Absolute Pressure (MAP) Sensor (1 or 2 Bar)
Cast-In Pads for Adding Nitrous Nozzles
Manifold Base ???? Available Separately for Custom Induction Systems

Details:

Color: Black
Construction: Cast
Engine: GEN 3 HEMI
Finish: Black
Flange Style: EFI
Front Height: 7.69 inch
Fuel System Type: EFI
Injector Style Provision: EV-1
Injector Style Provision: Gen III Hemi
Manifold Type: Hi-Ram
Material: Aluminum
Port Size: 1.70" x 1.88"
Rear Height: 7.69 inch
RPM Power Band: 1500-7000
Runner Length: 6.65 inch
Style: EFI
Type of Component: Lower Manifold
Vacuum Ports: (2) 3/8" NPT (1) 1/4" NPT
Warranty: Limited 90 Day

Links
Instruction Sheet
