HKS Bolt On Turbo Kit 86/brz GtIII- RS

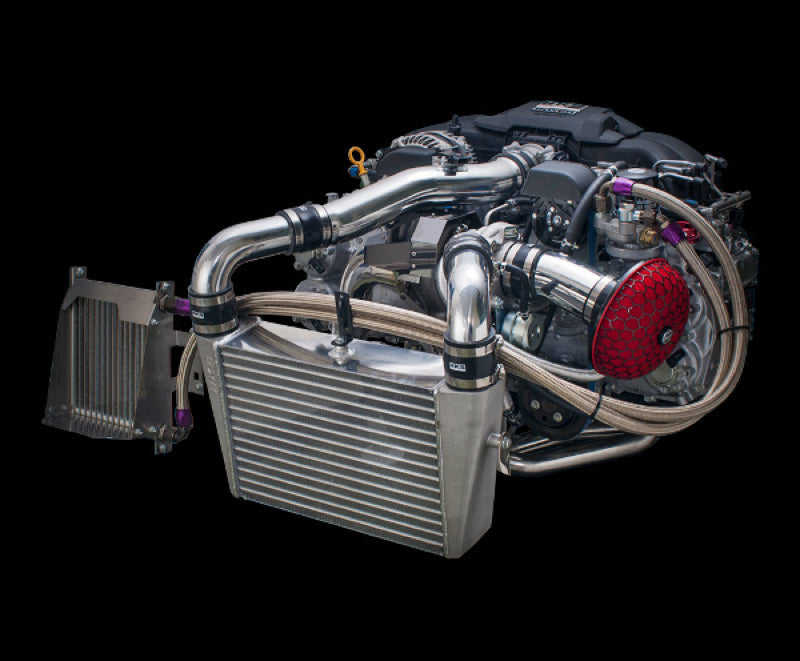

HKS has released a long-waited Bolt-on Turbo Kit with GTIII-RS turbine for 86/BRZ.
GTIII-RS turbine that is the best match with 2L engine, special designed turbo housing, and other special parts are made by HKS special turbo technology.
This kit is available from a stock to tuned engine.
The engine output will reach 450ps when this kit is installed to a tuned engine.
KIT PARTS

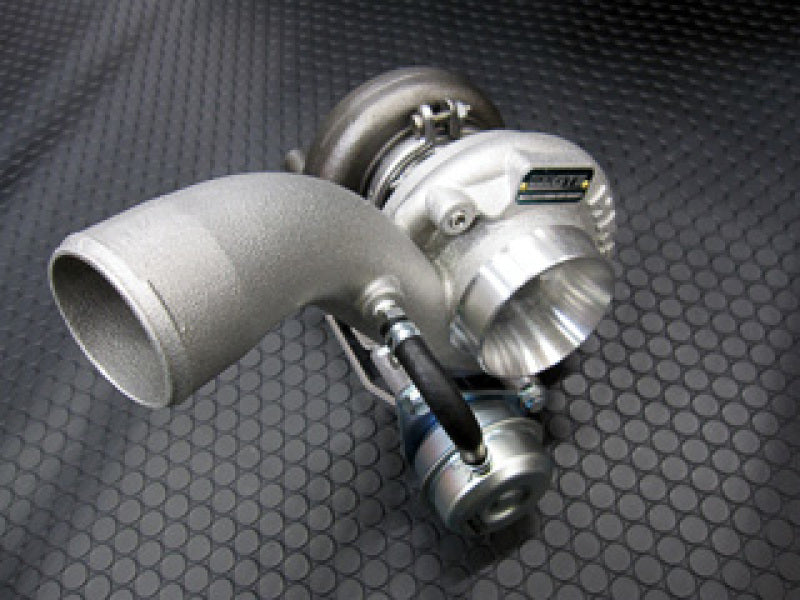

- GTIII-RS Turbocharger Assy with an actuator.
- Oil & Water Piping Parts
- Air Cleaner, Suction Pipe
- Front-mounted Intercooler, Piping
- Exhaust Manifold,
- For 11001-KT001, CATless Extension
- For 11001-AT005, Extension with CAT
- Insulator Cover, Insulator Sheet
- Gaskets, Brackets, Bolts, etc.

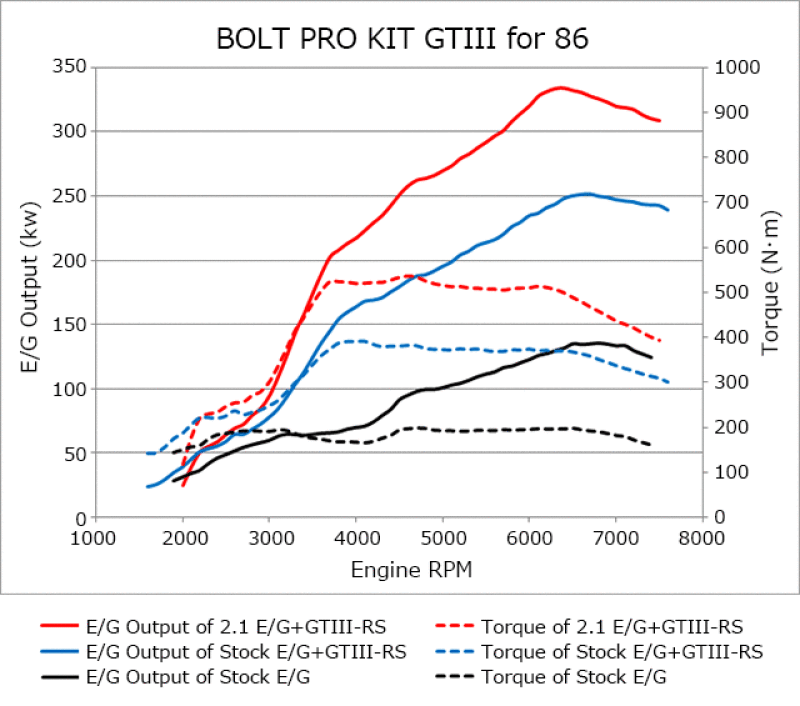

MAX ENGINE OUTPUT
2.1L E/G + GTIII-RS : 334kw(454ps)/6400rpm
Stock E/G+ GTIII-RS : 251kw(342ps)/6600rpm
NA Stock : 136kw(185ps)/6800rpm
MAX TORQUE
2.1L E/G + GTIII-RS : 536N?m(55kgf?m)/4600rpm
Stock E/G+ GTIII-RS : 391N?m(40kgf?m)/4100rpm
NA Stock : 199N?m(20kgf?m)/4100rpm
Stock Engine Test Vehicle Spec.
- LEGAMAX SPORTS
- FLASH EDITOR
- EVC6 IR
- I/J 440cc
- LA CLUTCH
2.1L Engine Test Vehicle Spec.
- 2.1L Piston, Con'rod, Crankshaft, Camshaft, Gasket
- SUPER FIRE RACING M45HL
- Hi-POWER Muffler
- Prototype Front Pipe, Prototype CATless Center Pipe
- Reinforced fuel parts
- FLASH EDITOR
- EVC6 IR
| Vehicle | Model | Engine | Model Year | Turbine Size | Boost Pressure | Code No. | Price | Remarks |
|---|---|---|---|---|---|---|---|---|
| 86 | ZN6 | FA20 | 12/04-16/07 | GTIII-RS | - | 11001-KT001 | CATless Extension, Compatibility with the late model is confirmed only with JDM model. |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013 - 2016 | Scion | FR-S | Base |
| 2015 | Subaru | BRZ | Aozora Edition, Series.Blue |
| 2016 | Subaru | BRZ | Series.HyperBlue |
| 2017 | Subaru | BRZ | Series.Yellow |
| 2013 - 2017 | Subaru | BRZ | Sport-tech, Limited, Base, Premium |
| 2017 | Toyota | 86 | Base, Special Edition |
-
