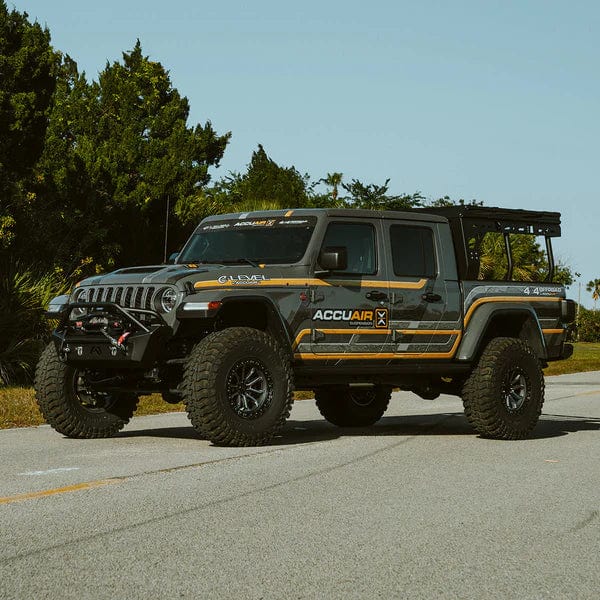

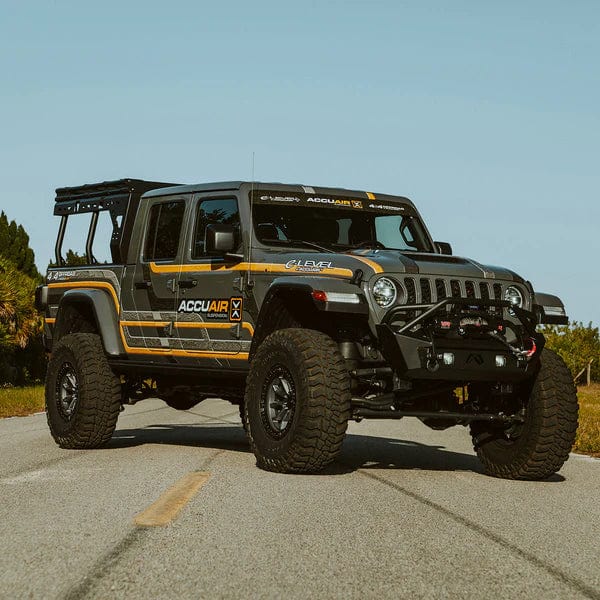

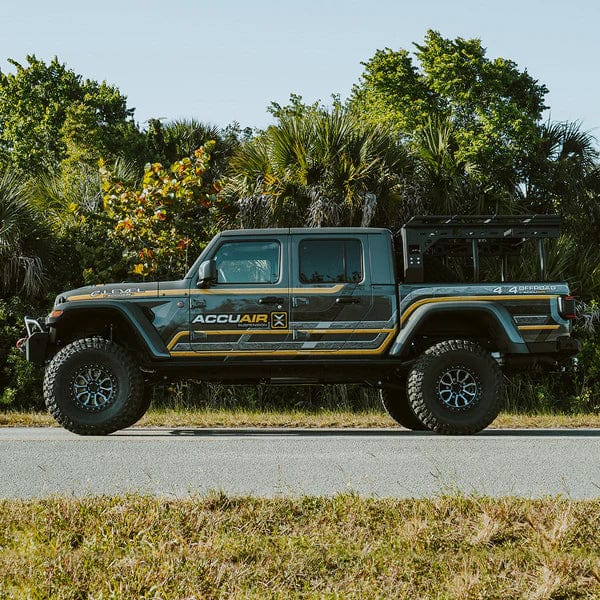

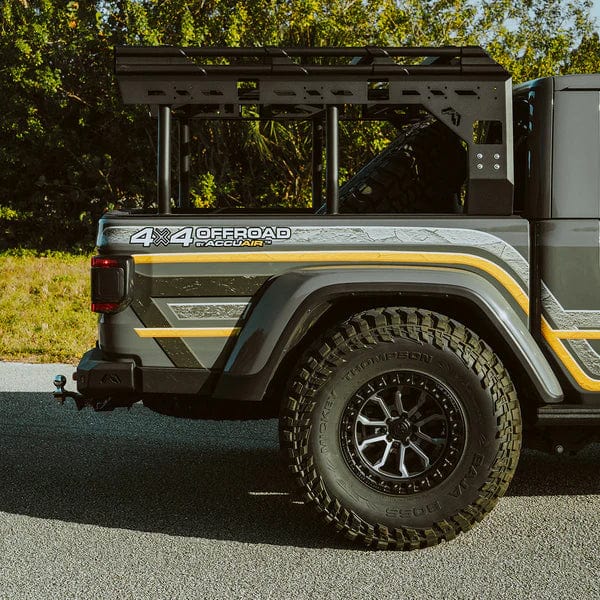

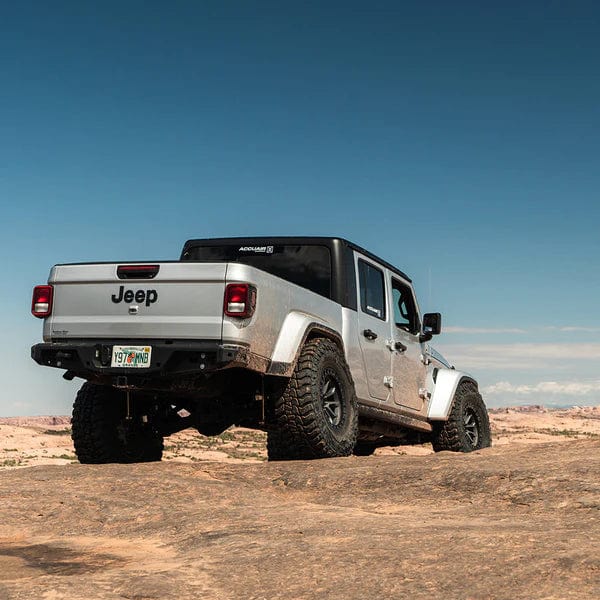

AccuAir Lift Kit System for 2019+ Jeep Gladiator (JT)

Find adventure with our advanced and proven custom 2019+ Jeep Gladiator JT Air Suspension package. The AccuAir suspension system lowers to stock level for garage entry then automatically adjusts to 3.5” of lift. While off-roading under 25 mph the Jeep can be adjusted to 5.5” of lift. The underbody mounted 3 gallon air tank is regulated onboard air for inflating tires and tools. The system automatically adjusts to optimal ride height at speeds above 25 mph. The air suspension system will auto level your vehicle, a must when towing. Overlanding enthusiasts can easily level their Jeep Gladiator for overnight stops. The fully bolt-on system includes new lower control arms, sway bar links, and front track bar for increased strength and FMVSS 126 compliant handling. The system includes JRi shocks and AccuAir e-Level Plus control system, which can be controlled via a hardwired Touchpad+ or by Bluetooth through the ePlus app.

Jeep Gladiator Air Suspension

This complete dynamic lift kit for the 2019 - 2023 Jeep Gladiator allows for total versatility when it comes to on and off-road fun. While air springs and air lift kits are not common on Jeep suspension, this air suspension kit gives you capabilities no other Jeep has. The average Jeep customer is going to install lift kits that allow for the vehicle to ride higher and more comfortable than the factory spring and shock kit. With this AccuAir kit, you will have the option to raise and lower your Jeep Gladiator at the push of a button. This kit is easy to install and has a price that makes it affordable on just about any budget. This full-vehicle dynamic lift kit will feature everything you need to put your Jeep Gladiator on air suspension.

Note: AccuAir Jeep Gladiator air suspension kit fits 3.6L models, will not fit the Mojave trim level.

Features

• Speed-Based Suspension Modes

• Steering & Geometry Correction

• Tank, Compressor, & Valve Block Under Vehicle

• On Board Air for Tire Inflation, Tools, Etc.

• 4” Dynamic Lift Kit (JT)

• Ability to access garages with oversize tires

• Entry/Exit Height of Stock Jeep

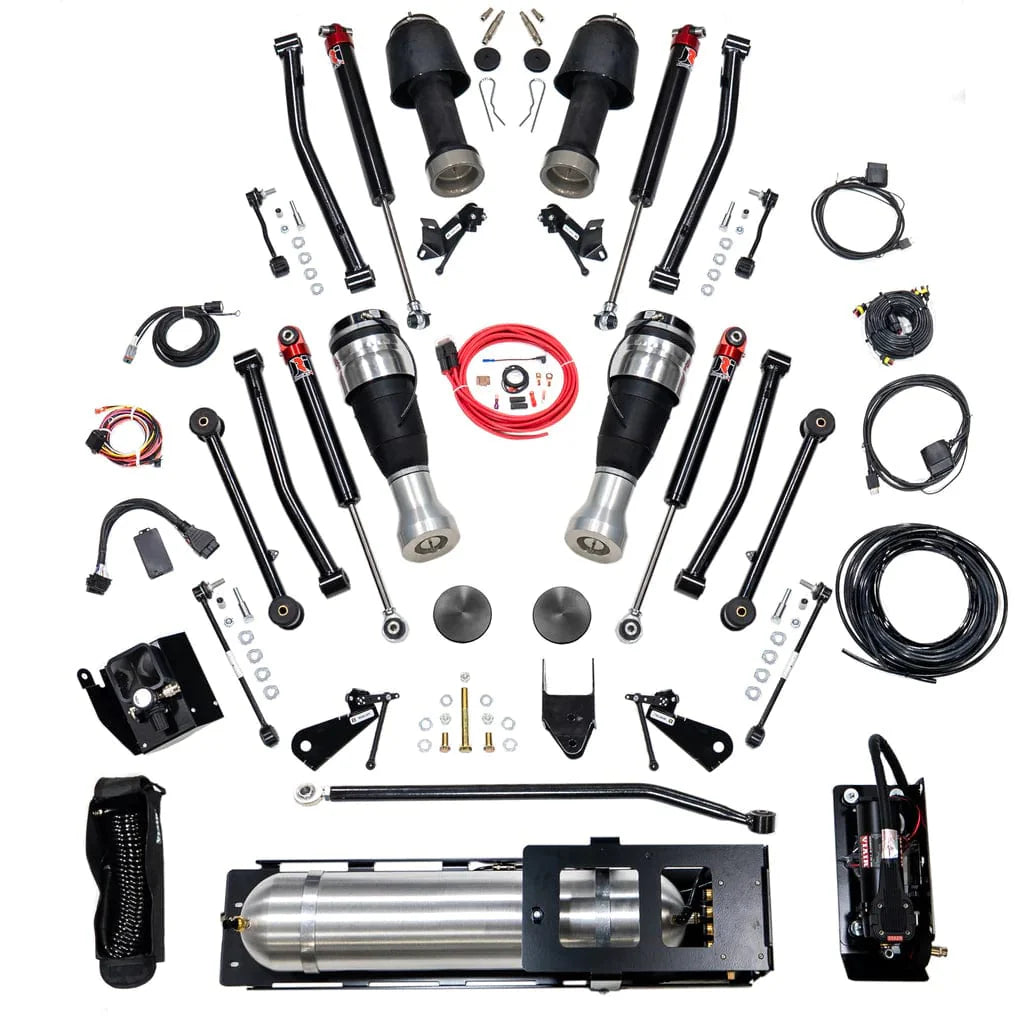

What's Included?

• Air Suspension Conversion Kit

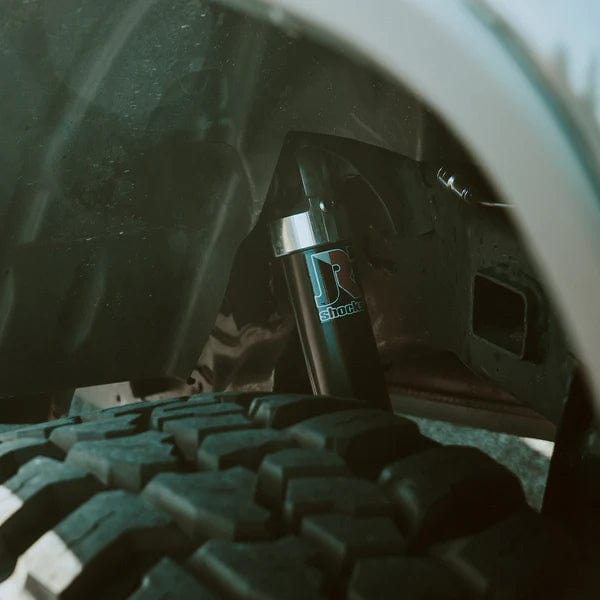

• JRi Custom-Tuned Shocks

• e+ Connect

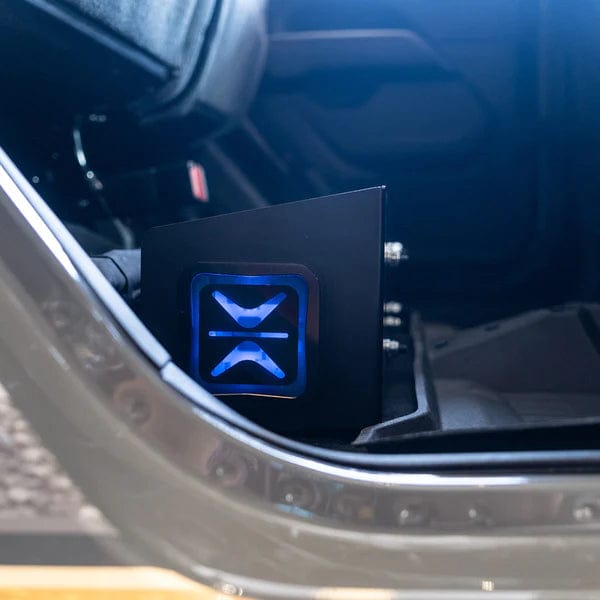

• TouchPad+ Upgrade

• Height+

• Height Sensor Brackets

• VU4 4-Corner Manifold

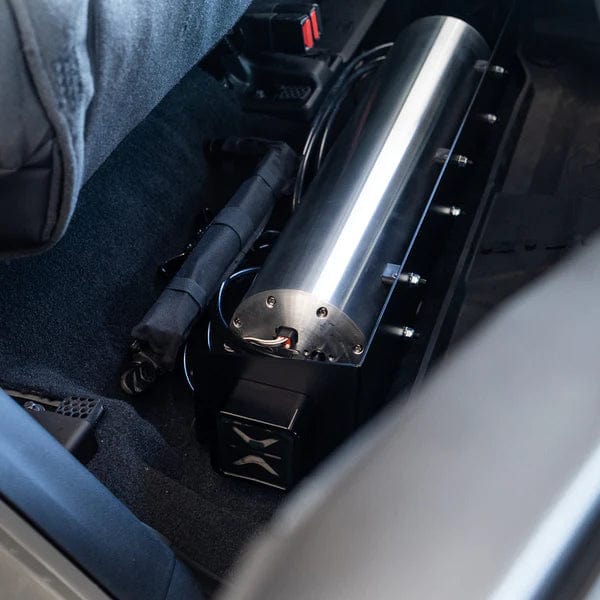

• 3 Gallon Seamless Tank

• VIAIR 485C Compressor

• VIAIR Inflation System

• Front Lower and Rear Upper and Lower Control Arms

• Adjustable Front Track Bar

• Front and Rear Sway Bar End Links

• Rear Extended Brake Lines

• Install Kit for ECU, Air Tank, Compressor

• Air Compressor Bracket

• Air Tank Bracket


More About Air Suspension

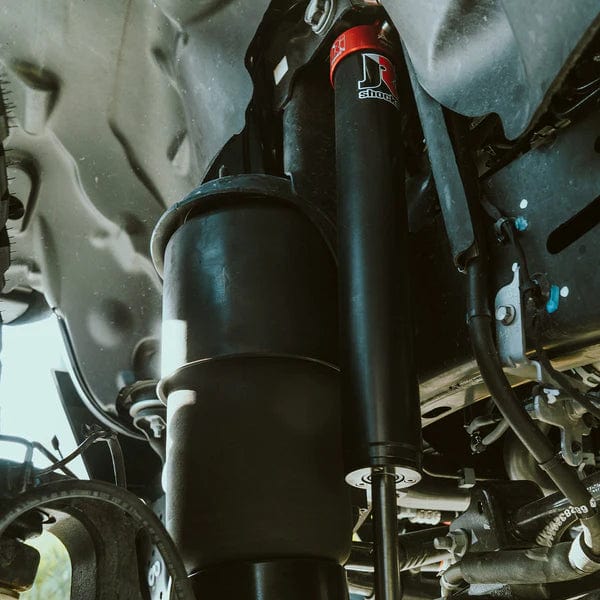

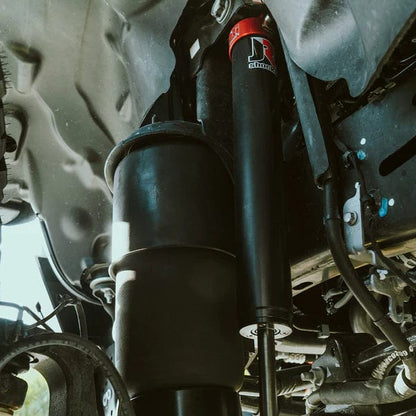

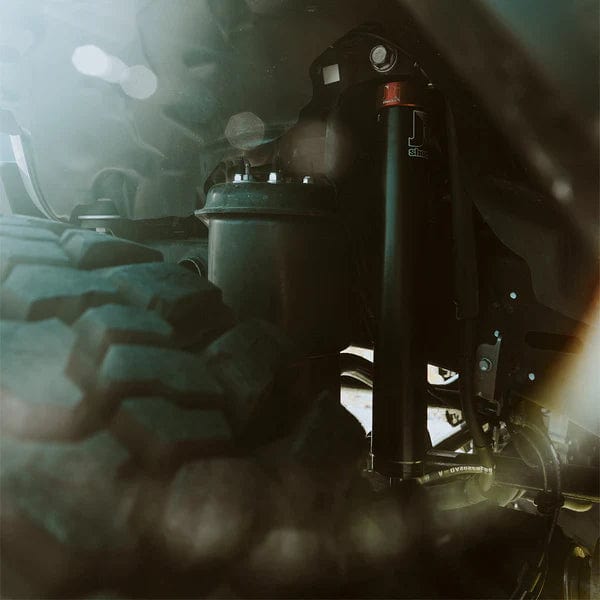

Air springs are used to support vehicles instead of coil springs. This is not the same as helper air springs that assist the coil spring suspension. With helper springs, the ride can be rougher due to the added spring force, but that's not an issue with a dedicated air spring. A vehicle's air spring is made up of a rubber sleeve, a metal piston, and a body mount, which are filled with pressurized air. When the suspension articulates, the sleeve rolls over the piston for a smooth and comfortable ride. Like a tire, the sleeve is very resistant to wear and punctures. The sleeve is attached to the piston and body by crimp rings. There are also some air springs with internal bump stops. The body mounts fix the spring to the vehicle, but like coil springs, suspension travel must be limited by either the shock absorber or limit straps. Air can be added to or removed from the spring to control the vehicle's posture, unlike traditional coil springs, which have a fixed height and settle over time. You don't have to guess about spring lengths or rates to get the right height for your Jeep.

For over 100 years, air springs have been used as a proven technology. Air suspension is used in some passenger cars, trucks, buses, and even trains. With AccuAir Suspension, off-road suspension and lift kits are revolutionized by combining proven air spring technology with modern electronic control.
