SPL Part Elantra N Rear Toe Arms with Eccentric Lockouts
SPL Part Elantra N Rear Toe Arms with Eccentric Lockouts
8ZSAO
Couldn't load pickup availability
- Secure checkout
- Warranty Backed
- Genuine Parts
Shop Safely
Shipping Notice
Some oversized, heavy, or specialty items may incur additional shipping charges based on your delivery location. If this applies to your order, our team will contact you after checkout with the updated cost. Orders will not ship until additional charges are confirmed and paid.
Got a question?
SPL rear toe arms provide a large range of adjustment to properly correct the rear toe angle and increase the vehicle's overall stability by reducing unwanted toe angle shift from bushing deflection, especially with high cornering or braking loads and over bumps. The result is better handling, driving feel, and improved tire life.
Benefits
- Large Toe Adjustment Range
- Improved Tire Wear, Stability, and Handling
- On-Car Adjustable with No Jam Nuts
- Lightweight, High Strength Construction
- Maintenance-Free, US Made, PTFE-Lined FK Rod Ends
- Fixes Slipping Issue with OEM Eccentrics

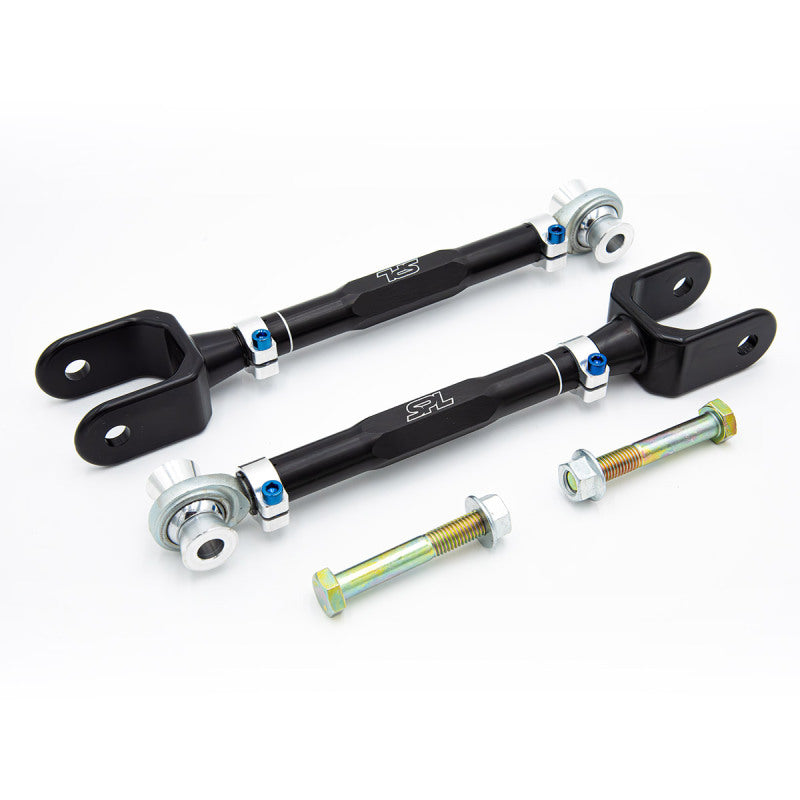

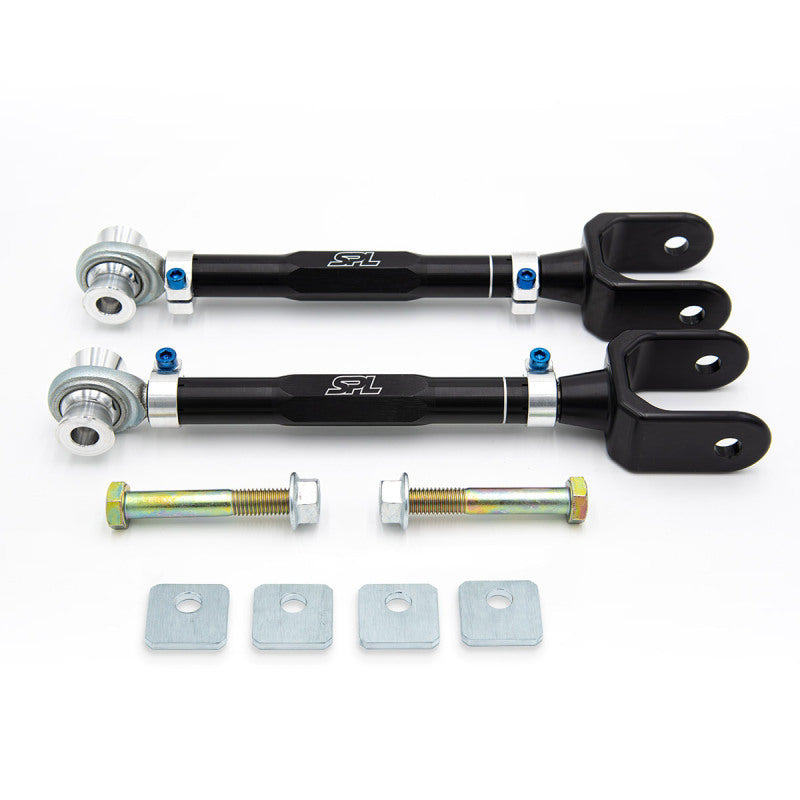

Eccentric Lockout Kit Included
Eccentric bolts are prone to slipping with increased cornering loads. To solve this our toe eccentric lockout kit is included in this toe arm kit (RTAEL), which replaces the OEM Hyundai eccentric bolts with lockplates and non-eccentric bolts to lock down your alignment.
Easy, On-Car Adjustments

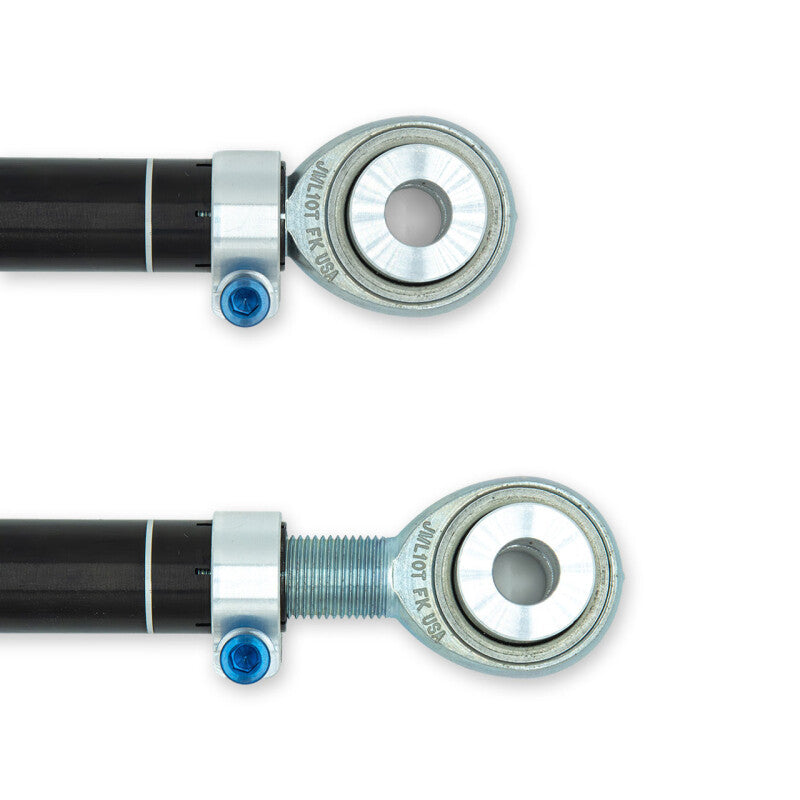

The anodized 2024-T351 aluminum arm uses opposing thread patterns (RH and LH) to allow you to adjust the toe while it is still installed. Simply loosen the aluminum clamps with a 5/32" hex key, elongate or shorten the arm by turning, then tighten the titanium cap screws. That's it, no need for fumbling wrenches trying to tighten a jam nut while you keep the arm the exact same length.
Materials
- 2024-T351 aluminum hollow arm (anodized black)
- 6061-T6 aluminum clamps
- 6061-T6 aluminum clevis
- Titanium 1/4-20 socket head bolts (anodized blue)
- FK PTFE-lined rod ends (F1 spec, self-cleaning)
Suitable for all uses, from daily driver to race car.
Featured On
Tested, developed, and used on the GenRacer Hyundai TC America race team's winning Elantra N.
Sold as a pair.
Confirmed Applications
2022+ Hyundai Elantra N (CN7)
Replacement Rod Ends
SPL Right Hand Thread Rod Ends
SPL Left Hand Thread Rod Ends
Installation Instructions
SPL RTAEL CN7
