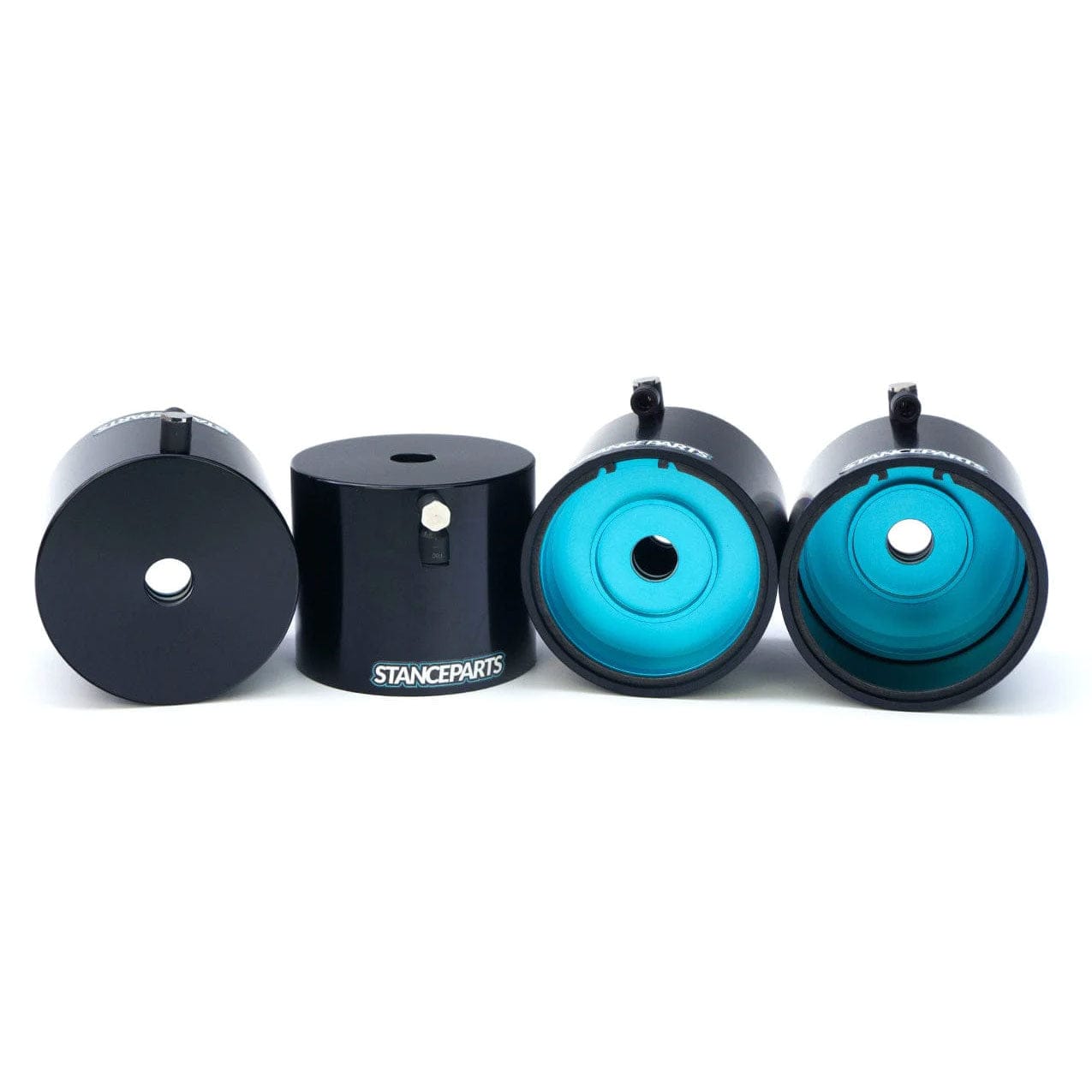

Stanceparts Universal Air Cup Kit - Front

The Stanceparts Tankless Air Cup Lift System is a perfect combination between air ride and coilovers. With air cup suspension, you keep the ride quality and performance of your coilovers and have the ability to raise your car with the push of a button. It's a great system for show, track, drift, or daily driven cars. It is basically a pneumatic cylinder that easily mounts on top of your coilover.

Normally you will drive at your lowered ride height without the cups pressurized. In this situation the air cups just act like a spacer. Whenever you need to pass an obstacle, such as a speed bump or a driveway, you can apply pressure to the cups and it will raise your car 2 inches (50mm). All valves now include adjustable flow control fittings. This means you can now adjust the speed of lifting and dropping separately from each other. Two valves are now included as well so that the front and rear can be adjusted and operated separately.

The air cup lift system will fit on 90% of any brand coilovers with straight springs. However, your coilover must meet certain dimensional requirements, otherwise the system will not fit. The Stanceparts Tankless setup takes around 4-5 seconds to lift. Purely functional.

Includes two (2) Stanceparts Air Cups.

Features

• Instantly raise your car 2 inches
• Universal fitment
• High grade, hard anodized aluminum construction
• Ride quality and performance not affected
• Includes everything needed for installation
• 2-Year Warranty on Air Cups
• 1-Year Warranty on VIAIR

Includes

• 2 Stanceparts Air Cups
• 10 meters of Air Line (6mm)
• 1 T-Splitter
• 12v 3-Way Valve
• Pre-wired 16mm LED switch
• Connecting material
• 150psi compressor setup with 2 gallon tank

Helpful Links

• Fitment requirements (IMPORTANT!)
• Download the Instruction Manual (PDF)
• Air Compressor Dimensions & Diagram (PDF)
