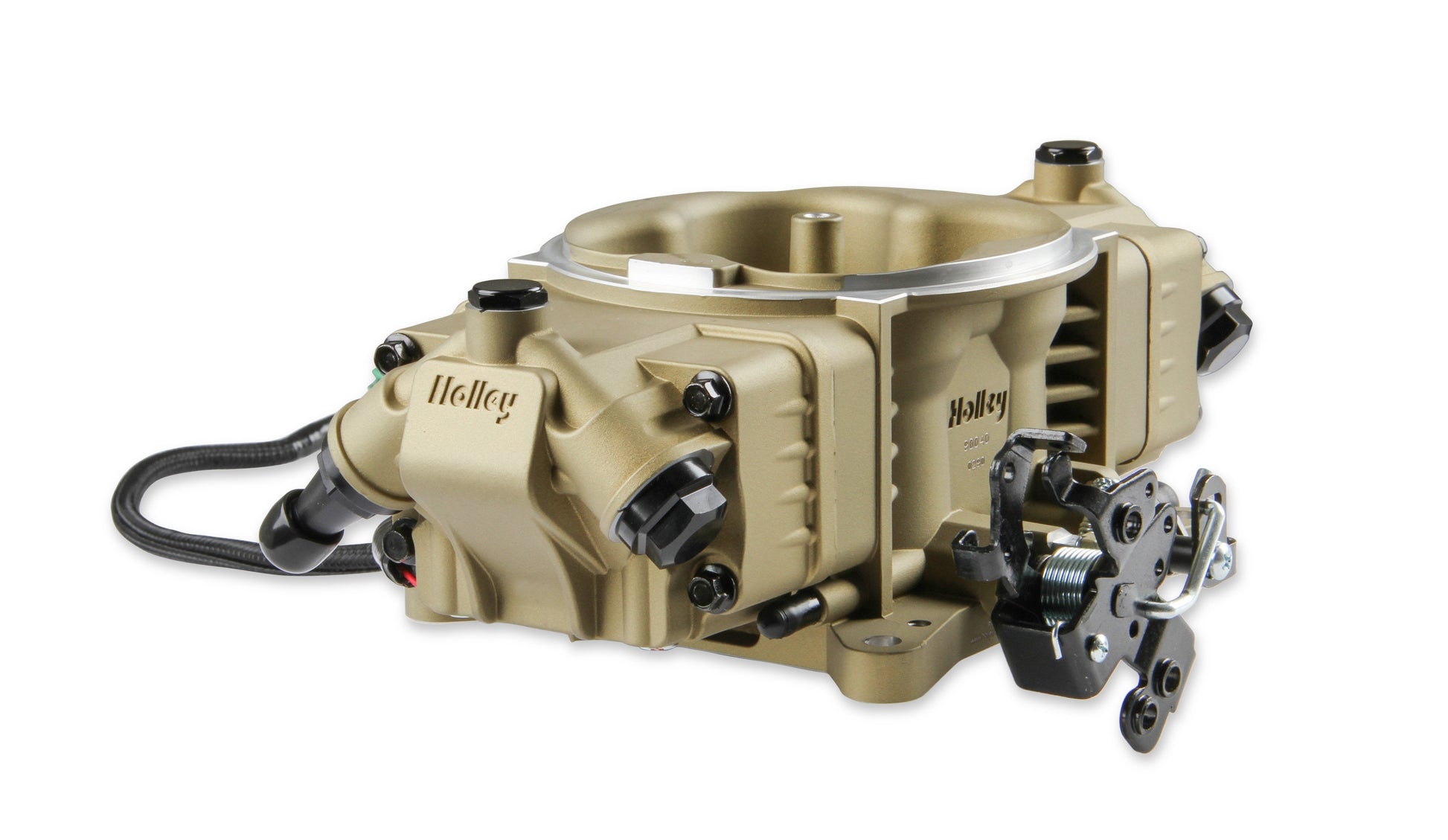

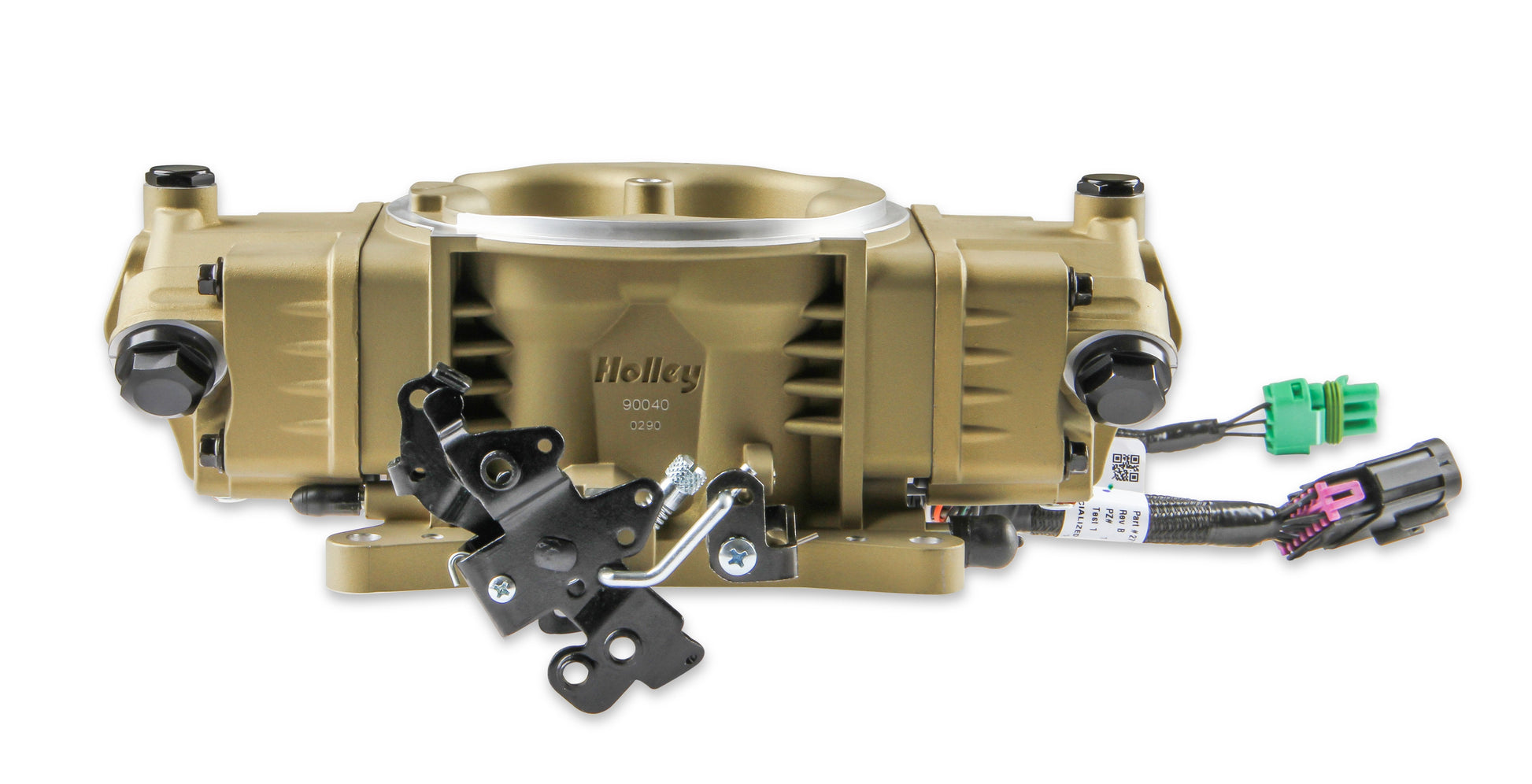

EFI Terminator X Stealth GM LS 4150 - Gold - 58X Crank - 4 Injectors - 650 HP

550-1062

Regular price $2,299.95
Sale price $2,299.95 Regular price $2,587.95
Shipping calculated at checkout.
Sale
In stock
Sorry, it's out of stock.

But we can let you know when it's back in.

Payment methods
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa
Shop safely with us

  • Secure Checkout
  • Warranty Backed
  • Genuine Parts
Got a question?
EFI Terminator X Stealth GM LS 4150 - Gold - 58X Crank - 4 Injectors - 650 HP

$2,299.95

Description

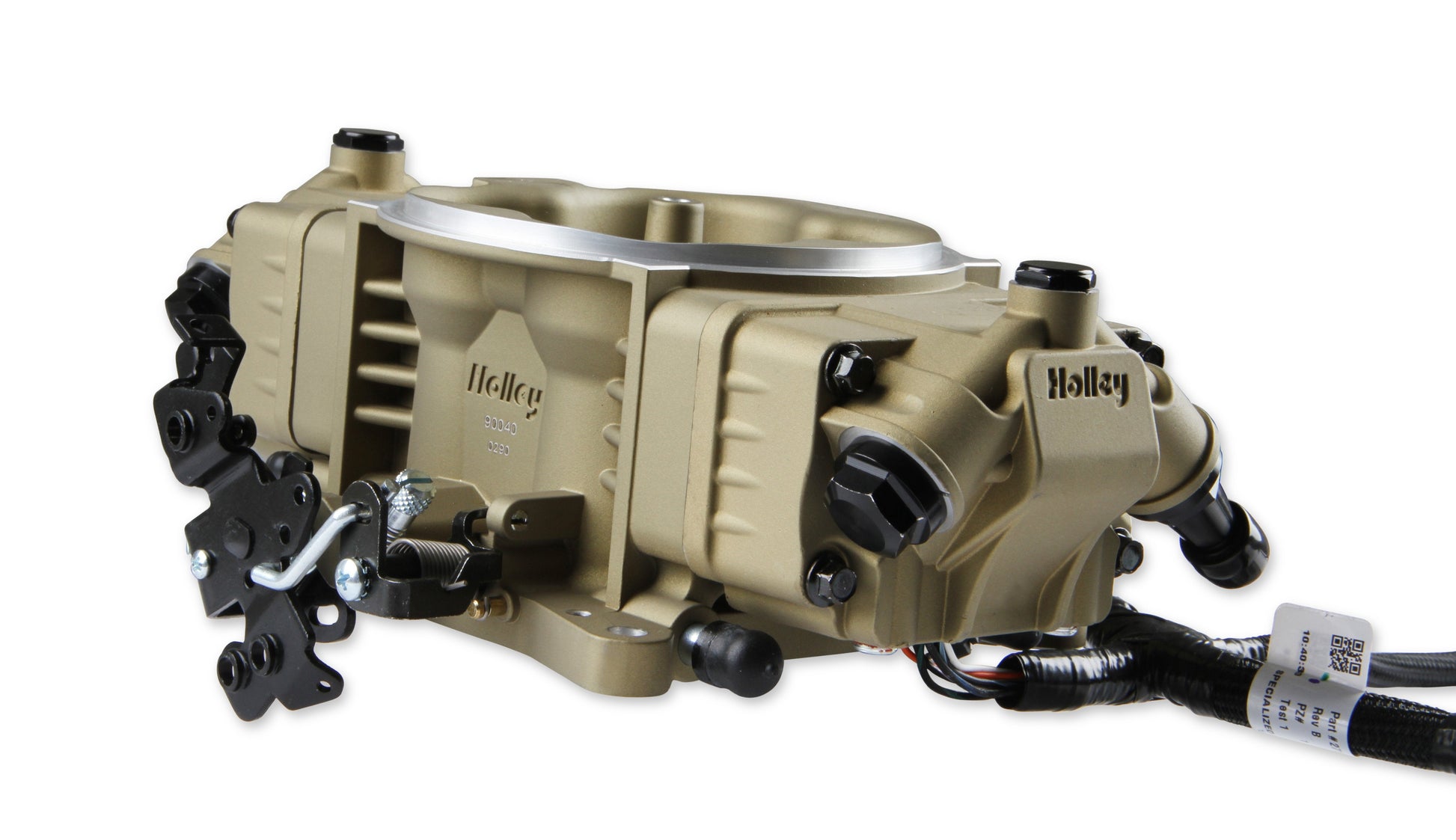

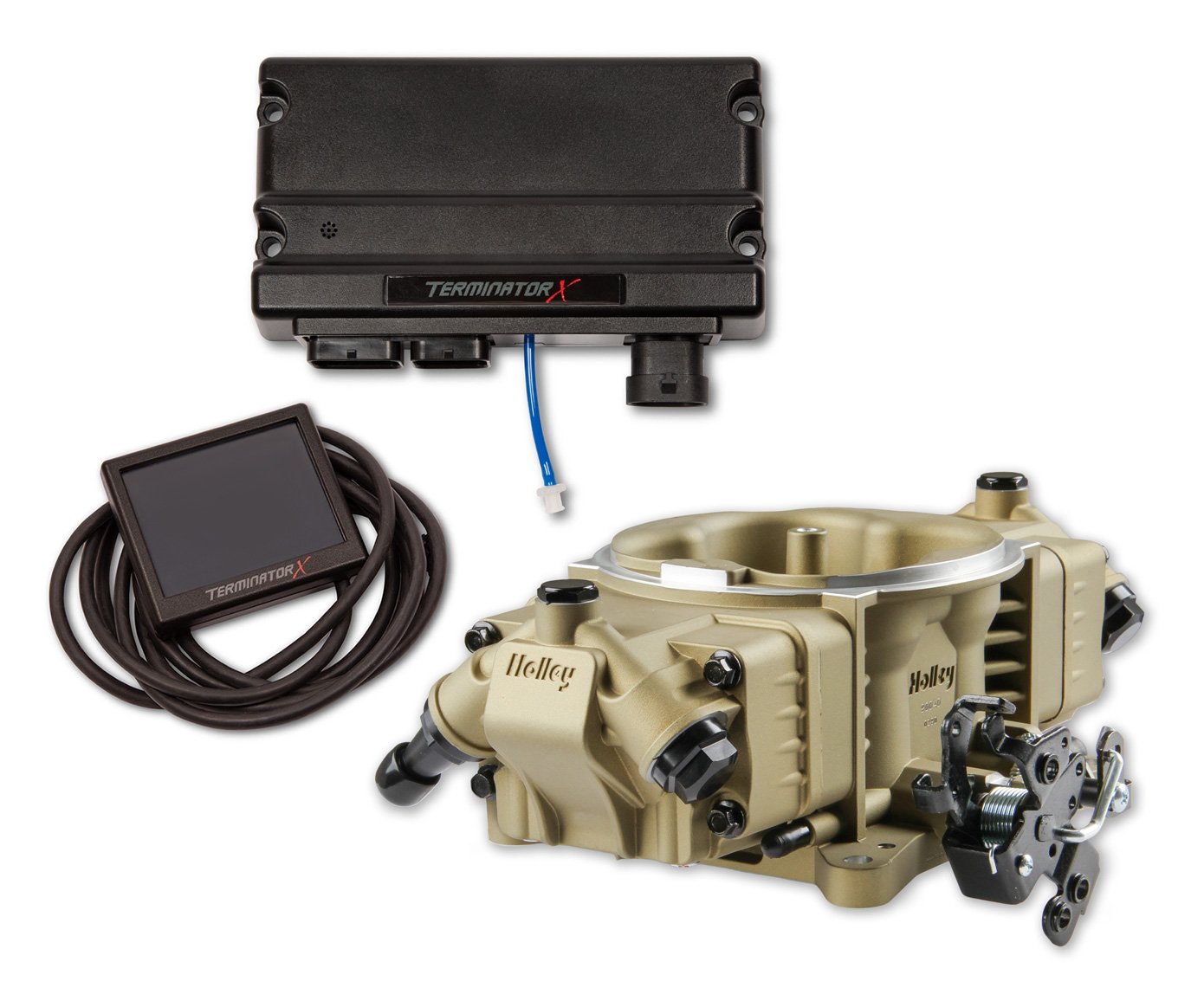

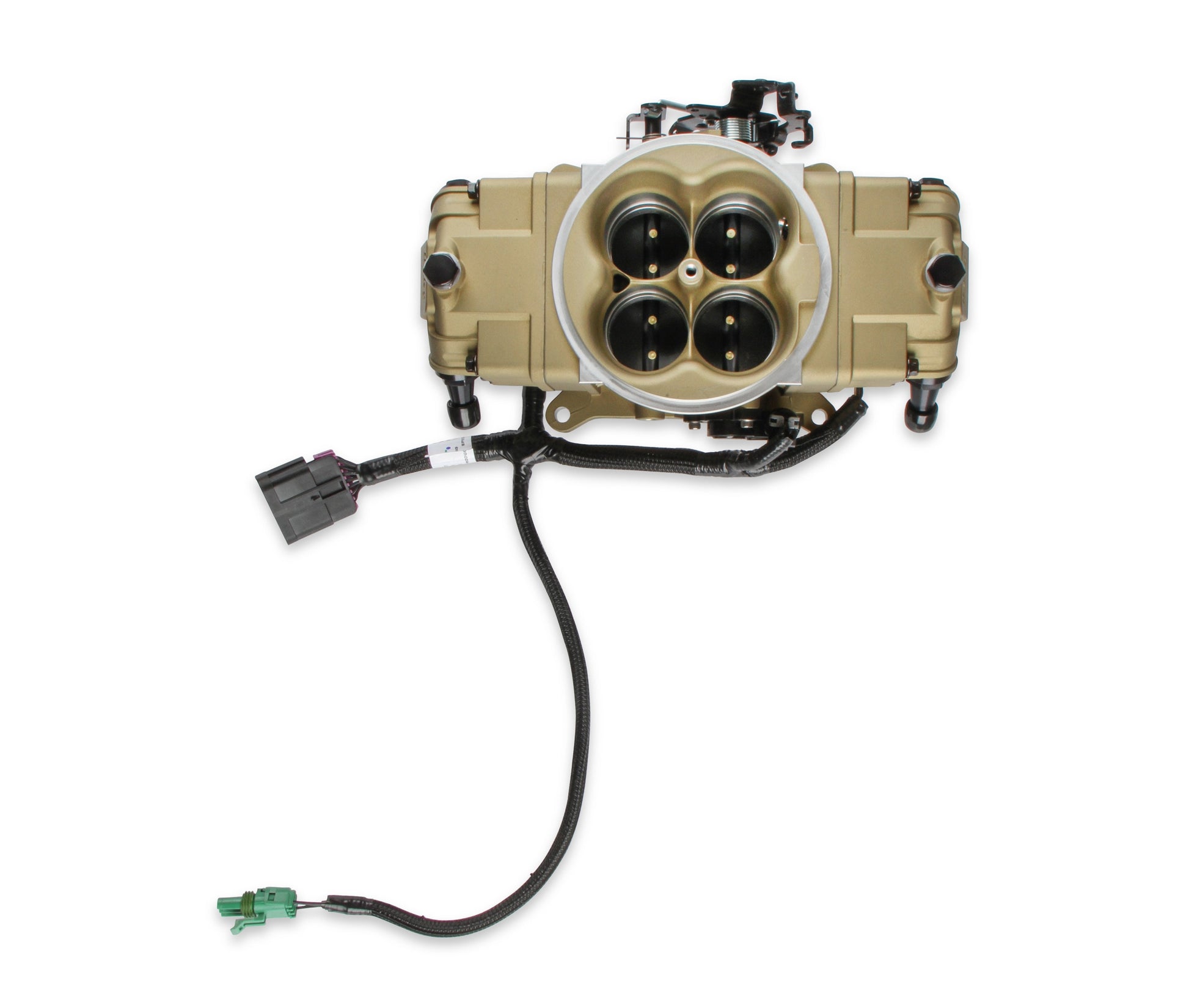

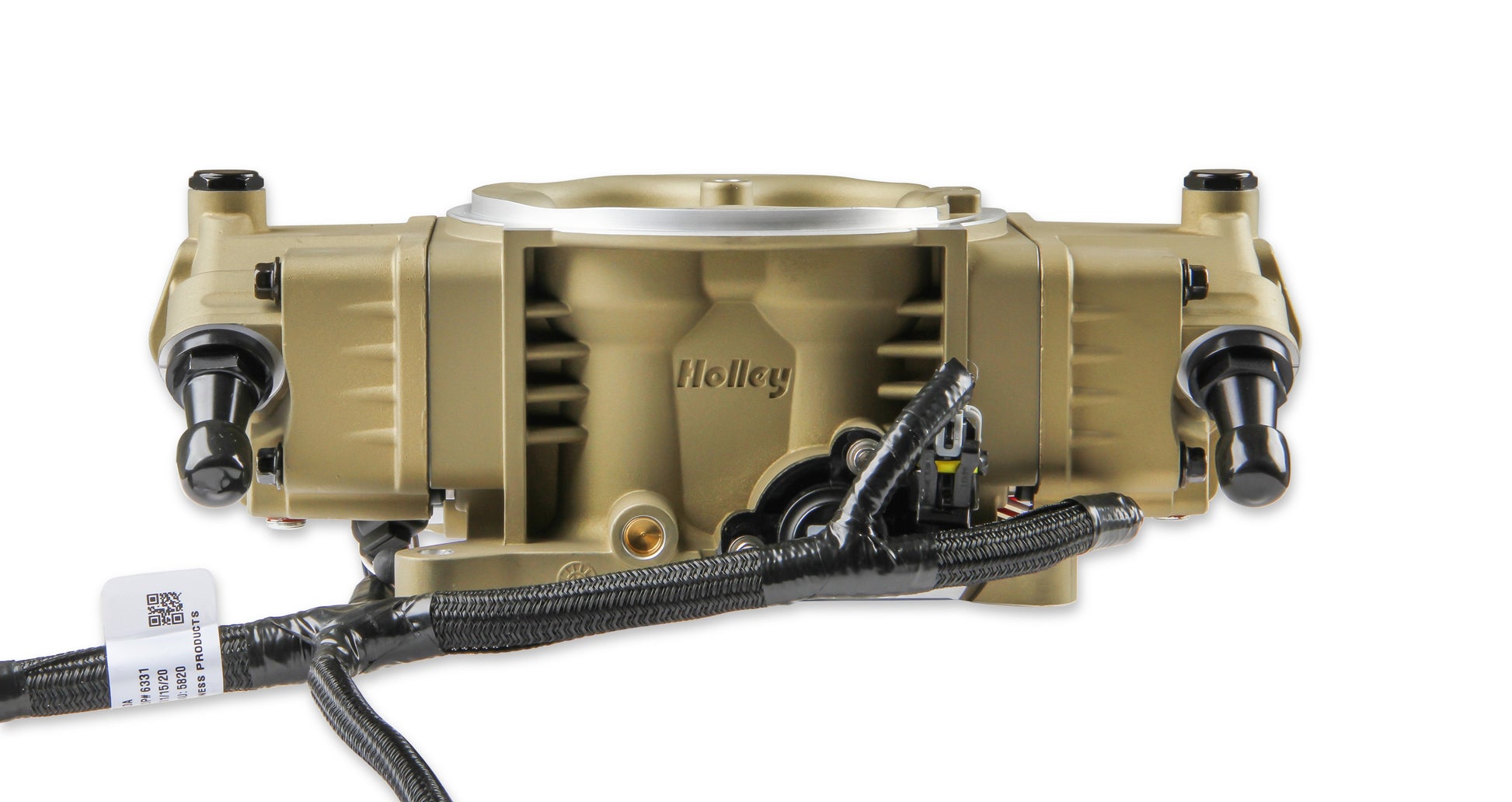

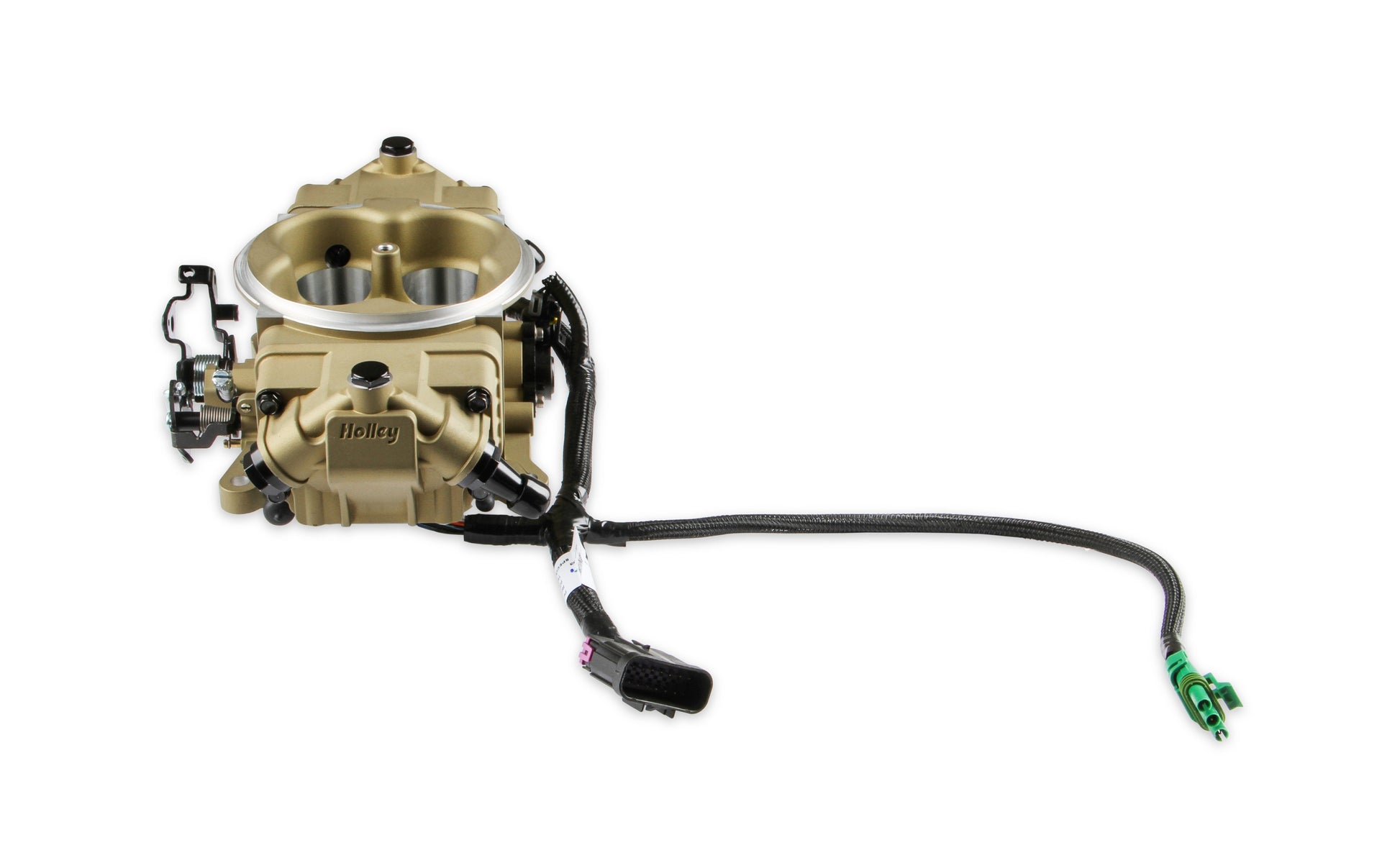

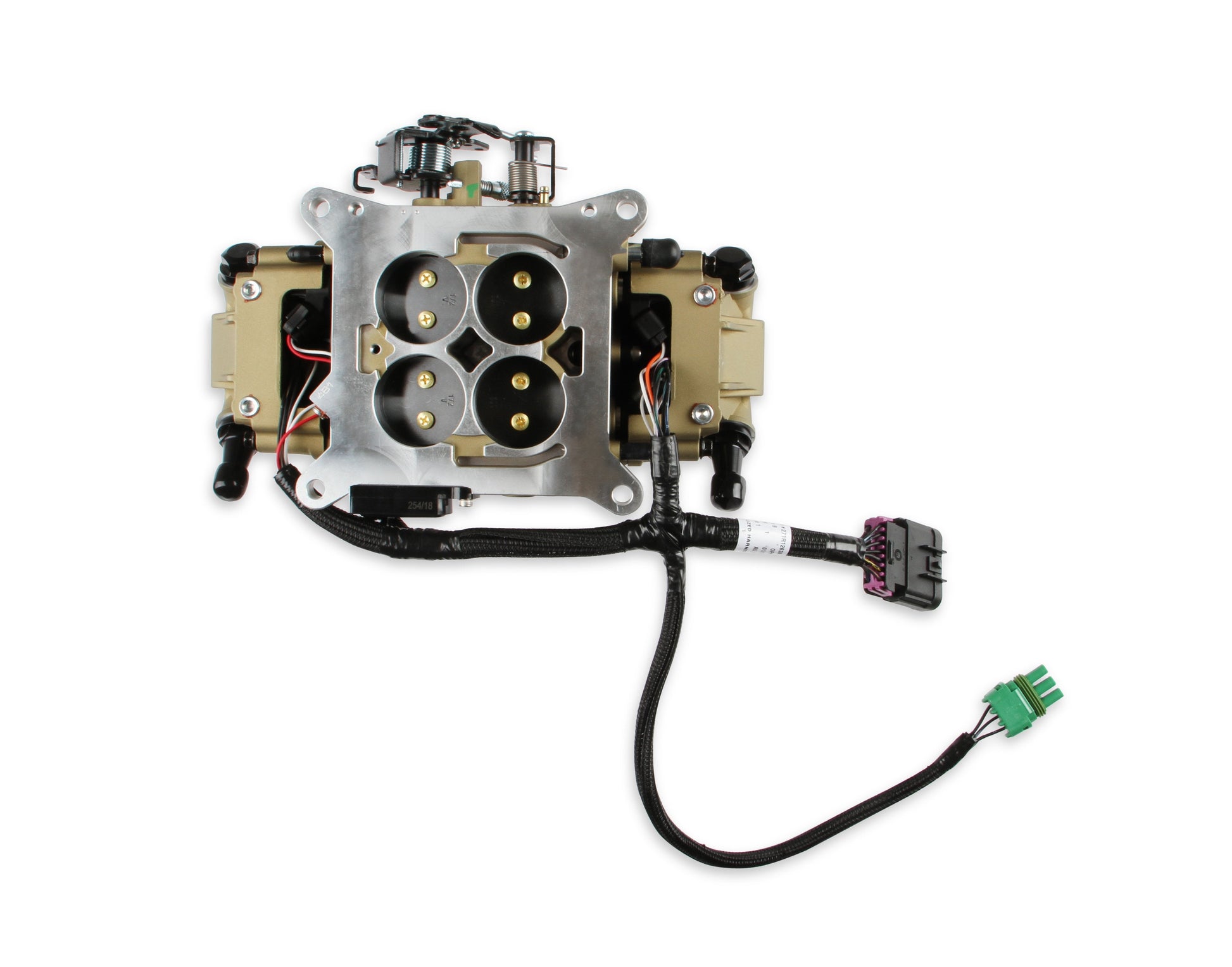

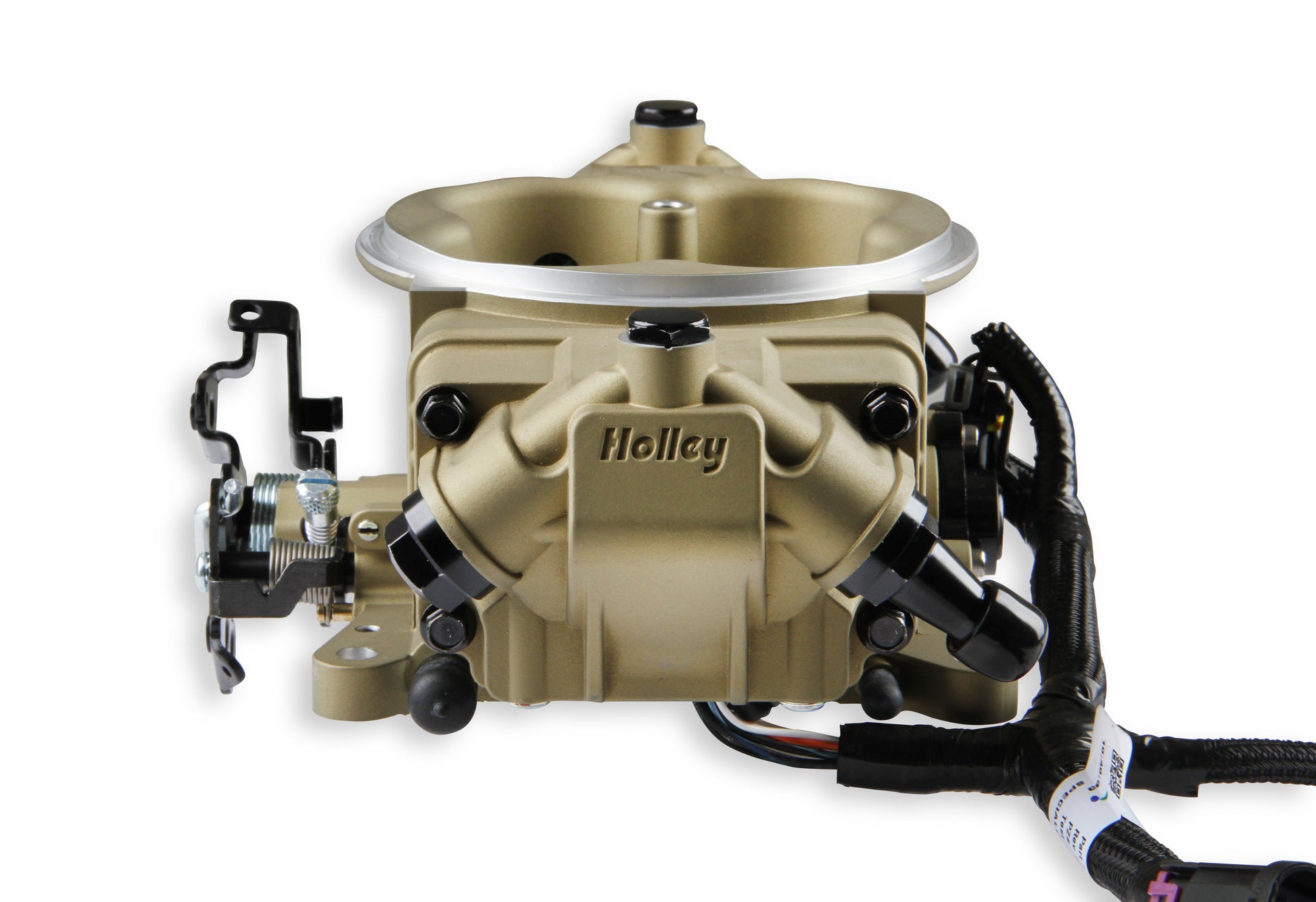

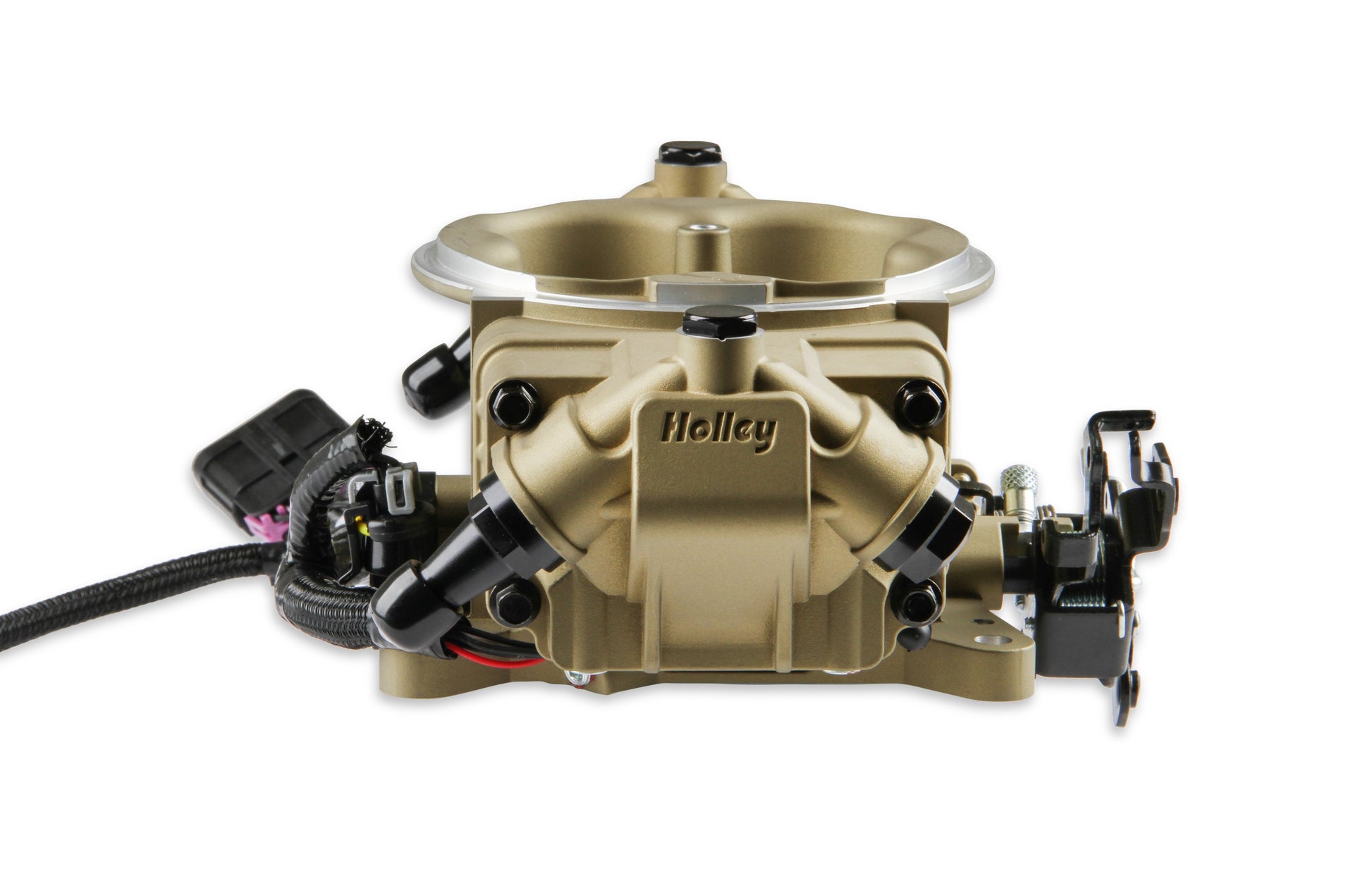

Holley EFI Terminator X Stealth GM LS 4150 - Gold

58X Crank - 4 Injectors - 650 HP

Overview
The Terminator X Stealth 4150 EFI system from Holley features 4, 100LB/HR Fuel Injectors capable of supporting up to 650 HP naturally aspirated or 600 HP on forced induction applications. The Terminator X ECU features fuel maps that self-learn and integrated ignition timing control, yielding improved idle stability, drivability, and horsepower at wide-open throttle! Did we mention that the Stealth 4150 also includes transmission kick down provisions for GM TH350/400, 200R4/700R4 and Ford C4/C6 applications? Terminator X Max kits provide plug and play Transmission control for GM 4L60 and 4L80 Transmissions.

Features:
  • All of the wiring exits below the fuel injector bowls, for a completely stealth installation
  • Air entry machined to fit most stock style air cleaners with air cleaner locator provisions
  • External fuel pressure regulator required, set to a base pressure of 58.5 PSI, such as 12-886
  • Integrated ignition timing control ????????"Plug and play with factory LS coil sub harness and OEM LS coils ????????" no external boxes/modules needed to run Coil Near Plug
  • High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
  • Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
  • Self-tuning ECU means you don??????????????t have to be a computer/tuning wiz to have EFI!
  • 4 Inputs ????????" 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brake (Fuel and Oil Pressure Inputs are pre-terminated)
  • 4 Outputs ????????" Ground, PWM - , for accessories such as; fans, boost control, nitrous control, IAC Kit, and More
  • The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn!
  • OEM Style TPS/IAC, for years of dependable service
  • Available in 3 finishes: Shiny, Black and Gold
  • Compatible with Holley EFI digital dashes, gauges and fuel system accessories


Details:
  • Color: Gold
  • Ignition Type: GM LS 58x
  • Injector Size: 100 lb/hr @ 58.5 PSI
  • Max Horsepower Rating: 650 Naturally Aspirated
  • Terminator LS Options: Fuel, Spark


Links
Instruction Sheet
Parts Guide
Addendum
