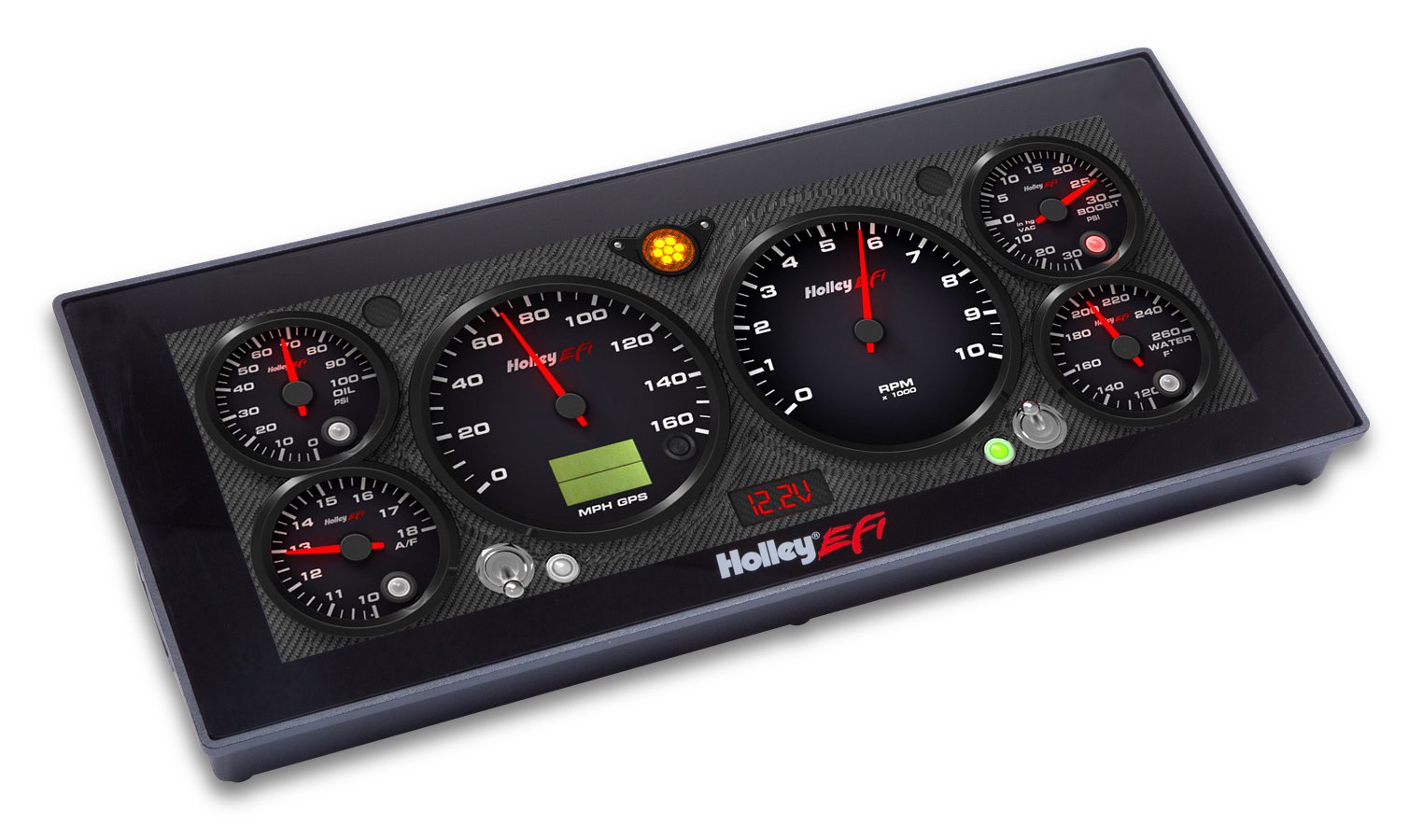

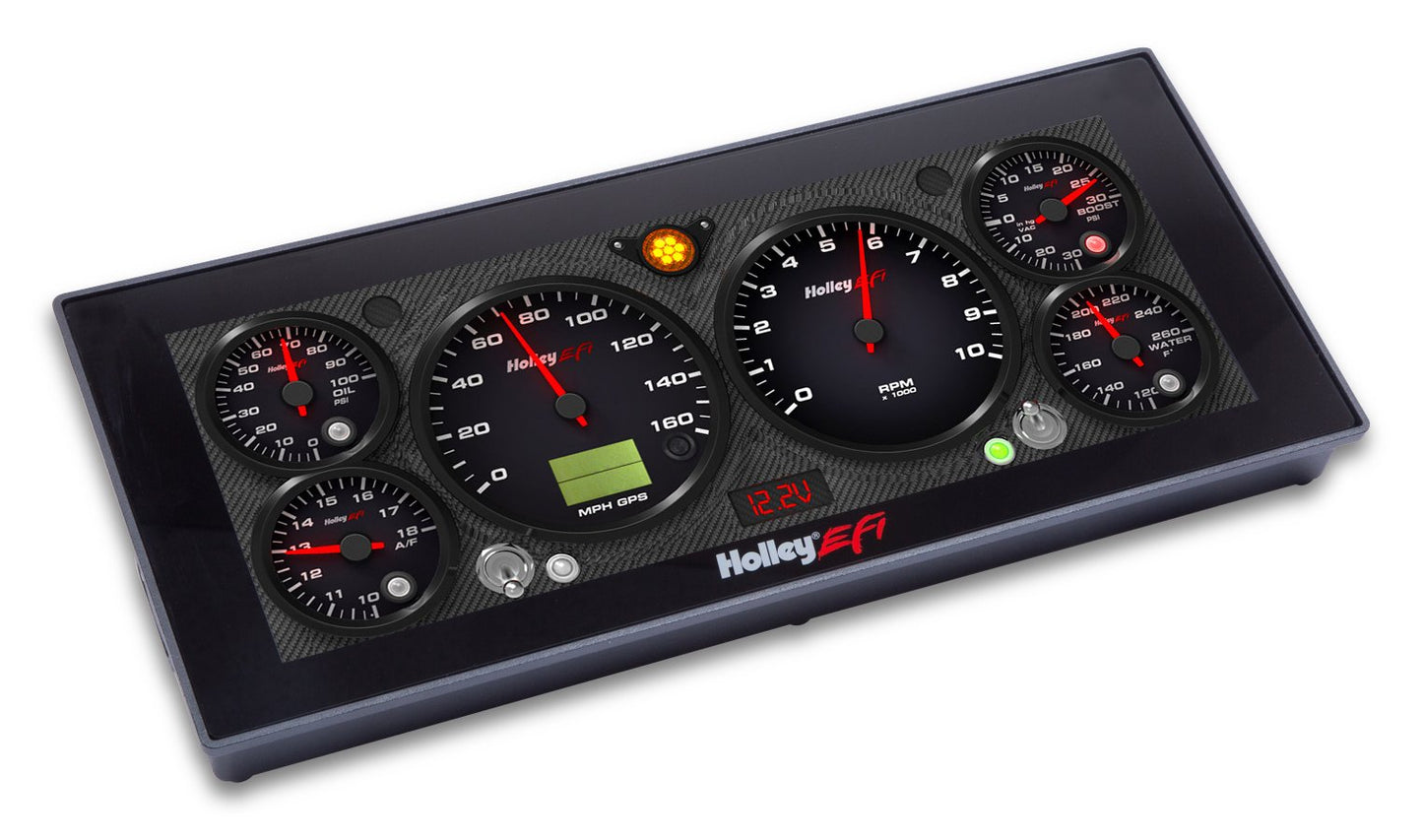

Holley EFI 12.3" Pro Dash

$2,099.95

Description

Holley EFI 12.3" Pro Dash

7" Digital Dash, Compact Fully Customizable!

Overview
Have you been looking for a dash solution for your vehicle, but just cannot find anything you like or that is cost-effective? No need to look any further as Holley has created a full-color touch screen dash that includes sensors for monitoring basic engine parameters as well as a GPS speedometer all in a cost-effective package! Holley's standalone digital dash has great features such as; a weather-resistant aluminum housing for durability, multiple gauge and indicator type selections, customizable screen and gauge layouts, and a virtual switch panel just to name a few. With the integrated 3 axis accelerometer and data-logging, the dash is ideal for anything from a JR dragster to Sportsman racing. It is also equally at home in a daily driver, or a show winning roadster.

Features:
  • Plug-and-play Display support for Dominator, HP, Terminator X Sniper EFI (Not compatible with Sniper 2)
  • Real-time ECU tuning, allows you to make quick tune changes, without needing to hook up a laptop!
  • Capable of monitoring up to 238 real-time values such as RPM/TPS/Boost
  • 16 default background skins pre-loaded with unlimited options for importing custom layouts
  • Quickly swipe between multiple active screens (tune, warm-up, race, drive, etc.)
  • Virtual switch panel eliminates the need for external toggle switches
  • Manual or auto-brightness features for easy viewing day or night
  • Built-in GPS with odometer function (Antenna included)
  • On-screen datalog playback features allows you to review vital run information
  • Expandable storage via USB
  • No stylus required, capacitive touch, just like your smart phone.
  • User definable channel alarms and warnings
  • 6x 1/4-28 mounting holes for surface or flush mounting, with high quality hardware included!

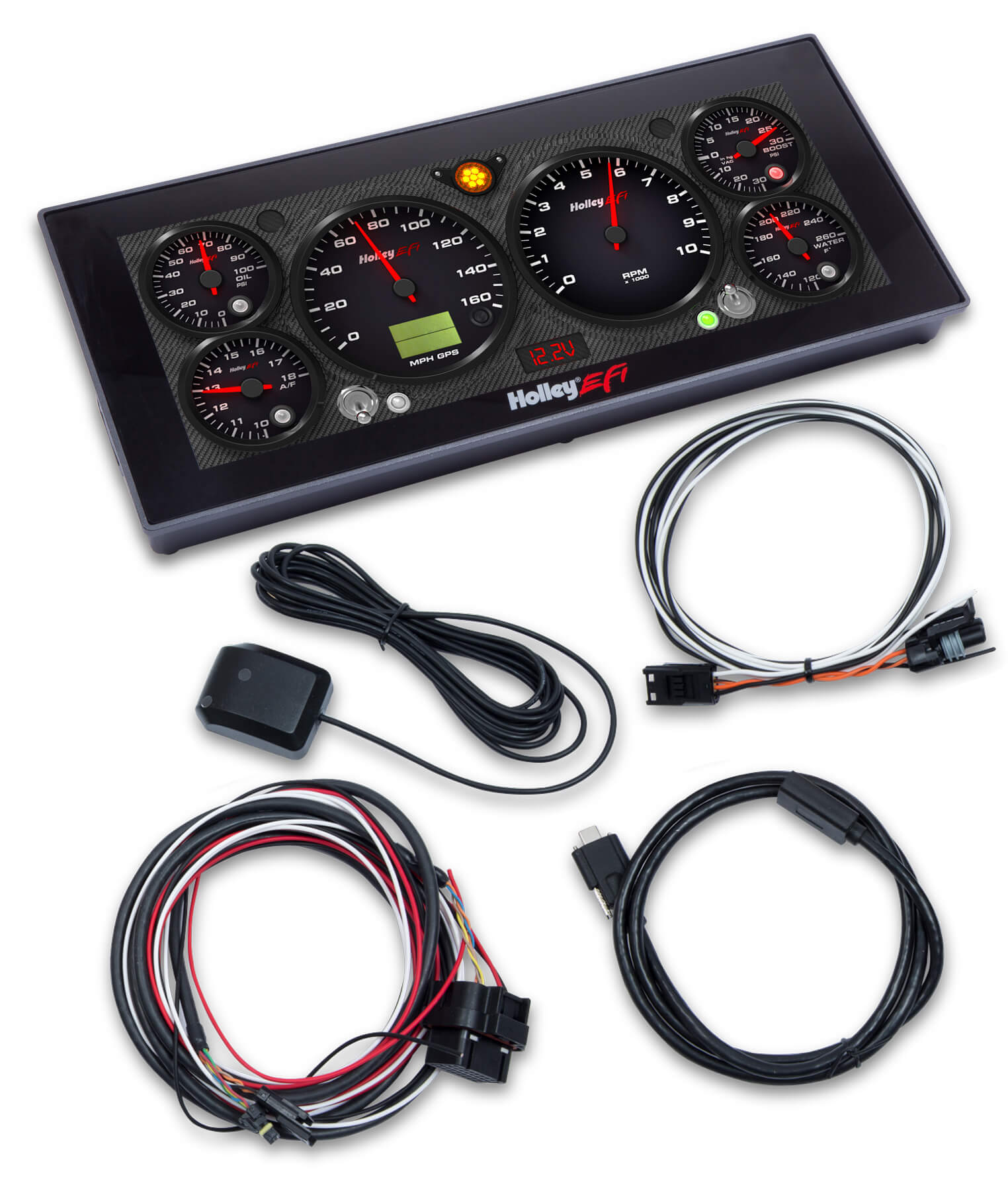

  • Includes everything needed for installation!
  • USB Keyboard and Mouse functionality makes it quick and easy to setup new layouts

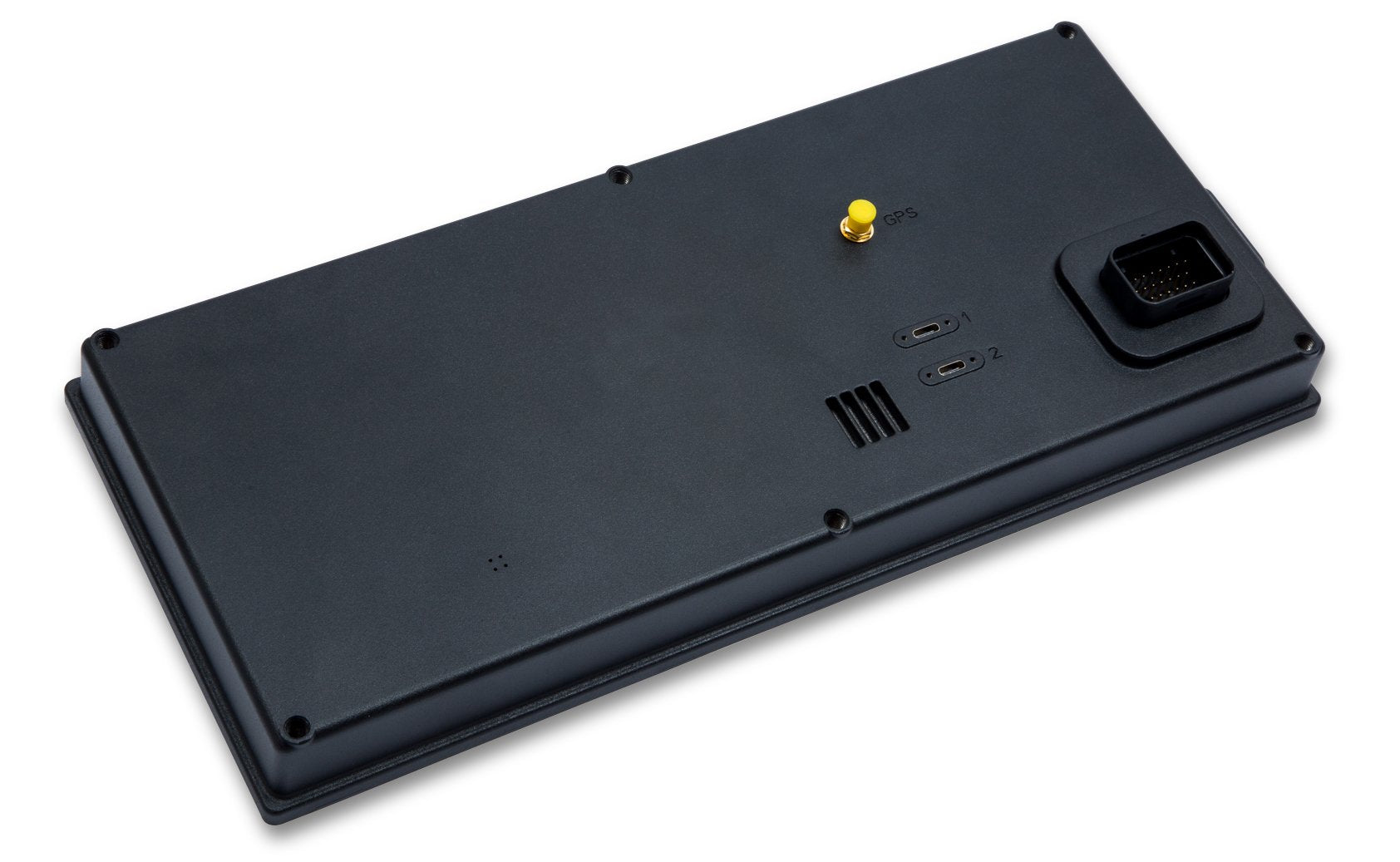

  • Includes 34 Pin Wiring Harness contains Power, Ground and CANbus connections
  • Input and output functionality for 13 multi-configurable inputs, and 4 ground switched outputs.
  • User defined alarms for any input
  • Upgradable with future software enhancements
  • Viewing area is 12.3" on the diagonal, 11.5" wide by 4.25" tall
  • Dash weight - 3.29lbs
  • Compatible with our Plug and Play Programmable Shift Light - Part Number 553-107


Details:
  • Depth: 1.25"
  • Screen Size: 12.3" Viewing Area
  • Screen Type: Capacitive Touch Screen
