Tomioka Racing (TR)

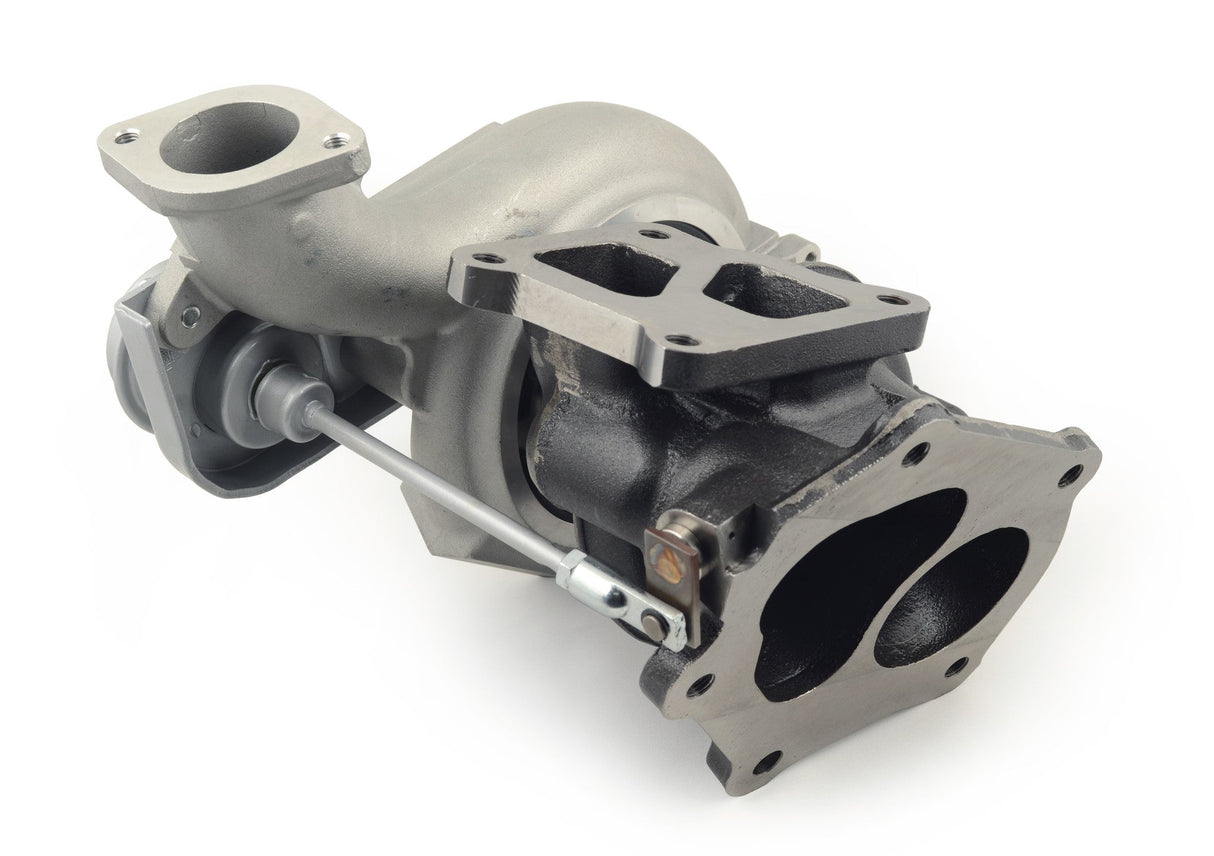

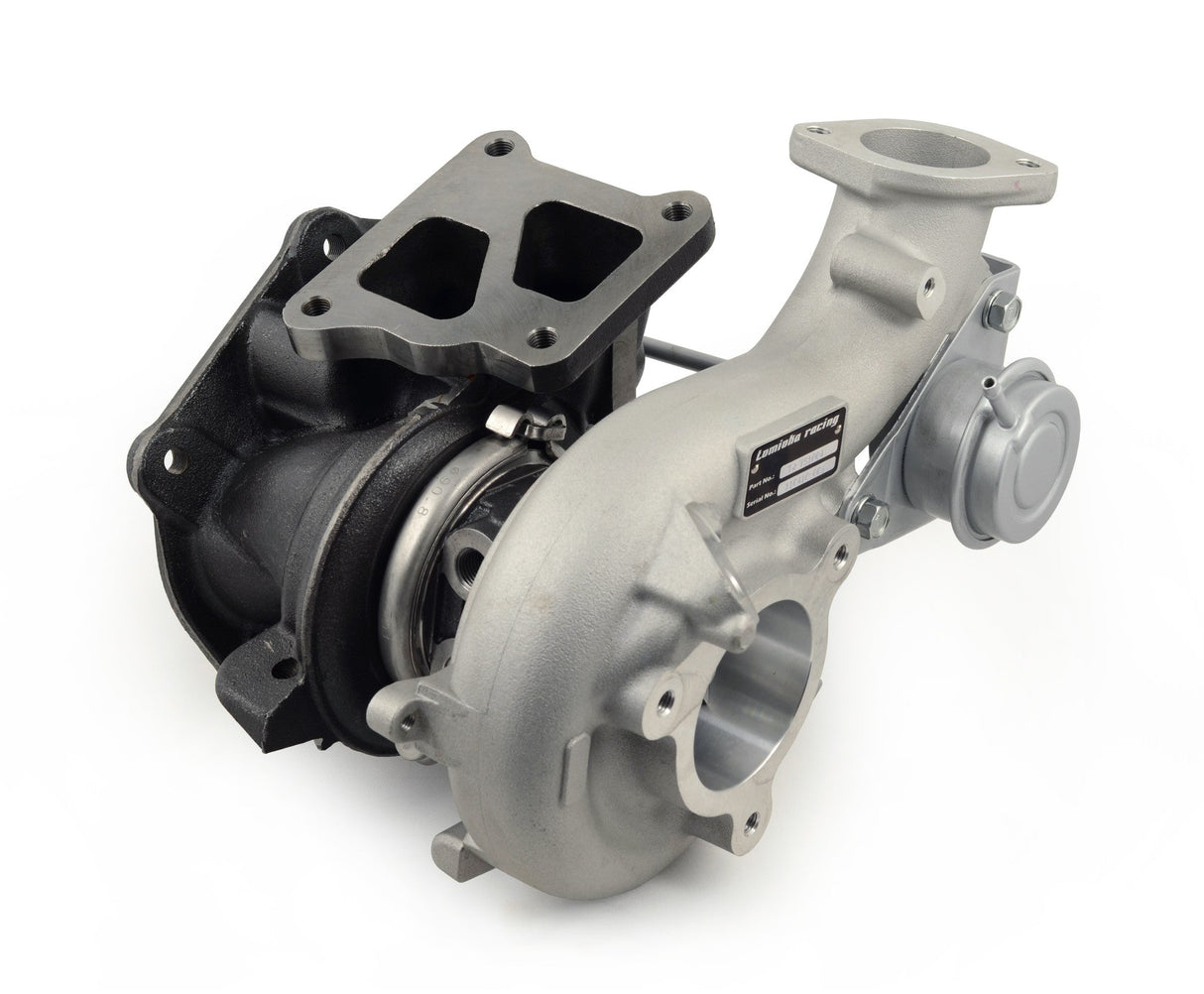

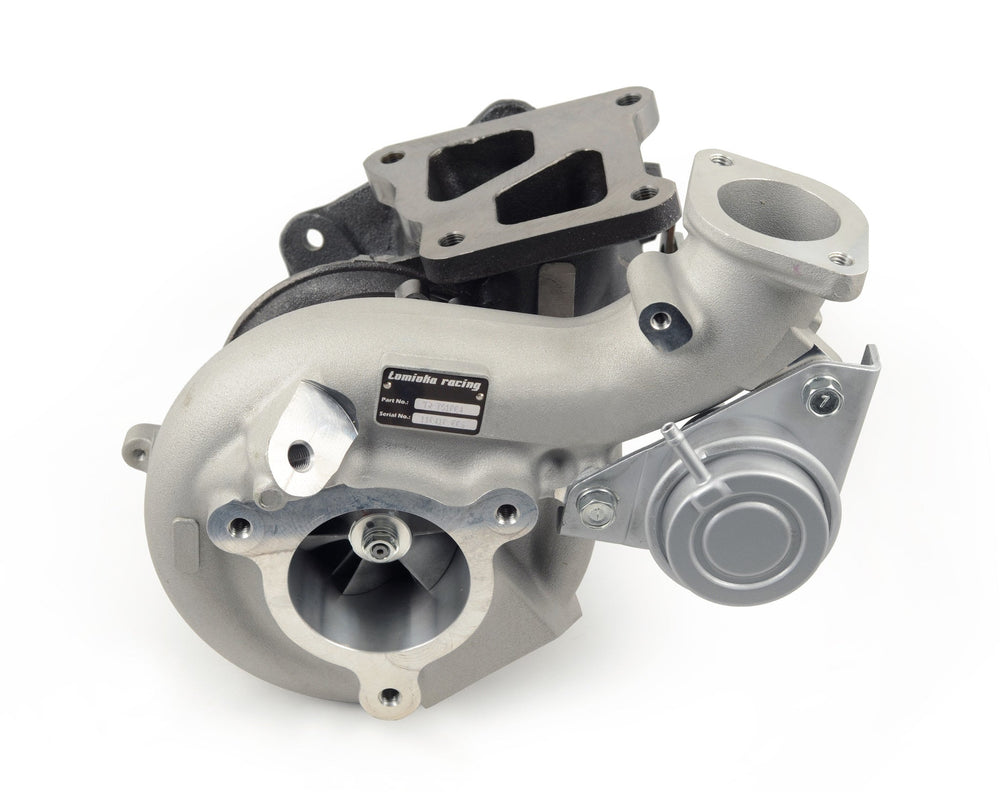

TR-TM1004 Sigma Turbo for Mitsubishi Evolution X (4B11T) | Bolt-On Turbo Upgrade

TR-TM1004

Regular price $1,855.00
Sale price $1,855.00 Regular price $1,855.00
Shipping calculated at checkout.
Billet Wheel
Low stock
Sorry, it's out of stock.

But we can let you know when it's back in.

Payment methods
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa
Shop safely with us

  • Secure Checkout
  • Warranty Backed
  • Genuine Parts
Got a question?
TR-TM1004 Sigma Turbo for Mitsubishi Evolution X (4B11T) | Bolt-On Turbo Upgrade

$1,855.00

Description

Overview

The Tomioka Racing TR-TM1004 Sigma Turbo is a bolt-on turbo upgrade engineered for the Mitsubishi Lancer Evolution X (4B11T). It’s built for enthusiasts who want a stronger mid-to-top-end powerband, higher airflow capacity, and boost stability—without the complexity of custom fabrication.

Why Upgrade to the Sigma Turbo (TR-TM1004)

  • 100% bolt-on fitment for the Evo X turbo location and factory-style install
  • 3” inlet supports increased airflow and power headroom
  • Ported & polished turbine housing improves exhaust flow efficiency
  • 1.5 bar / 21 psi actuator for strong boost control on performance tunes
  • Mid-to-high powerband focus for street pulls and track use

Power Notes

The “up to ~550HP” figure is power potential, not a guarantee. Final output depends heavily on supporting mods (fueling, intercooler, intake, exhaust), fuel quality (pump vs ethanol blends), tuning strategy, and overall engine condition. A proper tune is required.

Turbo Specifications

  • Bearing Type: Journal
  • Compressor Wheel: 61.4mm inducer / 82mm exducer
  • Turbine Wheel: 67.1mm inducer / 58.8mm exducer
  • Actuator: 1.5 bar / 21 psi
  • Turbine Housing: 12cm²
  • Power Potential: Up to ~550HP (with supporting mods & tuning)

Fitment

  • Vehicle: Mitsubishi Lancer Evolution X
  • Engine: 4B11T

If you’re unsure about compatibility with your specific year/trim, message us before ordering.

What’s Included

  • Turbocharger assembly
  • Wastegate actuator
  • Oil pipe
  • Water pipe
  • Gasket(s) (varies by batch/listing)

Recommended Supporting Mods

  • Professional ECU tune (required)
  • High-flow intake / turbo inlet solution compatible with 3” inlet
  • Upgraded intercooler + charge piping (to control IATs)
  • Fuel system upgrades if targeting higher boost / higher power
  • Free-flow downpipe & exhaust

Use Case

Ideal for Evo X owners building a responsive street car with serious top-end power capability, or a track-focused setup needing reliable airflow and boost control.

Specs Table

Part Number: TR-TM1004
Application: Mitsubishi Lancer Evolution X (4B11T)
Bearing: Journal
Compressor Wheel: 61.4mm / 82mm
Turbine Wheel: 67.1mm / 58.8mm
Actuator: 1.5 bar / 21 psi
Turbine Housing: 12cm²
Power Potential: Up to ~550HP (supporting mods + tune required)

FAQs

Q: Is this turbo truly bolt-on for Evo X?
A: Yes—TR-TM1004 is designed as a bolt-on upgrade in the factory turbo location. You still need proper install steps, leak checks, and tuning.

Q: Do I need a tune?
A: 100% yes. Do not install and drive hard without tuning.

Q: What does “up to ~550HP” mean?
A: That’s the turbo’s potential with the right supporting mods (fueling, intercooler, intake/exhaust) and an aggressive, safe tune. Your results will vary.

Q: What supporting mods do you recommend first?
A: Tune + intercooler + intake/inlet + fueling (if you’re pushing power) + downpipe/exhaust.

Q: Journal bearing vs ball bearing—should I worry?
A: Journal bearing is proven and cost-effective. What matters most is correct oil supply/return, heat management, and tuning.
