Tomioka Racing (TR) | SKU: TR-TS1055

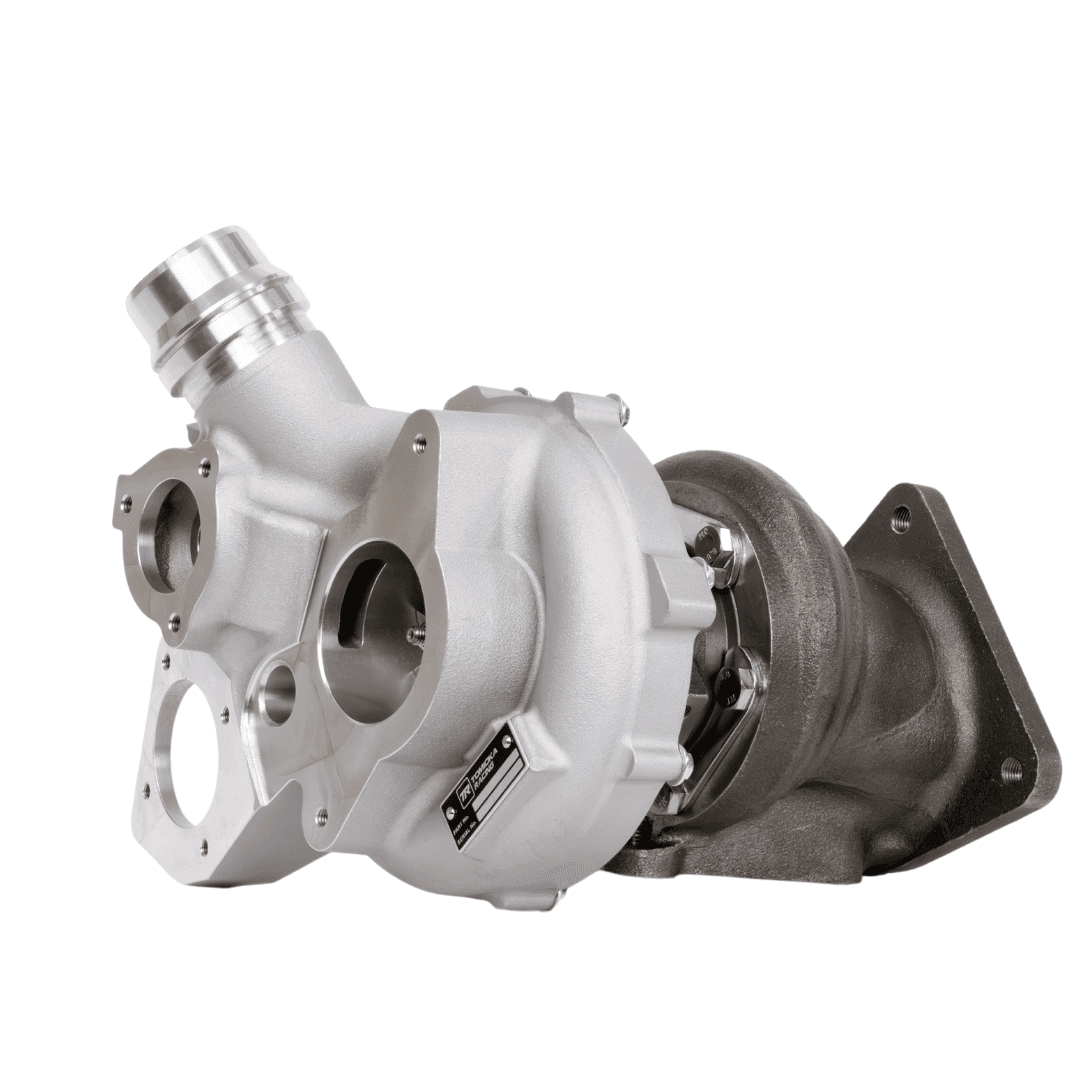

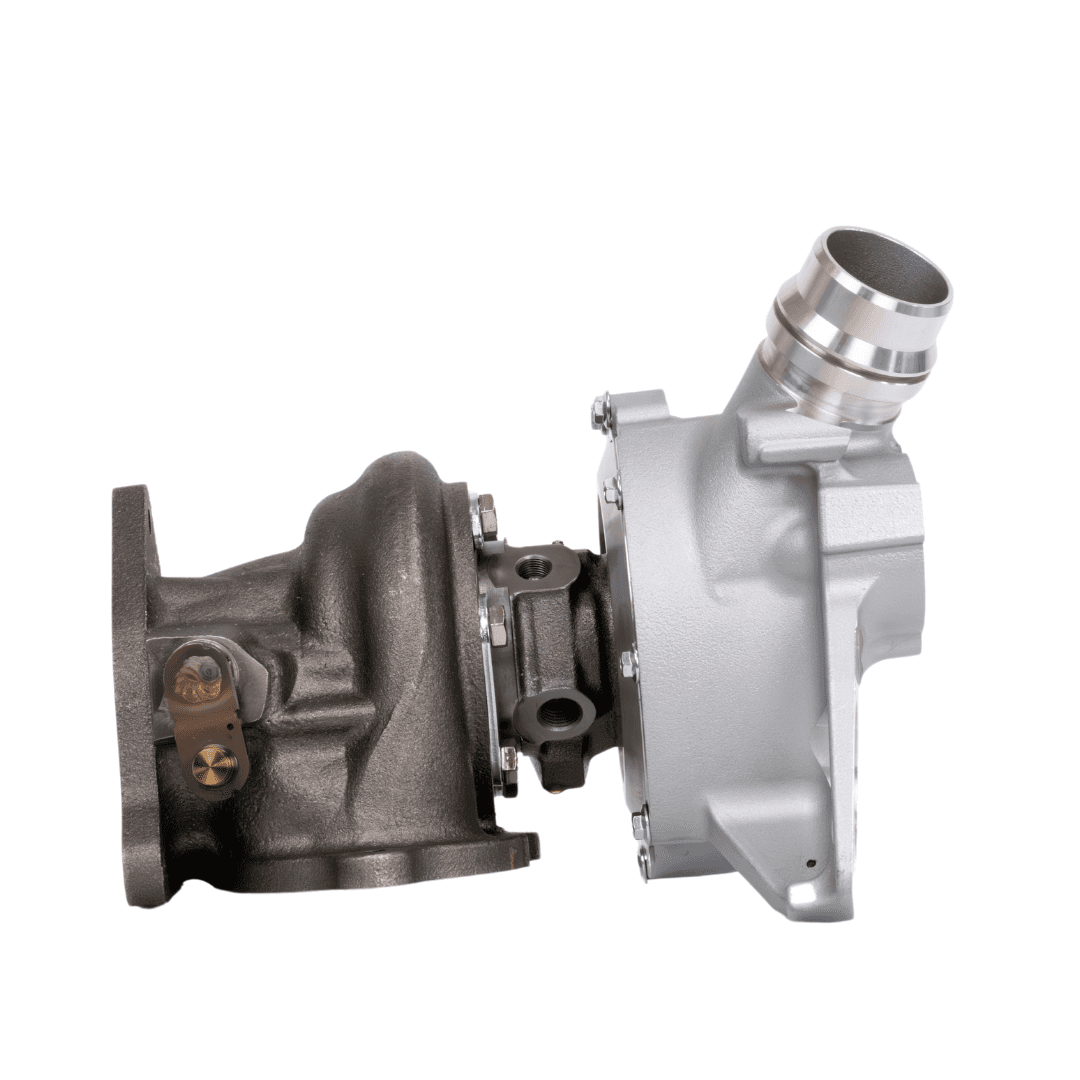

TR TR-TS1055 VB670 Ball Bearing Turbo Upgrade with Billet Compressor Wheel for 2022+ Subaru WRX VB FA24DIT

$2,500⁰⁰

COBB Accessport

Already have or No need Need Accessport Product code: AP3-SUB-006 (+$725)

Free Base Map From Delicious Tuning

91 Octane 93 Octane Not needed

Product variants

Fast Shipping

Secure Payment

Genuine Parts

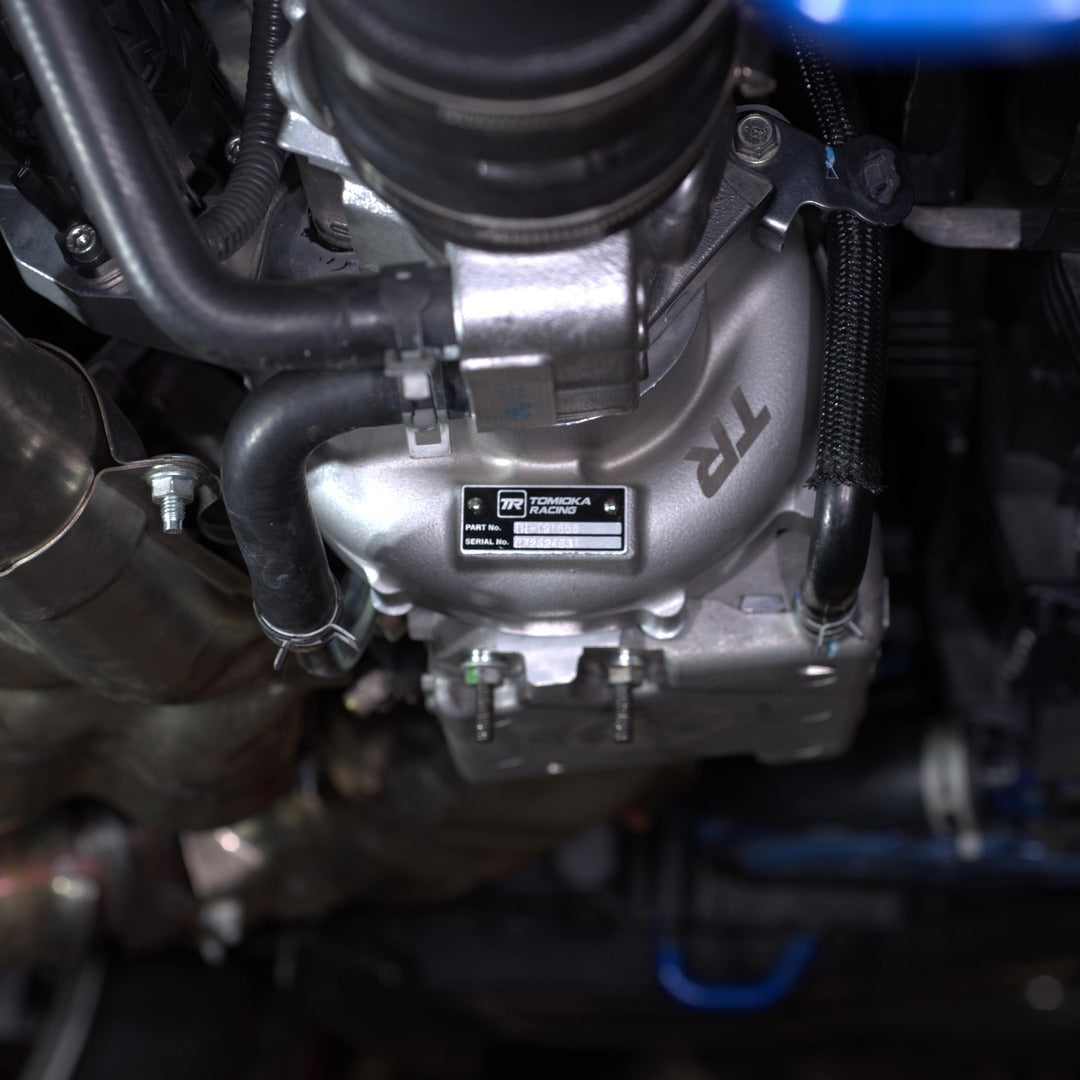

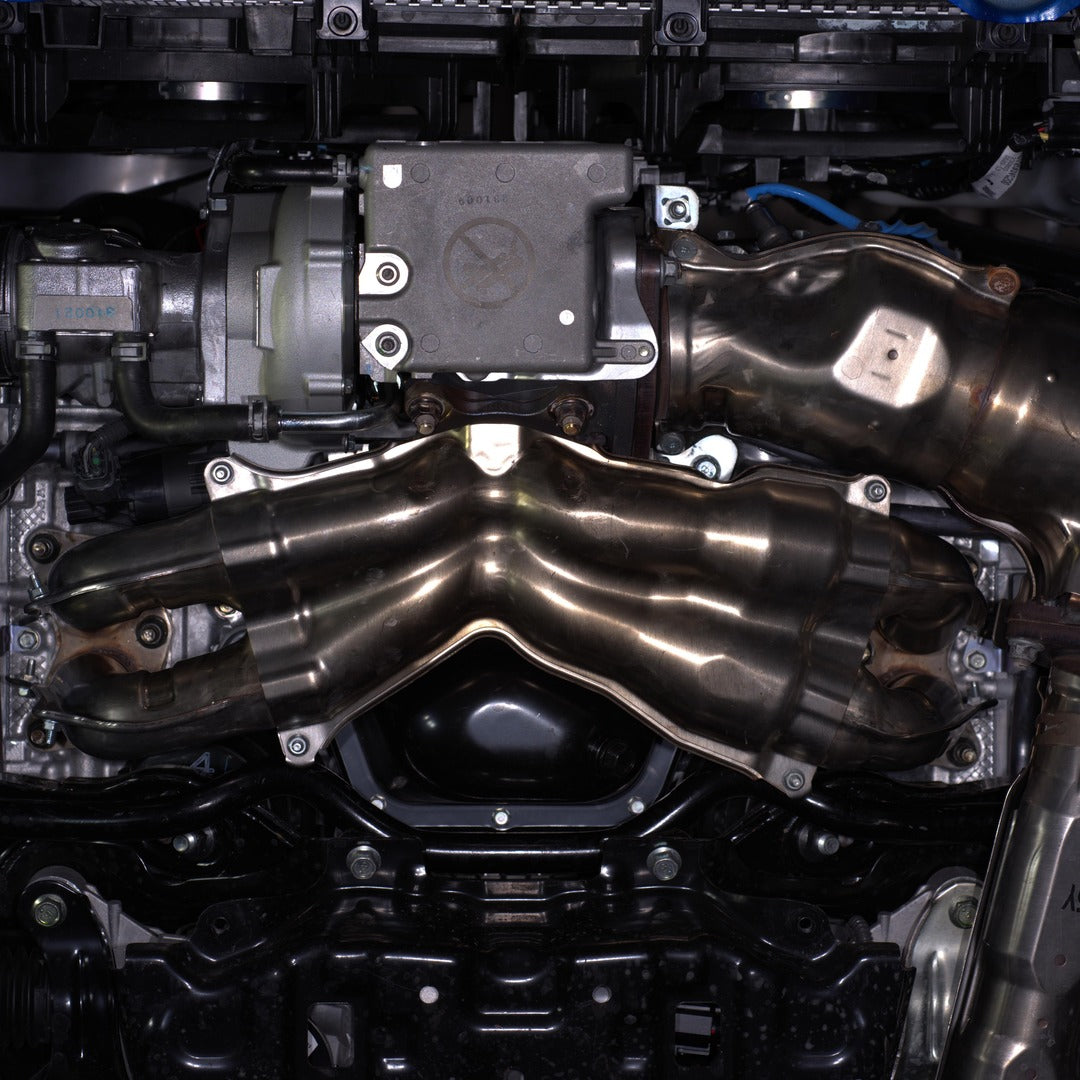

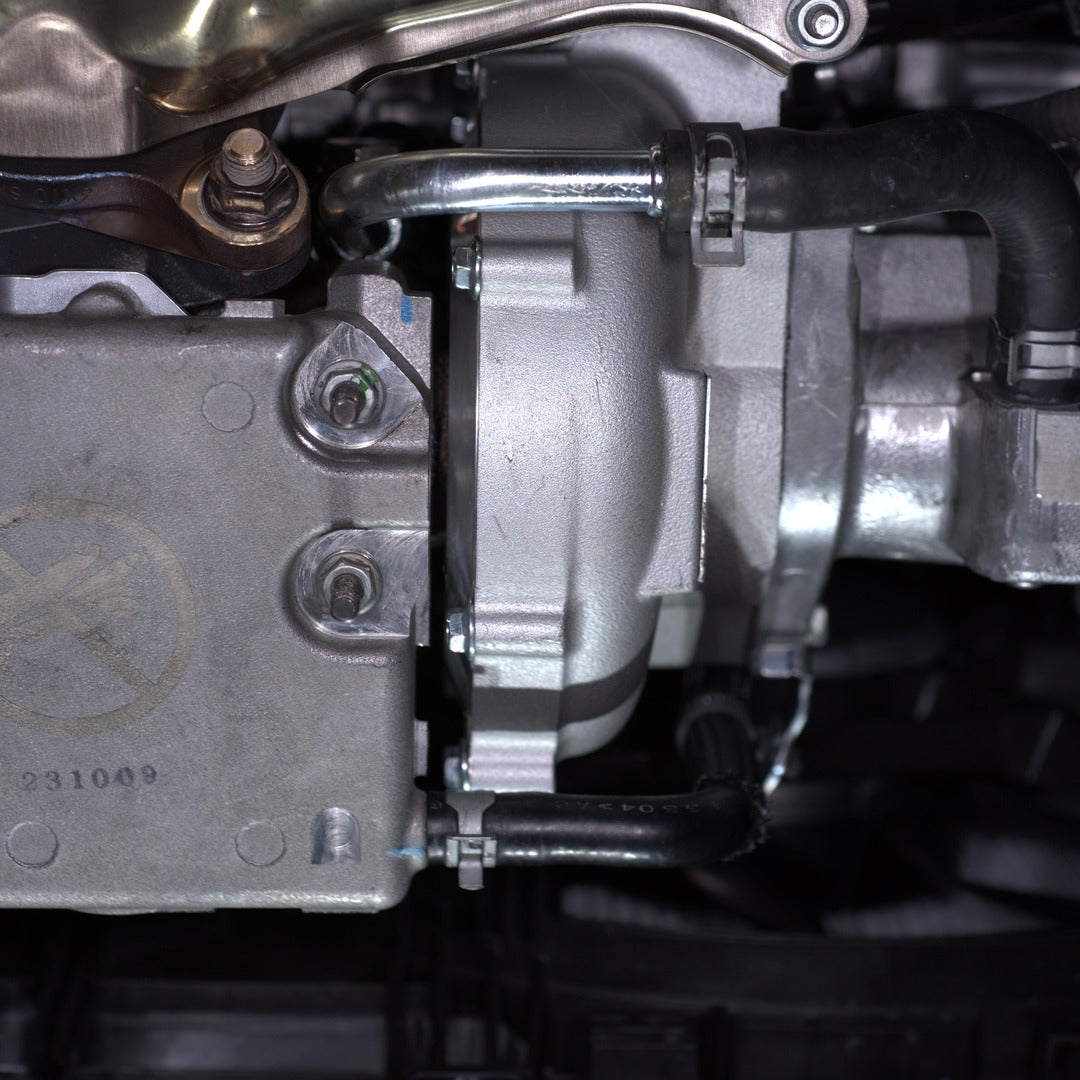

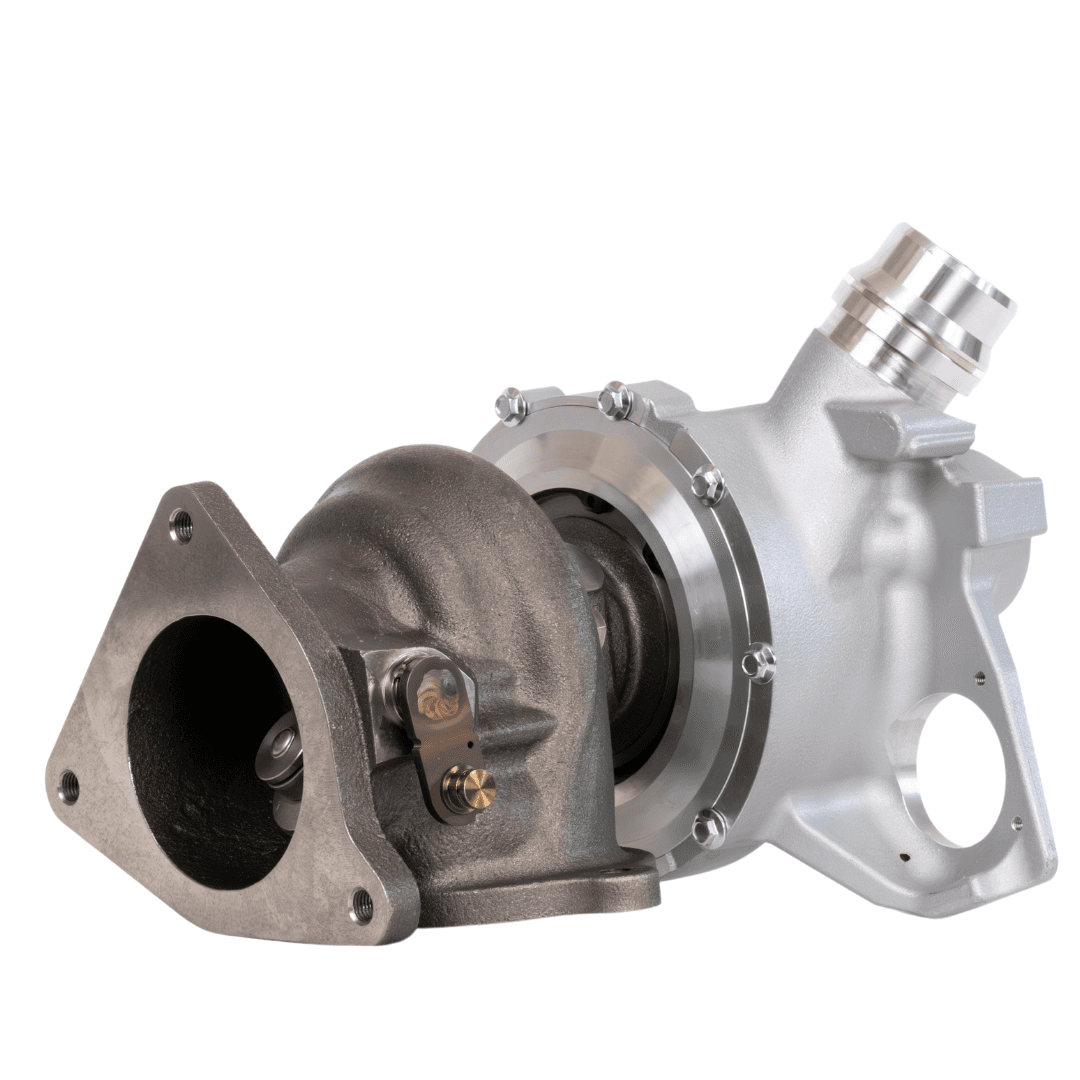

Introducing our Brand New TR VB670 Upgrade Subaru WRX '22+ Turbo Kit for the VB Chassis WRX! This turbocharger upgrade has been expertly designed for direct OEM fitment, allowing for seamless, bolt-on installation without modifications. Built to meet the demands of high-performance enthusiasts, it integrates advanced technology for faster spool times, enhanced durability, and an impressive boost response, making it ideal for both street and track applications.

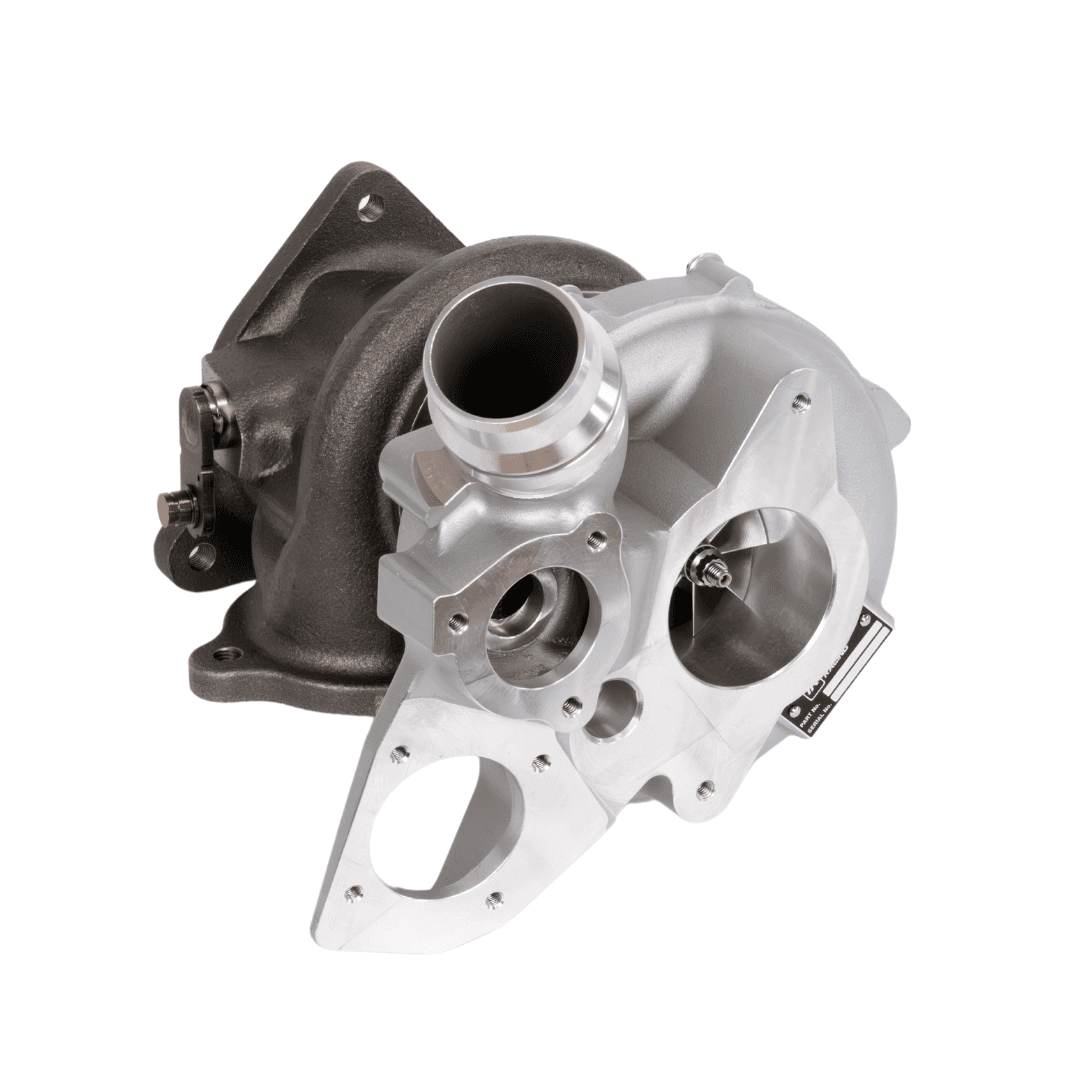

At the core of the TR-TS1055 is a Dual Ceramic Ball Bearing CHRA, which ensures reduced friction and faster spool times, especially under high-boost conditions. The precision-engineered high-performance compressor wheel measures 54.37mm on the inducer side and 67.5mm on the exducer, providing a significant airflow boost over the OEM specs, translating into improved efficiency and power output.

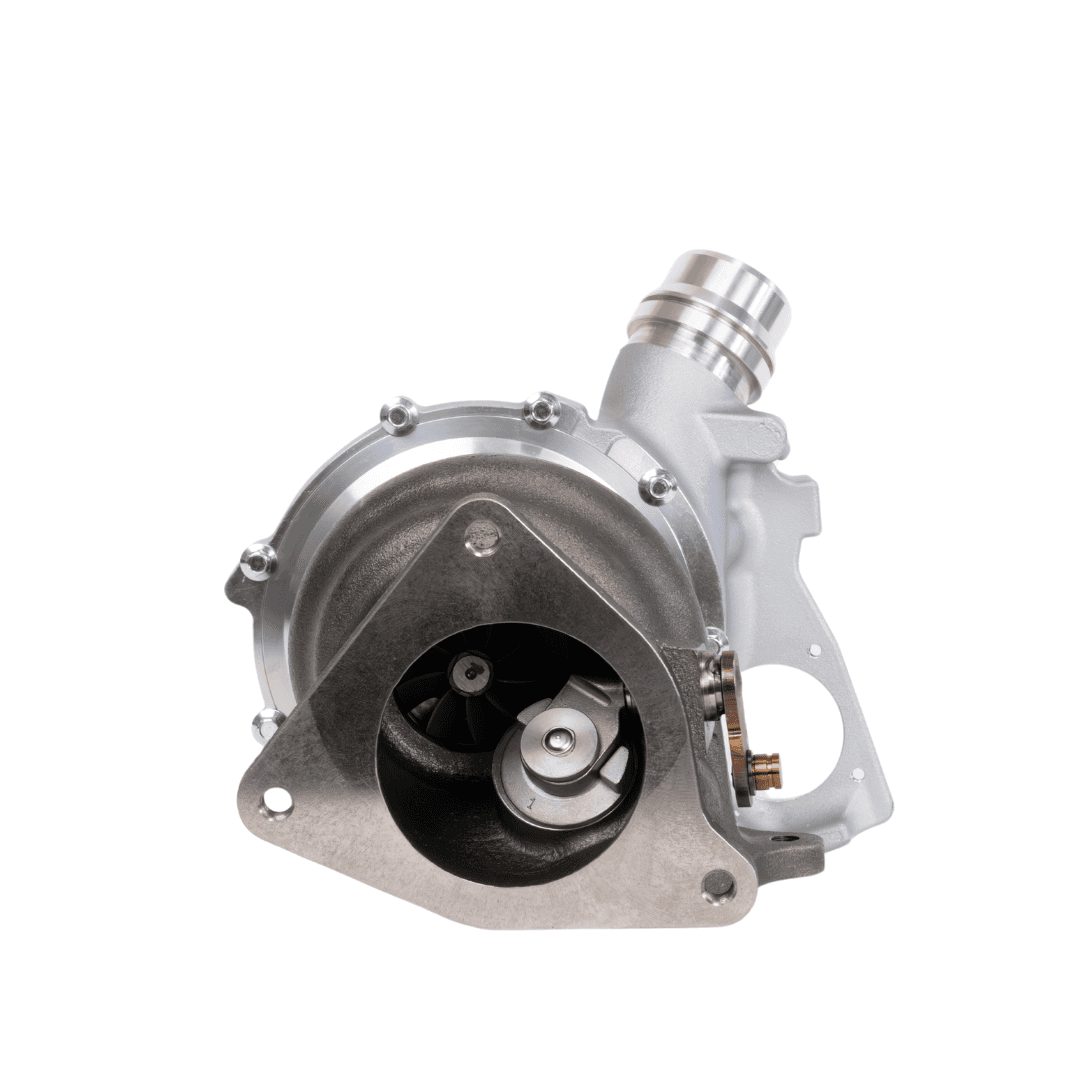

Engineered with a durable turbine wheel (54mm inducer, 49mm exducer), this turbo ensures efficient exhaust management to maximize turbo performance. The lightweight, point-milled billet aluminum wheel enhances durability and minimizes weight for quicker spooling and greater reliability. Designed to handle up to 670 HP, the TR-TS1055 turbo is an essential upgrade for those aiming to unlock the full potential of their WRX FA24DIT.

Professionally assembled and VSR-balanced, this turbocharger meets the highest standards of precision and quality, ensuring it performs under the most demanding conditions.

Product Features

Direct OEM Fitment: Bolt-on installation, no modifications required for 2022+ Subaru WRX FA24DIT. Fits all aftermarket intakes and intake inlet adapters that are made to fit the OEM turbo.
Dual Ceramic Ball Bearing CHRA: Provides faster spool, durability, and high-boost performance.
High-Performance Compressor Wheel: 54.37mm inducer, 67.5mm exducer for optimized airflow.
Durable Turbine Wheel: 54mm inducer, 49mm exducer for efficient exhaust gas management.
Lightweight Billet Wheel: Strong, lightweight design for improved reliability and faster spooling.
Supports up to 670 HP: Maximizes the WRX FA24DIT’s performance potential.
Professionally Assembled & VSR Balanced: Ensures longevity and reliability under high-stress conditions.
Free Base Map: Tune is included done by Delicious Tuning

Turbo Specifications

Compressor Wheel Inducer	54.37mm (vs. OEM 44mm)
Compressor Wheel Exducer	67.5mm (vs. OEM 60mm)
Turbine Wheel Inducer	54mm (OEM equivalent)
Turbine Wheel Exducer	49mm (vs. OEM 44mm)
Bearing System	Dual Ceramic Ball Bearing
Supported Power	Up to 670 HP
Wheel Construction	Lightweight Point Milled Billet Aluminum
Assembly Balance	VSR Balanced

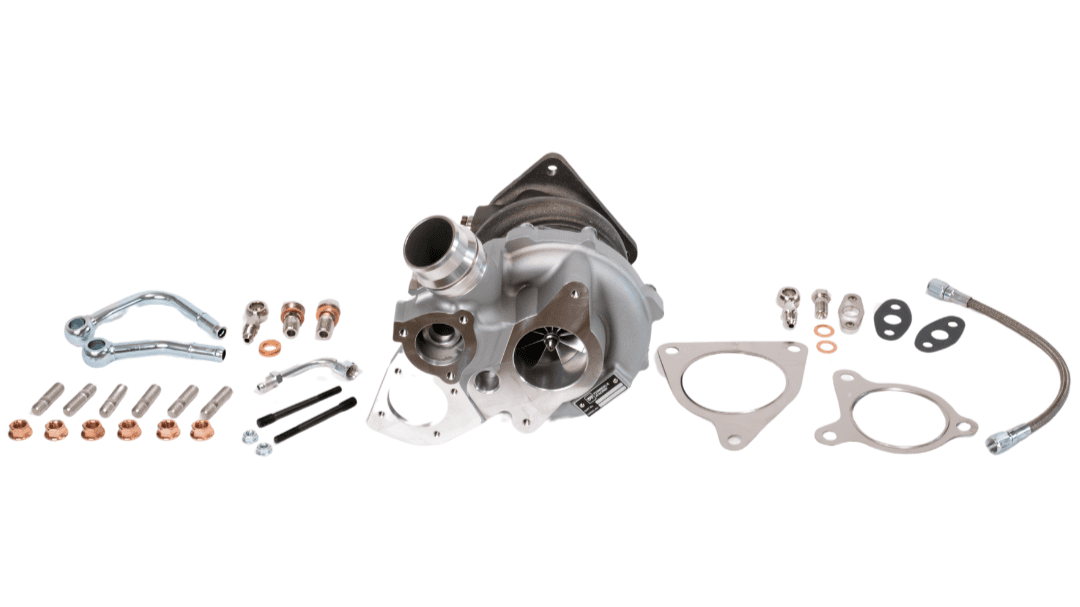

Kit Contents

Turbocharger
Gasket
Hardware Kit

Applications

Subaru WRX 2022+
