Description
-

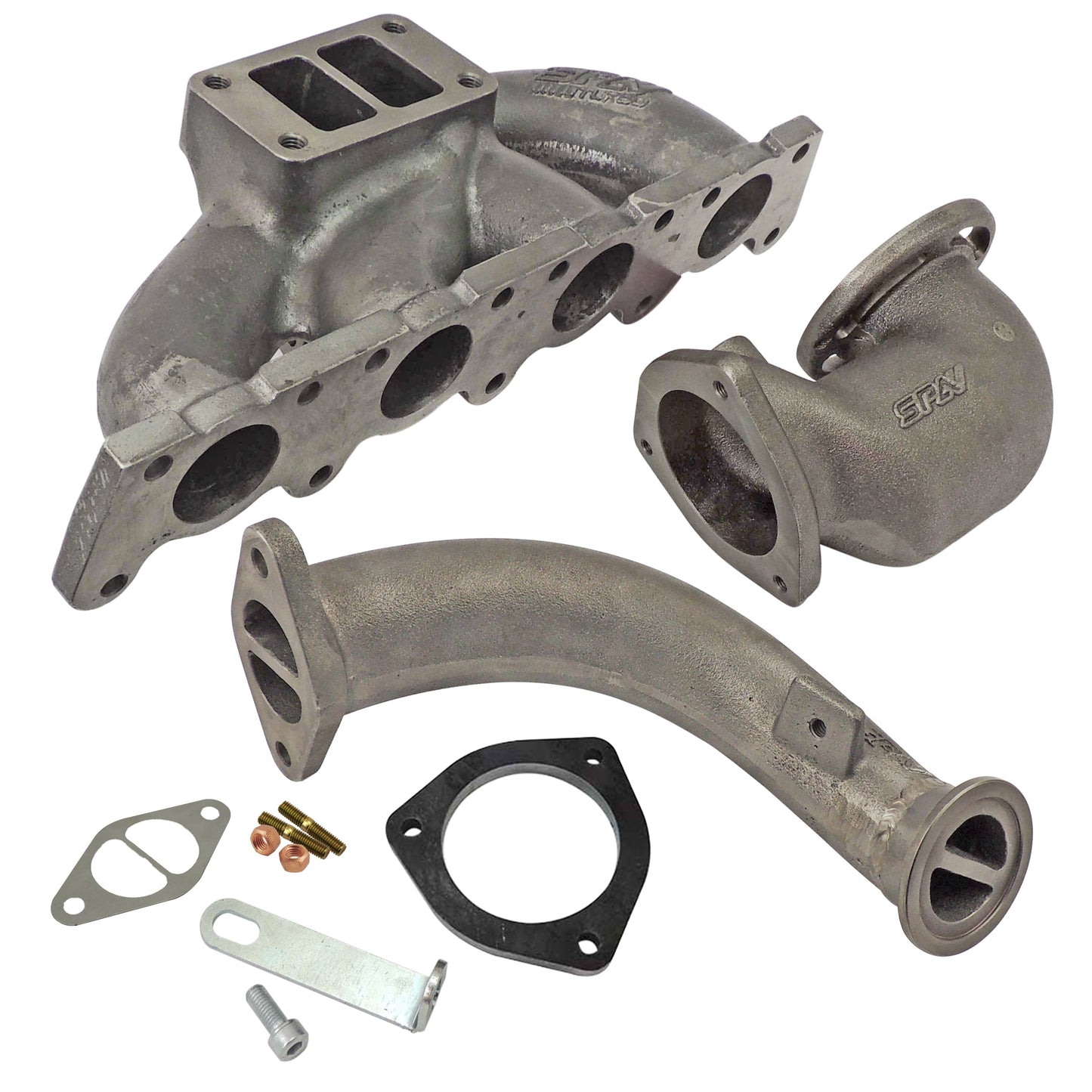

The best-selling turbo manifold on the market (TMA06) has evolved into TMA16 EVOLUTION! After much study of our engineering sector, with 1.8T 20V specialists, a new project full of improvements emerged.
-
Better performance, with optimized flow thanks to redesigned runners.
-
‚ Perfect position of the wastegate, allowing the application of large valves, facilitating boost control and possible maintenance.
-
Ideal turbocharger positioning for building a pressurization with smooth curves and accommodates turbines as big as GT35 and similar.
-
Includes cast initial exhaust outlet and 3¢â‚¬ flange for making the rest of the exhaust, facilitating application.
-
Application: VW/Audi 1.8T 20V transverse
-
Turbocharger mount: Top mount
-
Turbine housing flange: T3
-
Wastegate flange: V-Band 44/45mm
-
Runners internal diameter: 42mm
-
Material: Cast iron
- Turbo Flange Bolt Specs: T2 turbo flange bolt holes: M8x1.25; T3/T4 turbo flange bolt holes: M10x1.5; Wastegate flange bolt holes (if applicable): M8x1.25
